GODOX ML100R Pocket LED Video Light User Manual

1. Introduction

Thank you for purchasing the GODOX ML100R Pocket LED Video Light. This compact and versatile full-color RGB light is designed for various photography and videography applications, offering a wide color temperature range, multiple lighting effects, and convenient app control. This manual provides detailed instructions for safe operation, setup, and maintenance of your device. Please read this manual carefully before use to ensure proper operation and to maximize the product's lifespan.

2. Safety Information

To prevent damage to the product or injury to yourself or others, please read the following safety precautions completely before using this product. Keep these safety instructions where users can read them.

• Do not disassemble or modify this product. If the product fails, it must be repaired by an authorized maintenance center.
• Keep this product dry. Do not handle with wet hands or immerse in water.
• Do not use the product in the presence of flammable gases, chemicals, or other materials.
• Do not leave or store the product in high-temperature environments, such as in a car on a hot day.
• Do not point the light directly at human or animal eyes from a close distance.
• Keep out of reach of children.
• Always use the specified power adapter and accessories.

3. Package Contents

Please check to ensure all items are included in your package:

• 1 x GODOX ML100R LED Photography Light
• 1 x Light Head Protection Cover
• 1 x Lens Reflector Cup ML-L15
• 1 x Lens Reflector Cup ML-L36
• 1 x NP-F Battery Accessory Kit AK-B01
• 1 x Bracket AD-E2
• 1 x Adapter
• 1 x AC Power Cord
• 1 x Storage Bag
• 1 x User Manual (this document)

Image: Contents of the GODOX ML100R Kit, including the light, reflector cups, battery kit, bracket, adapter, power cord, and storage bag.

4. Product Overview

The GODOX ML100R is a compact and portable full-color RGB LED video light designed for professional and enthusiast use. It features an innovative HSI/RGBW color mode system, a wide color temperature range from 1800K to 10000K, and 14 built-in special effects. The light can be controlled via its onboard interface or through the Godox Light App via Bluetooth.

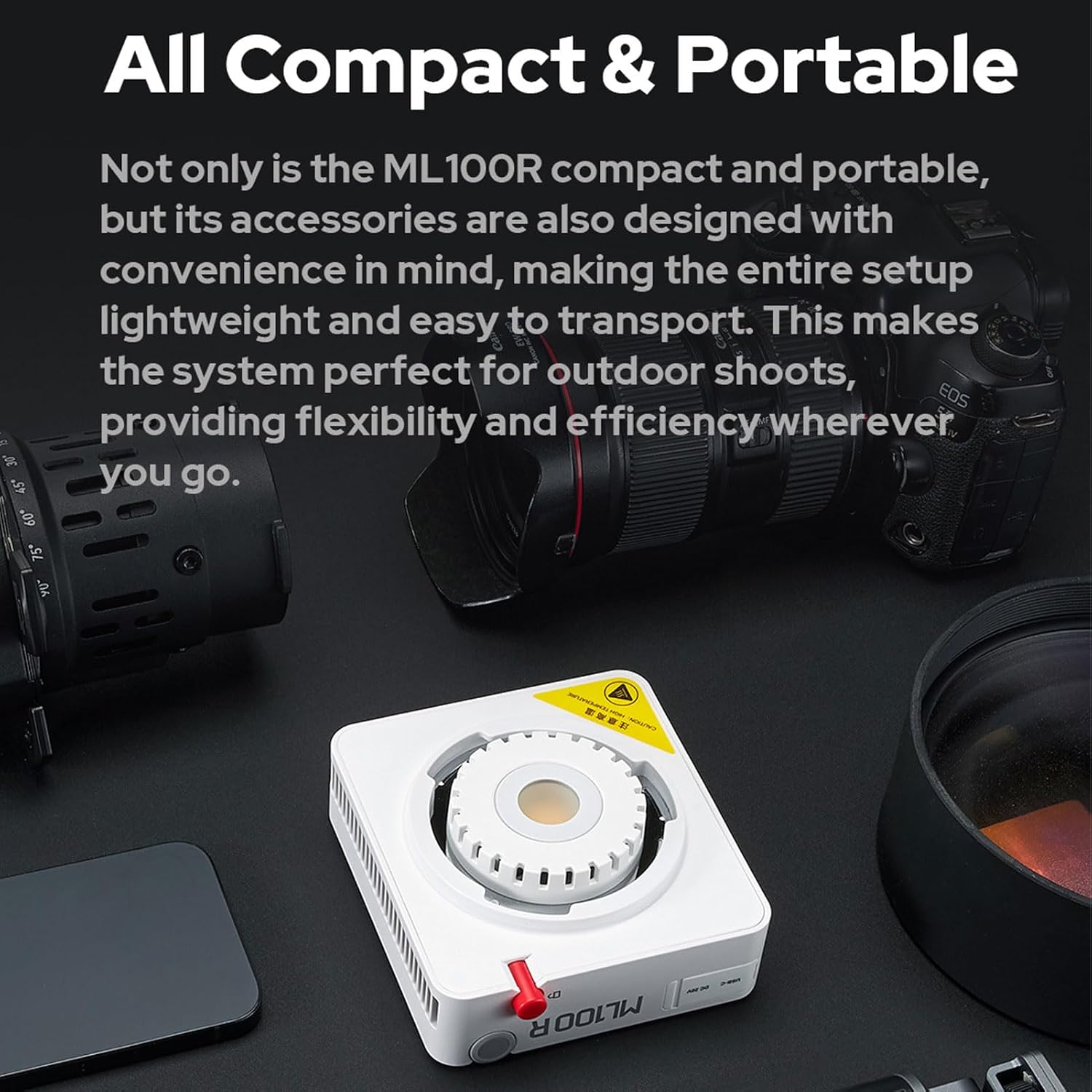

Image: Front view of the GODOX ML100R Pocket LED Video Light, showcasing its compact design.

Key Features:

• Full-Color RGB Output: HSI/RGBW color mode for vibrant and saturated colors.
• Wide CCT Range: Adjustable color temperature from 1800K (warm) to 10000K (cool).
• 14 Special FX Effects: Built-in lighting effects like fire, lightning, party, and more.
• App Control: Seamless control via the Godox Light App for iOS and Android devices.
• Compact & Portable: Lightweight design (465g) for easy transport and setup.
• Multiple Power Options: Supports AC power, NP-F batteries, and USB-C power banks.

Image: Diagram illustrating various power options for the ML100R, including AC power, battery grips, and USB-C power banks.

5. Setup

5.1 Attaching Accessories

1. Reflector Cups: Align the reflector cup (ML-L15 or ML-L36) with the front of the light and twist gently until it locks into place.
2. Bracket AD-E2: Attach the AD-E2 bracket to the bottom of the ML100R using the 1/4" screw mount. This allows mounting the light onto a light stand or tripod.
3. NP-F Battery Accessory Kit AK-B01: If using NP-F batteries, attach the AK-B01 kit to the bracket or directly to the light if applicable, and insert compatible NP-F batteries.

5.2 Powering the Device

The ML100R can be powered in several ways:

• AC Power: Connect the provided AC adapter to the light's power input port and then plug the AC power cord into a wall outlet.
• NP-F Batteries: Use the NP-F Battery Accessory Kit AK-B01 with compatible NP-F batteries. Ensure batteries are fully charged before use.
• USB-C Power Bank: The light supports power delivery via its USB-C port from a compatible power bank.

6. Operating Instructions

6.1 Power On/Off

Press and hold the power button located on the side of the unit to turn the light on or off.

6.2 Basic Mode Selection

Use the mode button to cycle through different operating modes: CCT (Correlated Color Temperature), HSI (Hue, Saturation, Intensity), and FX (Special Effects).

6.3 CCT Mode (Color Temperature)

In CCT mode, you can adjust the color temperature from 1800K to 10000K. Use the control dial to increase or decrease the Kelvin value. This allows for precise adjustments to match ambient light or create specific moods.

Image: Illustration of the GODOX ML100R's wide color temperature range, from 1800K to 10000K, demonstrating its versatility.

6.4 HSI Mode (Hue, Saturation, Intensity)

In HSI mode, you can control the hue (color), saturation (intensity of the color), and intensity (brightness) independently to achieve any desired color output.

6.5 FX Effects Mode

The ML100R features 14 pre-programmed special effects to simulate various scenarios. Cycle through the effects using the control dial or buttons. Available effects include:

• RGB Cycle
• Party
• Flash
• Lightning
• Explosion
• TV
• Candle
• Fire
• Fireworks
• Welding
• Police Car
• SOS
• Cloudy
• Broken Bulb

Image: Icons representing the 14 creative effects available on the GODOX ML100R, such as RGB Cycle, Party, Flash, and Fire.

6.6 App Control (Godox Light App)

The ML100R can be controlled wirelessly via Bluetooth using the Godox Light App, available for both iOS and Android devices. This allows for remote adjustment of all settings, including CCT, HSI, and FX effects, and can control multiple lights simultaneously.

1. Download the "Godox Light" app from your device's app store.
2. Ensure Bluetooth is enabled on your mobile device.
3. Power on the ML100R.
4. Open the Godox Light app and follow the on-screen instructions to search for and connect to your ML100R device.
5. Once connected, you can adjust all parameters directly from the app interface.

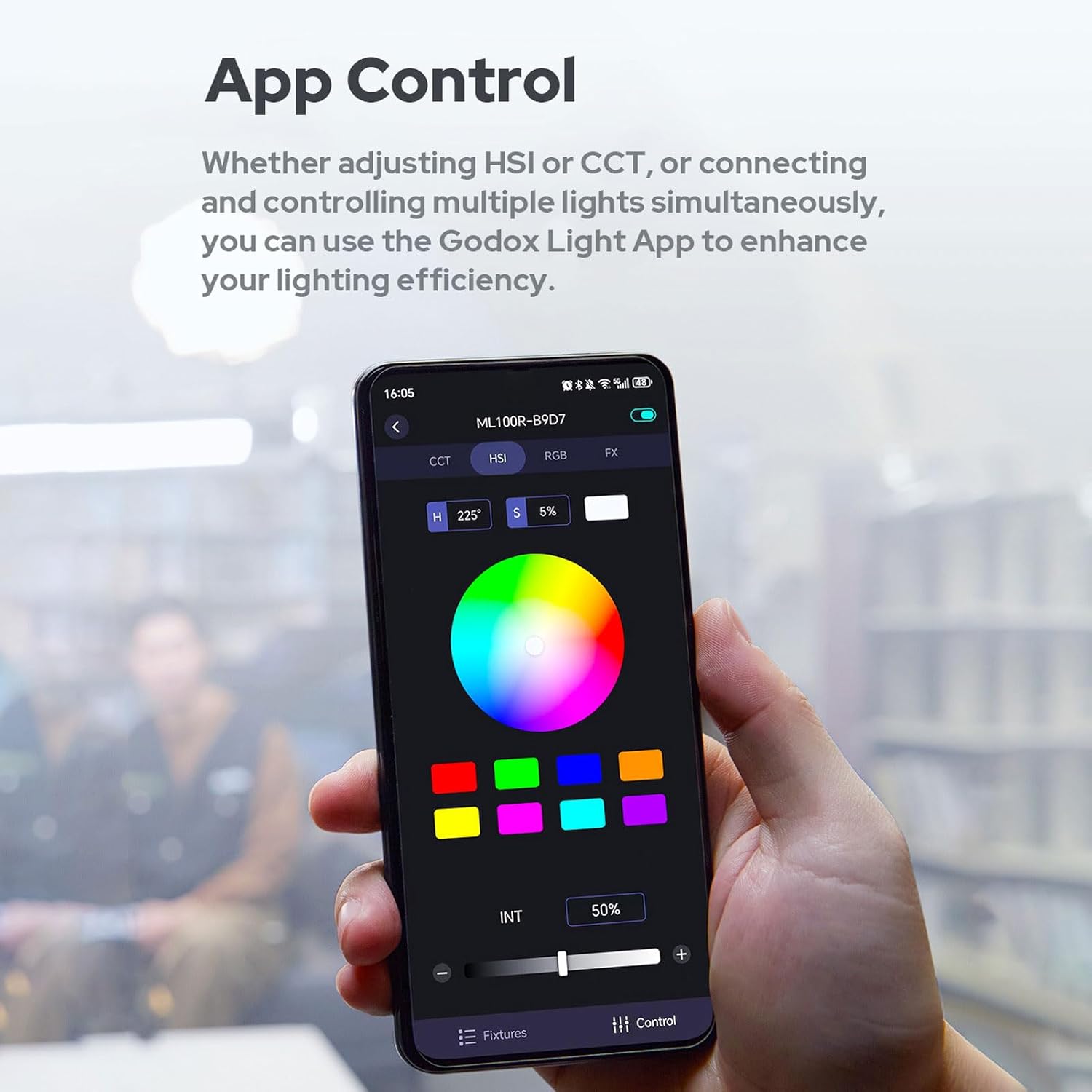

Image: A hand holding a smartphone displaying the Godox Light App interface, showing HSI color selection and intensity control for the ML100R.

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your GODOX ML100R.

• Cleaning: Use a soft, dry cloth to clean the light. Do not use harsh detergents or solvents. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying.
• Storage: Store the light in a cool, dry place, away from direct sunlight and excessive humidity. Use the provided storage bag for protection during transport and storage.
• Battery Care: If using NP-F batteries, remove them from the device when not in use for extended periods. Store batteries in a cool, dry place and recharge them periodically to maintain their health.
• Avoid Impact: Protect the light from drops and strong impacts, which can damage internal components.

8. Troubleshooting

If you encounter issues with your GODOX ML100R, refer to the following common problems and solutions:

• Light does not turn on:
  • Ensure the power adapter is securely connected and plugged into a working outlet.
  • If using batteries, check if they are properly inserted and fully charged.
  • Verify the power button is pressed and held for a few seconds.
• App cannot connect to the light:
  • Make sure Bluetooth is enabled on your mobile device.
  • Ensure the light is powered on and within Bluetooth range.
  • Try restarting both the light and the Godox Light app.
  • Check if there are any other devices interfering with the Bluetooth connection.
• Light output is inconsistent or flickering:
  • Check the power source. If using AC, ensure the adapter is not damaged. If using batteries, ensure they are adequately charged.
  • Ensure the light is not overheating. Allow it to cool down if necessary.
• Buttons or dials are unresponsive:
  • Try turning the light off and on again.
  • Ensure no debris is obstructing the buttons or dials.

If the problem persists after trying these solutions, please contact GODOX customer support for assistance.

9. Specifications

10. Warranty and Support

The GODOX ML100R Pocket LED Video Light comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official GODOX website for detailed warranty terms and conditions.

For technical support, service, or inquiries, please contact GODOX customer service through their official website or the contact information provided in your product packaging. Please have your product model and serial number ready when contacting support.
