WLIVE Floating Full Bed Frame Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your WLIVE Floating Full Bed Frame. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.

Safety Information

Important Safety Warnings:

• Do not exceed the weight capacity of 1500 pounds.
• Be cautious of sharp edges and pinch points during assembly and use.
• Always follow the assembly instructions carefully to prevent instability or collapse.
• Ensure all connections are securely tightened before use.
• Keep children and pets away from the assembly area.

Package Contents

Verify that all components are present before beginning assembly. Refer to the assembly diagram for part identification.

Figure 1: Assembly Instructions Diagram (from video "ACHJ005 006 007 bed frame")

The package should include all necessary frame components, hardware, tools, LED light strip, and power adapter with charging station.

Assembly Instructions

Follow these steps carefully for proper assembly. It is recommended to assemble the bed frame with two people.

1. Step 1: Assemble the Center Support Structure. Connect the main center beams (Part 1) using the provided bolts (Part A) and Allen key (Part I). Attach the vertical support legs (Part 2, Part 3) to the center beams.
2. Step 2-3: Extend the Center Structure. Attach additional center beams (Part 4) and vertical support legs (Part 5, Part 6) to complete the central support. Secure with bolts (Part B) and washers (Part D).
3. Step 4-6: Assemble the Outer Frame. Connect the four outer frame sections (Part 7, Part 8, Part 9, Part 10) using bolts (Part E) and the wrench (Part J). Ensure corners are tightly secured.
4. Step 7-8: Attach Center Support to Outer Frame. Secure the assembled center support structure to the outer frame using bolts (Part E) and the wrench (Part J).

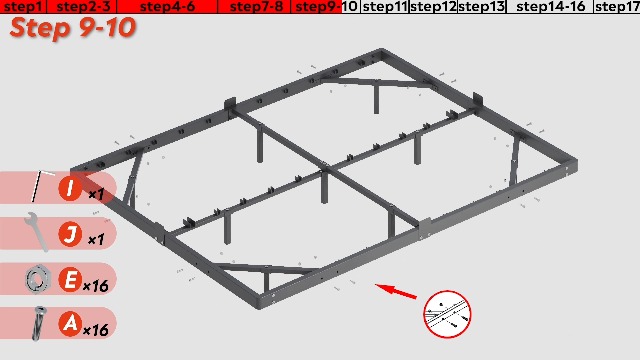

5. Step 9-10: Install Corner Brackets. Attach the triangular corner support brackets (Part 11, Part 12) to the outer frame and center structure using bolts (Part E) and the wrench (Part J).
6. Step 11: Add Additional Crossbars. Install the remaining crossbars (Part 13) to enhance stability.
7. Step 12: Install Charging Station. Mount the charging station (Part 17) to the designated slot on the side rail using bolts (Part F) and the wrench (Part K).
8. Step 13: Secure Mattress Stoppers. Attach the mattress stopper components (Part 16) to the frame using thumb screws (Part G).
9. Step 14-16: Install LED Lights. Attach the LED light strip (Part M) to the underside of the bed frame. Use the provided adhesive and Velcro straps (Part H) to ensure secure placement. Connect the LED light strip to the power cable (Part L).
10. Step 17: Install Slats. Place all metal slats (Part 14) across the frame. Ensure they are evenly spaced and secured. If some slats are difficult to place, slightly loosen the frame screws, insert the slats, then re-tighten all screws.

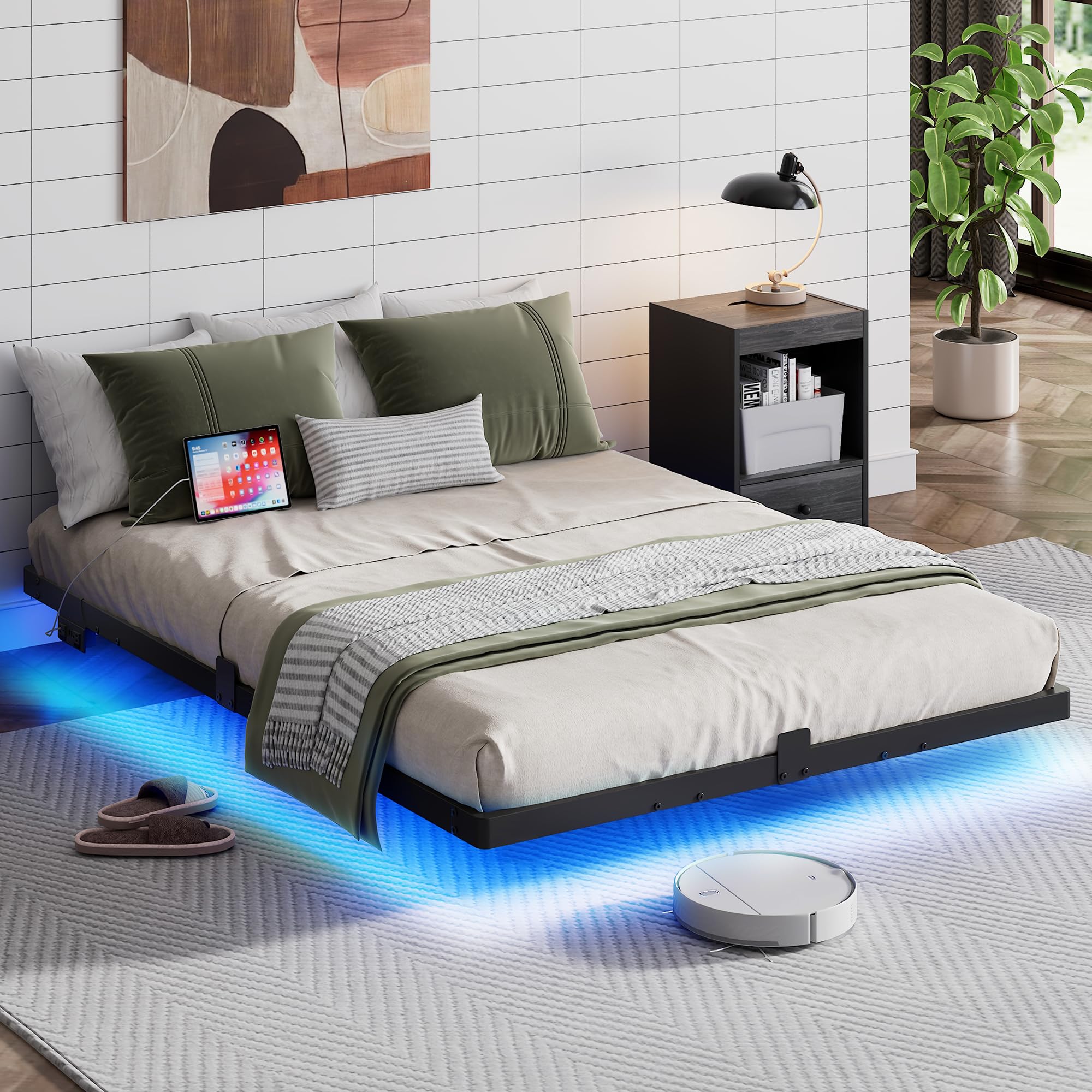

Figure 2: Fully assembled WLIVE Floating Full Bed Frame.

Operating Instructions

LED Lighting System

The integrated LED light strips offer customizable ambiance for your bedroom.

• Control: Use the included remote control or a compatible mobile application to manage the LED lights.
• Modes: Choose from 12 scene modes to suit your preference.
• Colors: Select from 20 different colors.
• Adjustments: Adjust the speed and brightness of the lighting effects.

Figure 3: LED Light Features and Control Options.

Built-in Charging Station

The bed frame includes a convenient charging station to power your devices.

• AC Outlets: Two 125V/12A AC outlets for standard electronics.
• USB Ports: Two 5V/2A USB ports for charging mobile devices.
• Power Cord: Features a 1.5m flexible power cable.
• Safety: UL/ETL certified for electrical safety.

Figure 4: Built-in Charging Station.

Maintenance

Regular maintenance will extend the life and appearance of your bed frame.

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Tightening: Periodically check and re-tighten all bolts and screws to ensure stability.
• LED Lights: Ensure the LED strips are securely attached. If adhesive weakens, re-secure with additional Velcro or appropriate adhesive.
• Power Outlets: Keep the charging station free from dust and debris. Do not overload the outlets.

Troubleshooting

Specifications

Figure 5: Product Dimensions for Full Size.

Warranty and Support

For any questions, concerns, or assistance with your WLIVE Floating Full Bed Frame, please contact WLIVE customer support. Refer to your purchase documentation for specific warranty details.

WLIVE is committed to providing professional after-sales service to ensure your satisfaction.
