Junsun 12-inch 800W Powered Spare Tire Car Subwoofer User Manual

Model: JS-US-SUB1206

1. Introduction

Thank you for choosing the Junsun 12-inch 800W Powered Spare Tire Car Subwoofer. This product is designed to enhance your vehicle's audio system by delivering powerful, distortion-free bass. Its innovative hidden spare tire design allows for discreet installation, saving valuable trunk space and offering an anti-theft benefit. This manual provides essential information for safe installation, operation, and maintenance of your subwoofer.

2. Safety Information

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in serious injury or damage to the product or vehicle.

  • Always disconnect the vehicle's negative battery terminal before beginning any electrical installation.
  • Ensure proper grounding of the subwoofer to the vehicle chassis.
  • Use appropriate gauge wiring as specified in the installation section to prevent overheating and electrical hazards.
  • Do not install the subwoofer in a location that obstructs the driver's view or interferes with vehicle operation.
  • Avoid exposing the subwoofer to moisture or extreme temperatures.
  • If you are unsure about any part of the installation process, seek professional assistance.

3. Package Contents

Verify that all items are present in the package before proceeding with installation.

  • Spare tire active subwoofer (1 pc)
  • Owner's Manual (English) (1 pc)
  • Screw with nut (M6x200mm) (1 pc)
  • Plug and play wire harness & Signal line (1 pc)
  • Remote control (1 pc)
Image showing all components included in the Junsun 12-inch 800W Powered Spare Tire Car Subwoofer package, including the subwoofer unit, various wiring harnesses, a remote control, and mounting hardware.

Figure 3.1: Included Components and Wiring Kit

4. Product Features

  • Powerful Output Performance: This 12-inch powered subwoofer delivers 800W peak power and 220W RMS power, ensuring powerful, distortion-free bass.
  • Innovative Hidden Spare Tire Design: Fits perfectly into your vehicle's spare tire well, saving trunk space and offering an anti-theft benefit due to its concealed nature.
  • All-in-One Plug & Play Solution: Integrates the subwoofer, built-in amplifier, and enclosure, and comes with a full wiring kit, simplifying installation.
  • Professional Sound Tuning Controls: Fine-tune your sound precisely via the onboard controls or included wired remote, adjusting the Low-Pass Filter (LPF), Gain, and Bass Boost.
  • Broad Vehicle Compatibility: Supports both high-level speaker wire input and RCA low-level input with auto turn-on functionality, integrating with most factory and aftermarket stereos.
  • Durable Cast Aluminum Enclosure: Built with a high-strength cast aluminum enclosure for robust durability, corrosion resistance, and superior heat dissipation.
  • Multi-Layered Protection Circuitry: Equipped with built-in triple protection against overheating, overload, and short circuits.
Image showing the Junsun subwoofer discreetly installed within a vehicle's spare tire well, demonstrating its hidden design.

Figure 4.1: Hidden Spare Tire Design

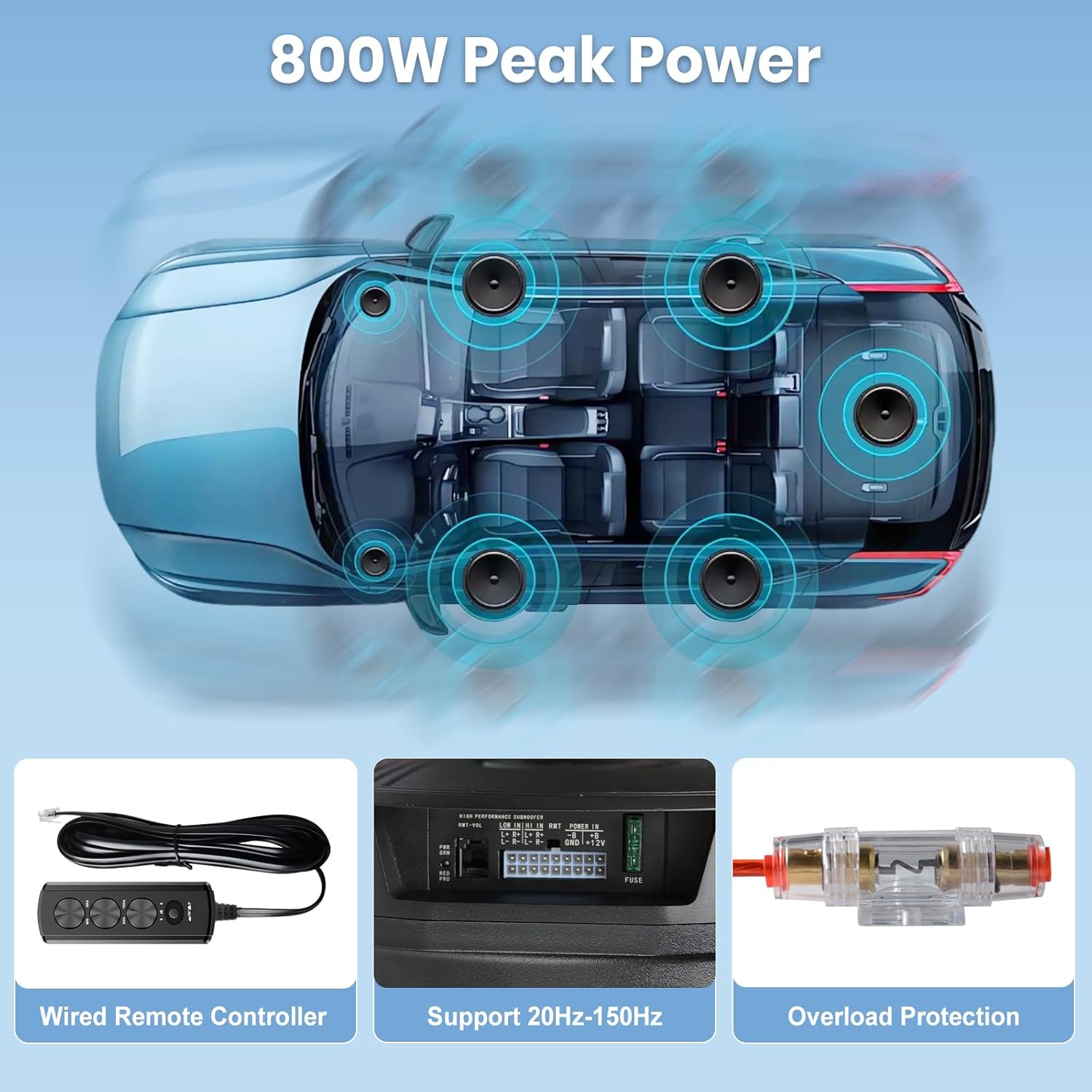

Image illustrating the 800W peak power output of the subwoofer, along with visuals of the wired remote controller and overload protection features.

Figure 4.2: Power and Control Features

5. Specifications

Image displaying the control panel features, detailed specifications, and a list of contents for the Junsun subwoofer.

Figure 5.1: Panel Features and Specifications

FeatureValue
Model NameJS-US-SUB1206
Speaker TypeSubwoofer
RMS Power220W
MAX Power800W
THD<1.0%
Signal-to-Noise Ratio>91dB
Frequency Response20Hz-150Hz
Input Sensitivity (High Level)1V
Input Sensitivity (Low Level)0.4V
Low Pass Filter50Hz-150Hz
Bass Boost0 to +12dB
Subsonic Filter20Hz
Fuse Rating30A
Subwoofer Diameter12 Inches
Product Dimensions2.95"D x 10.24"W x 13.58"H
MaterialAluminum

6. Installation

The Junsun subwoofer is designed for straightforward installation. It can be placed in the spare tire well of most vehicles. Follow these general steps for installation:

  1. Prepare the Vehicle: Disconnect the negative terminal of your car battery. Locate your spare tire well.
  2. Mount the Subwoofer: Place the subwoofer securely in the spare tire well. Use the provided screw and nut to fasten it if your vehicle's spare tire mounting system allows.
  3. Power Wiring: Run the power wire from the subwoofer to the car's battery. Ensure the wire is properly routed and protected from sharp edges or moving parts. Connect the inline fuse holder close to the battery.
  4. Ground Wiring: Connect the ground wire from the subwoofer to a clean, unpainted metal surface on the vehicle chassis. Ensure a solid connection for optimal performance and safety.
  5. Signal Input: Connect the signal wires from your car's head unit to the subwoofer. You can use either high-level speaker wire inputs or RCA low-level inputs, depending on your head unit's capabilities.
  6. Remote Turn-On: Connect the remote turn-on wire to a switched 12V source from your head unit (e.g., amplifier remote output).
  7. Connect Remote Control: Attach the included wired remote control to the subwoofer. Route the cable to a convenient location for easy access while driving.
  8. Final Checks: Double-check all connections for security and proper polarity. Reconnect the negative battery terminal.
Image showing the Junsun subwoofer placed inside a car's spare tire compartment, with some wiring visible, illustrating the hidden installation concept.

Figure 6.1: Subwoofer Placement in Spare Tire Well

Image depicting a detailed wiring diagram for the Junsun subwoofer, showing connections for power, ground, signal inputs, and remote turn-on.

Figure 6.2: Wiring Diagram

7. Operation

Once installed, you can control and fine-tune your subwoofer using the wired remote control.

7.1 Wired Remote Control

The remote control allows you to adjust key settings for optimal bass performance:

  • Gain Control (MIN/MAX): Adjusts the overall output level of the subwoofer. Start with a low setting and gradually increase until the desired bass level is achieved without distortion.
  • Bass Boost (0dB/6dB/12dB): Provides an additional boost to low frequencies. Use sparingly to avoid over-driving the subwoofer.
  • Low-Pass Filter (LPF) (30Hz-150Hz): Controls the upper frequency limit of the subwoofer. Set this to blend smoothly with your main speakers.
  • Phase Switch (0°/180°): Adjusts the phase of the subwoofer output. Experiment with both settings to find the one that provides the most cohesive bass response with your main speakers.
Image of the wired remote control for the Junsun subwoofer, showing its various knobs for gain, bass boost, LPF, and phase adjustment.

Figure 7.1: Wired Remote Control

8. Maintenance

To ensure the longevity and optimal performance of your Junsun subwoofer, follow these maintenance guidelines:

  • Cleaning: Use a soft, dry cloth to clean the exterior of the subwoofer. Do not use harsh chemicals or abrasive cleaners.
  • Ventilation: Ensure that the subwoofer's enclosure has adequate airflow, especially if it's installed in a confined space. Proper ventilation helps dissipate heat and prevents overheating.
  • Wiring Inspection: Periodically check all wiring connections for tightness and signs of wear or corrosion. Loose connections can lead to poor performance or electrical issues.
  • Fuse Replacement: If the fuse blows, replace it only with a fuse of the same type and rating (30A). Never use a higher-rated fuse or bypass the fuse, as this can cause serious damage or fire.

9. Troubleshooting

If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagram and review the following troubleshooting tips.

Image of a troubleshooting table for the Junsun subwoofer, listing common symptoms like amplifier not powering up, protection LED, high hiss, squealing noise, distorted sound, amplifier getting hot, engine noise (static), and engine noise (alternator whine), along with possible remedies for each.

Figure 9.1: Troubleshooting Guide (Part 1)

Image of a troubleshooting table for the Junsun subwoofer, continuing from the previous section, providing remedies for issues like high hiss, squealing noise, distorted sound, amplifier getting hot, engine noise (static), and engine noise (alternator whine.

Figure 9.2: Troubleshooting Guide (Part 2)

10. Warranty and Customer Support

Junsun prioritizes your satisfaction. This subwoofer comes with a 3-year replacement warranty.

For any questions or support during your audio upgrade journey, our dedicated customer service team is available 24/7 to assist you.

10.1 How to Contact Support

You can typically find contact information for Junsun customer support through the retailer where you purchased the product or on the official Junsun website.

Image showing steps to contact Junsun Car Electronics customer support, indicating where to find the seller information and an 'Ask a question' button on a retail platform.

Figure 10.1: Customer Support Information
