Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your ZAFRO 12000 BTU 115V Mini Split Air Conditioner with Inverter. Please read this manual thoroughly before using the appliance and retain it for future reference. This unit is designed to provide both cooling and heating for spaces up to 750 square feet, featuring advanced inverter technology for energy efficiency.
Safety Information
Important Safety Instructions:
- Installation must be performed by a qualified and certified HVAC technician in accordance with all local and national electrical and safety codes.
- Ensure the power supply matches the unit's requirements (115V).
- Do not attempt to repair or service the unit yourself. Refer all servicing to qualified personnel.
- The unit contains R32 refrigerant. Handle with care and ensure proper ventilation during installation and servicing.
- Keep children and pets away from the outdoor unit.
- Do not block the air intake or outlet vents of either unit.
- Turn off the power supply to the unit before any cleaning or maintenance.
Product Overview

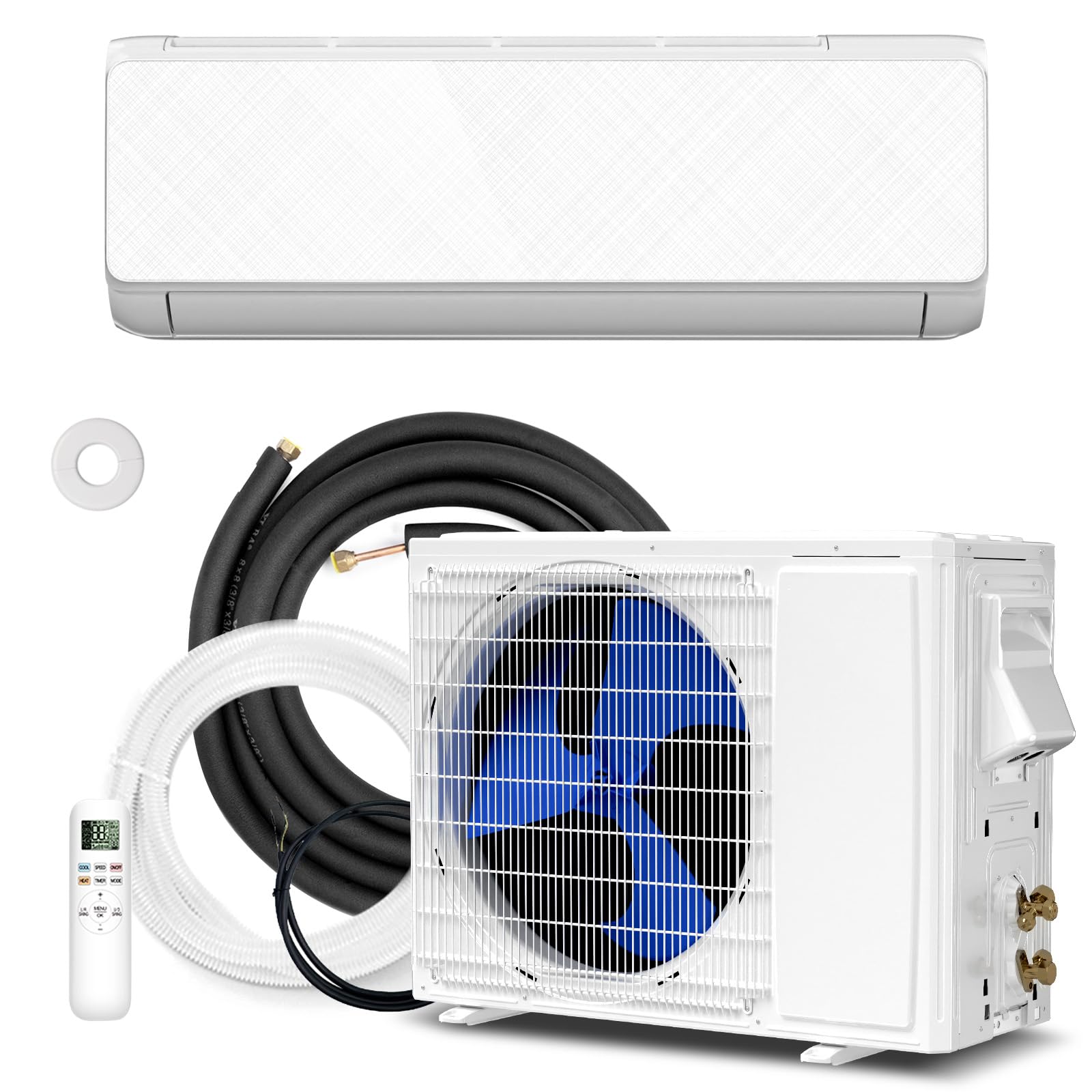

The ZAFRO Mini Split Air Conditioner system consists of an indoor unit and an outdoor unit, connected by refrigerant lines and electrical wiring. It utilizes inverter technology for precise temperature control and energy savings, achieving a 22 SEER2 rating. The system operates with R32 eco-refrigerant.
Image: The ZAFRO Mini Split Air Conditioner indoor unit effectively conditions a living space, highlighting its R32 refrigerant and 22 SEER2 energy efficiency, capable of cooling or heating up to 750 square feet.
Key Features:
- High Efficiency: 22 SEER2 rating with inverter compressor technology for significant energy savings.
- Multi-Mode Operation: Offers Cooling, Heating, Dehumidifying, and Fan modes.
- Quiet Operation: Indoor unit noise level is approximately 42 dB, ensuring a comfortable environment.
- Wide Airflow: Optimized airflow design with 15°-142° horizontal oscillation and 96° vertical sweep for comprehensive room coverage.
- Certified Quality: AHRI and ETL dual certified for safety, efficiency, and durability.
Setup and Installation
The installation of this mini split air conditioner requires specialized tools and knowledge of HVAC systems, electrical wiring, and refrigerant handling. It is strongly recommended that installation be performed by a professional, certified HVAC technician.
General Installation Considerations:
- Location: Select appropriate locations for both the indoor and outdoor units, ensuring proper airflow and drainage.
- Mounting: Securely mount the indoor unit on a wall and the outdoor unit on a stable, level surface or wall bracket.
- Refrigerant Lines: Connect the pre-charged refrigerant lines between the indoor and outdoor units. Proper vacuuming of the lines is crucial.
- Electrical Connections: Connect the power supply (115V) and communication wiring according to the wiring diagram provided in the full installation manual. Ensure all connections are secure and meet electrical codes.
- Drainage: Install the condensate drain line from the indoor unit to ensure proper water removal.
Operating Instructions
Your ZAFRO Mini Split AC unit offers four primary operating modes to suit various climate conditions. All functions are typically controlled via the included remote control.
Image: The ZAFRO Mini Split AC unit offers four versatile modes: Fan for air circulation, Cool for temperature reduction, Dry for dehumidification, and Heat for warming the space.
Operating Modes:
- Cool Mode: For cooling the room. Set your desired temperature. The unit will operate to maintain this temperature.
- Heat Mode: For heating the room. Set your desired temperature. The unit will operate to maintain this temperature.
- Dry (Dehumidify) Mode: Reduces humidity in the room without significant temperature change.
- Fan Mode: Circulates air without cooling or heating. Fan speed can usually be adjusted.
Special Features:
Image: The ZAFRO Mini Split AC features a Quiet Sleep Mode, designed for restful nights with ultra-low noise operation (below 42 dB), and includes functions like turning off indicator lights and setting a timer.
- Quiet Sleep Mode: Activates ultra-low noise operation (indoor unit below 42 dB) for undisturbed sleep. This mode often adjusts temperature slightly and reduces fan speed.
- Timer Function: Allows you to program the unit to turn on or off automatically at specified times.
- Swing Function: Controls the horizontal and vertical oscillation of the air vanes to distribute air evenly.
Refer to your remote control manual for detailed instructions on setting modes, temperatures, fan speeds, and special functions.
Maintenance
Regular maintenance ensures optimal performance and longevity of your ZAFRO Mini Split AC unit. Always disconnect power before performing any maintenance.
Filter Cleaning:
- The air filters in the indoor unit should be cleaned every 2-4 weeks, or more frequently depending on usage and air quality.
- Open the front panel of the indoor unit and carefully remove the filters.
- Wash the filters with lukewarm water and a mild detergent. Rinse thoroughly and allow them to air dry completely before reinserting.
- Do not expose filters to direct sunlight or heat for drying.
Unit Cleaning:
- Wipe the exterior of both indoor and outdoor units with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Ensure the outdoor unit's coils are free from debris, leaves, and dirt. Gently brush away any obstructions.
- Periodically check the condensate drain line for blockages.
Professional Servicing:
- It is recommended to have a qualified technician inspect and service your unit annually, especially before the peak cooling or heating season. This includes checking refrigerant levels, electrical connections, and coil cleanliness.
Troubleshooting
Before contacting customer support, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power supply; circuit breaker tripped; remote control batteries dead. | Check power connection; reset circuit breaker; replace remote control batteries. |
| Insufficient cooling/heating | Dirty air filters; blocked outdoor unit; wrong mode selected; temperature setting too high/low; refrigerant leak. | Clean air filters; clear obstructions from outdoor unit; select correct mode; adjust temperature; contact technician for refrigerant check. |
| Unusual noise | Loose parts; fan obstruction; unit not level. | Check for loose components; remove fan obstruction; ensure unit is level; if noise persists, contact technician. |
| Water leakage from indoor unit | Blocked drain pipe; improper installation. | Clear drain pipe blockage; contact technician for inspection. |
If the problem persists after attempting these solutions, please contact ZAFRO customer support or a qualified service technician.
Specifications
Detailed technical specifications for the ZAFRO 12000 BTU Mini Split Air Conditioner, Model A7201SP-12K.
Image: This graphic provides a comprehensive overview of the ZAFRO Mini Split AC's performance metrics and physical dimensions for both the indoor and outdoor units.
| Specification | Value |
|---|---|
| Model Number | A7201SP-12K |
| Cooling Capacity | 12000 BTU |
| Heating Capacity | 12000 BTU |
| Voltage | 115 Volts |
| Energy Efficiency (SEER2) | 22 |
| Refrigerant Type | R-32 |
| Coverage Area | Up to 750 Sq. Ft |
| Indoor Unit Noise Level | 41.99 dB (approx. 42 dB) |
| Outdoor Unit Noise Level | 53 dB |
| Indoor Unit Dimensions (W x D x H) | 80.01 x 24.99 x 33.5 cm (31.5 x 9.84 x 13.39 inches) |
| Outdoor Unit Dimensions (W x D x H) | 80.01 x 30.00 x 57.00 cm (31.5 x 11.81 x 22.44 inches) |
| Cooling Airflow Distance | 6.5 meters |
| Heating Airflow Distance | 5 meters |
| Certifications | AHRI, ETL |
Warranty and Support
Your ZAFRO Mini Split Air Conditioner is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact ZAFRO customer support through the contact information provided in your product packaging or on the official ZAFRO website.
