1. Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your IMMERSTABLE Queen Bed Frame. This bed frame features a storage headboard, integrated LED lighting, and a convenient charging station. It is designed for use without a box spring, offering stable support for your mattress.
Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation of your new bed frame.

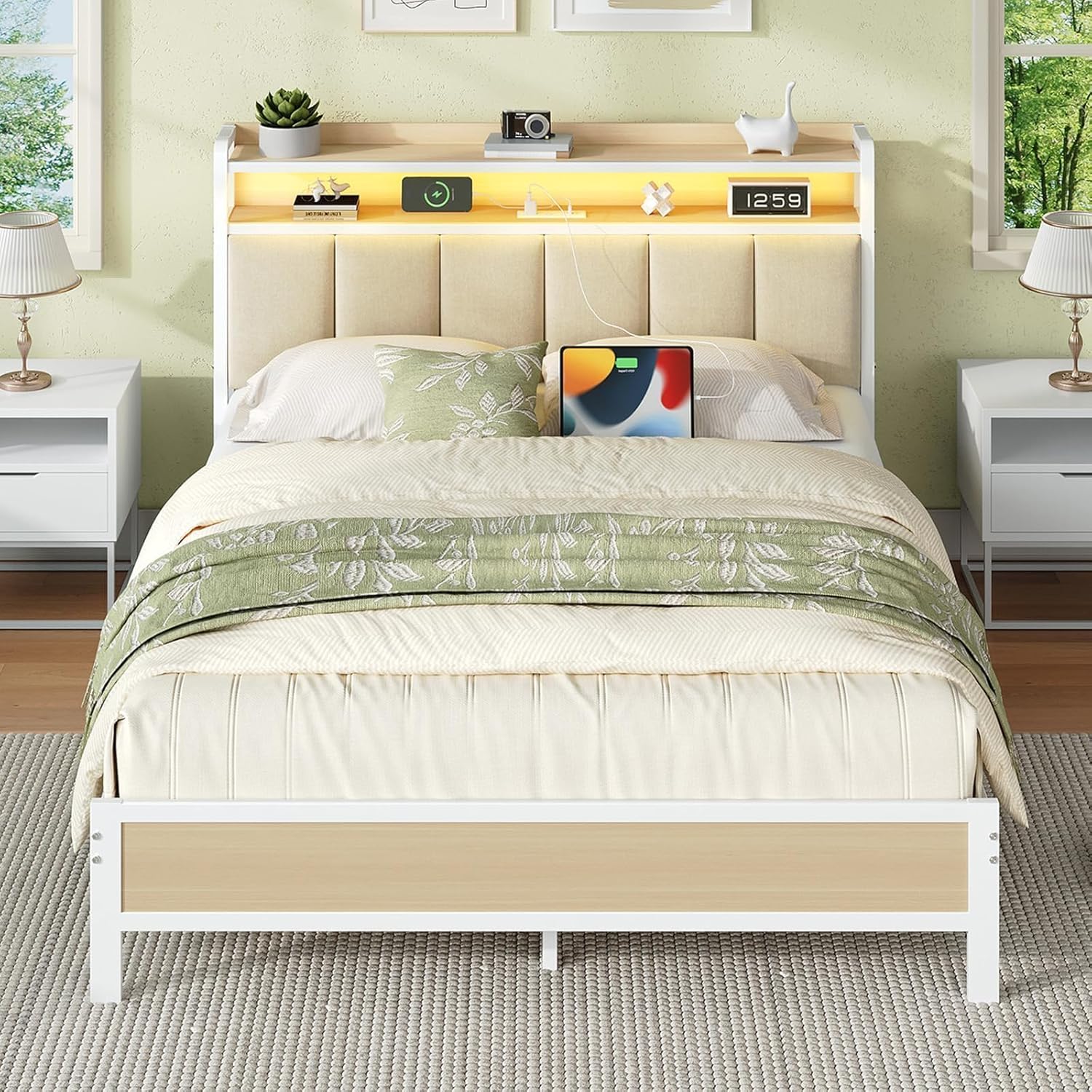

Image 1.1: The IMMERSTABLE Queen Bed Frame, showcasing its storage headboard, LED lighting, and overall design.
2. Safety Information
Adherence to the following safety guidelines is crucial for preventing injury and damage to the product.
- Assembly: Ensure all parts are present and undamaged before beginning assembly. Follow all assembly steps precisely. Do not overtighten screws.
- Weight Capacity: Do not exceed the maximum weight capacity of 700 lbs.
- Electrical Components: The integrated charging station and LED lights contain electrical components. Do not expose them to water or excessive moisture. Disconnect from power before cleaning or if any malfunction occurs.
- Children: Keep small parts away from children during assembly. Do not allow children to climb on the bed frame or play with electrical components.
- Placement: Place the bed frame on a level, stable surface.
- Maintenance: Regularly check all connections and fasteners to ensure they remain tight.
3. Package Contents
Verify that all components listed below are included in your package. If any parts are missing or damaged, please contact customer support.
- Headboard with integrated LED lights and charging station
- Bed frame side rails (2)
- Footboard
- Metal support slats
- Center support beam and legs
- Assembly hardware (screws, bolts, Allen wrench)
- Instruction Manual
4. Setup and Assembly
Assembly of the IMMERSTABLE Queen Bed Frame is required. It is recommended that two adults perform the assembly. Please ensure you have adequate space and all tools (typically an Allen wrench, which is usually included) before starting.
4.1. Preparation
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Identify each part using the provided parts list in your separate assembly guide.
4.2. Assembly Steps
- Attach the side rails to the headboard and footboard using the provided hardware. Ensure all connections are secure but do not fully tighten until the frame is aligned.
- Install the center support beam and its legs. Adjust the leg height if necessary to ensure even support.
- Place the metal support slats across the frame. The reinforced slats are designed to provide stable support for your mattress without the need for a box spring.
- Secure the slats to the frame using the designated fasteners.
- Once all components are in place, fully tighten all screws and bolts.
- Connect the power cord from the headboard to a standard electrical outlet.
Image 4.1: View of the under-bed space and the robust metal slat support system, designed for easy assembly.
Image 4.2: Visual representation of the easy assembly process, non-slip footboard design, and protective foot pads.
5. Operating Instructions
5.1. LED Lighting System
The integrated LED lights in the headboard offer customizable ambiance for your bedroom. They can be controlled via a smart controller or a dedicated mobile application.
- Power On/Off: Use the power button on the controller or within the app to turn the lights on or off.
- Color Selection: Choose from over 60,000 colors using the color wheel in the app or preset options on the controller.
- Brightness Adjustment: Adjust the light intensity to your preference.
- Timer Mode: Set a timer for the lights to automatically turn off.
- Music Mode: The lights can synchronize with music, creating dynamic visual effects.
Image 5.1: Overview of the LED lighting system features, including smart control, 60,000 colors, music mode, timer, adjustable brightness, and app control.
5.2. Charging Station
The headboard includes a built-in charging station for your electronic devices.
- Ports: The charging station is equipped with two standard AC outlets, one USB-A port, and one USB-C port.
- Usage: Simply plug your devices into the appropriate ports. The charging station allows for simultaneous charging of up to four electronic devices.
- Safety: Ensure devices are compatible with the charging station's output. Do not overload the outlets.
Image 5.2: Close-up view of the integrated charging station, detailing the two AC outlets, one USB-A port, and one USB-C port.
5.3. Storage Headboard
The 2-tier storage headboard provides convenient space for various items.
- Organization: Use the shelves to store commonly used items such as books, tissue boxes, alarm clocks, or decorative items.
- Accessibility: The design ensures easy access to your essentials from bed.
5.4. Upholstered Backrest
The padded headboard offers enhanced comfort.
- Comfort: The skin-friendly linen fabric and high-quality padding provide excellent back support for reading or relaxing in bed.
Image 5.3: Detail of the upholstered backrest, highlighting the skin-friendly linen fabric and high-quality padding for comfort.
6. Maintenance
Regular maintenance helps prolong the life and appearance of your bed frame.
- Cleaning the Frame: Wipe metal and wood surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
- Cleaning the Upholstery: For the upholstered headboard, spot clean with a mild fabric cleaner as needed. Test on an inconspicuous area first. Do not saturate the fabric.
- Electrical Components: Ensure the charging station and LED lights are unplugged before cleaning. Use a dry cloth to wipe dust.
- Fasteners: Periodically check all screws and bolts and tighten them if they have become loose.
7. Troubleshooting
This section addresses common issues you might encounter with your bed frame.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or squeaks. | Loose fasteners; uneven floor. | Tighten all screws and bolts. Ensure the bed is on a level surface. Adjust center support legs if necessary. |
| LED lights are not working. | Power cord not plugged in; faulty connection; remote/app issue. | Check if the power cord is securely plugged into the wall outlet and the headboard. Ensure the remote control has working batteries or the app is correctly paired. |
| Charging station is not providing power. | Power cord not plugged in; circuit breaker tripped; device incompatibility. | Verify the bed frame's power cord is fully inserted into a functional wall outlet. Check your home's circuit breaker. Ensure your device is compatible with the charging station's output. |
| Mattress slides on the frame. | Lack of anti-slip measures. | The footboard features an anti-sliding design. Ensure the mattress is properly positioned against the footboard. Consider using a non-slip mattress pad if needed. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | IMMERSTABLE |
| Model Number | Modern |
| Size | Queen |
| Product Dimensions | 86.6"L x 60.2"W x 42.5"H |
| Color | Beige |
| Special Feature | No Box Spring Needed, LED Lights, Charging Station, Storage Headboard |
| Included Components | Headboard, Frame, Slats, Hardware |
| Assembly Required | Yes |
| Weight Capacity | 700 lbs |
Image 8.1: Detailed product dimensions and stated weight capacity of 700 lbs.
9. Warranty and Support
IMMERSTABLE is committed to providing quality products and customer satisfaction.
9.1. Customer Support
For any questions, missing parts, or assistance with assembly or operation, please contact our 24-hour online after-sales customer service team. You can find contact information on the IMMERSTABLE brand store or through your purchase platform.
Visit the official IMMERSTABLE store for more information: IMMERSTABLE Store
9.2. Free Accessories Replacement
IMMERSTABLE offers free accessory replacement for any parts that may be missing or damaged upon arrival, or during the initial assembly process. Please contact customer support to arrange for replacements.
Image 9.1: IMMERSTABLE's commitment to customer satisfaction, including 24-hour support and free accessory replacement.
