1. Introduction
The Fenix TK17 is a high-performance tactical duty flashlight designed for reliability and versatility. It features a maximum output of 3600 lumens, a long beam distance, and a dual tail switch for intuitive operation. This manual provides detailed instructions for the proper use, maintenance, and troubleshooting of your Fenix TK17 flashlight.

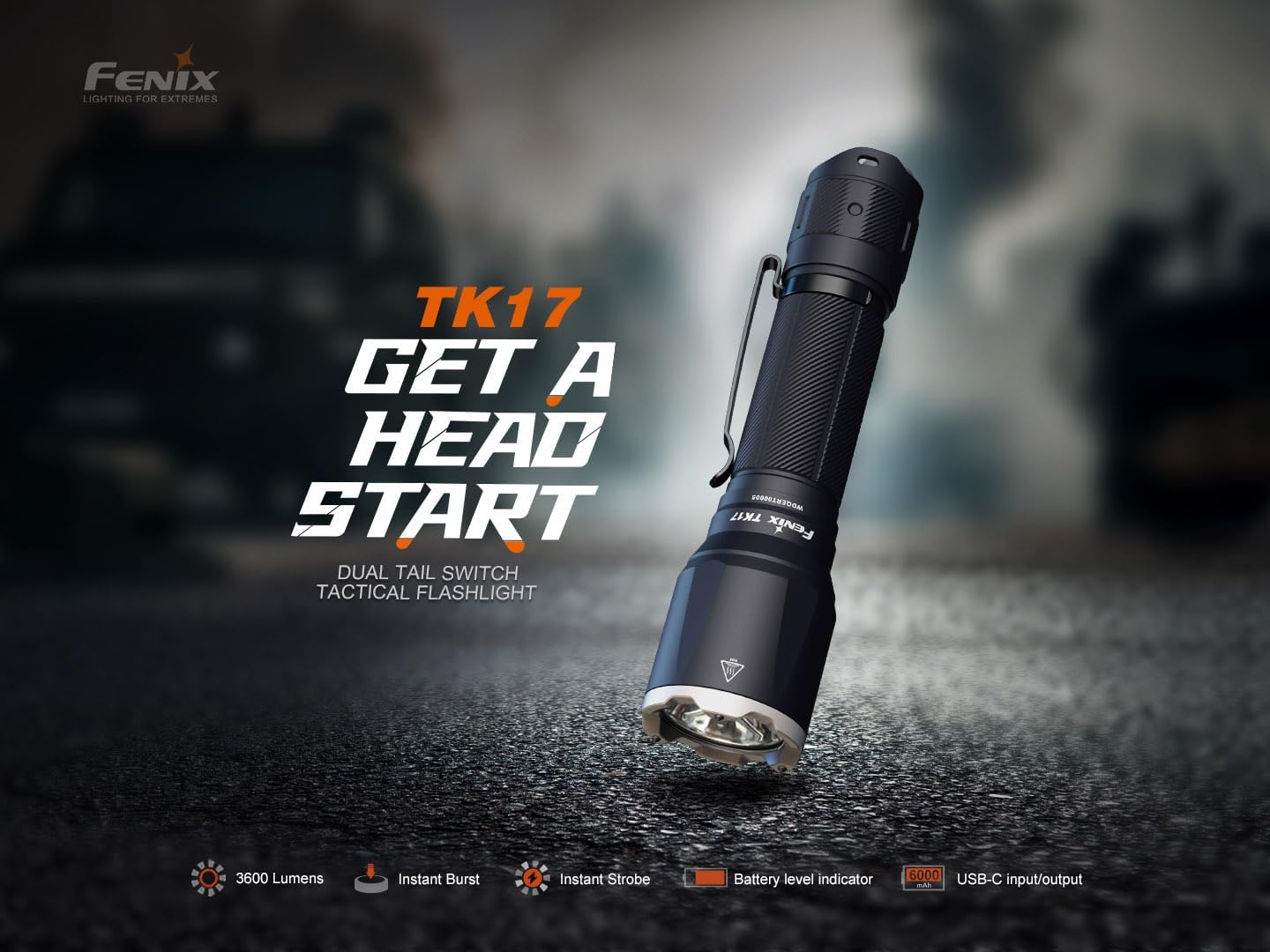

Image 1.1: The Fenix TK17 Tactical Flashlight. This image displays the complete flashlight unit, highlighting its robust design and compact form factor.
2. Product Features
- Maximum 3600 Lumen output with a 330-meter beam throw.
- Equipped with a 6000mAh USB-C rechargeable battery.
- Dual tactical tail switch design for efficient operation.
- Instant burst and instant strobe functions.
- Battery level indicator for monitoring power status.
- Durable anodized aluminum construction.
- IP68 rated waterproof for reliable performance in various conditions.
3. Package Contents
Upon unboxing, please verify that all items listed below are present:
- Fenix TK17 Flashlight
- Fenix ARB-L21-6000B Rechargeable Battery
- USB-C to USB-C Cable
- USB-A to USB-C Cable
- Holster
- Lanyard
- Spare O-rings (Qty 2)
- Fenix TK17 User Manual
4. Setup and Charging
4.1 Battery Installation
- Unscrew the tail cap of the flashlight counter-clockwise.
- Insert the Fenix ARB-L21-6000B battery with the positive (+) terminal facing towards the head of the flashlight.
- Screw the tail cap back on clockwise until securely tightened.
4.2 Charging the Battery
The Fenix TK17 utilizes a USB-C rechargeable battery. The battery can be charged directly using the provided USB-C cables.
- Connect the USB-C cable to the charging port on the battery.
- Connect the other end of the cable to a USB power source (e.g., computer, wall adapter).
- The battery indicator will show charging status. A full charge typically takes approximately 3.5 hours.
The battery can also discharge power to other devices, functioning as a power bank.
5. Operating Instructions
5.1 Dual Tail Switch Operation
Image 5.1: Operating the dual tail switches. This image illustrates the ergonomic design of the dual tail switches, allowing for quick and efficient mode changes and activation.
The Fenix TK17 features two tail switches for tactical flexibility:
- Tactical Switch (Larger, Round Switch):
- Tap for momentary-on.
- Fully press for constant-on.
- Long press for 0.5 seconds to enter Burst mode.
- Functional Switch (Smaller, Oval Switch):
- With the light switched off, tap for instant Strobe. Release to turn off.
- With the light switched on, single click for output selection (Low → Med → High).
- With the light switched on, long press for 0.5 seconds to enter Strobe mode.
5.2 Output Modes
The TK17 offers multiple output levels and special modes:
- Burst: 3600 Lumens (cumulative runtime 3.75 hours, 330 meters)
- High: 1000 Lumens (3.83 hours, 170 meters)
- Med: 350 Lumens (8 hours, 100 meters)
- Low: 30 Lumens (60 hours, 30 meters)
- Strobe: 3000 Lumens
Image 5.2: Beam distance demonstration. This image shows the Fenix TK17's powerful beam extending up to 330 meters, suitable for law enforcement and search and rescue operations.
Image 5.3: Instant-on powerful burst. This image demonstrates the immediate activation of maximum brightness, useful for dangerous surroundings or emergencies.
5.3 Battery Level Indication
The flashlight includes a battery level indicator to show the remaining power. Refer to the user manual for specific indicator patterns and their corresponding battery levels.
6. Maintenance
6.1 Cleaning
- Clean the threads and O-rings regularly with a clean cloth.
- Lubricate O-rings with silicone grease to maintain waterproof sealing.
- Keep the lens clean to ensure optimal light output.
6.2 Storage
- Remove the battery if the flashlight will not be used for an extended period to prevent leakage.
- Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures.
Image 6.1: Fenix TK17 tactile finish and body details. This image highlights the knurling and matte finish designed for improved grip and reduced light reflection, beneficial for tactical operations.
7. Troubleshooting
If your Fenix TK17 flashlight is not functioning correctly, please refer to the following common issues and solutions:
- Flashlight does not turn on:
- Check if the battery is inserted correctly with the positive (+) terminal facing the head.
- Ensure the tail cap is fully tightened.
- Charge the battery to ensure it has sufficient power.
- Clean the battery contact points and threads.
- Output reduces or modes cannot be selected:
- This may indicate low battery power. Recharge or replace the battery.
- Overheating protection may be active. Allow the flashlight to cool down.
- Light flickers or goes out intermittently:
- Ensure the battery is fully charged and properly inserted.
- Clean the battery contact points and threads.
- Check for loose connections in the tail cap or head.
If the issue persists, please contact Fenix customer support for further assistance.
8. Specifications
Image 8.1: Technical Parameters. This table provides a comprehensive overview of the Fenix TK17's performance characteristics across different output modes.
| Feature | Specification |
|---|---|
| Model Number | EDB-FEN-TK17-BBX5 |
| Maximum Output | 3600 Lumens |
| Maximum Beam Distance | 330 meters (360 yards) |
| Maximum Runtime | 60 hours (Low mode) |
| Light Source | LED |
| Battery Type | 1 x Lithium Ion (ARB-L21-6000B included) |
| Charging Port | USB-C (on battery) |
| Material | Anodized Aluminum (A5051-T6) |
| Water Resistance | IP68 (Waterproof) |
| Impact Resistance | 1 meter |
| Dimensions (L x D) | 5.85" x 1.42" (Head) x 1" (Body) / 148.5 x 36 x 25.4 mm |
| Weight | 6.96 ounces / 197.2 g (including battery) |
9. Compatible Accessories
The Fenix TK17 is compatible with a range of optional accessories to enhance its functionality in various situations. These accessories are sold separately.

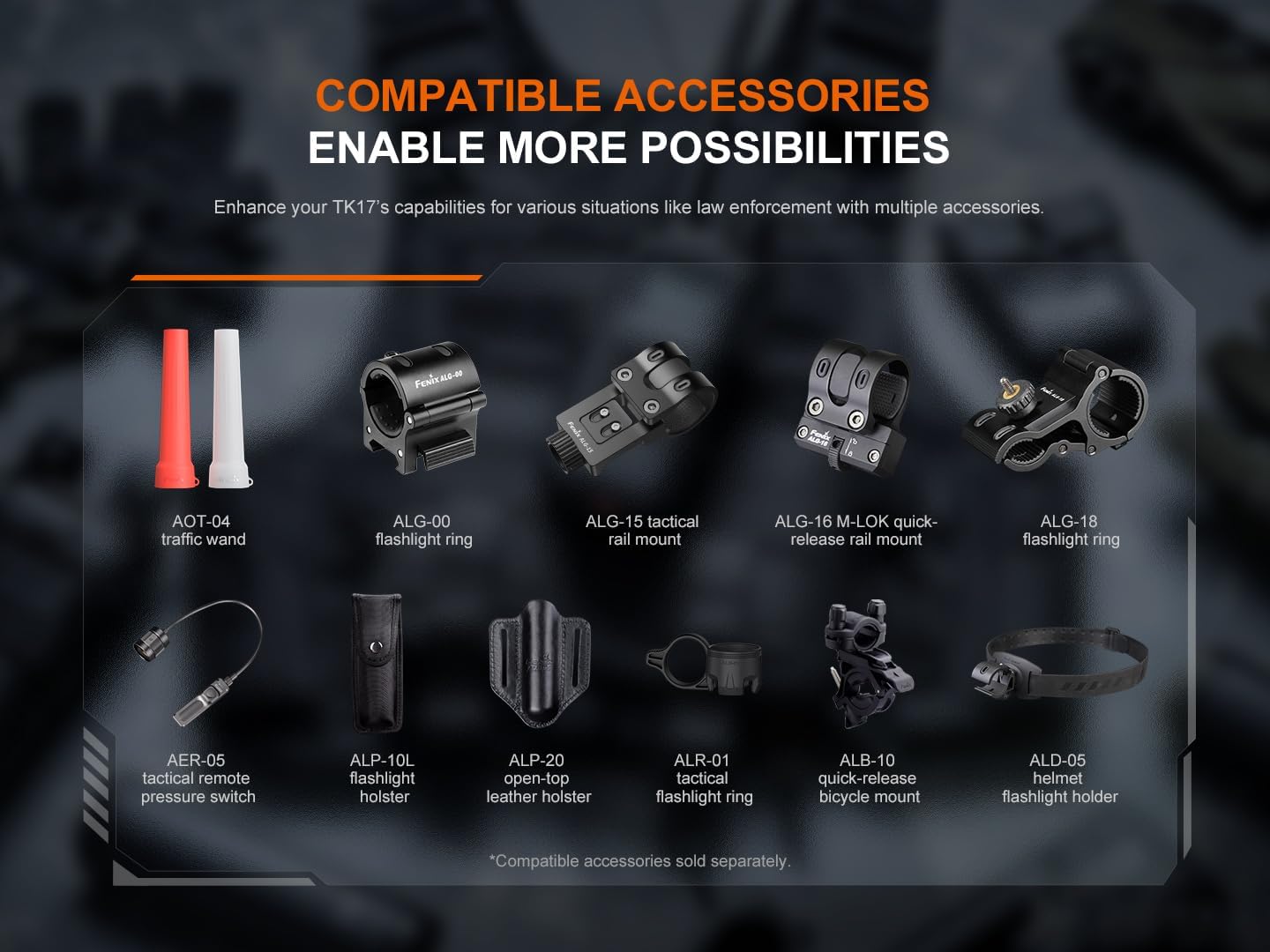

Image 9.1: Compatible Accessories. This image displays various accessories designed to expand the utility of the Fenix TK17 flashlight.
- AOT-04: Traffic Wand
- ALG-00: Flashlight Ring
- ALG-15: Tactical Rail Mount
- ALG-16: M-LOK Quick-Release Rail Mount
- ALG-18: Flashlight Ring
- AER-05: Tactical Remote Pressure Switch
- ALP-10L: Open-Top Leather Holster
- ALP-20: Flashlight Holster
- ALR-01: Tactical Flashlight Ring
- ALB-10: Bicycle Mount
- ALD-05: Helmet Flashlight Holder
10. Warranty and Support
10.1 Warranty Information
The Fenix TK17 flashlight comes with a limited manufacturer's warranty. Please refer to the official Fenix website or your purchase documentation for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.
10.2 Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Fenix customer support through their official website or authorized distributors. Provide your product model and serial number when seeking support.
