TOPTRO Quadra Projector User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your TOPTRO Quadra Projector. Please read it thoroughly before using the device and retain it for future reference. The TOPTRO Quadra Projector offers a native 1080p resolution with true 4K HDR10/HLG support, running on a Linux OS with pre-installed streaming applications.

2. Package Contents

Verify that all items are present in the package:

• TOPTRO Quadra Projector
• Remote Control
• Power Cable
• User Manual (this document)

3. Setup

3.1 Placement

Place the projector on a stable, flat surface or mount it to the ceiling. Ensure adequate ventilation around the device. For optimal viewing, position the projector to achieve the desired screen size. The projector supports a maximum projection size of 300 inches.

Image: Optimal projection distances for various screen sizes.

3.2 Power Connection

Connect the power cable to the projector's power input and then to a suitable electrical outlet.

3.3 Connecting External Devices

The TOPTRO Quadra Projector features multiple connectivity options:

• HDMI: Connect laptops, Blu-ray players, gaming consoles (e.g., PS4), or TV sticks using the dual HDMI ports. One port supports HDMI ARC for enhanced audio return.
• USB: Insert USB drives for media playback.
• 3.5mm Audio Out: Connect external speakers or headphones.
• Bluetooth 5.2: Pair with Bluetooth speakers or headphones for wireless audio.
• Dual Band WiFi (2.4GHz + 5GHz): Connect to your home network for online streaming and updates.

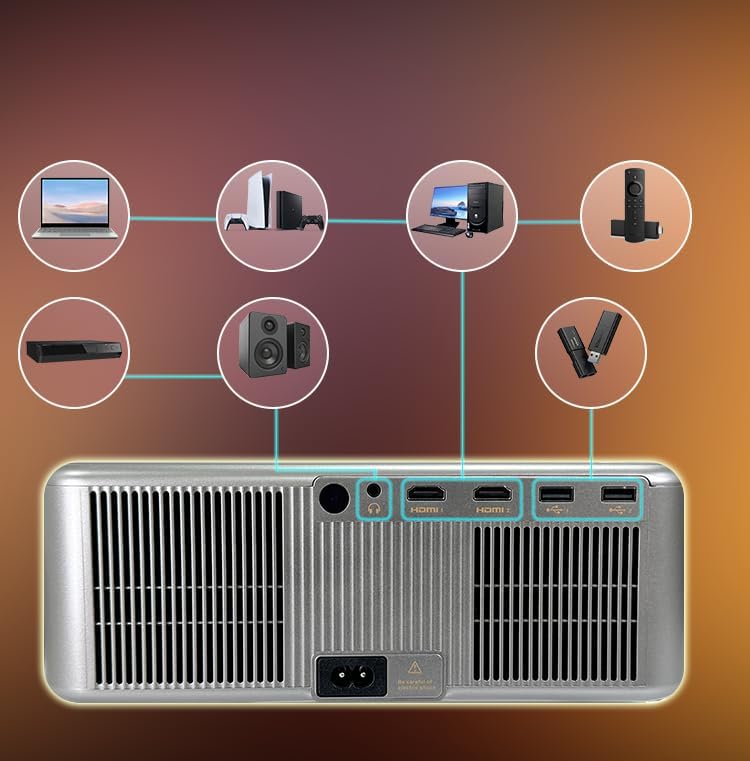

Image: Rear panel connectivity ports.

3.4 Initial Power On and Automatic Adjustments

Press the power button on the projector or remote control to turn on the device. The projector features fully automatic adjustments:

• Auto Focus: The projector will automatically adjust the image clarity.
• Auto Keystone Correction: The image will be automatically squared to compensate for angled projection.
• Auto Obstacle Avoidance: The projection area will adjust to avoid objects in the path.
• Auto Screen Fit: The image will automatically fit within the boundaries of your projection surface.

Image: Automatic image adjustment features.

4. Operating Instructions

4.1 Navigating the Linux OS

The TOPTRO Quadra Projector runs on a Linux operating system. Use the provided remote control to navigate the user interface. The home screen provides access to pre-installed applications and settings.

Image: Projector displaying the Linux OS interface with streaming apps.

4.2 Streaming Applications

The projector comes with pre-installed and certified applications such as Netflix, YouTube, and Prime Video. Access these directly from the home screen for 4K content streaming.

Image: Remote control with quick access buttons for streaming services.

4.3 Wireless Screen Mirroring

The projector supports Miracast for wireless screen mirroring from Android and iOS devices. Refer to your device's instructions for initiating screen mirroring and select the projector from the available devices.

4.4 Image and Sound Settings

Access the settings menu to adjust image parameters such as brightness, contrast, and color. The projector supports HDR10/HLG for enhanced dynamic range. Audio settings allow for volume control and selection of output devices (internal speakers, Bluetooth, 3.5mm jack, HDMI ARC).

Image: Displaying vivid picture quality with HDR10+, HLG, and DCI-P3 color support.

5. Maintenance

5.1 Cleaning the Lens

Gently wipe the projector lens with a soft, lint-free cloth specifically designed for optical surfaces. Avoid using abrasive cleaners or excessive force.

5.2 Cleaning the Vents

Regularly clean the air vents to prevent dust buildup, which can affect performance and lead to overheating. Use a soft brush or compressed air to clear the vents.

5.3 Lamp Life

The projector lamp has an estimated life of 50,000 hours. No user replacement is typically required during the product's lifespan under normal usage conditions.

6. Troubleshooting

6.1 No Picture

• Ensure the projector is powered on and the power cable is securely connected.
• Check the input source. Verify that the correct HDMI or other input is selected.
• Confirm that the connected device (laptop, media player) is powered on and outputting a signal.
• Check cable connections for looseness or damage.

6.2 No Sound

• Adjust the volume on the projector and the connected source device.
• Ensure external speakers or headphones are properly connected if used.
• If using Bluetooth, confirm the projector is paired with the correct audio device.
• Check audio settings in the projector's menu to ensure the correct audio output is selected.

6.3 Image is Blurry or Distorted

• Allow the projector's auto-focus feature to complete its adjustment.
• Ensure the projector is placed perpendicular to the screen for best results, allowing auto-keystone to function optimally.
• Check for any physical obstructions in front of the lens.

6.4 Connectivity Issues (WiFi/Bluetooth)

• For WiFi, ensure the projector is within range of your router and the password is entered correctly. Try restarting your router.
• For Bluetooth, ensure the device you are trying to connect is in pairing mode and within range.

7. Specifications

Image: Overview of advanced features and specifications.

8. Warranty Information

The TOPTRO Quadra Projector comes with a 1-year warranty provided by TOPTRO from the date of purchase. For detailed warranty terms and conditions, please visit the official TOPTRO website.

9. Support

For technical assistance, customer service, or warranty claims, please contact TOPTRO support:

• Website: toptro.in
• Email: support@toptro.in or sreeprojectors@gmail.com
• WhatsApp: 8341888860
