Introduction
Thank you for choosing the WINAZ 66-Inch Black L-Shaped Office Desk. This manual provides detailed instructions for assembly, operation, and maintenance to ensure safe and efficient use of your new desk. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Safety Information
- Keep away from children to prevent choking hazards.
- Always assemble and use as instructed to avoid tip-over risks.
- Do not overload the desk beyond its weight capacity.
- Ensure all connections for the integrated charging hub are secure and used according to electrical safety guidelines.
Package Contents
Before assembly, verify that all components are present and undamaged. Refer to the included parts list in your physical manual for specific quantities. Key components include:
- Desktop panels (L-shaped sections)
- Side panels and support panels for drawer cabinets
- Drawer components (fronts, sides, backs, bottoms)
- Drawer slides and locking mechanisms
- Integrated power strip with AC outlets and USB ports
- Mobile CPU platform
- Assembly hardware (screws, dowels, eccentric nuts, keys)
- Assembly tools (screwdriver)
Assembly Instructions
Assembly is required for this L-shaped office desk. Please follow the detailed step-by-step instructions provided in your physical manual. For visual guidance, an official installation video is available:
Video Description: This video provides a comprehensive, step-by-step guide for assembling the 66-inch WINAZ L-Shaped Office Desk. It demonstrates the correct placement and fastening of all components, including the desktop, drawer cabinets, and integrated power strip. Follow along carefully to ensure proper construction.
Scan the QR code on your physical manual to access additional step-by-step installation videos and detailed diagrams.
Features and Operating Instructions
Integrated Charging Hub
The desk features an ETL-certified built-in power strip with 3 AC outlets and 2 USB ports (2.4A smart charging). To use, simply plug your devices into the available outlets or USB ports. The hub is designed for safe use with child-safe shutters, surge protection, and overload prevention. Ensure the desk is connected to a grounded power source.
Ample & Organized Storage
This L-shaped desk includes 6 wooden drawers. Two large file cabinets are designed to keep documents organized and accessible, featuring adjustable dividers and a hanging-file drawer compatible with A4, F4, Letter, and Legal sizes. Four smaller drawers are suitable for storing supplies such as pens and notepads, helping to maintain a clutter-free workspace.

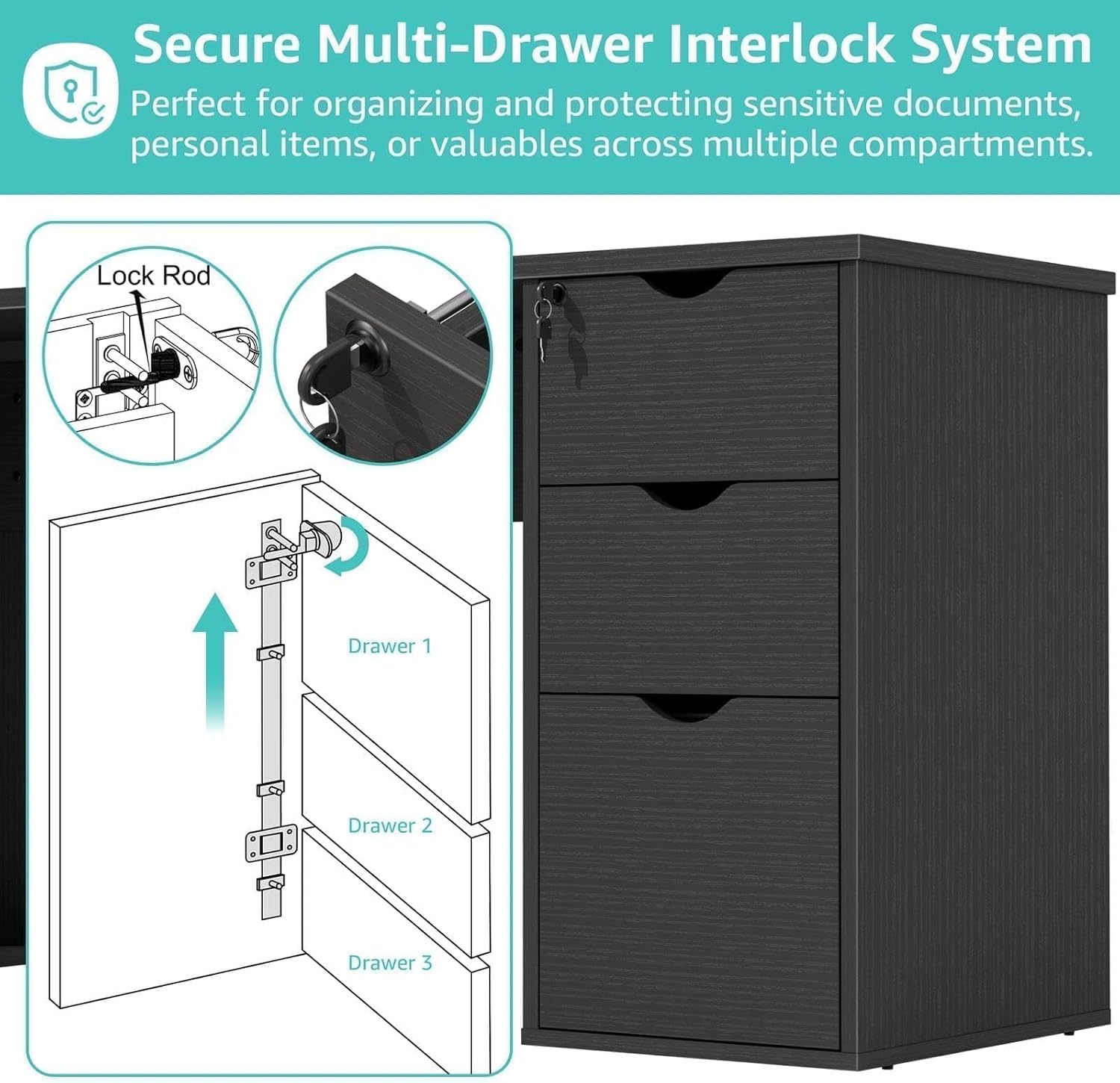

Secure & Silent Storage
Safeguard valuables and sensitive documents using the 2 lockable file cabinets and 4 keyed small drawers. The interlock system, operated with the 2 included keys, provides essential security. Stainless steel slide rails ensure stable, smooth, and quiet drawer operation.
Mobile CPU Platform
The 18.5"x9.25" MDF stand safely elevates your computer tower. It features 4 height-adjustable leg pads to protect your PC from dust, accidental kicks, and uneven floors, while also ensuring optimal airflow. The tool-free design allows it to slide effortlessly under your desk or between work zones.
Spacious Worksurface
The generous 66"x47.2" desktop provides ample room for multiple monitors, laptops, and various work tasks, gaming setups, or creative projects. This design helps keep everything organized and within easy reach.
Specifications
| Feature | Detail |
|---|---|
| Model Number | WIN-L6D66-BK |
| Color | Black |
| Size | 66 inches |
| Item Weight | 120 Pounds |
| Material Type | Engineered Wood |
| Number of Drawers | 6 |
| Additional Features | Built-In USB Outlet, File Cabinet, Tower Stand |
| Item Dimensions | 66 x 47.2 x 29.9 inches |
Maintenance
To maintain the quality and appearance of your WINAZ L-Shaped Office Desk, regularly wipe surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish. Ensure all screws and fittings remain tight to maintain structural integrity. Periodically check the drawer slides for smooth operation and lubricate if necessary.
Troubleshooting
If you encounter any issues during assembly or use, please refer to the troubleshooting section in your physical manual or contact customer support. Common issues may include:
- Loose connections: Re-tighten all screws and eccentric nuts.
- Drawer misalignment: Check that drawer slides are correctly installed and aligned.
- Power outlet not working: Ensure the power strip is properly plugged into a functional wall outlet and check for any tripped circuit breakers.
Warranty and Support
Your WINAZ L-Shaped Office Desk is backed by a 30-day free return policy and a 12-month warranty. For any questions, concerns, or assistance, please contact our dedicated after-sales support team. Our team is committed to resolving any issues and providing expert solutions for your needs.
Contact information can be found on the packaging or the WINAZ official website.
