FCOB SP530E WiFi Bluetooth LED Controller and COB LED Strip Light User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your FCOB SP530E WiFi Bluetooth LED Controller and accompanying 6000K Daylight White COB LED Strip Light. Please read this manual thoroughly before use to ensure proper functionality and safety.

2. Safety Information

• Ensure the power supply voltage matches the product specifications (24V). Incorrect voltage can damage the device.
• Do not expose the controller or LED strip to moisture or extreme temperatures.
• Disconnect power before making any connections or performing maintenance.
• Avoid bending the LED strip sharply to prevent damage to the internal circuitry.
• Keep out of reach of children.

3. Package Contents

Verify that all items are present in your package:

• SP530E WiFi Bluetooth LED Controller
• 6000K Daylight White COB LED Strip Light (32.8FT)
• DC Power Connectors
• Mounting Clips and Screws
• Small Screwdriver

Image 3.1: Contents of the FCOB SP530E LED Controller and Strip Light kit, including the controller, COB LED strip, power connectors, mounting clips, and a screwdriver.

4. Specifications

• Controller Model: SP530E
• Connectivity: WiFi, Bluetooth LE5.0
• Input Voltage: DC 5-24V
• Output Channels: 6-channel (PWM), SPI
• Max Output Current: 10A
• Working Temperature: -20°C to 60°C
• LED Strip Type: COB LED Strip Light
• LED Strip Length: 32.8FT (10 meters)
• LED Density: 320 LEDs/meter
• Color Temperature: 6000K Daylight White
• Beam Angle: 180°
• Cuttable: Every 1.97 inches (5cm) at marked lines
• DC Plug Size: 5.5mm x 2.1mm

5. Setup and Installation

5.1 LED Strip Preparation

1. Measure and Cut: If a shorter length is required, cut the COB LED strip only at the designated cutting marks (usually indicated by a scissor icon or copper pads).

Image 5.1: Illustration showing correct and incorrect cutting points for the LED strip. Always cut along the marked lines to ensure functionality.

2. Clean Surface: Ensure the mounting surface is clean, dry, and smooth for optimal adhesive performance.
3. Peel and Stick: Remove the backing from the adhesive tape on the back of the LED strip and firmly press the strip onto the desired surface.
4. Secure with Clips: For added security, use the provided mounting clips and screws, especially for longer runs or uneven surfaces.

5.2 Controller Wiring

The SP530E controller supports both PWM (non-addressable) and SPI (addressable) LED strips, including combined setups. Refer to the labels on the controller for correct wiring.

• PWM LED Strips (e.g., Monochrome, CCT, RGB, RGBW, RGBCCT): Connect the corresponding wires from your LED strip to the V+, R, G, B, CW, WW terminals on the controller. Ensure polarity is correct.
• SPI LED Strips (e.g., WS2811, WS2812B): Connect the Data (DAT) wire from your SPI strip to the DAT terminal on the controller. Connect the Ground (GND) wire to the GND terminal.
• Power Connection: Connect the DC power adapter (not included) to the DC Power Jack Socket (5.5mm x 2.1mm) on the controller. Ensure the power supply is rated for 24V and has sufficient current capacity for your LED strips.

Image 5.2: The SP530E controller is compatible with various PWM and SPI LED strip types, including single color, CCT, RGB, RGBW, and RGBCCT configurations. The image also shows the associated mobile application interface.

6. Operation

6.1 Control Methods

The SP530E controller offers multiple ways to manage your LED lighting:

• APP Control: Connect via 2.4GHz WiFi or Bluetooth LE5.0 using the dedicated mobile application (Banlanx APP). This allows for comprehensive control over colors, effects, brightness, and scheduling.
• 2.4G RF Remote / Smart Panel Control: Compatible with separately purchased 2.4G RF touch remotes or wall-mounted smart panels for convenient local control.
• Third-Party Voice Control: Integrate with smart home systems like Amazon Alexa or Google Home for voice-activated control (requires initial setup through the mobile app).

Image 6.1: Visual representation of the three primary control methods: mobile application, 2.4G RF remote/smart panel (sold separately), and third-party voice assistants like Amazon Alexa and Google Home.

6.2 Mobile Application (Banlanx APP)

Download the Banlanx APP from your device's app store. Follow the in-app instructions to pair your SP530E controller via WiFi or Bluetooth.

• Dynamic Modes: Choose from various pre-programmed dynamic lighting effects.
• Solid Colors: Select any static color from a color wheel or adjust white light temperature.
• Music Effects: Synchronize lighting with music using player streaming, mobile microphone, or the controller's built-in microphone.
• DIY Effects: Create and customize your own lighting patterns and sequences.
• Timers: Set schedules for turning lights on/off or activating specific modes.
• Brightness Adjustment: Adjust the overall brightness level from 0% to 100%.

Image 6.2: Screenshots of the Banlanx mobile application, showcasing features such as dynamic modes, music synchronization, parameter settings, timers, and pattern customization.

Image 6.3: The SP530E controller's music effects feature, allowing synchronization of LED strip or matrix lighting with audio input from player streaming, mobile microphone, or the built-in microphone.

6.3 Brightness Dimming

The controller allows for precise brightness adjustment of the connected LED strips. This can be controlled via the mobile application, RF remote, or voice commands.

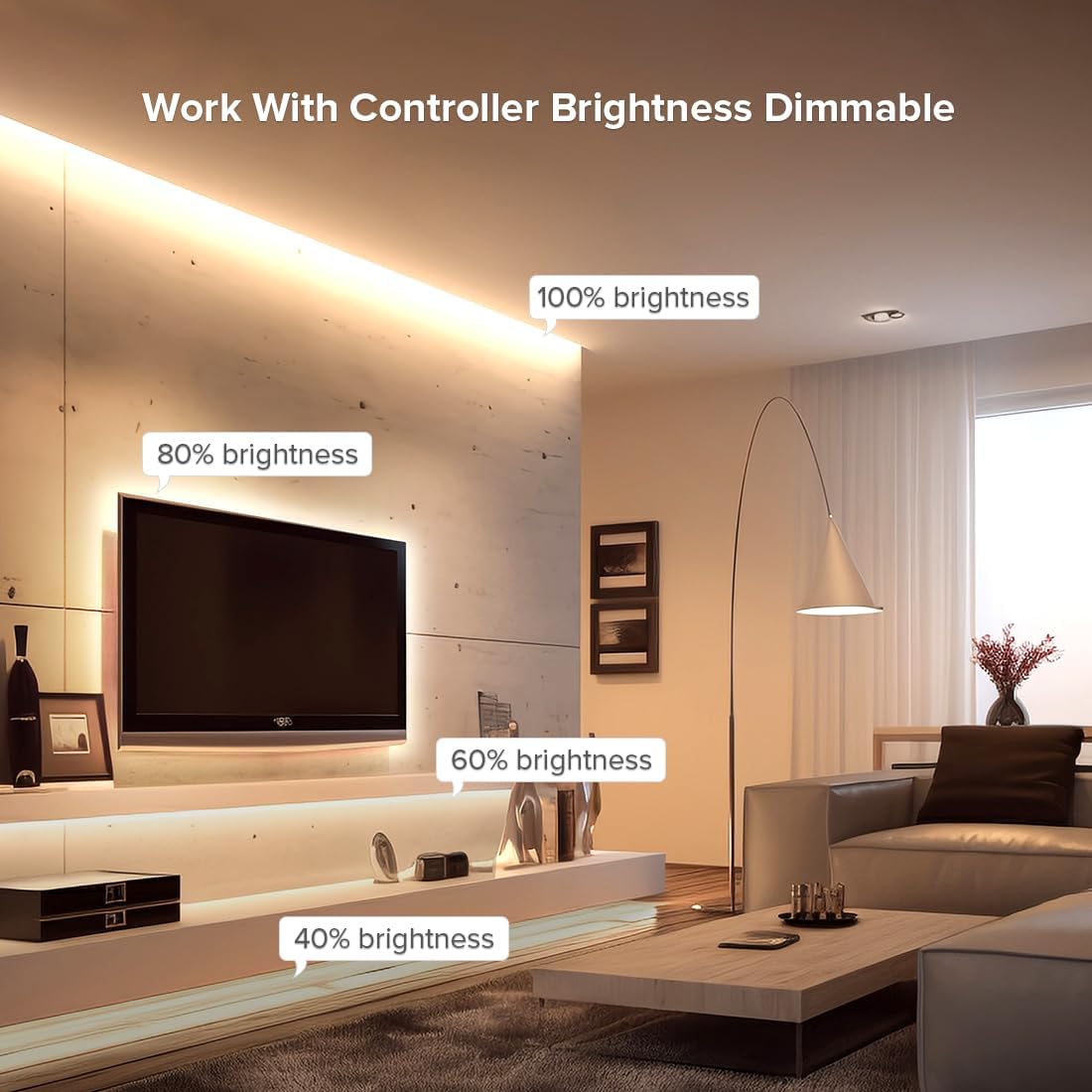

Image 6.4: An example of an LED strip installed in a living room setting, demonstrating various brightness levels (100%, 80%, 60%, 40%) achievable with the controller.

7. Maintenance

• Cleaning: Gently wipe the LED strip and controller with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners.
• Inspection: Periodically check connections for any signs of wear or damage.
• Storage: If storing the product for an extended period, ensure it is kept in a dry, cool environment away from direct sunlight.

8. Troubleshooting

9. Warranty and Support

For warranty information and technical support, please refer to the FCOB official website or contact your retailer. Keep your purchase receipt as proof of purchase.
