YASHE Foldable Food Slicer Instruction Manual

1. Introduction

Thank you for purchasing the YASHE Foldable Food Slicer. This electric slicer is designed for efficient and precise slicing of various foods such as meat, cheese, bread, and vegetables. Its compact, foldable design makes it ideal for storage in smaller spaces. Please read this manual thoroughly before operating the appliance to ensure safe and proper use. Keep this manual for future reference.

Image: The YASHE Foldable Food Slicer, showcasing its compact design and readiness for slicing various food items.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions carefully before use.
• Do not immerse the motor unit, cord, or plug in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts. Keep hands, hair, and clothing away from the blade during operation.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Always operate the slicer on a stable, dry, and level surface.
• Ensure the appliance is properly assembled before use.
• Always use the food pusher to guide food. Never use your hands directly.
• This appliance is for household use only.

3. Product Components

Familiarize yourself with the main parts of your YASHE Foldable Food Slicer:

• Serrated Stainless Steel Blade: 17 cm diameter, designed for various food types.
• Thickness Adjustment Dial: Allows setting slice thickness from 0 to 15 mm.
• Food Carriage/Platform: Holds food securely during slicing.
• Food Pusher: Keeps hands away from the blade and guides food.
• On/Off Switch: Power control for the motor.
• Safety Switch: Dual safety mechanism for operation.
• Folding Base: Allows the slicer to fold for compact storage.
• Non-slip Feet: Ensures stability during operation.

Image: A detailed view of the 17 cm stainless steel blade, highlighting its serrated edge and versatility for different food types.

4. Setup and Assembly

Before first use, ensure all packaging materials are removed and the slicer is clean. Follow these steps to set up your slicer:

1. Unfold the Slicer: Place the slicer on a stable, flat surface. Gently unfold the base until it locks into its operational position.
2. Assemble the Food Carriage: Align the food carriage with the designated snap positions on the platform and press down until it securely clicks into place.
3. Attach the Food Pusher: Slide the food pusher onto the food carriage. Ensure it moves smoothly.
4. Check Blade Installation: Verify that the stainless steel blade is securely attached. If not, refer to the cleaning section for instructions on how to attach/detach the blade.
5. Connect Power: Plug the power cord into a grounded electrical outlet.

Image: Step-by-step visual instructions for unfolding, assembling the platform and food pusher, and initiating the slicer's operation.

5. Operation

5.1 Adjusting Slicing Thickness

The slicer allows for precise thickness adjustment from 0 to 15 mm:

• Locate the thickness adjustment dial on the rear of the slicer.
• Rotate the dial to select your desired slice thickness. Turn towards "THIN" for thinner slices (e.g., 0-5 mm) and towards "THICK" for thicker slices (e.g., 10-15 mm).
• Always adjust the thickness before turning on the slicer.

Image: The thickness adjustment dial, illustrating how to select slice thickness from 0 to 15 mm, with visual examples of different slice thicknesses for meat.

5.2 Slicing Food

Follow these steps for safe and effective slicing:

1. Place the food item (e.g., meat, cheese, bread) onto the food carriage. For best results with meat, ensure it is slightly chilled or semi-frozen.
2. Secure the food with the food pusher, applying gentle, even pressure.
3. Simultaneously press the dual safety switch and the ON/OFF button to start the motor.
4. Gently push the food carriage towards the rotating blade, guiding the food with the pusher.
5. Collect the sliced food from the receiving tray or directly onto a plate.
6. When finished, release the ON/OFF button and the safety switch to turn off the slicer. Unplug the appliance from the power outlet.

Image: The food slicer in action, demonstrating its capability to slice a loaf of bread evenly, with sliced bread displayed on a plate.

6. Folding and Storage

The YASHE Food Slicer is designed for compact storage:

1. Ensure the slicer is unplugged and clean before folding.
2. Remove the food pusher and food carriage.
3. Locate the folding mechanism (usually a latch or button) and activate it to allow the base to fold upwards.
4. Gently fold the slicer until it locks into its compact position.
5. Store the slicer in a dry, safe place, away from children.

Image: A visual representation of the slicer's compact and foldable design, showing its dimensions both when unfolded for use and folded for storage.

7. Cleaning and Maintenance

Regular cleaning ensures optimal performance and hygiene. Always unplug the slicer before cleaning.

7.1 Removing the Blade

1. Ensure the slicer is unplugged.
2. Carefully locate the blade release mechanism (often a central knob or lever).
3. Turn or press the mechanism to unlock the blade.
4. Grasp the blade by its center hub (never the cutting edge) and carefully lift it off.

7.2 Cleaning Instructions

• Blade: Wash the stainless steel blade with warm, soapy water. Use a brush for thorough cleaning. Rinse and dry immediately to prevent rust. The blade may be dishwasher-safe; refer to product specifications for confirmation.
• Food Carriage and Pusher: These parts are typically removable and dishwasher-safe. Wash with warm, soapy water or place in the dishwasher.
• Main Unit: Wipe the motor unit and base with a damp cloth. Do not immerse the main unit in water.
• Ensure all parts are completely dry before reassembling or storing.

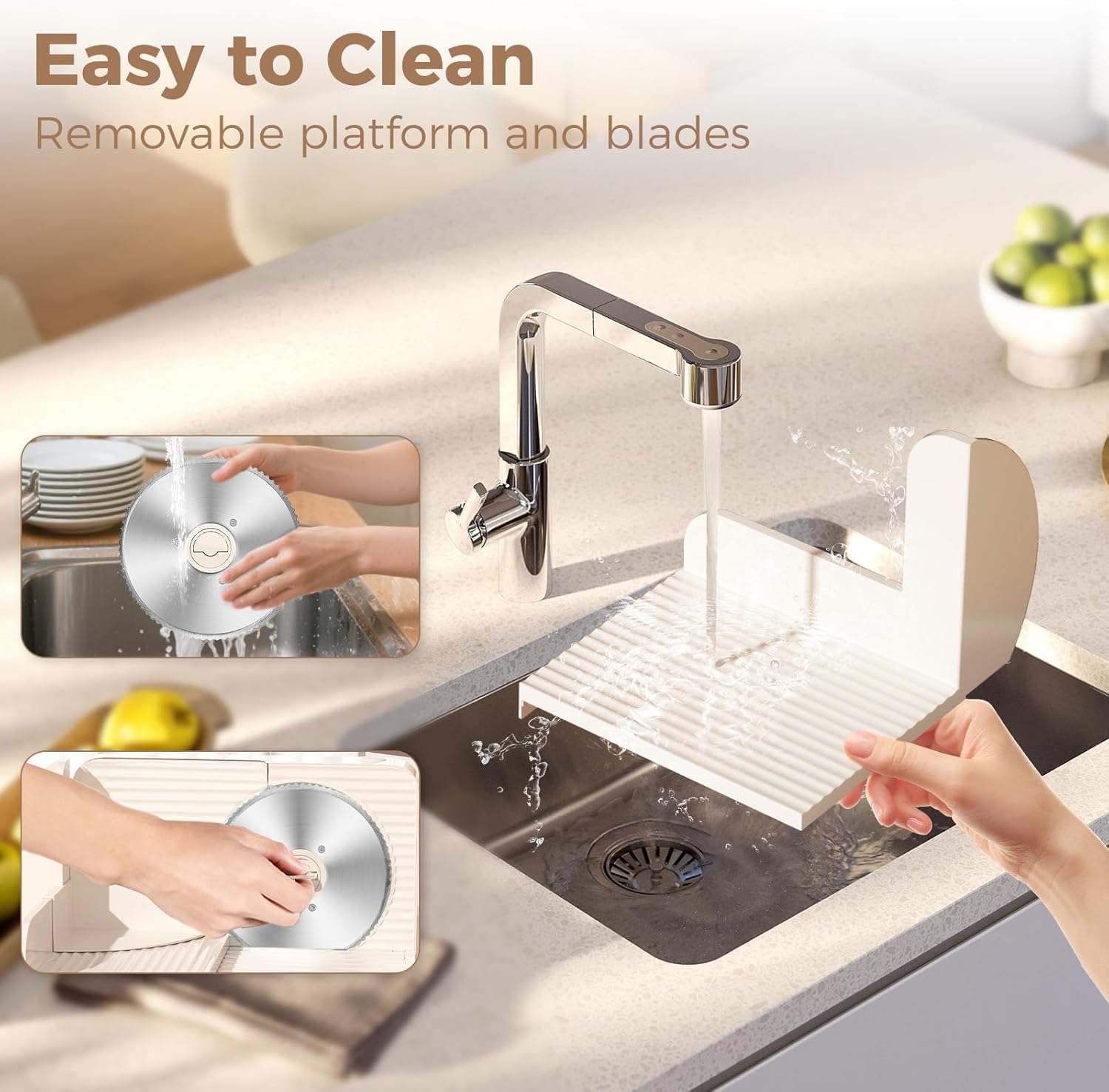

Image: Instructions for easy cleaning, demonstrating the removal of the blade and the detachable platform for washing.

8. Troubleshooting

If you encounter issues with your YASHE Food Slicer, refer to the following common problems and solutions:

9. Specifications

10. Warranty Information

YASHE products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship for a period of 1 year from the original purchase date. This warranty does not cover damage caused by misuse, neglect, accident, alteration, or improper installation. Proof of purchase is required for all warranty claims. Please retain your receipt.

11. Customer Support

For technical assistance, warranty inquiries, or replacement parts, please contact YASHE customer support:

• Website: Visit the official YASHE website for FAQs and support resources.
• Email: support@yashe.com (example email)
• Phone: 1-800-XXX-XXXX (example phone number)

When contacting support, please have your product model number (SL-5803D23B3) and purchase date available.
