Introduction
This manual provides instructions for the iTouchless 18 Gallon Sensor 2.0 Wings Open Kitchen Trash Can. This appliance features Sensor 2.0 Technology for touch-free operation, an AbsorbX Odor Filter for odor control, and a PetGuard Lock. Its slim design and wings-open lid are suitable for various indoor environments.
Image: The iTouchless 18 Gallon Sensor 2.0 Wings Open Kitchen Trash Can, shown with its AbsorbX Odor Filter packaging, highlighting its key features.
Setup
1. Unpacking
Carefully remove all components from the packaging. Ensure all parts are present before proceeding with assembly.
2. Power Installation
The trash can offers dual power options:
- Batteries: Insert 4 C-size batteries (not included) into the battery compartment located on the underside of the lid. Ensure correct polarity.
- AC Adapter: An optional AC power adapter (sold separately) can be used for continuous power. Connect the adapter to the designated port on the unit and plug it into a wall outlet.
3. AbsorbX Odor Filter Installation
The AbsorbX Odor Filter neutralizes odors at their source. One filter is included for immediate use.
- Locate the filter compartment on the underside of the lid.
- Insert the AbsorbX Odor Filter into the compartment.
- Close the filter compartment securely.

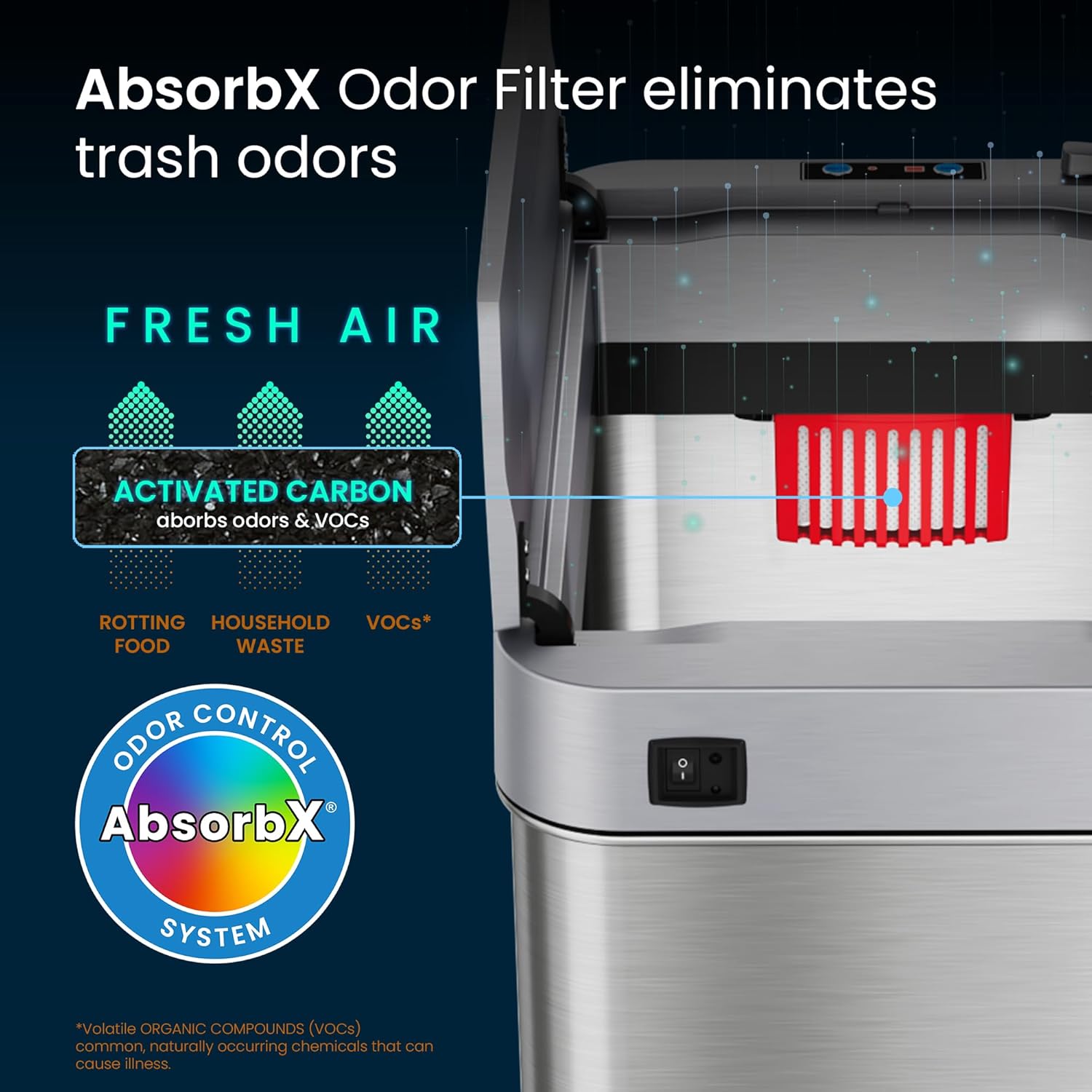

Image: A detailed view of the AbsorbX Odor Filter being placed into its designated slot within the trash can lid, illustrating the odor elimination process.
4. Trash Bag Installation
Use the included trash bag retainer ring to secure the trash bag.
- Place a standard 18-gallon trash bag into the inner bin.
- Fit the trash bag retainer ring over the top edge of the trash bag and the inner bin to hold the bag in place.
- Ensure the bag is fully extended and secured to prevent slippage.
Video: An official product video demonstrating the installation of a trash bag and the general operation of the iTouchless 18 Gallon Sensor 2.0 Wings Open Kitchen Trash Can.
Operating Instructions
1. Sensor 2.0 Technology
The enhanced motion sensor detects movement within its range, opening the lid automatically. The lid opens precisely when needed, reducing false triggers and ensuring a hygienic, touchless experience. The lid will close automatically after a few seconds of inactivity.
2. PetGuard Lock
To prevent pets from opening the lid, activate the built-in PetGuard Lock. This integrated lock secures the lid, ensuring no accidental openings or messes. Refer to the lid controls for activation and deactivation.
3. Stay-Open Lid Feature
For extended use, the lid can be set to remain open. This prevents the lid from closing mid-task, providing convenience during longer disposal periods. Consult the lid controls for engaging this feature.
4. LED Status Lights
The lid features color LED lights that indicate the unit's power status, activity, and other operational information. Observe these lights for quick diagnostics.

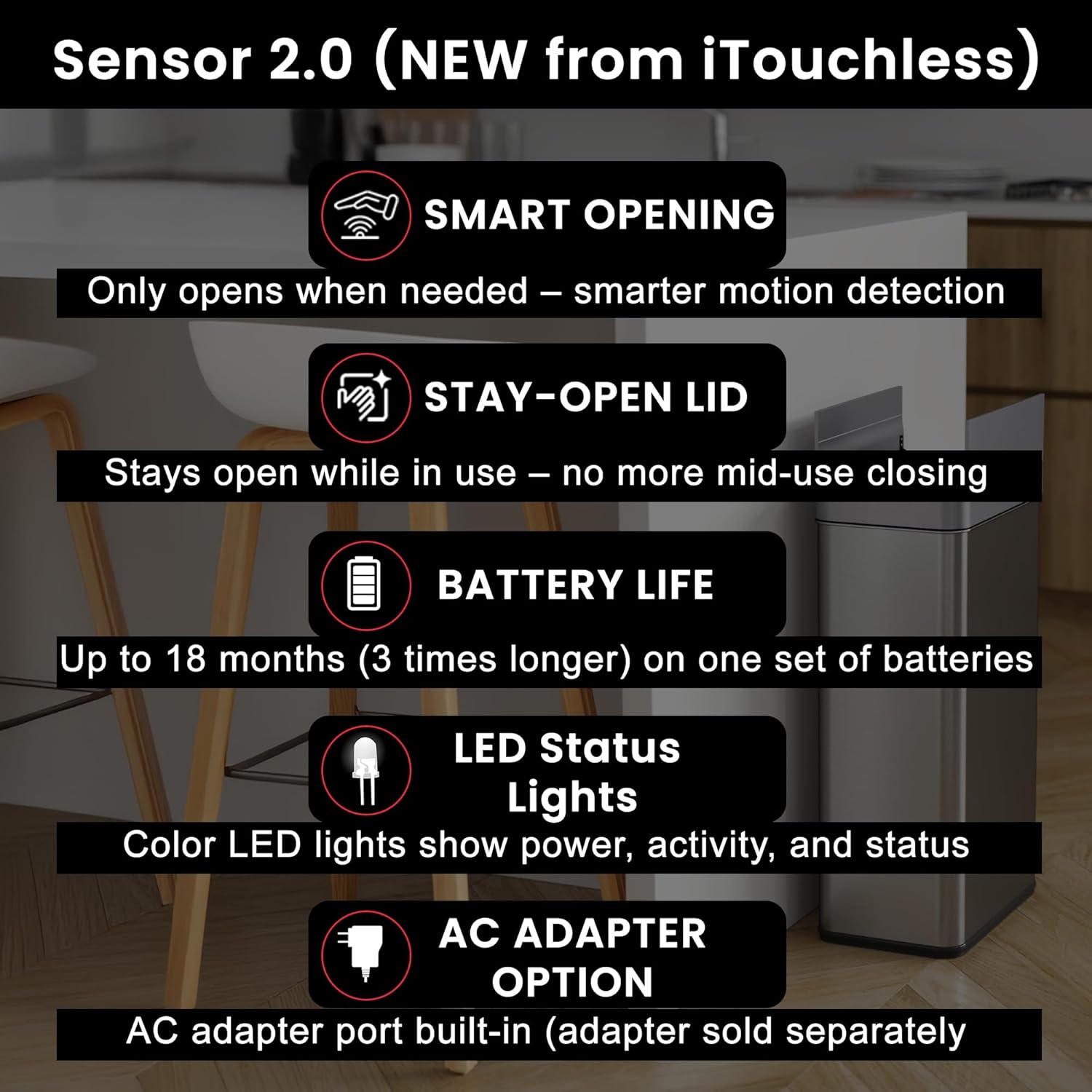

Image: A graphic detailing the advanced features of Sensor 2.0 technology, including smart opening, stay-open lid functionality, extended battery life, LED status indicators, and the AC adapter option.
Maintenance
1. Cleaning
The fingerprint-proof stainless steel body can be cleaned with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals that may damage the finish. The ABS plastic lid can also be wiped clean. Ensure the sensor area is kept clear of obstructions and debris.
2. AbsorbX Odor Filter Replacement
For optimal odor control, replace the AbsorbX Odor Filter regularly. The frequency of replacement depends on usage and the type of waste disposed. Replacement filters are available from iTouchless.
Troubleshooting
- Lid not opening: Check battery power or AC adapter connection. Ensure the sensor is clean and unobstructed.
- Lid not closing: Verify no objects are blocking the lid's path. Check if the 'Stay-Open' feature is accidentally activated.
- Odor persists: Ensure the AbsorbX Odor Filter is correctly installed and not expired. Replace the filter if necessary.
- PetGuard Lock not engaging/disengaging: Refer to the specific controls on the lid for proper operation of the lock mechanism.
Specifications
| Feature | Detail |
|---|---|
| Brand | iTouchless |
| Model Number | WS18RSL-N1 |
| Capacity | 18 Gallons |
| Color | Silver |
| Opening Mechanism | Motion-Sensor (Sensor 2.0 Technology) |
| Material | Stainless Steel (fingerprint-proof), ABS Plastic Lid |
| Dimensions (L x W x H) | 16.2"L x 10.3"W x 29"H |
| Item Weight | 9.6 Pounds |
| Power Options | 4 C-size batteries (not included) or optional AC adapter (sold separately) |
| Special Features | AbsorbX Odor Filter, PetGuard Lock, Wings Open Lid, LED Status Lights, Fingerprint-Proof |
Image: A visual representation of the iTouchless 18 Gallon trash can with its key dimensions labeled, including length, width, and height.
Warranty and Support
Information regarding specific warranty terms and customer support contact details for the iTouchless 18 Gallon Sensor 2.0 Wings Open Kitchen Trash Can is not provided within the available product data. Please refer to the manufacturer's official website or the product packaging for the most current warranty information and support contacts.
