Introduction
Thank you for choosing the DECAKILA KUEV022B 10L Electric Toaster Oven. This compact yet powerful appliance is designed for baking, toasting, and broiling with ease. With a 10-liter capacity, adjustable temperature up to 230°C, and a 60-minute timer, it offers versatility for various recipes. Its durable stainless steel heating tubes and transparent glass door ensure efficient performance and convenient monitoring. The non-slip feet provide stability during use. Please read this manual thoroughly before operation to ensure safe and optimal use of your new toaster oven.

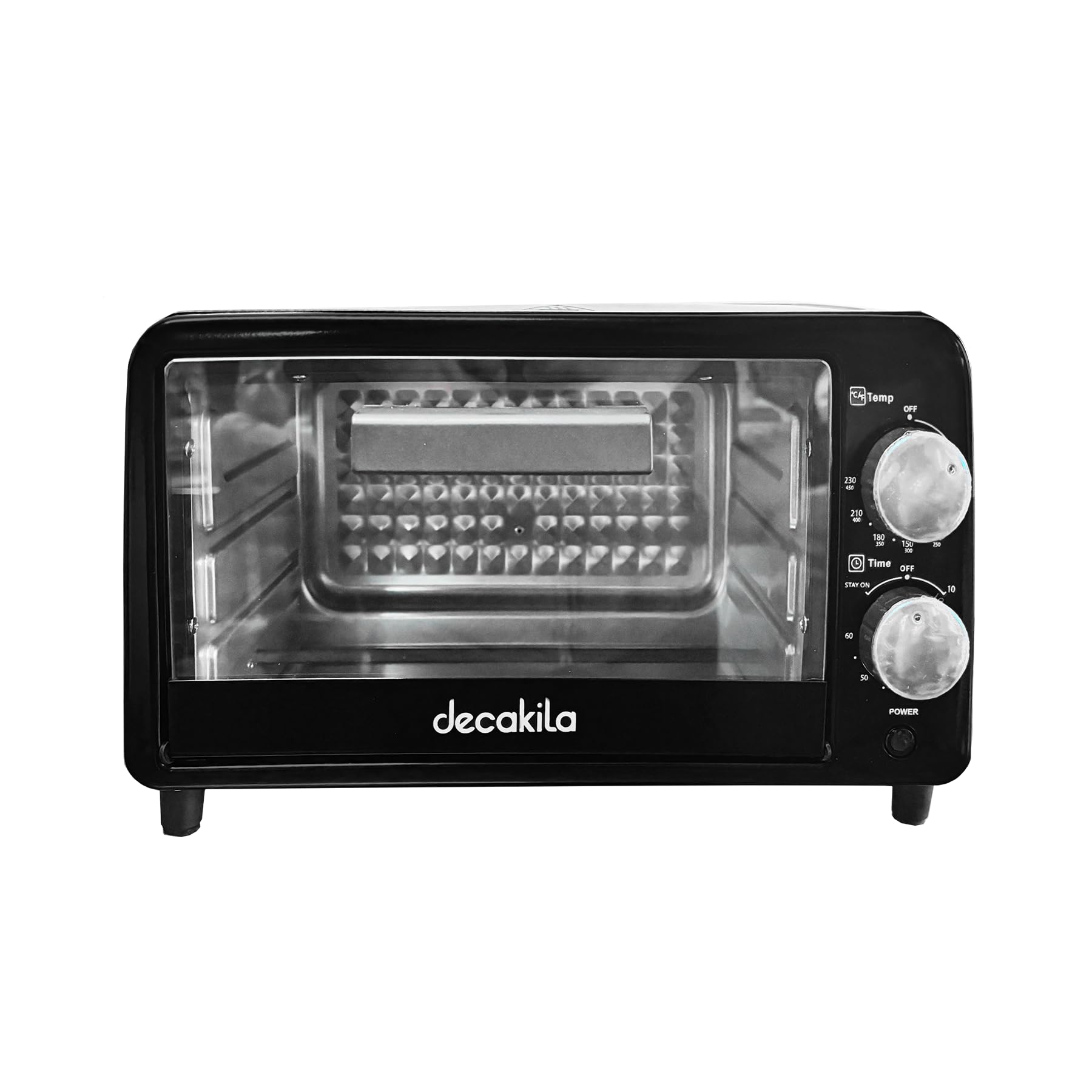

Image: Front view of the DECAKILA KUEV022B 10L Electric Toaster Oven, showcasing its compact design and control knobs.
Important Safety Instructions
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
- A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
- Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
- Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
- Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
- Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
Product Overview
The DECAKILA toaster oven features intuitive controls and essential accessories for versatile cooking.
Components:
- Oven Housing: The main body of the toaster oven.
- Transparent Glass Door: Allows you to monitor cooking progress without opening the oven.
- Control Panel: Located on the right side, featuring three rotary knobs.
- Baking Rack: For toasting bread, baking pastries, or broiling.
- Baking Tray: Collects crumbs and can be used for baking smaller items.
- Non-slip Feet: Ensures stability on your countertop.
Image: The toaster oven with its glass door open, revealing the interior, baking rack, and baking tray.
Control Knobs:
- Temperature Control Knob (Top): Adjusts the cooking temperature up to 230°C.
- Function Selector Knob (Middle): Selects the cooking mode (e.g., upper heating, lower heating, or both).
- Timer Knob (Bottom): Sets the cooking time up to 60 minutes with an auto-shutoff feature. It also has a "Stay On" option for continuous operation.
Image: A close-up view of the control panel, highlighting the temperature, function, and timer knobs.
Accessories:
- Baking Rack: A wire rack for supporting food items.
- Baking Tray: A solid tray for baking or collecting drips.
Image: The metal baking rack.
Image: The metal baking tray.
Setup
- Unpack: Carefully remove the toaster oven and all accessories from the packaging.
- Remove Packing Materials: Ensure all packing materials, including any internal protective inserts, are removed from the oven cavity.
- Clean: Wipe down the interior and exterior of the oven with a damp cloth. Wash the baking rack and tray with warm, soapy water, rinse, and dry thoroughly.
- Placement: Place the toaster oven on a stable, heat-resistant, and level surface. Ensure there is adequate clearance (at least 10-15 cm) on all sides and above the oven for proper ventilation.
- Power Connection: Plug the power cord into a grounded electrical outlet.
- Initial Burn-off (Optional but Recommended): Before first use, operate the oven empty for about 10-15 minutes at the maximum temperature (230°C) to burn off any manufacturing oils. Some smoke or odor may be present; this is normal. Ensure good ventilation during this process.
Video: This unboxing video from Amazon Mexico provides a visual guide to what's included in the package and initial setup steps.
Operating Instructions
Your DECAKILA toaster oven offers multiple cooking functions. Always preheat the oven for 5-10 minutes before placing food inside for best results, unless otherwise specified by your recipe.
General Operation Steps:
- Prepare Food: Place your food on the baking rack or tray as required.
- Insert Food: Carefully slide the rack/tray with food into the desired position inside the oven. Close the glass door.
- Set Temperature: Turn the Temperature Control Knob to your desired temperature (up to 230°C).
- Select Function: Turn the Function Selector Knob to choose the heating mode:
- Upper Heating: For broiling or browning the top of food.
- Lower Heating: For baking items that need heat from the bottom.
- Both Upper and Lower Heating: For general baking, roasting, or toasting.
- Set Timer: Turn the Timer Knob to the desired cooking time (up to 60 minutes). The oven will automatically turn off when the timer reaches zero. For continuous operation, turn the knob to "Stay On".
- Monitor Cooking: Use the transparent glass door to observe the cooking process.
- Remove Food: Once cooking is complete, turn the timer to "OFF" (if not already off) and carefully remove the hot food using oven mitts.
Specific Functions:
- Toasting: Place bread slices on the baking rack. Select "Both Upper and Lower Heating" function. Set temperature to 200-230°C. Adjust timer for desired toast level.
- Baking: Place food on the baking tray or an oven-safe dish on the rack. Select "Both Upper and Lower Heating" function. Set temperature according to your recipe. Set timer.
- Broiling: Place food on the baking rack, usually closer to the top heating element. Select "Upper Heating" function. Set temperature to 230°C. Monitor closely as broiling is a fast cooking method.
Video: This video demonstrates the operation of a similar electric oven, including placing food, setting temperature, and using the timer. It shows the heating elements in action for different cooking modes.
Maintenance and Cleaning
Regular cleaning will help maintain the performance and appearance of your toaster oven.
- Unplug and Cool: Always unplug the oven from the power outlet and allow it to cool completely before cleaning.
- Crumb Tray: Remove the baking tray and clean any crumbs or food particles. Wash with warm, soapy water, rinse, and dry.
- Interior: Wipe the interior walls with a damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner. Do not use harsh abrasives or metal scouring pads, as they can damage the interior finish.
- Exterior: Wipe the exterior surfaces with a damp cloth. Dry thoroughly.
- Glass Door: Clean the glass door with a glass cleaner or a damp cloth. Avoid abrasive cleaners.
- Accessories: Wash the baking rack and tray with warm, soapy water. Rinse and dry thoroughly before returning them to the oven.
- Do Not Immerse: Never immerse the toaster oven body, cord, or plug in water or any other liquid.
Troubleshooting
If you encounter any issues with your toaster oven, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not turn on. | Not plugged in; power outage; timer not set. | Ensure the oven is securely plugged into a working outlet. Check your circuit breaker. Turn the timer knob past 10 minutes and then back to the desired time. |
| Food is not cooking evenly. | Incorrect rack position; uneven food placement; oven not preheated. | Adjust rack position for optimal heat distribution. Arrange food evenly on the tray. Always preheat the oven for 5-10 minutes. |
| Excessive smoke or odor during operation. | Food spills; initial burn-off; flammable materials inside. | Clean any food spills immediately after the oven cools. Initial smoke/odor is normal for first use. Ensure no paper, plastic, or other flammable materials are inside. |
| Timer not working correctly. | Timer knob not set properly. | Ensure the timer knob is rotated past the 10-minute mark before setting it to the desired time. If using "Stay On", ensure it's correctly selected. |
Specifications
- Brand: DECAKILA
- Model: KUEV022B
- Color: Black
- Capacity: 10 Liters
- Power: 650 Watts
- Material: Stainless Steel
- Product Dimensions: 25 cm (Depth) x 23.5 cm (Width) x 20 cm (Height)
- Product Weight: 1.9 kg
- Special Features: Stainless steel heating, transparent glass door, adjustable temperature, 60-minute timer, non-slip feet.
Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact DECAKILA customer service. Keep your purchase receipt as proof of purchase.
