Introduction
This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your Fanttik K2 Ultra 7.4V Power Drill and E2 Ultra 3.7V Mini Electric Screwdriver. Please read this manual thoroughly before using the tools and retain it for future reference.
Image: The Fanttik K2 Ultra Power Drill and E2 Ultra Mini Electric Screwdriver, presented together. The K2 Ultra is a larger, pistol-grip drill, while the E2 Ultra is a slender, pen-shaped electric screwdriver.
Safety Information
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep the work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders away while operating a power tool.
- Wear appropriate personal protective equipment, including safety glasses, hearing protection, and gloves.
- Ensure the tool is switched off before making any adjustments, changing accessories, or storing.
- Do not force the tool; use the correct tool for your application.
- Maintain tools with care. Keep cutting tools sharp and clean.
- Store idle tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Product Overview
Fanttik K2 Ultra 7.4V Power Drill
The K2 Ultra is a cordless power drill designed for various DIY tasks. It features a brushless motor, dual-screen display, and an electronic gear shifting system.
Image: An X-ray view of the Fanttik K2 Ultra Power Drill highlighting its internal VoltiPulse Brushless Motor, capable of 30 N.m torque and 1250 RPM, with an extended lifespan.
Fanttik E2 Ultra 3.7V Mini Electric Screwdriver
The E2 Ultra is a compact electric screwdriver ideal for precision repairs. It offers adjustable torque settings and a long-lasting rechargeable battery.
Image: The Fanttik E2 Ultra Mini Electric Screwdriver being used to tighten a screw, illustrating its maximum 0.6 N.m torque and five adjustable torque settings (0.05, 0.1, 0.2, 0.4, 0.6 N.m).
Included Accessories
The product includes a comprehensive set of S2 steel bits, a pry bar, and tweezers.
Image: A 50-piece set of S2 steel bits, including various Phillips, Torx, Hex, Slotted, and other specialized bits, along with a pry bar and tweezers. These bits are designed for 5/32" hex shanks.
Setup
Charging the Batteries
Both the K2 Ultra Power Drill and E2 Ultra Mini Electric Screwdriver are equipped with rechargeable batteries. It is recommended to fully charge both tools before first use.
- Locate the Type-C charging port on each tool.
- Connect the provided Type-C charging cable to the tool and a suitable USB power adapter (not included).
- The charging indicator will illuminate, typically changing color or displaying a charging animation, to indicate charging status.
- Once fully charged, disconnect the charging cable.
Image: An internal view of the Fanttik K2 Ultra Power Drill, showing its long-lasting battery and the Type-C charging port with 5V 2A input specification.
Image: The Fanttik E2 Ultra Mini Electric Screwdriver connected to a Type-C charging cable, demonstrating its 800mAh battery capacity and ability to drive approximately 550 M3.0x10mm screws on a single charge.
Attaching Bits
Select the appropriate bit for your task from the included 50-piece S2 steel bit set.
- Ensure the tool is powered off and the chuck/bit holder is clear.
- Insert the desired bit into the chuck of the K2 Ultra or the magnetic bit holder of the E2 Ultra until it is securely seated.
- For the K2 Ultra, twist the chuck to tighten the bit if necessary.
Operating Instructions
Fanttik K2 Ultra 7.4V Power Drill
The K2 Ultra is designed for drilling and driving applications with intelligent features.
- Power On/Off: Press the power button to turn the drill on or off.
- Rotation Direction: The side screen displays the current rotation direction (forward/reverse). Use the direction switch to select.
- Lock Function: A long press on the direction switch activates the lock function, preventing accidental operation.
- TapSwitch Electronic Gear Shifting: This system allows you to switch between screwdriver and drill modes with a single touch. Tap the designated button to toggle modes.
- Operation: Position the drill bit or screwdriver bit on the workpiece. Press the trigger to start operation. Adjust pressure as needed.

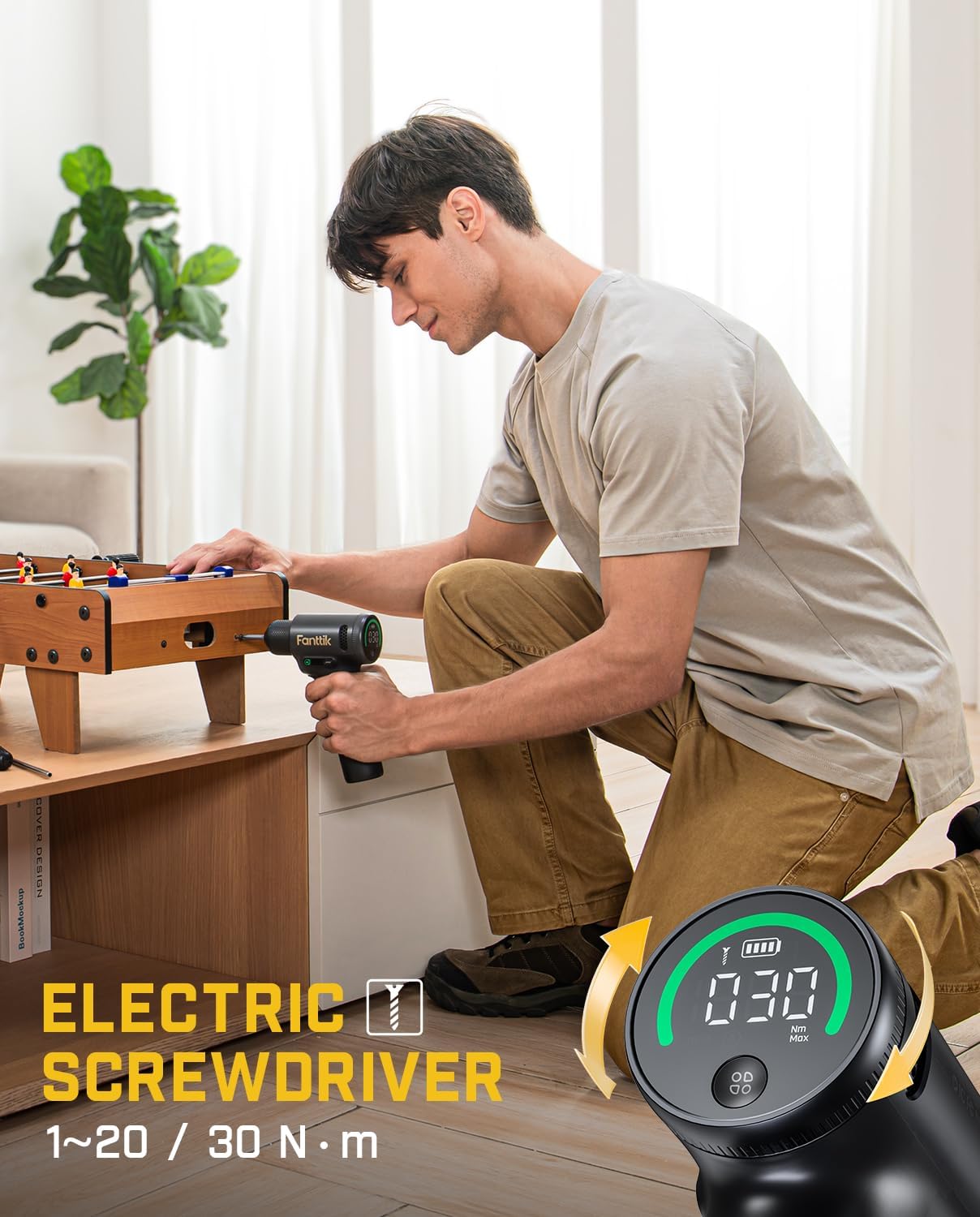

Image: A user operating the Fanttik K2 Ultra Power Drill to assemble a piece of furniture, demonstrating its use as an electric screwdriver with a digital display showing torque settings.
Image: A detailed view of the Fanttik K2 Ultra Power Drill's electric direction switch, illustrating the "Drill In" (forward), "Locked" (long press), and "Drill Out" (reverse) functions with corresponding visual indicators.
Fanttik E2 Ultra 3.7V Mini Electric Screwdriver
The E2 Ultra is designed for precise fastening and unfastening of small screws.
- Power On/Off: Press the power button to activate the screwdriver.
- Torque Adjustment: The E2 Ultra features 5 gears for torque adjustment (0.05/0.1/0.2/0.4/0.6 N.m). Use the designated button to cycle through these settings to match the requirement of your task.
- Manual Mode: For tasks requiring more force, the screwdriver can be used in manual mode, providing up to 3 N.m of torque.
- Operation: Place the bit onto the screw head. Press the activation button to rotate the bit. Release the button to stop.
Image: A collage showing the Fanttik E2 Ultra Mini Electric Screwdriver being used for various precision tasks, including repairing a keyboard, camera, racing car, game console, mouse, and computer components.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your tools.
- Cleaning: Keep the tools clean and free from dust and debris. Use a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the tools in a dry, secure place, away from direct sunlight and extreme temperatures. Ensure batteries are partially charged before long-term storage.
- Bit Care: Keep the S2 steel bits clean and free from rust. Replace worn or damaged bits to ensure efficient operation and prevent damage to fasteners.
- Battery Care: Avoid fully discharging the batteries frequently. Charge them regularly, even if not in use, to maintain battery health.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not turn on. | Battery is discharged. | Charge the battery fully. |
| Tool lacks power/torque. | Low battery charge; incorrect torque setting (E2 Ultra). | Recharge the battery. Adjust torque setting to a higher level for E2 Ultra. |
| Bit slips or strips screw head. | Incorrect bit size; worn bit; excessive force. | Use the correct bit size. Replace worn bits. Apply appropriate pressure. |
| K2 Ultra direction switch not responding. | Tool is in lock mode. | Long press the direction switch to unlock the tool. |
Specifications
Fanttik K2 Ultra 7.4V Power Drill
- Motor: VoltiPulse Brushless Motor
- Voltage: 7.4V
- Max Torque: Up to 30 N.m
- Max Speed: 1250 RPM
- Features: Dual-screen design, TapSwitch electronic gear shifting, Lock function
Fanttik E2 Ultra 3.7V Mini Electric Screwdriver
- Motor: NeoPulse Motor
- Voltage: 3.7V
- Max Torque (Electric): Up to 0.6 N.m
- Max Torque (Manual): Up to 3 N.m
- Speed: 270 RPM
- Torque Adjustment: 5 gears (0.05/0.1/0.2/0.4/0.6 N.m)
- Battery Capacity: 800mAh
- Charging Port: Type-C
General
- ASIN: B0FJFP4WGM
- Style: K2 Ultra & E2 Ultra
Warranty and Support
For warranty information and customer support, please refer to the official Fanttik website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
Fanttik Official Website: www.fanttik.com
