TUXING TXES062 Portable PCP Air Compressor User Manual

Introduction

Thank you for choosing the TUXING TXES062 Portable PCP Air Compressor. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your compressor. Please read this manual thoroughly before using the product and retain it for future reference.

The TXES062 is a high-pressure, auto-stop air compressor designed for filling PCP air rifles, paintball guns, and small air tanks. It features versatile power options, including 12V DC for vehicle use and 220V AC for home use, making it suitable for various applications.

Important Safety Instructions

WARNING: Failure to follow these safety instructions may result in serious injury, property damage, or death.

• Always operate the compressor in a well-ventilated area to prevent overheating and ensure proper cooling.
• Do not operate the compressor near flammable liquids or gases.
• Ensure all connections are secure before operating. Leaks can cause rapid pressure loss and potential hazards.
• Never exceed the maximum rated pressure of the air tank or device being filled. The compressor features an auto-stop function, but always monitor the pressure gauge.
• Keep children and unauthorized personnel away from the compressor during operation.
• Wear appropriate eye protection when operating the compressor.
• Allow the compressor to cool down between extended uses to prevent overheating. Refer to the temperature display.
• Always bleed the pressure from the system before disconnecting any hoses or fittings.
• Do not modify the compressor or its components. Use only original replacement parts.
• Disconnect power before performing any maintenance or cleaning.

Package Contents

Carefully unpack all items and ensure all components are present and undamaged. If any items are missing or damaged, contact customer support.

Image: The TUXING TXES062 compressor with its included accessories, including power cables, high-pressure hose, and various fittings.

• TUXING TXES062 Air Compressor Unit
• AC Power Cable (220V)
• DC Power Cable with Alligator Clips (12V)
• High-Pressure Filling Hose
• Spare O-rings and Filters
• User Manual (this document)

Product Overview

The TXES062 compressor is designed for ease of use and portability, featuring a robust construction and intelligent functions.

Image: Key features of the compressor, highlighting one-button start, integrated wire spool, oil-water separation, pressure setting, automatic stop, and fast inflation capabilities.

Key Features:

• High Pressure Output: Capable of reaching 4500 PSI (300 Bar / 30 MPa).
• Auto-Stop Function: Automatically stops when the preset pressure is reached, preventing overfilling.
• Dual Power Supply: Operates on 12V DC (car battery) or 220V AC (home outlet).
• Integrated Cooling Fan: Ensures efficient heat dissipation during operation.
• Portable Design: Compact and lightweight with a convenient carry handle.
• One-Button Start: Simplifies operation, automatically engaging the cooling fan.
• Oil-Water Separator: Helps ensure clean, dry air output.

Image: Illustrates the one-button start feature of the TXES062, which automatically activates the cooling fan, preventing motor damage from overheating.

Setup

1. Power Connection:

The TXES062 offers two power options:

A. 12V DC Car Battery Connection:

• Ensure the vehicle engine is running to provide stable power and prevent battery drain.
• Connect the red alligator clip of the 12V DC power cable to the positive (+) terminal of the car battery.
• Connect the black alligator clip to the negative (-) terminal of the car battery.
• Plug the DC connector into the "POWER DC 12V" port on the compressor.

Image: The compressor connected to a car battery via alligator clips, demonstrating its portability for outdoor use.

B. 220V AC Home Outlet Connection:

• Plug the AC power cable into the "POWER AC" port on the compressor.
• Insert the other end of the AC power cable into a standard 220V wall outlet.

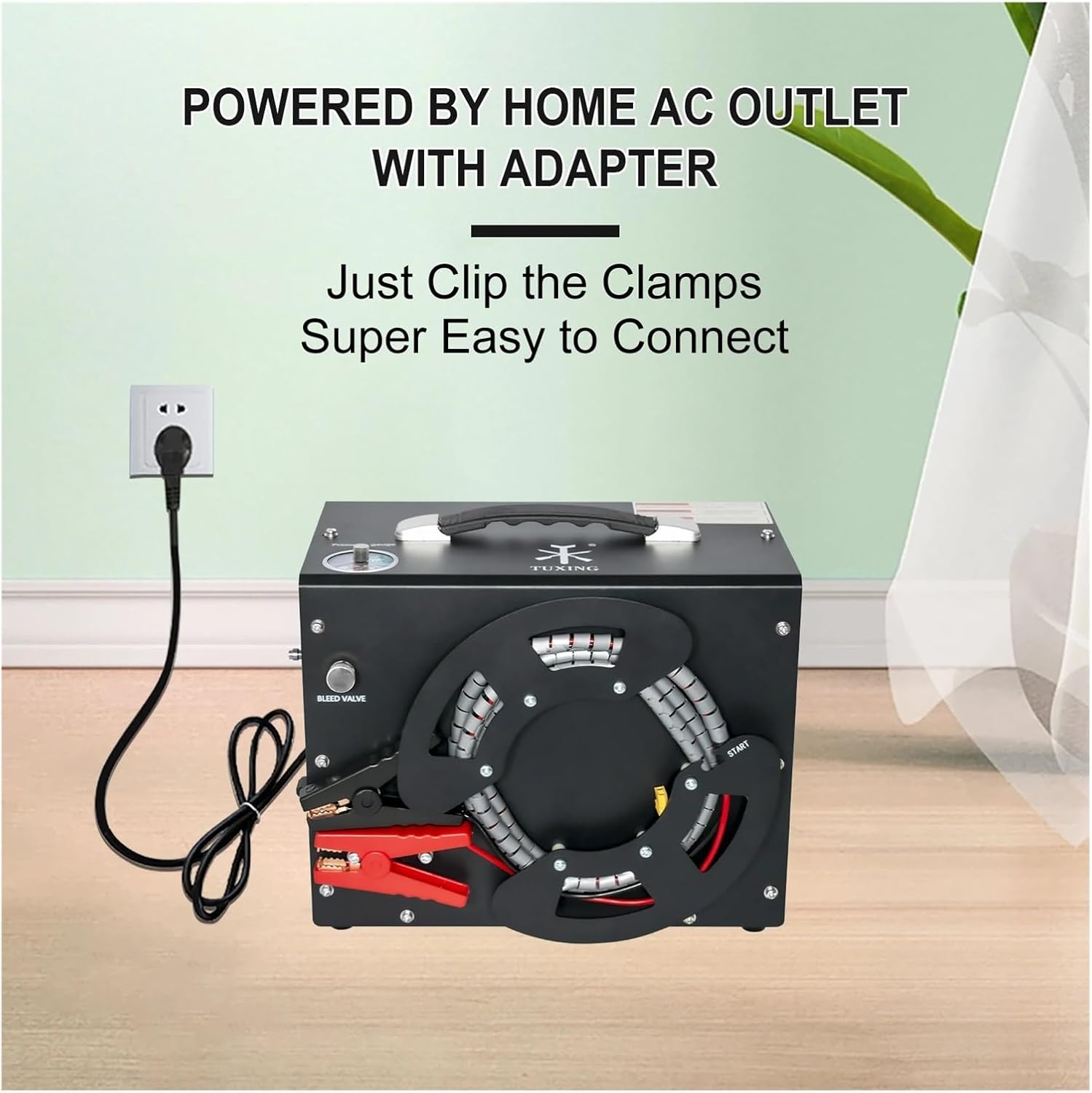

Image: The compressor connected to a standard home AC outlet using the provided power cable.

2. High-Pressure Hose Connection:

• Connect one end of the high-pressure filling hose to the compressor's output port. Ensure it is tightened securely.
• Connect the other end of the filling hose to the fill port of your PCP air rifle, paintball gun, or air tank. Ensure this connection is also secure to prevent leaks.

3. Bleed Valve:

Locate the bleed valve on the compressor. Before starting, ensure the bleed valve is closed by turning it clockwise. The bleed valve is used to release pressure from the system after inflation.

Operating Instructions

1. Setting Target Pressure:

The TXES062 features an adjustable auto-stop function. Set the desired target pressure on the compressor's gauge or digital display (if applicable) according to the maximum pressure rating of your device. The compressor will automatically stop when this pressure is reached.

Important: Never set the target pressure higher than the maximum working pressure of your air rifle or tank.

2. Starting Inflation:

• Ensure all connections are secure and the bleed valve is closed.
• Press the "START" button (or power switch) on the compressor. The cooling fan will automatically activate, followed by the compressor pump.
• Monitor the pressure gauge on the compressor and on your air rifle/tank.
• Observe the temperature display. If the temperature rises excessively, stop the compressor and allow it to cool down.

3. Auto-Stop and Completion:

• Once the preset target pressure is reached, the compressor will automatically stop.
• After the compressor stops, slowly open the bleed valve (turn counter-clockwise) to release the residual pressure from the filling hose. This is crucial before disconnecting.
• Once the pressure is fully bled, disconnect the filling hose from your air rifle/tank and then from the compressor.
• Turn off the main power switch if not using the compressor immediately.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your TUXING TXES062 compressor.

• Air Filter Replacement: Periodically check and replace the air filter element. A clogged filter can reduce efficiency and cause overheating. Refer to the spare parts for replacement filters.
• Moisture Trap Drainage: If your model includes a moisture trap, drain it regularly to remove accumulated water. This prevents moisture from entering your air rifle/tank.
• Cleaning: Keep the exterior of the compressor clean and free of dust and debris. Ensure the cooling fan vents are unobstructed. Use a soft, dry cloth for cleaning. Do not use harsh chemicals or solvents.
• Storage: Store the compressor in a cool, dry place, away from direct sunlight and extreme temperatures.

Troubleshooting

Specifications

Note: Specifications are subject to change without notice. Please refer to the product packaging for the most accurate information. The provided weight and dimensions from the source data appear to be for a small component, not the full compressor unit.

Warranty and Support

For warranty information, technical support, or to purchase replacement parts, please contact the manufacturer or your authorized dealer. Keep your purchase receipt as proof of purchase.

Manufacturer: IBIYZNMES (as per product specifications)
