1. Introduction
This manual provides detailed instructions for the safe and efficient operation of your Electactic CM5400BA-UL 20 Bar Semi-Automatic Espresso Machine. Please read this manual thoroughly before first use and keep it for future reference.
Key Features:
- 20 Bar Professional Pressure: Ensures rich espresso with optimal crema.
- Built-In Steam Wand: Creates smooth, dense milk foam for cappuccinos and lattes.
- Smart Temperature Control (NTC System): Maintains precise water temperature for ideal extraction.
- User-Friendly LCD Interface: Clear display and simple knob controls for easy operation.
- Compact & Easy to Clean: Space-saving stainless steel body with a 45oz (1.2L) detachable water tank and removable parts for convenient cleaning.

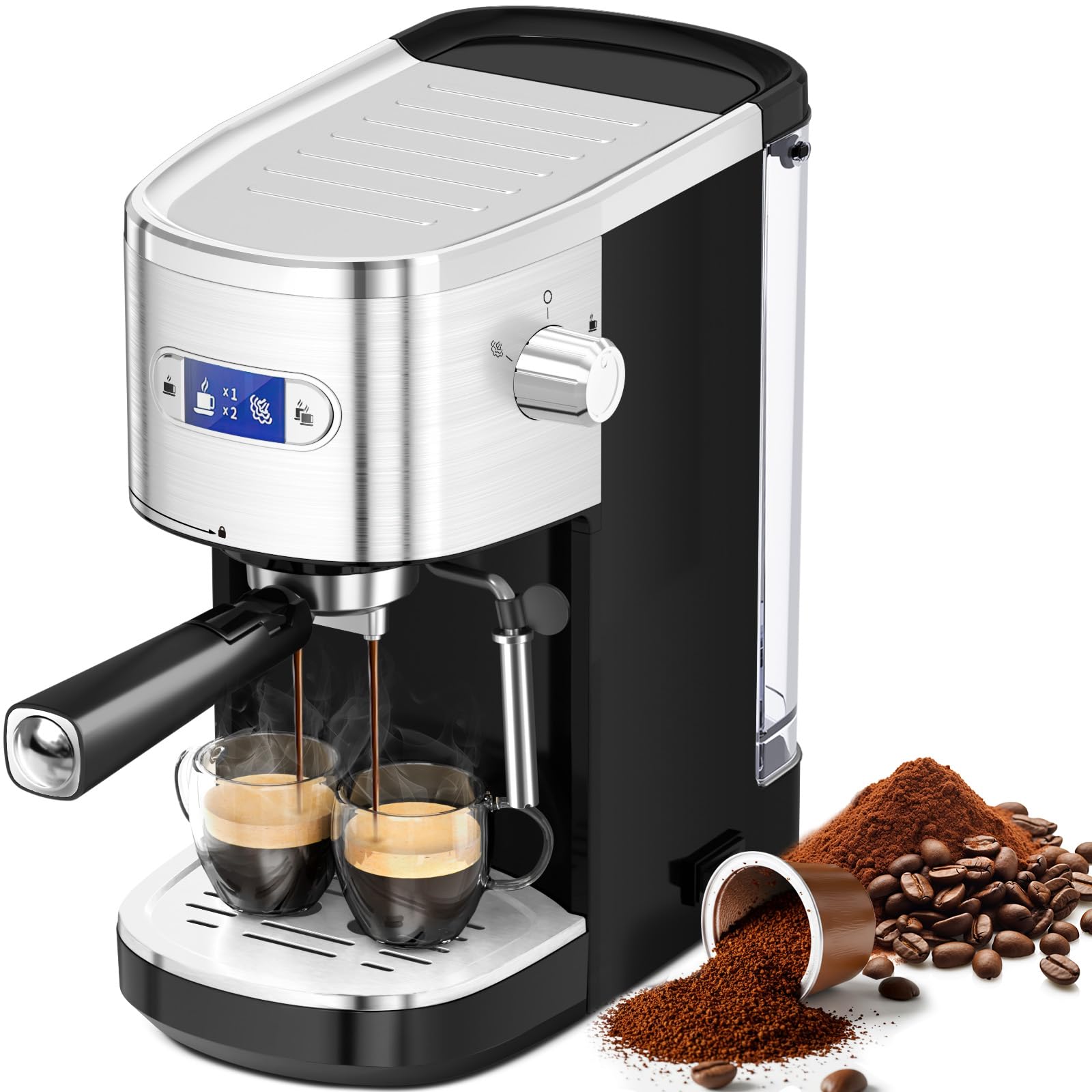

Figure 1.1: Main view of the Electactic CM5400BA-UL Espresso Machine.
2. What's in the Box
Your Electactic Espresso Machine package includes the following components:
- Espresso Machine Unit
- Portafilter Handle
- Single Filter Basket (for one shot of espresso)
- Double Filter Basket (for two shots of espresso)
- Capsule Portafilter (for Nespresso-compatible capsules)
- Coffee Scoop & Tamper
- Removable Water Tank (45oz / 1.2L capacity)
- Drip Tray & Drip Plate
- Instruction Manual

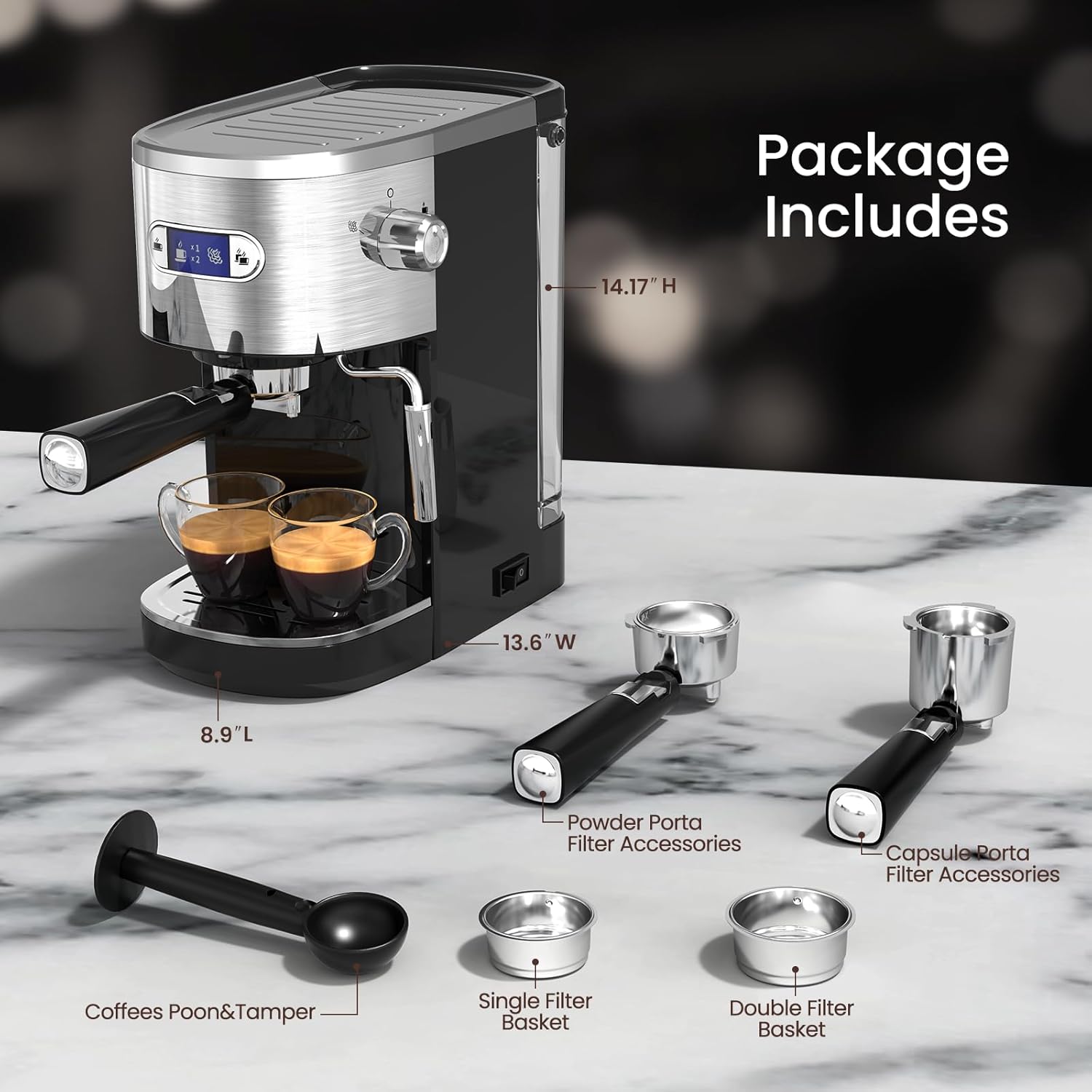

Figure 2.1: All components included with your espresso machine.
Figure 2.2: Portafilter options for ground coffee and capsules.
3. Setup
Follow these steps to set up your espresso machine for the first time:
- Unpack: Carefully remove all components from the packaging.
- Clean: Wash the water tank, portafilter, filter baskets, and drip tray with warm, soapy water. Rinse thoroughly and dry.
- Position: Place the machine on a stable, flat, heat-resistant surface near a power outlet.
- Fill Water Tank: Remove the 45oz (1.2L) water tank from the back of the machine. Fill it with fresh, cold water up to the MAX line. Reinsert the tank securely.
Figure 3.1: The 1.2L removable water reservoir.
- First Use Cycle: Before brewing coffee, run a cycle with just water to prime the system. Ensure the water tank is filled, place a cup under the portafilter, and turn the machine on. Select the single or double shot button to run water through the system. Repeat this process for the steam wand by turning the control dial to the steam function and activating it until steam is released.
- Power On: Plug the power cord into a grounded electrical outlet. Turn on the main power switch, usually located on the side or back of the machine.
4. Operating Instructions
4.1 Making Espresso
- Prepare Portafilter: Insert the desired filter basket (single or double shot for ground coffee, or the capsule portafilter for capsules) into the portafilter handle.
- Add Coffee: For ground coffee, scoop fresh, finely ground espresso into the filter basket. Use the tamper to gently press the coffee grounds evenly. For capsules, insert the capsule into the capsule portafilter.
- Attach Portafilter: Align the portafilter with the brew head on the machine. Insert it sideways and twist it firmly to the right until it is securely locked in place.
- Place Cup: Position your espresso cup(s) on the drip tray directly under the portafilter spouts.
- Select Brew: Once the machine is heated (indicated by the LCD display), press the single shot (x1) or double shot (x2) button on the control panel. The machine will begin brewing espresso.
- Enjoy: Your espresso is ready when the brewing stops automatically.

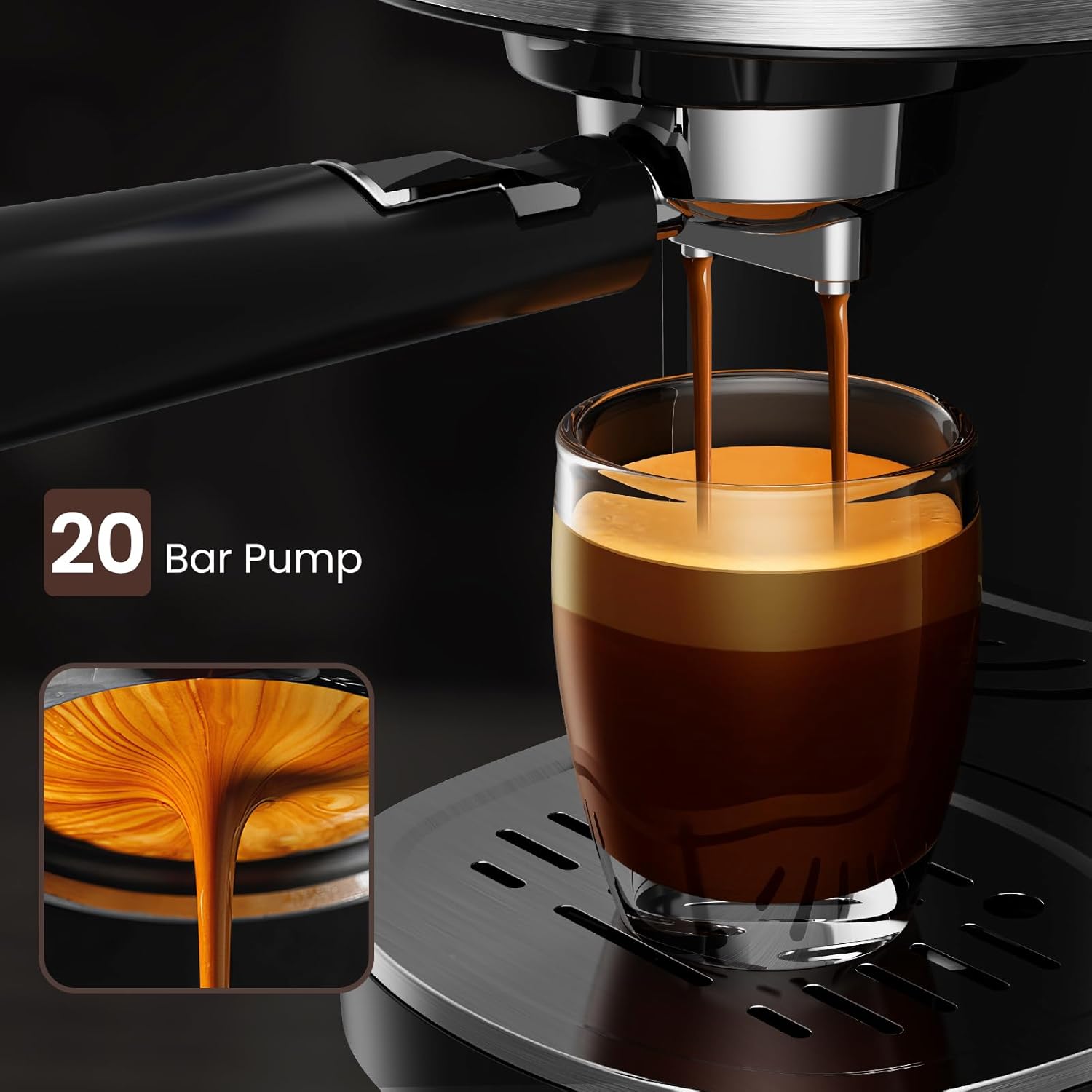

Figure 4.1: Espresso extraction with 20 bar pump pressure.
4.2 Milk Frothing with Steam Wand
- Prepare Milk: Fill a stainless steel frothing pitcher with cold milk (dairy or non-dairy) to just below the spout.
- Activate Steam: Turn the control dial on the side of the machine to the steam function. Wait for the machine to heat up and indicate it's ready for steaming on the LCD display.
- Purge Steam Wand: Before frothing, briefly open the steam valve to release any condensed water. Close the valve once steam is consistently flowing.
- Froth Milk: Immerse the tip of the steam wand just below the surface of the milk. Open the steam valve fully. Hold the pitcher at an angle, moving it slightly up and down to create a swirling motion. This will incorporate air and create foam.
- Heat Milk: Once desired foam is achieved, lower the pitcher to immerse the steam wand deeper into the milk to heat it to your preferred temperature (typically 140-150°F / 60-65°C).
- Stop Steaming: Close the steam valve and remove the pitcher.
- Clean Steam Wand: Immediately wipe the steam wand with a damp cloth to prevent milk residue from drying. Briefly open the steam valve again to clear any internal milk.
Figure 4.2: The powerful steam wand for creating creamy milk foam.
5. Maintenance
Regular cleaning and maintenance ensure the longevity and optimal performance of your espresso machine.
Daily Cleaning:
- Drip Tray: Empty and clean the drip tray and grid after each use or when the indicator floats up.
- Portafilter & Filter Baskets: Remove spent coffee grounds, rinse the portafilter and filter baskets under warm water.
- Steam Wand: Wipe immediately after use with a damp cloth. Purge steam to clear any milk residue.
- Water Tank: Rinse the water tank daily and refill with fresh water.
Weekly Cleaning:
- Brew Head: Wipe the brew head with a damp cloth to remove any coffee residue.
- Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or scourers.
Descaling:
Depending on water hardness and usage, descaling should be performed every 2-3 months. Refer to the full instruction manual for detailed descaling procedures using a suitable descaling solution.
6. Troubleshooting
If you encounter issues with your espresso machine, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No coffee dispenses. | Water tank empty; machine not primed; coffee too finely ground/over-tamped. | Fill water tank; run first use cycle; use coarser grind or less pressure when tamping. |
| Espresso is too weak or watery. | Coffee too coarsely ground; insufficient coffee; brewing too fast. | Use finer grind; increase coffee amount; ensure proper tamping. |
| Steam wand not producing steam. | Machine not heated to steam temperature; steam wand clogged. | Wait for steam indicator; clean steam wand thoroughly. |
| Machine leaks water. | Water tank not seated correctly; drip tray full. | Ensure water tank is properly installed; empty and clean drip tray. |
For further assistance, please contact customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Electactic |
| Model Name | CM5400BA-UL |
| Color | Black |
| Product Dimensions | 11.42"D x 7.09"W x 11.97"H |
| Pressure | 20 Bar Professional Pump |
| Water Tank Capacity | 45oz (1.2 Liters) |
| Coffee Input Type | Capsule and Ground Coffee |
| Operation Mode | Semi-Automatic |
| Voltage | 120 Volts |
| Item Weight | 7.11 pounds |
| Special Features | Latte Machine, Cappuccino Maker, Brushed Stainless Steel, Milk Frother Steam Wand, Removable Water Tank |
8. Warranty & Support
Your Electactic Espresso Machine comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including coverage duration and claim procedures.
Customer Support:
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Electactic customer support through the retailer where you purchased the product or visit the official Electactic website for contact information.
Please have your model number (CM5400BA-UL) and purchase date ready when contacting support.
