1. Introduction
This manual provides essential instructions for the assembly, installation, and maintenance of your FONTOI 6-Panel Outdoor Privacy Fence Screen. Please read this guide thoroughly before beginning assembly or use to ensure proper setup and safe operation. This product is designed to offer privacy and conceal unsightly outdoor elements.

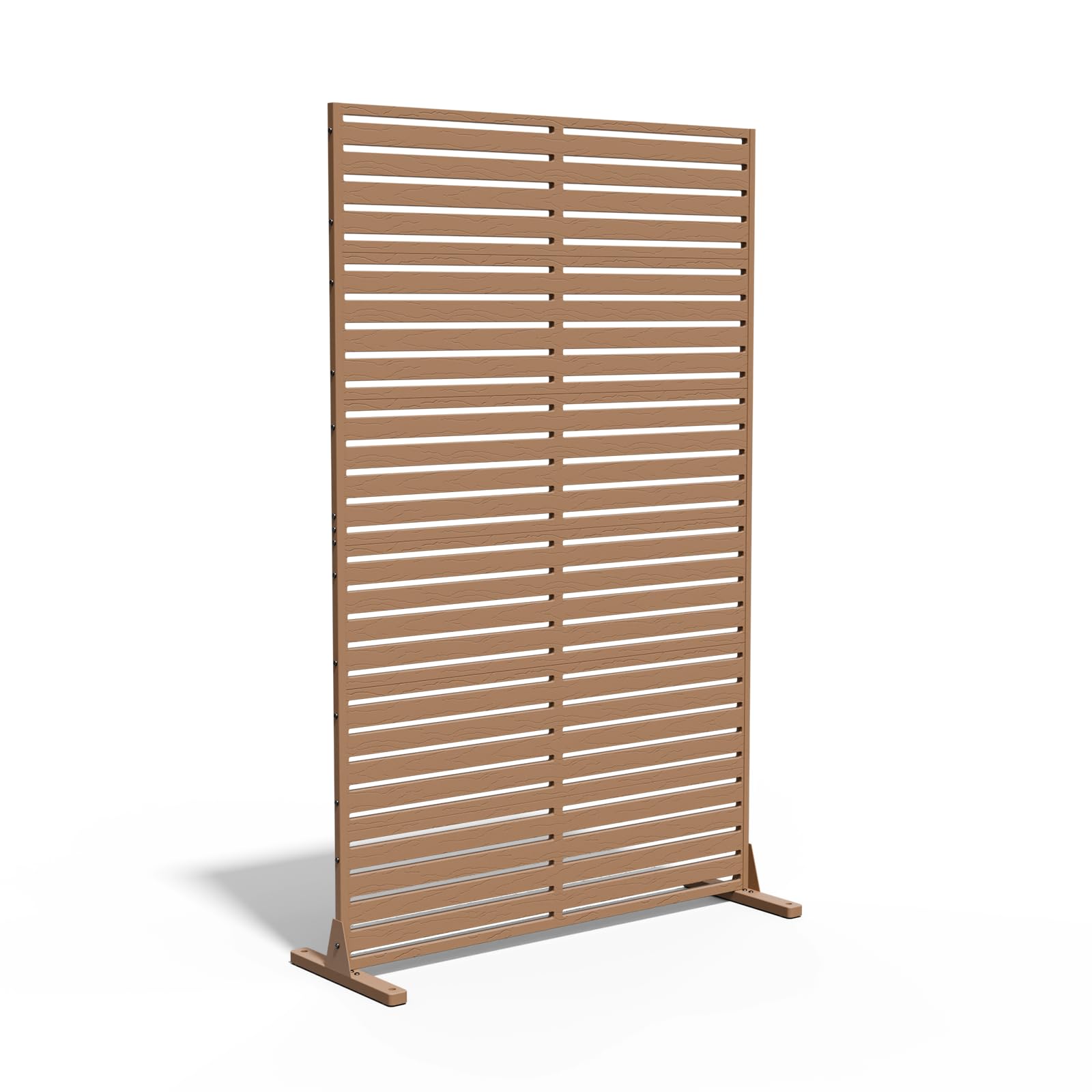

Image 1.1: The FONTOI 6-Panel Outdoor Privacy Fence Screen, showcasing its modular design and brown finish.
2. Safety Information
Adhere to the following safety guidelines during assembly and use:
- Always ensure all components are securely fastened before and after installation.
- Do not climb on the fence or allow children to hang from it.
- Keep children and pets away from the assembly area to prevent injury.
- Use appropriate safety gear, such as gloves, during installation to protect hands.
- Place the fence on a stable, level surface to prevent tipping.
- In areas with strong winds, consider additional anchoring for enhanced stability.
3. Package Contents
Verify that all the following components are included in your package:
- HDPE Panels (6 units)
- Steel Posts
- Ground Stakes (for soft ground installation)
- Screws (for panel and post connections)
- Expansion Bolts (for hard surface anchoring)
4. Specifications
| Feature | Detail |
|---|---|
| Brand | FONTOI |
| Model Number | B0FJ7YQTPB |
| Material | Polypropylene (HDPE Panels), Steel Posts |
| Color | Brown |
| Product Dimensions (Total Span) | 45.47"L x 15.75"W x 72"H (approximate, depends on configuration) |
| Assembly Required | Yes |
| GTIN/UPC | 683770294161 |
5. Setup & Assembly
5.1. Preparation
Before assembly, unpack all components and verify them against the 'Package Contents' list. Ensure you have the following tools (not included):
- Phillips Head Screwdriver
- Wrench (if needed for tightening bolts)
- Drill (for anchored installation on hard surfaces)
- Measuring Tape
5.2. Assembly Steps
- Identify Components: Separate the HDPE panels from the steel posts and hardware. Each panel has pre-drilled holes for connection.
- Connect Panels: Take two HDPE panels and align their edges. Use the provided screws to connect them securely through the pre-drilled holes. Do not overtighten initially.
- Form Configuration: Repeat step 2 for all 6 panels, connecting them to form your desired configuration (e.g., a straight line, an L-shape, or a zigzag pattern). Ensure the panels are aligned correctly for a stable structure.
- Attach Steel Posts: Once the panels are connected in your desired shape, attach the steel posts to the designated connection points on the panels using the remaining screws. The posts provide essential structural support and height.
- Choose Installation Method:
- Freestanding: If using the fence as a freestanding unit (e.g., poolside or on a patio where anchoring is not desired), ensure it is placed on a flat, stable surface. The wide base of the posts provides some stability.
- Anchored: For increased stability, especially on uneven ground or in windy conditions, anchor the fence.
- For Soft Ground (Soil, Grass): Position the fence. Insert the ground stakes through the base of the steel posts and firmly push or hammer them into the ground until secure.
- For Hard Surfaces (Patios, Decks): Mark the locations for the expansion bolts at the base of each steel post. Drill pilot holes if necessary, then insert and tighten the expansion bolts to secure the posts to the surface.
- Final Tightening: Once the fence is in its final position and secured, go back and tighten all screws and bolts to ensure maximum stability.
6. Usage & Placement
The FONTOI 6-Panel Outdoor Privacy Fence Screen is versatile and can be used in various outdoor settings:
- Concealment: Effectively hide unsightly outdoor elements such as air conditioning units, pool pumps, trash cans, recycling bins, or gardening tools.
- Privacy: Create a private area in your backyard, on a balcony, or around a pool.
- Decorative Element: The modern slatted design adds visual appeal to your outdoor space.
- Seasonal Use: Can be used year-round. In summer, it can support hanging flower pots; in fall, it can help block leaves; and in winter, it can act as a wind or snow barrier.
Arrange the modular panels to best suit your specific needs and the layout of your outdoor area.
7. Maintenance
To ensure the longevity and appearance of your privacy fence screen, follow these maintenance guidelines:
- Cleaning: Clean the HDPE panels with mild soap and water using a soft cloth or sponge. Rinse thoroughly with clean water to remove any soap residue.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the panel material.
- Inspect Periodically: Regularly inspect the steel posts for any signs of rust or corrosion. If rust appears, clean it with a wire brush and apply a rust-inhibiting paint.
- Tighten Fasteners: Periodically check and tighten all screws and bolts to ensure the fence remains stable and secure.
- Winter Care: While designed for all seasons, consider storing the fence indoors during extreme winter conditions to prolong its life, especially if not securely anchored.
8. Troubleshooting
Refer to the following common issues and their potential solutions:
- Problem: The fence feels unstable or wobbly.
Solution: Ensure all screws connecting the panels and posts are fully tightened. If using ground stakes or expansion bolts, verify they are securely fixed into the ground or surface. Consider repositioning the fence to a more level surface. For freestanding setups, ensure the base is not on soft or uneven ground. - Problem: Panels do not align properly during assembly.
Solution: Disassemble the affected panels and carefully re-align them. Ensure that all pre-drilled holes match up perfectly before inserting and tightening screws. Sometimes, a slight adjustment in angle can resolve alignment issues. - Problem: Minor scratches or scuffs on panels.
Solution: For minor surface imperfections, a gentle cleaning with mild soap and water may help. Deep scratches may be permanent but typically do not affect the structural integrity or privacy function of the fence.
9. Warranty & Support
This FONTOI 6-Panel Outdoor Privacy Fence Screen does not come with an explicit manufacturer's warranty stated in the provided product information.
For any questions, concerns, or support regarding your product, please contact FONTOI customer service through the retailer where the product was purchased. Please have your model number (B0FJ7YQTPB) and purchase details ready when contacting support.
