Anern 10kW Hybrid Solar Inverter AN-PVI-10000W User Manual

1. Introduction

The Anern AN-PVI solar inverter offers an economical solution for grid-connected or off-grid photovoltaic installations. Designed as a pure PV inverter, it operates without batteries, making it perfect for areas with a stable grid or daily applications. Key applications include agricultural power supply for water pumps and motor loads thanks to its integrated motor start function, grid connection for power supply via the local grid (check country-specific certification requirements), and hybrid power supply combining solar energy (up to 13.5 kW) with grid/generator for continuity. This manual provides essential information for the safe and efficient use of your inverter.

2. Product Overview

Anern 10kW Hybrid Solar Inverter AN-PVI-10000W front view — Front view of the Anern 10kW Hybrid Solar Inverter, model AN-PVI-10000W, highlighting its pure sine wave output, 13500W maximum PV power, 10000W rated output power, 2/18A MPPT, and 220/230/240Vac compatibility. An optional WiFi module is also indicated.

Anern 10000W Hybrid Solar Inverter with specifications — Image showing the Anern 10000W Hybrid Solar Inverter, 220V/230V AC photovoltaic inverter with 2 MPPT inputs, emphasizing its capacity and features.

Anern 10kW Hybrid Solar Inverter key features summary — Summary of the inverter's key features including 13500W maximum PV power, 10000W rated output power, 2/18A MPPT, and 220/230/240Vac compatibility, along with an optional WiFi mode.

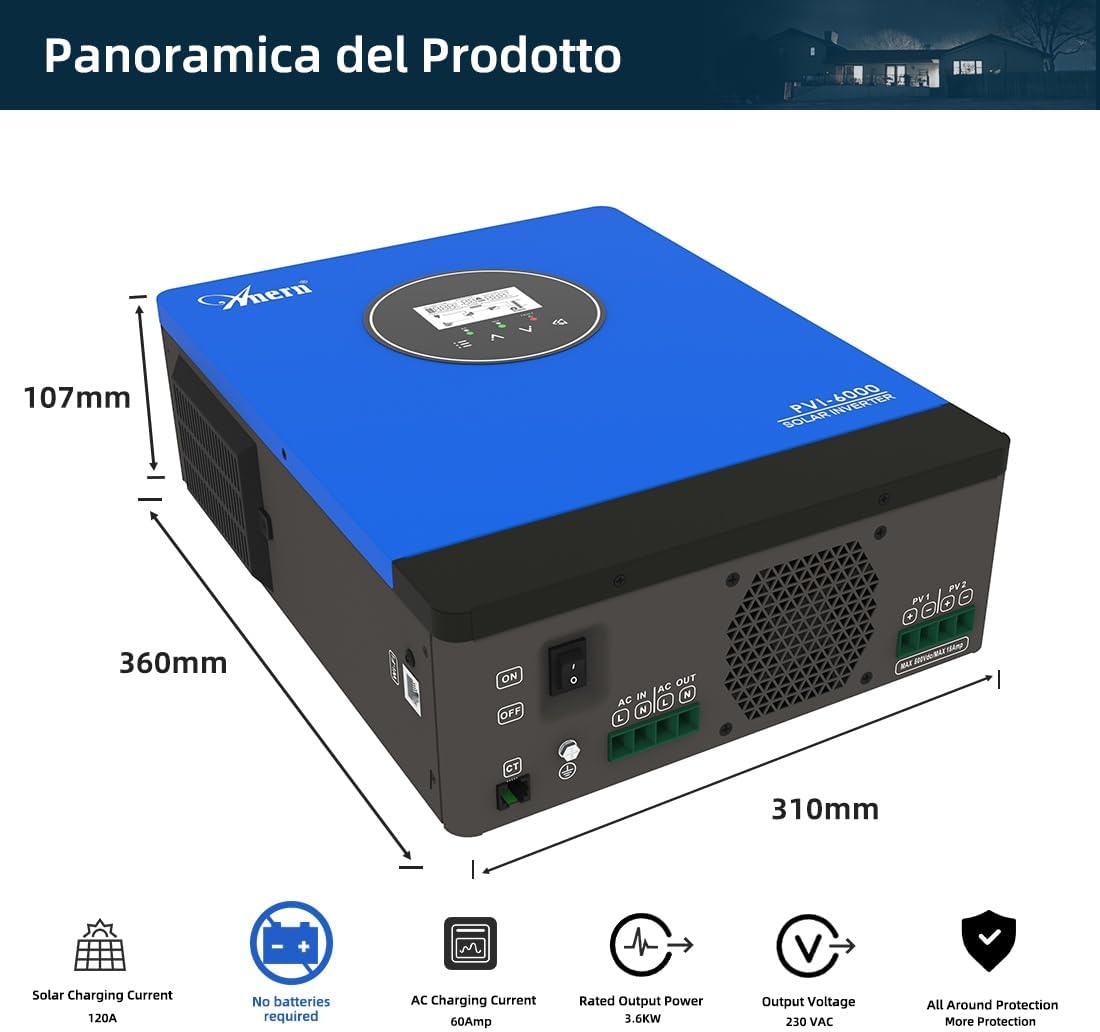

Anern 10kW Hybrid Solar Inverter dimensions and specifications — Detailed product overview showing the dimensions of the Anern Hybrid Solar Inverter: 107mm height, 360mm width, and 310mm depth. Key features like solar charging current, no battery requirement, AC charging current, rated output power, output voltage, and all-around protection are also listed.

Anern 10kW Hybrid Solar Inverter dual PV input illustration — Illustration of the dual PV input capability of the Anern Hybrid Solar Inverter, compatible with most loads. It shows two separate solar panel arrays, Panel A for morning (9:00 AM) and Panel B for afternoon (4:00 PM), feeding into the inverter, demonstrating flexible solar energy harvesting.

Anern 10kW Hybrid Solar Inverter battery-less operation explanation — Image emphasizing the battery-less operation of the Anern Hybrid Solar Inverter. It states "NO BATTERY!" and explains that the design reduces costs by powering loads directly with solar energy or in combination with the grid, making it a cost-effective solution.

Anern 10kW Hybrid Solar Inverter LCD display and features — Diagram illustrating the LCD display and function buttons of the Anern Hybrid Solar Inverter. It also highlights the optional WiFi module for remote monitoring, support for connecting motors and pumps (ideal for agriculture and irrigation), and its pure sine wave output for stable and compatible power.

Anern 10kW Hybrid Solar Inverter power distribution diagram — Flowchart showing how the Anern Hybrid Solar Inverter can power various devices in a home or office. It depicts solar energy, a generator, or utility grid power feeding into the inverter, which then supplies electricity to home appliances like refrigerators, lights, computers, and televisions.

3. Key Features

Battery-Free Pure PV System: This inverter directly supplies loads with solar energy or in combination with the grid. The battery-free design reduces costs and offers an alternative for users who do not require batteries. Note: It is not possible to connect batteries to this model.
Dual Independent MPPT: The photovoltaic inverter provides sufficient photovoltaic input to power the load. During the night or when sunlight is insufficient, the power supply can integrate with the electricity grid. The AN-PVI-10000 model features 3x4500W input.
Generator and Pump Connectivity: The 10,000W inverter can be directly connected to generators and pumps to power loads, making it ideal for agricultural irrigation and outdoor use. It can also be connected to three-phase AC motors.
Advanced Technical Specifications: Max. PV input power: 13500 W; Voltage range: 60-450 VDC; Max. FV input: 500 VDC; Start voltage >120 V; Recommended FV cable size: 16AWG; Maximum charging current: 50A; MPPT: 2/18A.
Optional WiFi Module: A WiFi module is available for remote monitoring and control (sold separately).

4. Setup Instructions

Circuit Connection: Connect all circuits correctly according to the detailed instructions provided in the full manual. Ensure a dedicated switch is installed for each circuit for safety and control.
Start-up Sequence:
- First, start the inverter.
- Next, open the switches for the photovoltaic (solar panel) input.
- Then, open the switch for the electricity grid connection.
- Finally, open the switches for the connected loads.
Shut-down Sequence: To shut down the system, follow the start-up sequence in reverse order.

Note: Always refer to the complete installation guide for detailed wiring diagrams and safety precautions. Professional installation is recommended.

5. Operating Guidelines

Load Compatibility: The starting power of devices with sensitive loads must be at least three times the nominal power of the inverter. Exceeding the inverter's power capacity during start-up can cause damage.
Monitoring: Utilize the integrated LCD display to monitor system status, power output, and other operational parameters. If an optional WiFi module is installed, remote monitoring via a dedicated application is possible.
Grid Integration: The inverter is designed to seamlessly integrate with the electricity grid, providing power to loads from solar or the grid as available.

6. Maintenance

To ensure optimal performance and longevity of your Anern Hybrid Solar Inverter, regular maintenance is recommended. This typically includes:

Visual Inspection: Periodically inspect the inverter and all connected cables for any signs of damage, wear, or loose connections.
Cleaning: Keep the inverter's ventilation openings clear of dust and debris to prevent overheating. Use a soft, dry cloth for cleaning the exterior. Do not use liquid cleaners.
Environmental Conditions: Ensure the inverter is operating within its specified environmental conditions (temperature, humidity) to prevent performance degradation or damage.
Firmware Updates: Check the manufacturer's website or contact support for any available firmware updates to ensure your inverter has the latest features and bug fixes.

Always disconnect power before performing any maintenance or cleaning. If you suspect any issues, contact qualified personnel.

7. Troubleshooting

If you encounter issues with your Anern Hybrid Solar Inverter, consider the following general troubleshooting steps:

No Power Output: Check all circuit breakers and switches to ensure they are in the ON position. Verify that solar panels are receiving sufficient sunlight and that grid power is available if configured for hybrid operation.
Error Codes on Display: Refer to the full product manual for a list of specific error codes and their corresponding solutions.
Inverter Not Starting: Ensure the start-up sequence is followed correctly (inverter first, then PV, grid, and loads). Check the input voltage from the PV array to ensure it meets the minimum start voltage requirement (>120 VDC).
Overload Protection: If the inverter shuts down due to an overload, reduce the connected load. Remember that the starting power of sensitive devices can be significantly higher than their nominal power.
Generator Connection Issues: If experiencing problems with generator charging, verify the parameters are correctly configured for generator input. Consult the detailed manual for specific settings.

For persistent issues or complex problems, it is recommended to contact Anern customer support or a qualified technician.

8. Technical Specifications

Feature	Value
Model Number	AN-PVI-10000W
Brand	Anern
Product Dimensions (L x W x H)	42L x 20B x 50H cm
Item Weight	8 Kilograms
Energy Source	Solar Powered
Wattage	10000 watts
Output Power	10000 Watt
Peak Output Power	10000 Watt
Output Voltage	230 Volt AC (VAC)
Electrical Output Waveform	Pure Sine Wave
Efficiency	98%
Max. PV Input Power	13500 W
PV Voltage Range	60-450 VDC
Max. FV Input	500 VDC
Start Voltage	>120 V
Recommended FV Cable Size	16AWG
Maximum Charging Current	50A
MPPT	2/18A
Compliance	CE
Included Components	Instruction Manual

9. Warranty and Support

Anern Industry Group Limited has 14 years of experience in solar energy storage for residential and commercial purposes, developing scientific solutions tailored to each customer. Anern has professional research and development teams of solar energy pioneers, with megawatt solar capacity installed in over 200 countries and regions, and offers OEM/ODM services.

Delivery is via DHL courier from our warehouse in continental Europe, ensuring you receive the solar inverter within 3-10 days. Our inverters are covered by a 3-year repair service.

If a problem occurs with the inverter, please send a video of the fault. Our technicians will then determine the cause of the fault for you and guide you through the repair process.

For further assistance, please contact Anern customer support.
