1. Introduction
This manual provides essential information for the safe and efficient use of your Cecotec Bolero DressCode 9970 Direct Drive 9 Kg Washing Machine. Please read these instructions carefully before installation and operation, and keep them for future reference.
The Cecotec Bolero DressCode 9970 is a 9 kg front-load washing machine with a Direct Drive motor, offering 1400 RPM spin speed and 11 washing programs. It features a FullColor screen, an XXL door for easy loading, and advanced functions like SteamMax, Spa Care, Soil Level, Delayed End, My Fav, internal light, Drum Clean Plus, and Stop&Go. This appliance is designed for high efficiency and quiet operation.
2. Product Overview
Familiarize yourself with the key components and features of your washing machine.
Figure 2.1: Front view of the Cecotec Bolero DressCode 9970 Direct Drive Washing Machine.
Figure 2.2: Product dimensions: 84.5 cm (H) x 59.5 cm (W) x 61 cm (D).
Figure 2.3: Direct Drive motor for efficient and quiet operation.
Key Features:
- Direct Drive Motor: Ensures high efficiency, quiet operation, and durability with minimal maintenance.
- 9 kg Capacity: Suitable for large loads, saving time and energy.
- 1400 RPM Spin Speed: Adjustable spin speed for efficient drying across various fabric types.
- 11 Washing Programs: Diverse programs to suit different fabrics and washing needs.
- FullColor Screen: Intuitive and modern interface for easy program selection and monitoring.
- XXL Door: Facilitates easy loading and unloading, even for bulky items.
- SteamMax Function: Enhances washing with steam for deeper cleaning.
- Spa Care Program: Uses steam to sterilize clothes before washing, eliminating germs and bacteria, and softening fabrics.
- Soil Level Function: Automatically adjusts wash time based on selected dirt level.
- Delayed End: Allows scheduling the end of the wash cycle according to your convenience.
- My Fav Function: Saves your preferred washing program for quick access.
- Internal Light: Improves visibility inside the drum during loading and unloading.
- Drum Clean Plus: A self-cleaning function for the drum, extending its lifespan.
- Stop&Go Function: Pause the cycle to add or remove items.
3. Setup & Installation
Proper installation is crucial for the performance and longevity of your washing machine. This is a freestanding appliance.
3.1 Unpacking
Carefully remove all packaging materials. Ensure no parts are left inside the drum. Remove any transport bolts from the rear of the machine before use. Keep packaging materials out of reach of children.
3.2 Location
- Place the washing machine on a firm, level surface.
- Ensure there is adequate space around the machine for ventilation and maintenance.
- Avoid direct sunlight or extreme temperatures.
- The product dimensions are 61 cm (depth) x 59.5 cm (width) x 84.5 cm (height).
3.3 Leveling
Adjust the adjustable feet at the bottom of the machine to ensure it is perfectly level. A level machine reduces vibration and noise during operation.
3.4 Water Connection
- Connect the water inlet hose to a cold water tap with a 3/4-inch thread.
- Ensure all connections are tight to prevent leaks.
- Do not use old hoses; always use the new hoses supplied with the appliance.
3.5 Drain Connection
Securely place the drain hose into a standpipe or over the edge of a sink, ensuring it is properly fixed to prevent it from falling out during drainage.
3.6 Electrical Connection
- Plug the power cord into a grounded electrical outlet.
- Ensure the voltage (240 Volts) matches your household supply.
- Do not use extension cords or adapters.
4. Operating Instructions
Operating your Cecotec washing machine is straightforward with its intuitive FullColor touchscreen interface.
Figure 4.1: Loading laundry through the XXL door.

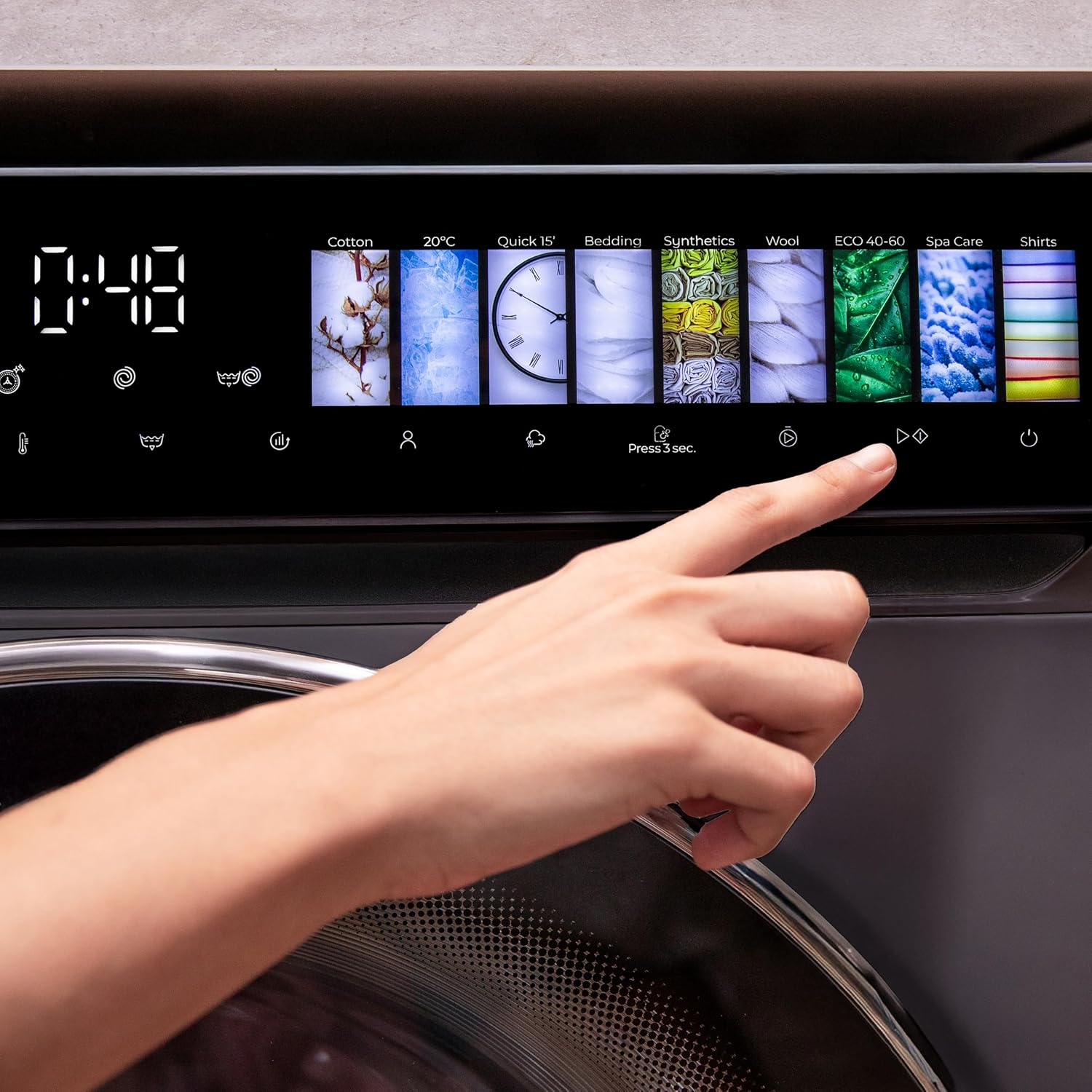

Figure 4.2: FullColor touchscreen control panel for program selection.
Figure 4.3: Steam function in action, ideal for Spa Care or SteamMax programs.
Figure 4.4: Loading stained clothes, where the Soil Level function can be utilized.
4.1 Loading Laundry
- Open the XXL door and load clothes, ensuring not to overload the drum. The 9 kg capacity allows for substantial loads.
- Close the door firmly.
4.2 Adding Detergent
Add the appropriate amount of detergent and fabric softener to the dispenser drawers. Refer to your detergent packaging for recommended dosages.
4.3 Program Selection
- Turn on the washing machine.
- Use the FullColor touchscreen to select one of the 11 available washing programs (e.g., Cotton, Synthetics, Wool, Quick 15', ECO 40-60).
- Consider using the Spa Care program for steam sterilization or SteamMax for deeper cleaning.
4.4 Customizing Settings
- Temperature Control: Adjust the wash water temperature as needed.
- Spin Speed: Modify the spin speed up to 1400 RPM.
- Soil Level: Select the dirt level (e.g., light, normal, heavy) to optimize wash duration.
- Delayed End: Set a specific time for the wash cycle to finish.
- My Fav: Save your frequently used program and settings for quick recall.
4.5 Starting and Pausing
- Press the Start/Pause button to begin the cycle.
- To add or remove items during a cycle, use the Stop&Go function. Press the Start/Pause button, wait for the door to unlock, add/remove items, then close the door and press Start/Pause again to resume.
5. Maintenance & Cleaning
Regular maintenance ensures optimal performance and extends the lifespan of your washing machine.
5.1 Drum Cleaning (Drum Clean Plus)
Utilize the Drum Clean Plus function periodically to clean the drum and remove any residue or odors. Follow the instructions on the FullColor screen for this program.
5.2 Detergent Dispenser
Remove and clean the detergent dispenser drawer regularly to prevent buildup of detergent and softener residues.
5.3 Door Seal
Wipe the rubber door seal after each wash to remove lint, hair, and moisture, preventing mold and unpleasant odors.
5.4 Drain Filter
Periodically check and clean the drain filter, usually located at the bottom front of the machine. This prevents blockages and ensures proper drainage.
5.5 Exterior Cleaning
Wipe the exterior of the machine with a soft, damp cloth. Avoid abrasive cleaners or solvents.
6. Troubleshooting
Before contacting customer service, please refer to the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, door not closed properly, program not selected, child lock active. | Check power connection, ensure door is latched, select a program, deactivate child lock. |
| Excessive vibration/noise | Machine not level, transport bolts not removed, uneven load. | Adjust leveling feet, ensure transport bolts are removed, redistribute laundry evenly. |
| Water not draining | Drain hose kinked or blocked, drain filter clogged. | Check drain hose for kinks, clean the drain filter. |
| Water leaking | Hose connections loose, detergent dispenser overflowing, door seal damaged. | Tighten hose connections, do not overfill detergent dispenser, inspect door seal for damage. |
| Clothes not clean | Overloading, insufficient detergent, incorrect program selection. | Reduce load size, use correct detergent amount, select appropriate program for fabric type and soil level. |
If the problem persists after trying these solutions, please contact Cecotec customer support.
7. Specifications
Detailed technical specifications for the Cecotec Bolero DressCode 9970 Direct Drive Washing Machine.
| Feature | Detail |
|---|---|
| Brand | Cecotec |
| Model Name | Bolero DressCode 9970 Direct Drive Steel |
| Model Number | A01_EU01_104030 |
| Product Type | Front-load Washing Machine |
| Capacity | 9 kg |
| Dimensions (D x W x H) | 61 cm x 59.5 cm x 84.5 cm |
| Item Weight | 71 kg |
| Color | Steel |
| Material (Drum) | Steel |
| Finish | Stainless steel |
| Motor Type | Direct Drive |
| Max Spin Speed | 1400 RPM |
| Number of Programs | 11 |
| Control Type | Touchscreen |
| Special Features | Child Lock, Temperature Control, SteamMax, Spa Care, Soil Level, Delayed End, My Fav, Internal Light, Drum Clean Plus, Stop&Go |
| Installation Type | Freestanding |
| Voltage | 240 Volts |
| Country of Origin | Spain |
| Included Components | 1 x Washing Machine; 1 x Instruction Manual |
Energy Efficiency Information:
8. Warranty & Support
Your Cecotec Bolero DressCode 9970 Direct Drive Washing Machine comes with comprehensive warranty and support.
8.1 Product Warranty
The product is covered by a 3-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
8.2 Spare Parts Availability
Spare parts for this appliance are available for a duration of 10 years within the EU, ensuring long-term serviceability.
8.3 Customer Support
For any technical assistance, warranty claims, or inquiries, please contact Cecotec customer support. Refer to the contact information provided in your purchase documentation or visit the official Cecotec website.
The Cecotec team is dedicated to providing support and assistance whenever needed.
