1. Product Overview
The GODOX V480N is a compact and powerful TTL flash speedlite designed for Nikon cameras. It features a Guide Number (GN) of 50, 2.4G wireless capabilities, and 1/8000s High-Speed Sync (HSS). The V480N is engineered for versatility, offering both a color touchscreen and tactile buttons for intuitive control. Its design is suitable for various photographic scenarios, from event photography to creative lighting setups.
Image 1.1: Overview of the GODOX V480N TTL Flash Speedlite, showcasing its touchscreen, wireless capabilities, battery, and guide number.
Key Features:
- Lightweight Portability: Weighing 282g (361g with battery), the V480N is designed for easy handling and transport.
- Long Battery Life: A 7.2V/2200mAh rechargeable lithium battery provides up to 650 full-power flashes. USB-C charging allows for convenient power replenishment.
- Intuitive Control: Features both a color touchscreen and tactile buttons for efficient setting adjustments.
- Flexible Bounce Head: The flash head can tilt from -7° to 120° and rotate 330° horizontally for versatile light positioning.
- Smart Distance Readout: The display shows the effective flash range in real-time, aiding in exposure control.
2. Setup
2.1 Unboxing and Package Contents
Carefully unpack all items from the box. Verify that all components are present:
- GODOX V480N Flash Speedlite (x1)
- Storage Bag (x1)
- Diffuser (x1)
- Adapter (x1)
- Mini Stand (x1)
- Lithium Battery (x1)
- USB-C Charging Cable (x1)
2.2 Battery Installation and Charging
- Locate the battery compartment on the side or rear of the V480N flash.
- Insert the provided 7.2V/2200mAh lithium battery, ensuring correct polarity. Close the battery compartment securely.
- To charge the battery, connect the USB-C charging cable to the flash's USB-C port and to a compatible USB power source (e.g., a wall adapter or computer USB port). The charging indicator will show the charging status.
Image 2.1: The GODOX V480N's 7.2V/2200mAh lithium battery, illustrating its capacity for 650 full-power flashes and USB-C charging capability.
2.3 Mounting to Camera
- Slide the V480N's mounting foot into your Nikon camera's hot shoe.
- Secure the flash by rotating the locking mechanism on the flash foot until it is firmly attached. Do not overtighten.
3. Operating Instructions
3.1 Power On/Off and Basic Interface

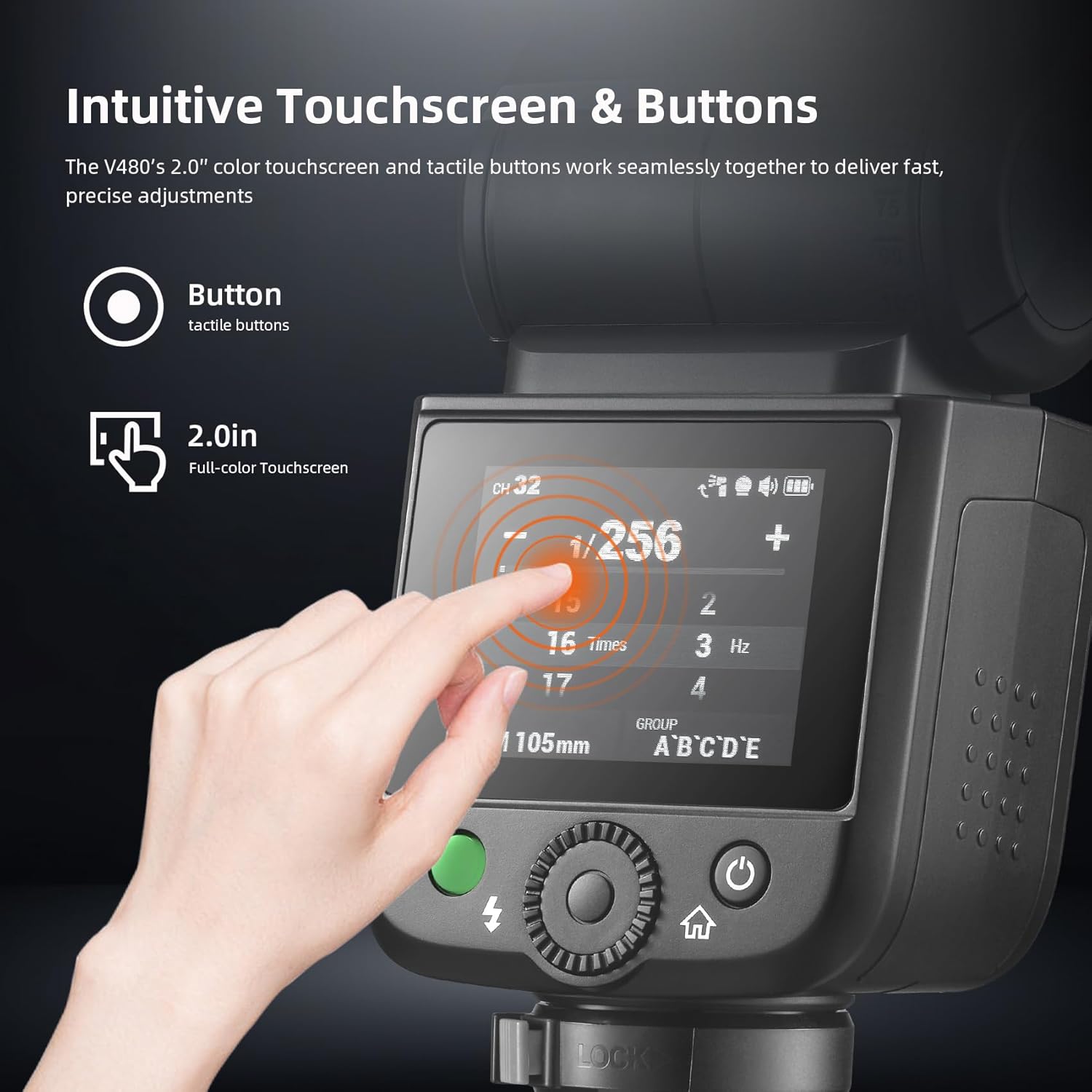

Press and hold the power button to turn the flash on or off. The V480N features a 2.0-inch full-color touchscreen and tactile buttons for navigation and setting adjustments. The display provides real-time information on flash settings and range.
Image 3.1: The intuitive touchscreen and tactile buttons of the GODOX V480N, allowing for quick and precise adjustments.
3.2 Flash Modes
The V480N supports various flash modes to suit different shooting requirements:
- TTL (Through-The-Lens) Mode: Automatically adjusts flash output for correct exposure.
- Manual (M) Mode: Allows manual control over flash power output (1/1 to 1/256).
- Multi (Stroboscopic) Mode: Fires a series of rapid flashes during a single exposure for creative effects.
- High-Speed Sync (HSS): Enables flash synchronization at shutter speeds up to 1/8000s, useful for freezing fast motion or using wide apertures in bright conditions.
Image 3.2: The GODOX V480N supports professional flash modes including TTL, Manual, Multi-mode, and High-Speed Sync up to 1/8000s.
3.3 Flash Exposure Compensation (FEC)
Adjust the flash output relative to the camera's metered exposure to fine-tune lighting. This can typically be done via the flash's touchscreen or dedicated buttons.
3.4 Flexible Bounce Head and Light Shapers

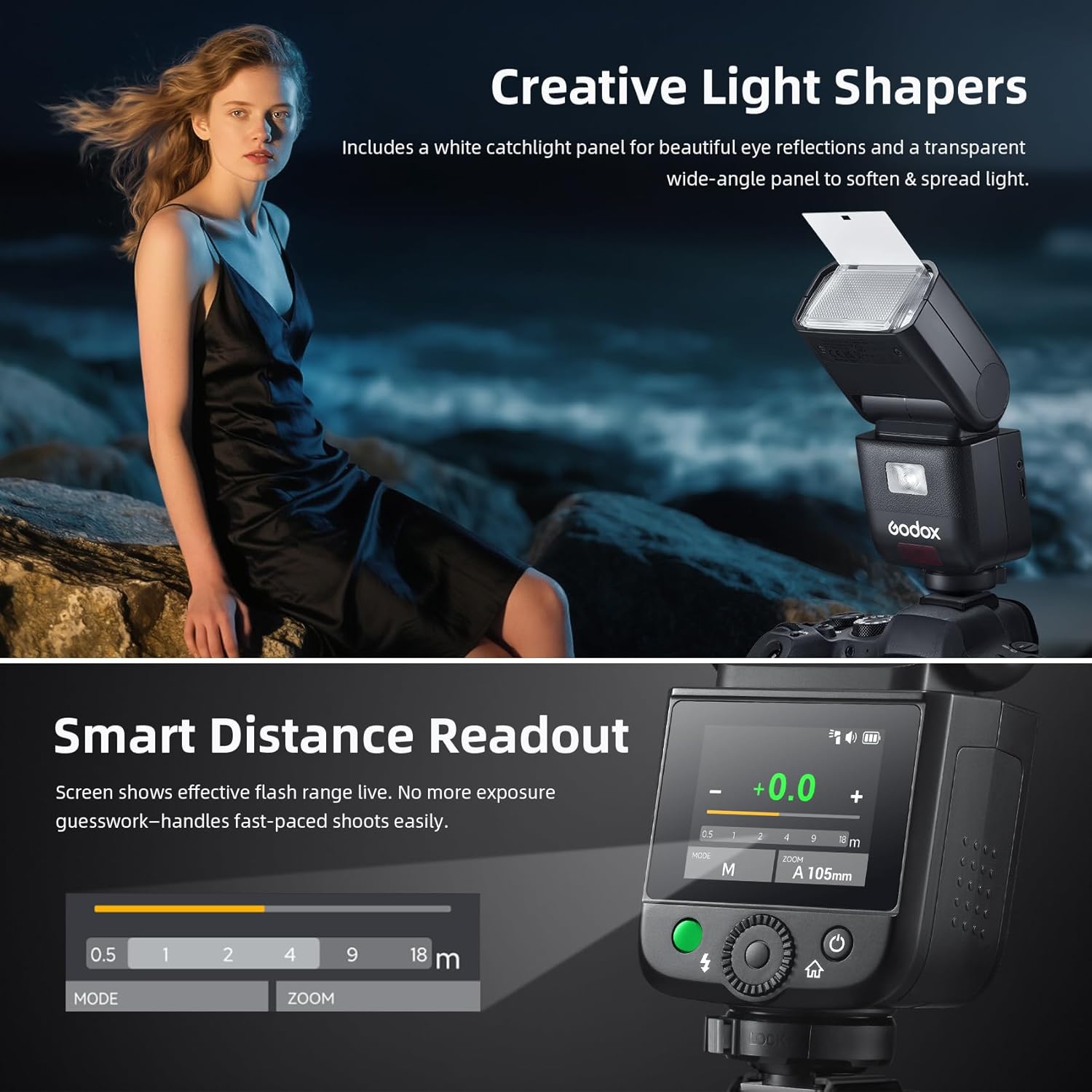

The flash head can be tilted and swiveled to bounce light off ceilings or walls, creating softer, more natural illumination. The V480N also includes a white catchlight panel and a transparent wide-angle panel to soften and spread light.
Image 3.3: The GODOX V480N's flexible bounce head allows for vertical tilt from -7° to 120° and horizontal swivel from 0° to 330°. The smart distance readout feature is also shown.
3.5 10-Level Modeling Lamp
The built-in 2W LED modeling lamp offers 10 levels of brightness. This feature allows you to preview lighting effects and precisely control flash direction before taking a shot.
Image 3.4: The GODOX V480N features a 2W LED modeling lamp with 10 adjustable brightness levels for pre-visualization of lighting.
3.6 Wireless Functionality (2.4G X System)
The V480N integrates the GODOX 2.4G X wireless system, allowing it to function as both a sender and receiver. It supports 32 channels and 5 groups (M, A, B, C, D) with a transmission distance of up to 100m (328ft). This enables control of multiple flashes without external triggers.
Image 3.5: Diagram illustrating the GODOX V480N's 2.4G X wireless system, enabling sender and receiver functionality across 32 channels and 5 groups.
4. Maintenance
4.1 Cleaning
- Use a soft, dry cloth to clean the flash body.
- For the flash tube and reflector, use a lens cleaning cloth or a soft, lint-free cloth. Avoid touching the flash tube directly with bare hands.
- Do not use solvents or harsh chemicals, as they may damage the flash.
4.2 Storage
- Store the flash in a cool, dry place, away from direct sunlight and high humidity.
- If storing for an extended period, remove the battery to prevent leakage.
- Use the provided storage bag to protect the flash from dust and scratches.
5. Troubleshooting
5.1 Flash Not Firing
- Check Battery: Ensure the battery is fully charged and correctly inserted.
- Power On: Verify the flash is powered on.
- Hot Shoe Connection: Ensure the flash is securely mounted on the camera's hot shoe. Clean the hot shoe contacts if necessary.
- Camera Settings: Check your camera's flash settings to ensure external flash is enabled.
5.2 Incorrect Exposure
- Flash Mode: Ensure the correct flash mode (TTL or Manual) is selected for your shooting conditions.
- Flash Exposure Compensation (FEC): Adjust FEC if the image is consistently over or underexposed.
- Distance: Verify the subject is within the effective flash range. The V480N's smart distance readout can assist with this.
- Bounce/Diffusion: If bouncing or diffusing light, ensure sufficient flash power is set.
5.3 Wireless Connection Issues
- Channel/Group Mismatch: Ensure the flash and any other GODOX 2.4G X system devices are set to the same channel and group.
- Distance/Obstacles: Reduce the distance between devices and ensure no major obstacles are blocking the signal.
- Interference: Move away from areas with strong wireless interference.
6. Specifications
| Brand | GODOX |
| Model Number | V480N |
| Guide Number (GN) | 50 (ISO 100, in meters) |
| Wireless System | 2.4G X Wireless System |
| High-Speed Sync (HSS) | Up to 1/8000 seconds |
| Battery | 7.2V/2200mAh Lithium Battery (included) |
| Full Power Flashes | Approx. 650 |
| Recycle Time | Approx. 1.7 seconds |
| Flash Duration | 1/20000s (approx.) |
| Modeling Lamp | 2W LED, 1-10 Brightness Levels |
| Weight | 282g (without battery), 361g (with battery) |
| Included Components | V480s Flash Speedlite, storage bag, diffuser, adapter, mini stand, lithium battery, USB-C charging cable |
7. Warranty and Support
7.1 Warranty Information
GODOX products typically come with a limited warranty against defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official GODOX website for specific warranty terms and conditions applicable to your region. Keep your proof of purchase for warranty claims.
7.2 Customer Support
For technical assistance, service, or inquiries regarding your GODOX V480N Flash Speedlite, please contact GODOX customer support through their official website or the contact information provided in your product packaging. When contacting support, please have your product model number (V480N) and purchase details ready.
