etoolab Cordless Snow Shovel 13" Electric Snow Blower 20V User Manual

Important Safety Information

Always keep hands and feet away from rotating parts. Wear appropriate protective gear, including gloves and eye protection. Do not operate the machine if you are tired or under the influence of drugs or alcohol. Store the machine in a dry, well-ventilated area when not in use.

Product Overview

The etoolab 13-inch Cordless Electric Snow Shovel is designed for efficient snow removal from various surfaces. It features a lightweight design and a powerful 20V 4.0Ah Li-ion battery for cordless operation.

Figure 1: etoolab Cordless Snow Shovel with battery and charger.

Key Features:

• High-Efficiency Snow Removal: Clears snow up to 8 inches deep and 13 inches wide in a single pass, throwing snow up to 19 feet with an adjustable ±30° direction.
• Superior Battery Endurance: Equipped with a 20V 4.0Ah Li-ion battery, providing 15-25 minutes of runtime.
• Ergonomic Design: Weighs only 12 lbs with a comfort-grip handle to reduce fatigue.
• Cold Weather Performance: Operates effectively from -25℃ to 10℃, with built-in battery protection.
• Safety Features: Includes a safety switch to prevent accidental starts.

Setup and Assembly

Follow these steps to assemble your etoolab Cordless Snow Shovel:

1. Unpack Components: Carefully remove all parts from the packaging. Ensure you have the main motor unit, aluminum handle poles, auxiliary handle, battery, charger, and all necessary screws and washers.
2. Connect Handle Poles: Insert the lower handle pole into the upper handle pole, ensuring the internal wiring connects properly. Secure with the provided screws and tightening knobs.
3. Attach Auxiliary Handle: Slide the auxiliary handle onto the main pole. Adjust its position for comfortable use and secure it with the long bolt and knob.
4. Connect Handle Assembly to Motor Unit: Align the handle assembly with the slot on the main motor unit. Push firmly until it clicks into place. Secure the connection using the two hex screws provided, tightening them with the Allen wrench.
5. Charge Battery: Insert the 20V 4.0Ah Li-ion battery into the charging base. Plug the charger into a power outlet. The indicator light will show red during charging and turn green when fully charged. A full charge typically takes 2.5 to 3 hours.
6. Insert Battery: Once charged, slide the battery into the battery slot on the trigger handle until it clicks securely.

Figure 2: Diagram showing the main components of the snow shovel.

Operating Instructions

Before operating, ensure the battery is fully charged and securely inserted. Wear appropriate safety gear, including eye protection and gloves.

1. Starting the Snow Shovel: To start the unit, first push the safety switch with your thumb, then squeeze the trigger. The auger will begin to rotate.
2. Clearing Snow: Push the snow shovel forward into the snow. The auger will collect and throw the snow. The unit is designed to clear up to 8 inches of fresh, fluffy snow. For deeper or wet snow, take smaller passes.
3. Adjusting Throw Direction: Use the ±30° adjustable turbo-angle knob on the main unit to change the direction of the snow discharge. Pull the knob up and rotate it left or right to adjust the flaps, then push it down to lock the position.
4. Optimal Use: This snow shovel is ideal for clearing steps, sidewalks, decks, patios, and driveways. It is particularly effective on fresh, light to moderate snow.
5. Stopping the Snow Shovel: Release the trigger to stop the auger. The safety switch will automatically reset.

Figure 3: The snow shovel clears snow up to 8 inches deep and 13 inches wide.

Figure 4: The snow shovel can throw snow up to 19 feet.

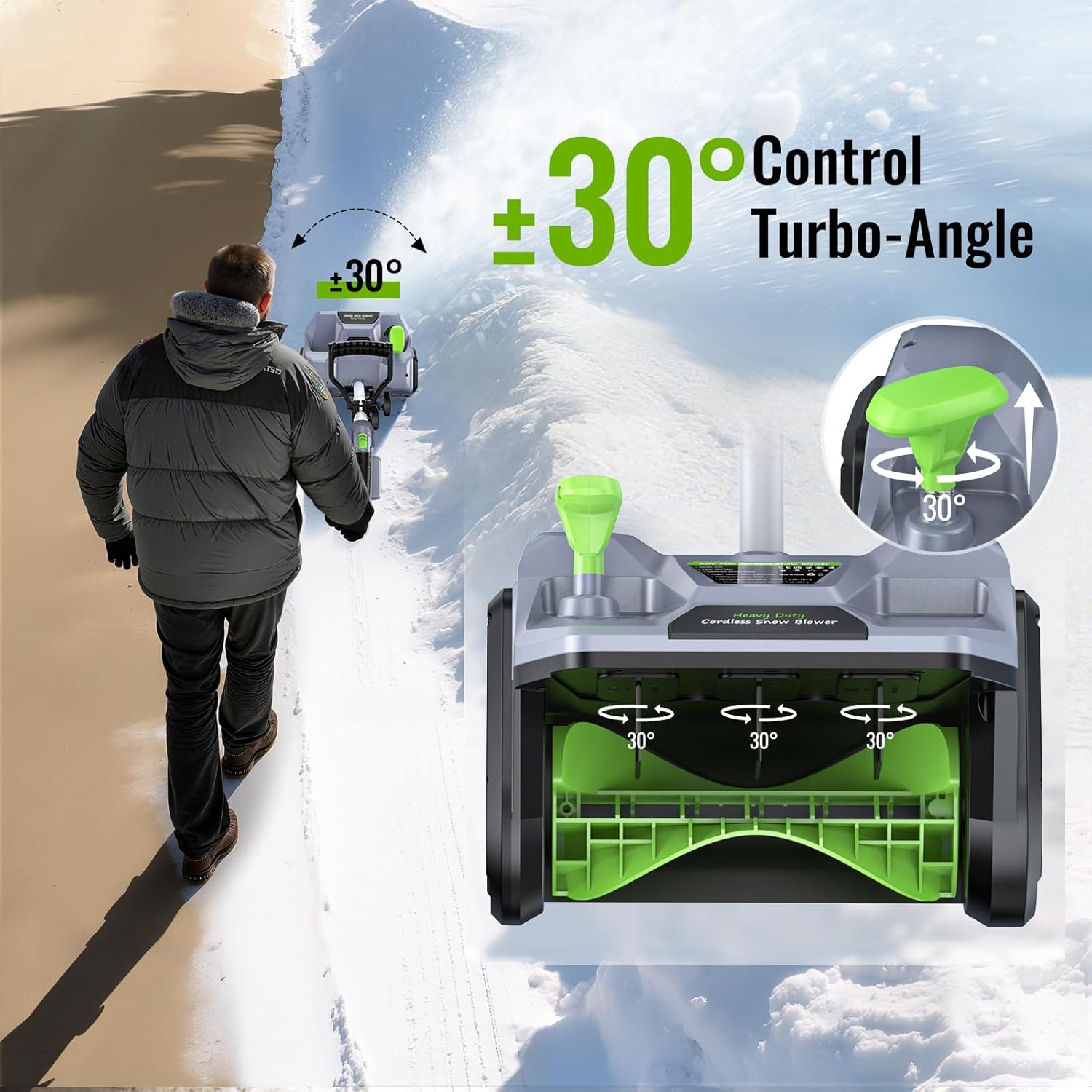

Figure 5: The snow throw angle can be adjusted by ±30 degrees.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your snow shovel.

• Cleaning: After each use, remove any snow, ice, or debris from the auger and housing. Use a damp cloth to wipe down the exterior. Do not use harsh chemicals.
• Battery Care: Store the battery in a cool, dry place. Do not store a fully discharged battery for extended periods. Charge it periodically if not in use.
• Storage: Store the snow shovel in a dry, covered area away from direct sunlight and moisture. Its compact design allows for easy storage.
• Inspection: Periodically inspect the auger, handle connections, and battery for any signs of wear or damage. Replace any worn or damaged parts immediately.

Troubleshooting

If you encounter issues with your snow shovel, refer to the following common troubleshooting tips:

• Unit does not start:
  • Ensure the battery is fully charged and securely inserted.
  • Verify the safety switch is engaged before pressing the trigger.
  • Check for any obstructions in the auger area that might prevent it from spinning.
• Reduced snow throwing distance/power:
  • The battery may be low; recharge it fully.
  • The unit performs best on fresh, fluffy snow. Wet or heavy snow may reduce throwing distance. Try taking smaller, slower passes.
  • Clear any snow buildup in the discharge chute.
• Unusual noise or vibration:
  • Immediately stop the unit and check for any foreign objects caught in the auger or housing.
  • Inspect the auger for damage.

If problems persist, contact customer support for assistance.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact etoolab customer service directly. Keep your purchase receipt for warranty claims.
