TIMEMORE C5 Pro Manual Coffee Grinder Instruction Manual

1. Introduction and Overview

The TIMEMORE C5 Pro Manual Coffee Grinder is engineered for precision and durability, designed to enhance your coffee brewing experience. Featuring S2C-042-III conical burrs and an all-metal construction, this portable hand grinder offers precise grind adjustment suitable for a wide range of brewing methods, from fine espresso to coarse French press.

Figure 1: TIMEMORE Chestnut C Series Grinder Overview

2. Product Features

• S2C-042-III Conical Burrs: Equipped with patented stainless steel burrs for high precision and efficiency, ensuring uniform grinding particles.
• Precision Grind Adjustment: Offers a minor adjustment of 0.031mm per click, allowing for fine-tuning across approximately 48 levels for various brewing methods.
• All-Metal Construction: Upgraded to an all-metal one-piece enlarged body with a textured non-slip grip, providing durability and a secure hold.
• Double Bearing Central Axis Positioning: Ensures stable rotation and consistent grind particle size.
• Foldable Handle: Designed for portability and easy storage, ideal for home use, travel, or outdoor activities.
• Easy to Clean: Simple to disassemble for cleaning with a brush.
• XL Funnel Design: A flared opening and slightly taller body facilitate easier coffee bean dosing.
• Anti-Slip Silicone Base: Reduces slip and dampens noise for a stable grinding experience.

Figure 2: Internal Structure and Key Features of the C5 Pro Grinder

3. Setup

1. Unboxing: Carefully remove all components from the packaging. Verify that all parts are present: grinder body, handle, and cleaning brush.
2. Initial Cleaning: Before first use, disassemble the grinder (refer to Maintenance section) and clean the burrs and internal components with the provided brush to remove any manufacturing residue. Do not wash with water.
3. Assemble Handle: Attach the crank handle to the top shaft of the grinder. Ensure it is securely seated.

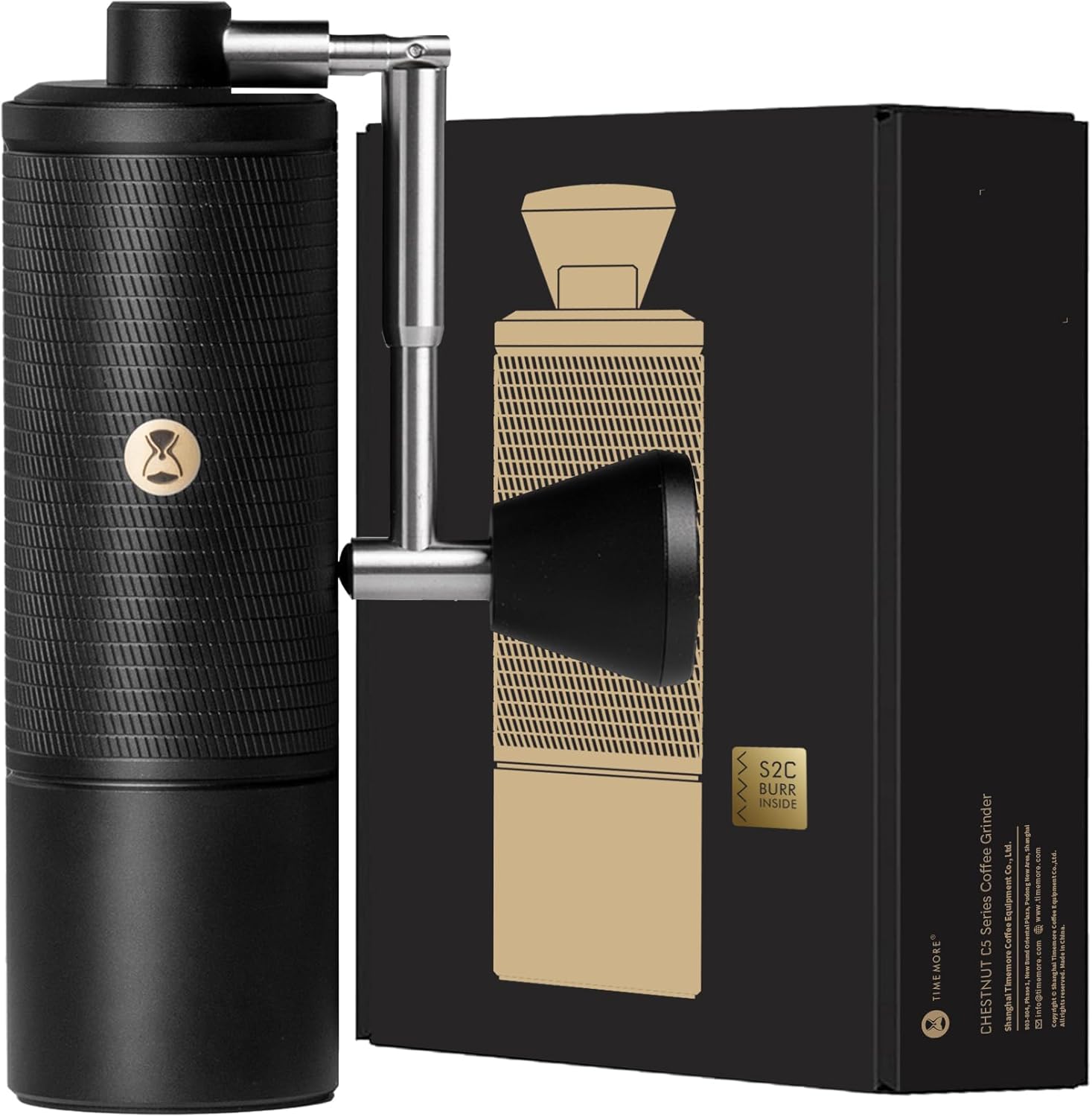

Figure 3: TIMEMORE C5 Pro Grinder and its packaging

4. Operating Instructions

4.1 Grind Adjustment

The TIMEMORE C5 Pro features a numbered adjustment dial at the bottom of the burr assembly. This allows for precise control over your grind size.

• To adjust, hold the grinder body and turn the adjustment nut at the bottom.
• Turning clockwise results in a finer grind.
• Turning anti-clockwise results in a coarser grind.
• Each 'click' represents a 0.031mm change in grind size.

Recommended starting grind settings (adjust as needed for your specific beans and taste preferences):

Figure 4: Close-up of the C5 Pro Grind Adjustment Dial

4.2 Grinding Process

1. Load Beans: Remove the lid and pour your desired amount of whole coffee beans into the grinder's funnel. The XL funnel design facilitates easy dosing.
2. Attach Handle: Place the handle back onto the grinder shaft.
3. Grind: Hold the grinder firmly with one hand (the textured body provides a secure grip) and turn the crank handle clockwise with the other hand. Continue grinding until all beans have passed through the burrs and collected in the bottom chamber.
4. Retrieve Grounds: Unscrew the bottom chamber to access your freshly ground coffee.

Figure 5: XL Funnel Design for convenient bean loading

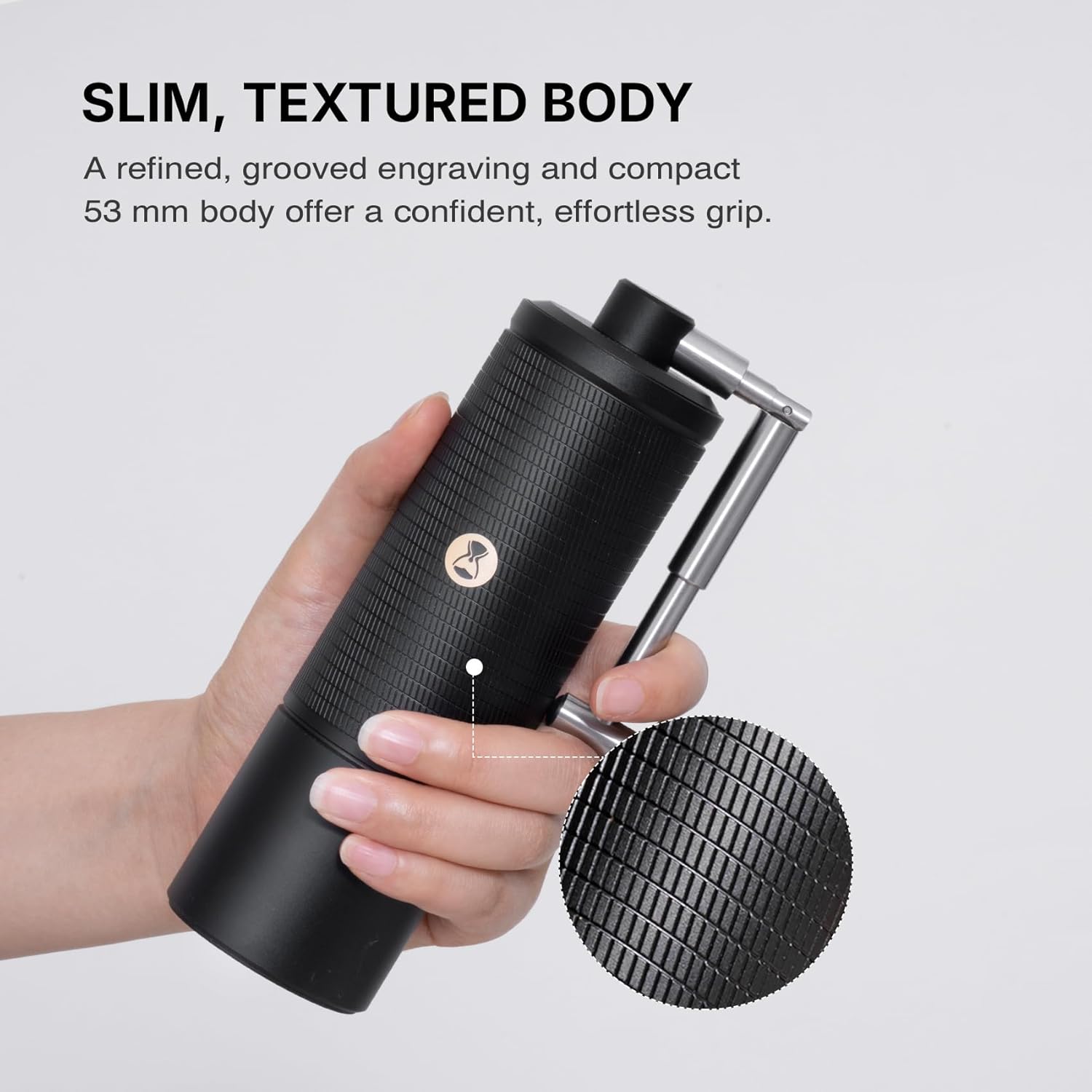

Figure 6: Ergonomic design for a comfortable and secure grip during grinding

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and longevity of your grinder.

1. Disassembly: Unscrew the bottom catch cup. Then, remove the handle and the top adjustment nut. The inner burr and spring can then be carefully removed.
2. Cleaning: Use the provided cleaning brush to remove any residual coffee grounds from the burrs, shaft, and internal components. Pay special attention to the burr teeth.
3. Reassembly: Reassemble the components in reverse order. Ensure all parts are securely fitted.
4. Important Note: Do not wash the grinder with water. Clean only with a dry brush after use to prevent rust and damage to internal mechanisms.

Figure 7: Disassembled components for easy cleaning

6. Troubleshooting

• Grinder feels stiff or difficult to turn: Check for large foreign objects in the burr chamber. Disassemble and clean thoroughly. Ensure the grind setting is not too fine for the beans being used.
• Inconsistent grind: Ensure the burr assembly is clean and free of old coffee grounds. Verify that the adjustment nut is securely tightened to your desired setting.
• Handle detaches during grinding: Ensure the handle is properly seated on the shaft. While designed for secure fit, occasional checks are recommended.

7. Specifications

Figure 8: Detailed dimensions and material information

8. Official Product Video

9. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official TIMEMORE website. Ensure you retain your proof of purchase for any warranty claims.

Manufacturer: TIMEMORE
