1. Product Overview
The PAXA Clipbuds 7 are open-ear wireless earbuds designed for comfort and situational awareness. They feature Bluetooth 5.4 connectivity, a dual LED battery display, touch controls, and IP45 water resistance.

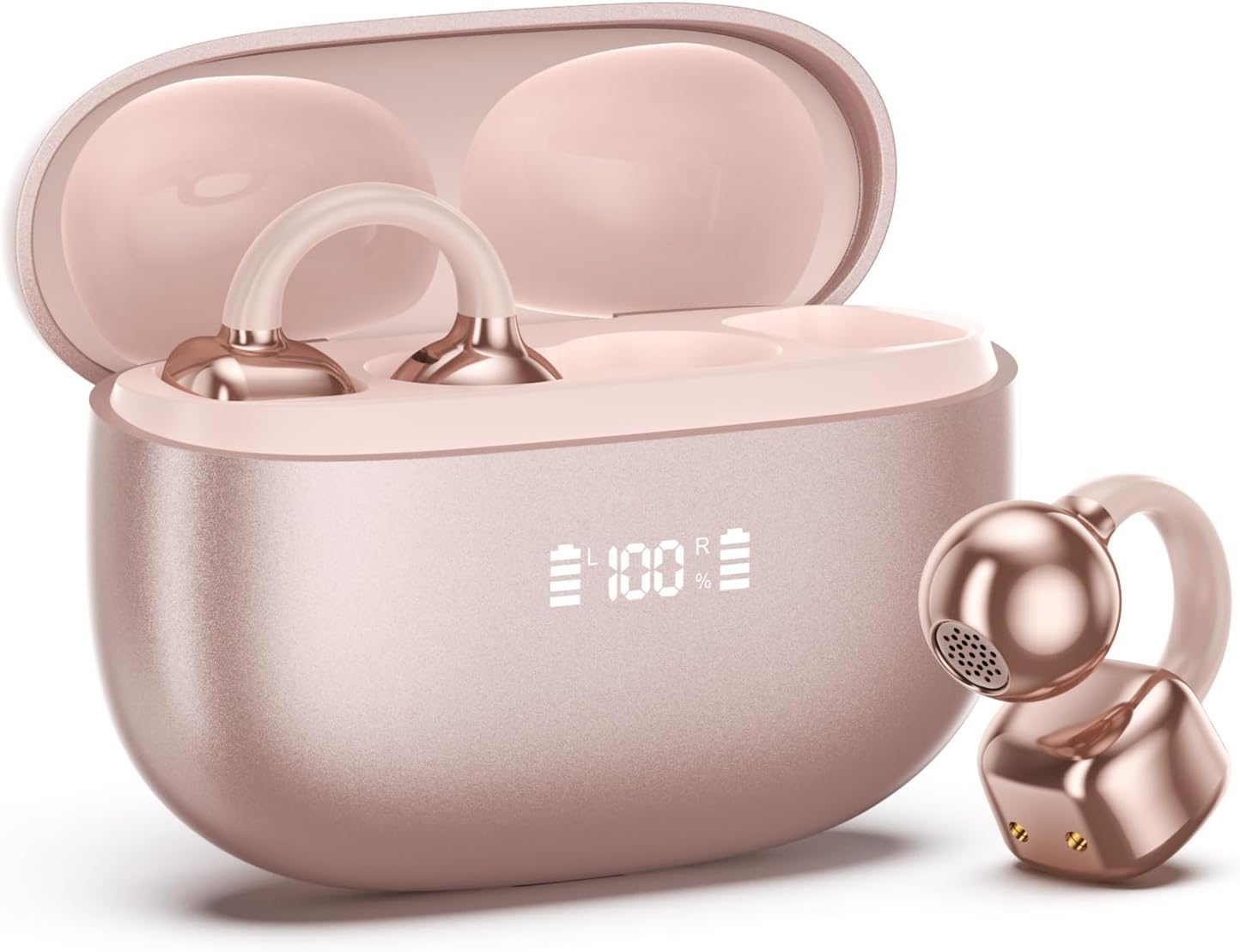

Image 1.1: PAXA Clipbuds 7 Rose Gold Earbuds and Charging Case. The earbuds are shown in their open charging case, which features an LED display indicating battery levels. One earbud is also shown outside the case.
Key Features:
- Open-ear design for comfort and environmental awareness.
- Bluetooth 5.4 for stable and efficient wireless connection.
- Dual LED display on charging case for battery status.
- Touch controls for music, calls, and voice assistant.
- Up to 44 hours total playtime with charging case.
- IP45 dust and water resistance.
- Ultra-lightweight design (4.5g per earbud).
2. Package Contents
Ensure all items are present in the package:
- Clip on Earbuds (1 pair)
- Wireless Charging Case (1)
- Charging Cable (1)
- User Manual (1)
3. Setup and Pairing
3.1 Initial Charging
Before first use, fully charge the earbuds and the charging case. Connect the provided charging cable to the Type-C port on the charging case and a USB power source. The LED display on the case will indicate the charging status.
3.2 Wearing the Earbuds
The Clipbuds 7 are designed to clip onto the thinnest part of your ear. Adjust the earbud tip to align with your ear canal for optimal sound and comfort.

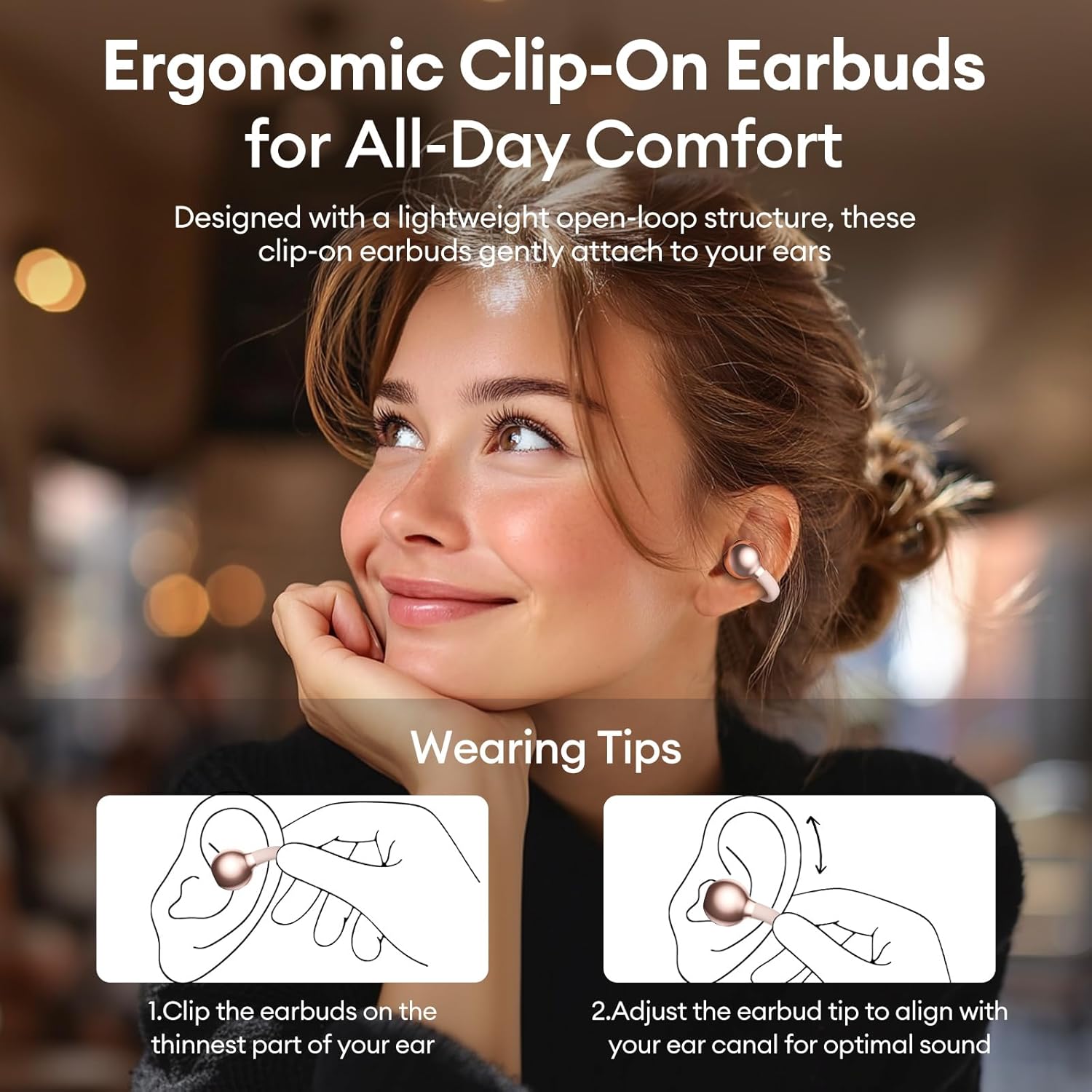

Image 3.2: Wearing instructions for PAXA Clipbuds 7. The diagram illustrates clipping the earbud onto the ear and adjusting for fit.
3.3 Bluetooth Pairing
- Ensure the earbuds are charged and inside the charging case.
- Open the charging case. The earbuds will automatically enter pairing mode.
- On your device (smartphone, tablet, laptop), go to Bluetooth settings.
- Search for "Clipbuds 7" in the list of available devices and select it to connect.
- Once connected, the earbuds will automatically pair with your device in the future when removed from the case.

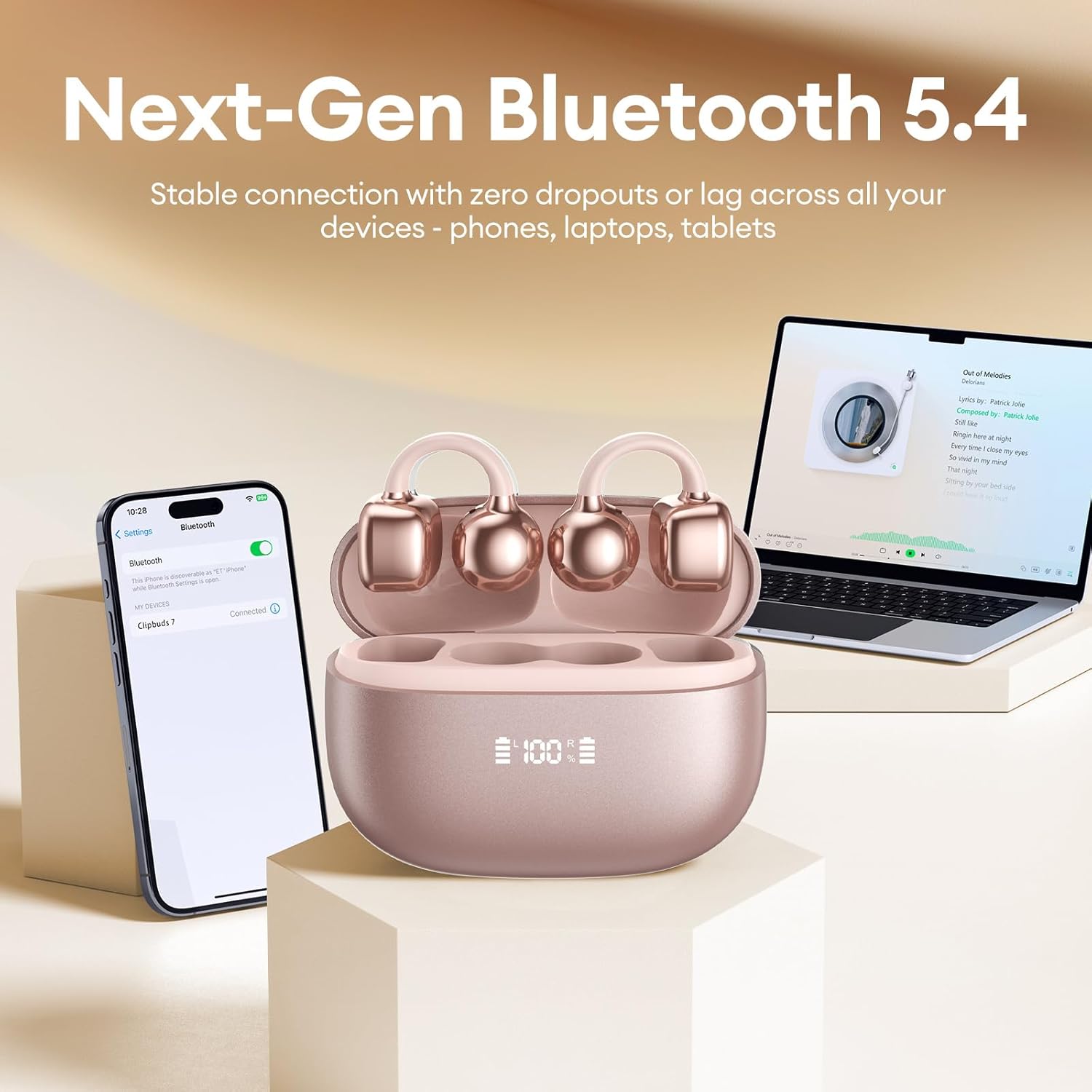

Image 3.3: PAXA Clipbuds 7 connected via Bluetooth to a smartphone and a laptop, demonstrating multi-device compatibility.
4. Operating Instructions
4.1 Touch Controls
The Clipbuds 7 feature sensitive touch controls on each earbud. Refer to the following table for functions:
Image 4.1: Visual guide for PAXA Clipbuds 7 touch controls, showing actions for calls, music, and voice assistant.
| Function | Action |
|---|---|
| Answer/End Call | Double-click either earbud |
| Reject Call | Press and hold either earbud for 2 seconds |
| Play/Pause | Double-click either earbud |
| Previous Song | Triple-click the left (L) earbud |
| Next Song | Triple-click the right (R) earbud |
| Volume + | Click the right (R) earbud |
| Volume - | Click the left (L) earbud |
| Voice Assistant (Siri, Google Assistant) | Hold both earbuds for 2 seconds |
4.2 LED Battery Display
The charging case features a dual LED display that shows the battery percentage of the case and each individual earbud (L and R).
4.3 Open-Ear Awareness
The open-ear design allows you to hear your audio while remaining aware of your surroundings. This feature is beneficial for activities like running, cycling, or commuting where situational awareness is important.
Image 4.3: Individuals using PAXA Clipbuds 7 during work, sports, and social gatherings, highlighting their versatility and open-ear design.
5. Battery and Charging
The Clipbuds 7 offer extended battery life for prolonged use.
- Earbud Playtime: Up to 8 hours on a single charge.
- Total Playtime: Up to 44 hours with the charging case.
- Fast Charging: 10 minutes of charging provides approximately 3 hours of playtime.
Image 5.1: Illustration of the PAXA Clipbuds 7 charging case, highlighting the 44-hour total battery life and fast charging capability.
6. Maintenance and Care
6.1 Water and Dust Resistance
The Clipbuds 7 have an IP45 rating, making them resistant to dust and splashes of water. This means they can withstand sweat and light rain, making them suitable for workouts and outdoor activities. However, they are not designed for submersion in water.
Image 6.1: A person wearing PAXA Clipbuds 7 during light rain, illustrating the IP45 water resistance feature.
6.2 Cleaning
To maintain optimal performance and hygiene, regularly clean your earbuds and charging case with a soft, dry, lint-free cloth. Avoid using abrasive materials or harsh chemicals.
7. Troubleshooting
If you encounter issues with your Clipbuds 7, try the following solutions:
- No Sound/Connectivity Issues:
- Ensure earbuds are charged.
- Verify Bluetooth is enabled on your device.
- Forget "Clipbuds 7" from your device's Bluetooth list and re-pair.
- Ensure earbuds are within Bluetooth range (up to 50 feet).
- Earbuds Not Charging:
- Check if the charging cable is securely connected to both the case and the power source.
- Ensure the charging case itself has power.
- Clean the charging contacts on both the earbuds and the case.
- Touch Controls Not Responding:
- Ensure your fingers are clean and dry.
- Restart the earbuds by placing them in the case and closing it, then reopening.
8. Specifications
| Feature | Detail |
|---|---|
| Model Name | Clipbuds 7 |
| Brand | PAXA |
| Connectivity Technology | Wireless (Bluetooth) |
| Bluetooth Version | 5.4 |
| Bluetooth Range | Up to 50 Feet |
| Ear Placement | Open Ear |
| Control Type | Touch Control |
| Battery Life (Single Charge) | 8 Hours |
| Total Battery Life (with Case) | 44 Hours |
| Water Resistance Level | IP45 (Dust/Water Resistant) |
| Noise Control | Hybrid Noise Cancellation (ENC for calls) |
| Material | Silicone Rubber + Plastic |
| Item Weight | 2.39 ounces |
| Included Components | Clip on Earbuds, Wireless Charging Case, Charging Cable, User Manual |
9. Warranty and Support
For warranty information and customer support, please refer to the contact details provided with your purchase or visit the official PAXA website. Keep your proof of purchase for any warranty claims.
