1. Introduction
Thank you for choosing the Ariete 4178 Dual Scrub Steam Mop. This innovative appliance combines the power of steam with the scrubbing action of rotating pads to provide a deep and hygienic clean for your hard floors. Please read this manual carefully before use to ensure safe operation and optimal performance.
2. Important Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This includes:
- Do not leave the appliance unattended while plugged in.
- Keep the appliance out of reach of children.
- Use only as described in this manual.
- Do not use on unsealed wooden floors or floors that are sensitive to heat and moisture.
- Always unplug the appliance before filling or emptying the water tank.
- Do not direct steam at people, animals, or electrical appliances.
- Use only distilled or demineralized water to prevent mineral buildup.
3. Setup
3.1 Unpacking and Assembly
Carefully remove all components from the packaging. The Ariete 4178 is designed for easy assembly.
3.2 Attaching the Microfiber Pads
The appliance comes with 4 high-quality microfiber pads. Attach two pads to the rotating bases on the bottom of the mop head. Ensure they are securely fastened.

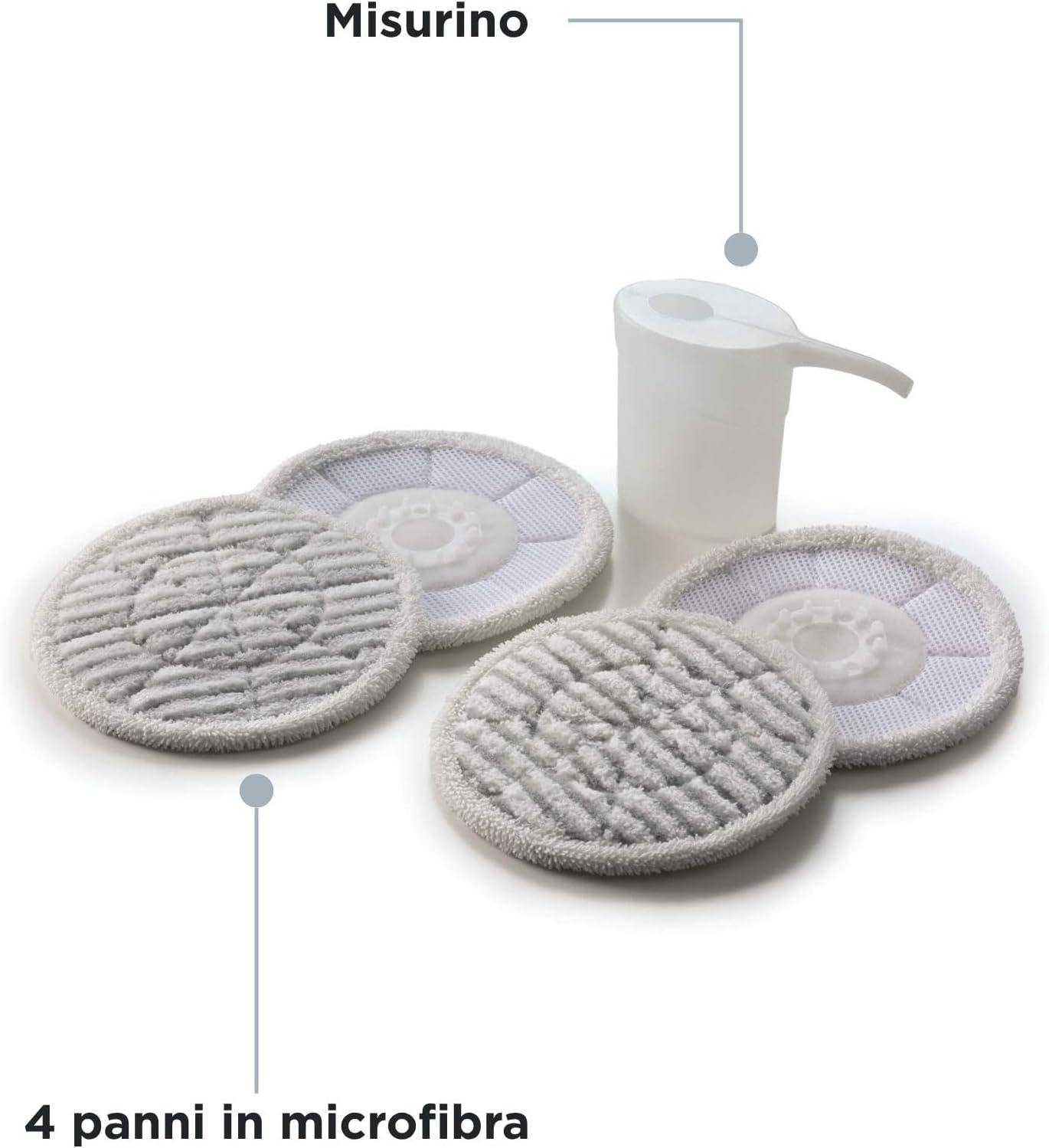

Image: The included microfiber pads and measuring cup. The pads attach to the rotating bases on the mop head.
3.3 Filling the Water Tank
The Ariete 4178 features a practical 400cc water tank for adequate autonomy. Use the provided measuring cup to fill the tank with distilled or demineralized water. Do not overfill.
Image: A close-up view of the dark blue steam cleaning appliance's clear water tank, showing its design and capacity.
4. Operating Instructions
4.1 Powering On and Heat-Up
Plug the appliance into a suitable power outlet. The bi-color indicator lights will inform you of the device's status. The steam will be ready for use in just 30 seconds, allowing you to start cleaning and sanitizing immediately.
4.2 Selecting Steam Speed
The rotating brushes offer two speeds: 150 rpm for delicate cleaning and 210 rpm for tackling stubborn dirt. Select the appropriate speed for your cleaning needs. The self-propulsion ensures exceptional glide.
Image: The Ariete 4178 Dual Scrub Steam Mop actively cleaning a floor, demonstrating the combined action of steam and rotating pads for effective dirt removal.
4.3 Cleaning Surfaces
The scrubbing effect of the rotating brushes effectively removes stubborn dirt such as dust, grease, footprints, food residues, and more. The ergonomic and functional design, being lightweight and maneuverable with a slender and inclinable body, allows you to easily clean even under low furniture, beds, and sofas.
Image: A visual representation of the Ariete 4178's key features, including the rotating pads reaching up to 210 rpm, steam ready in 30 seconds, and its inclinable body for cleaning under furniture.
It is ideal for cleaning all hard floors, including marble, solid wood, tiles, stone, laminate, and granite.
4.4 Official Product Videos
Schenley Steam Mop Demonstration
Video: A demonstration of the Schenley steam mop, showcasing its features and cleaning capabilities on various surfaces. This video provides a general overview of steam mop functionality.
AlfaBot S2 Cordless Electric Mop Overview
Video: An overview of the AlfaBot S2 Cordless Electric Mop, demonstrating its ease of use, maneuverability, and effectiveness in cleaning different floor types. Note that this is a cordless model, while the Ariete 4178 is corded.
Shark Steam & Scrub Steam Mop Features
Video: A short promotional video highlighting the features of the Shark Steam & Scrub Steam Mop, including its rotating pads and steam cleaning capabilities. This provides a visual example of similar technology.
5. Maintenance
5.1 Cleaning the Microfiber Pads
The included microfiber pads are reusable and washable. After use, detach the pads from the mop head and wash them conveniently in a washing machine. This ensures ecological and long-lasting cleaning.
5.2 Emptying and Refilling the Water Tank
After each use, or when the water level is low, unplug the appliance and allow it to cool. Empty any remaining water from the tank and refill as described in the Setup section.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Ariete |
| Model Name | 4178 Dual Steam Scrub |
| Model Number | 4178/00 |
| Color | Blue |
| Product Dimensions | 37 x 17 x 120 cm |
| Item Weight | 4.64 Kilograms |
| Water Tank Capacity | 400 Centiliters |
| Wattage | 1200 watts |
| Voltage | 230 Volt |
| Special Feature | Motorized Rotating Pads |
| Recommended Surfaces | Floor, Sink, Tile, Countertop, Bathroom |
| Included Components | Floor pads, Measuring cup |
Image: The Ariete 4178 Dual Scrub Steam Mop with its dimensions clearly indicated: Length 37 cm, Depth 17 cm, Height 120 cm.
7. Troubleshooting
7.1 No Steam Production
- Check if the appliance is properly plugged into a working power outlet.
- Ensure the water tank is filled with water.
- Allow sufficient time (approx. 30 seconds) for the appliance to heat up.
7.2 Pads Not Rotating
- Verify that the pads are correctly attached to the rotating bases.
- Check if the selected speed setting is active.
- Ensure there are no obstructions preventing the pads from rotating freely.
7.3 Poor Cleaning Performance
- Ensure the microfiber pads are clean. Replace or wash dirty pads.
- Increase the steam speed for more stubborn dirt.
- Pre-vacuum the floor to remove loose debris before steam cleaning.
8. Warranty and Support
For warranty information, please refer to the documentation included with your purchase or visit the official Ariete website. For technical support, spare parts, or additional assistance, please contact Ariete customer service through their official channels.
