Advwin Nugget Ice Maker User Manual

Introduction

Thank you for choosing the Advwin Nugget Ice Maker. This countertop ice machine is designed to provide soft, chewable nugget ice quickly and efficiently, perfect for a variety of beverages and uses. With features like fast ice production, a large water tank, and a self-cleaning function, it offers convenience for home and office environments. Please read this manual thoroughly before operation to ensure safe and optimal performance of your ice maker.

The Advwin Nugget Ice Maker, a compact and stylish appliance, is shown on a kitchen countertop, ready to produce soft, chewable ice for various uses.

Safety Information

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using this appliance:

• Read all instructions before use.
• Do not touch the evaporator or ice blades when the unit is operating.
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• Supervise children closely when the appliance is in use.
• Unplug the ice maker from the outlet when not in use or before cleaning.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Use only attachments recommended or sold by the manufacturer.
• Do not use outdoors.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Ensure proper ventilation for the appliance. Maintain a minimum of 5 inches of space around the unit.
• Use only potable water in the water tank.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Package Contents

Upon unpacking, please ensure all items listed below are present and in good condition:

• Advwin Nugget Ice Maker Unit
• Removable Ice Basket
• Ice Scoop
• User Manual (this document)

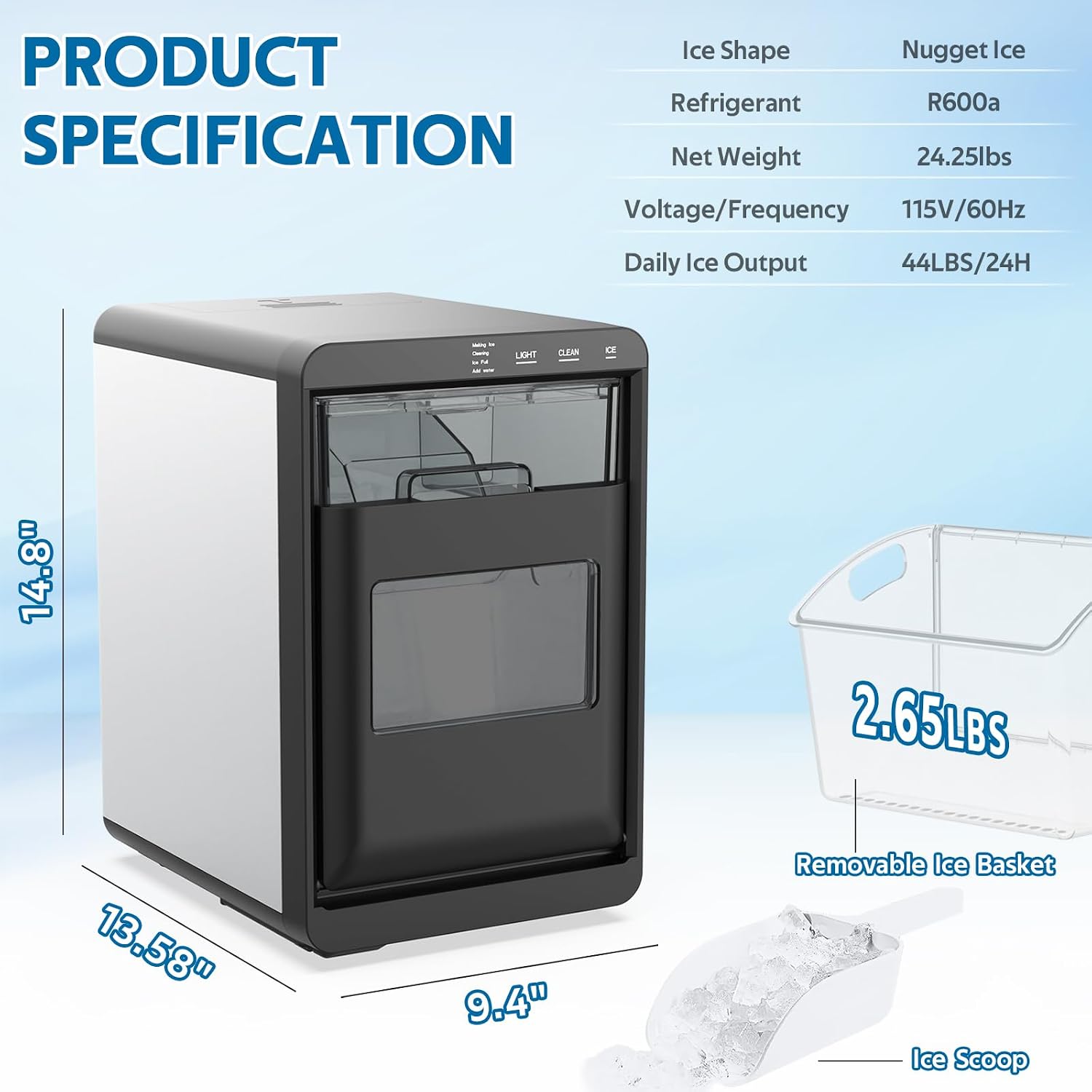

An illustration detailing the product dimensions, the removable ice basket, and the included ice scoop, which are part of the package contents.

Product Overview

Familiarize yourself with the components of your Advwin Nugget Ice Maker:

• Control Panel: LED touchscreen with buttons for LIGHT, CLEAN, and ICE.
• Ice Full Indicator: Illuminates when the ice basket is full.
• Add Water Indicator: Illuminates when the water tank needs refilling.
• Transparent Lid: Allows you to view the ice production process.
• Interior LED Light: Illuminates the ice compartment for visibility.
• Pull-Out Water Tank: 1.8L capacity for easy refilling.
• Removable Ice Basket: For easy access and cleaning of ice.
• Ice Outlet: Where the nugget ice is dispensed.

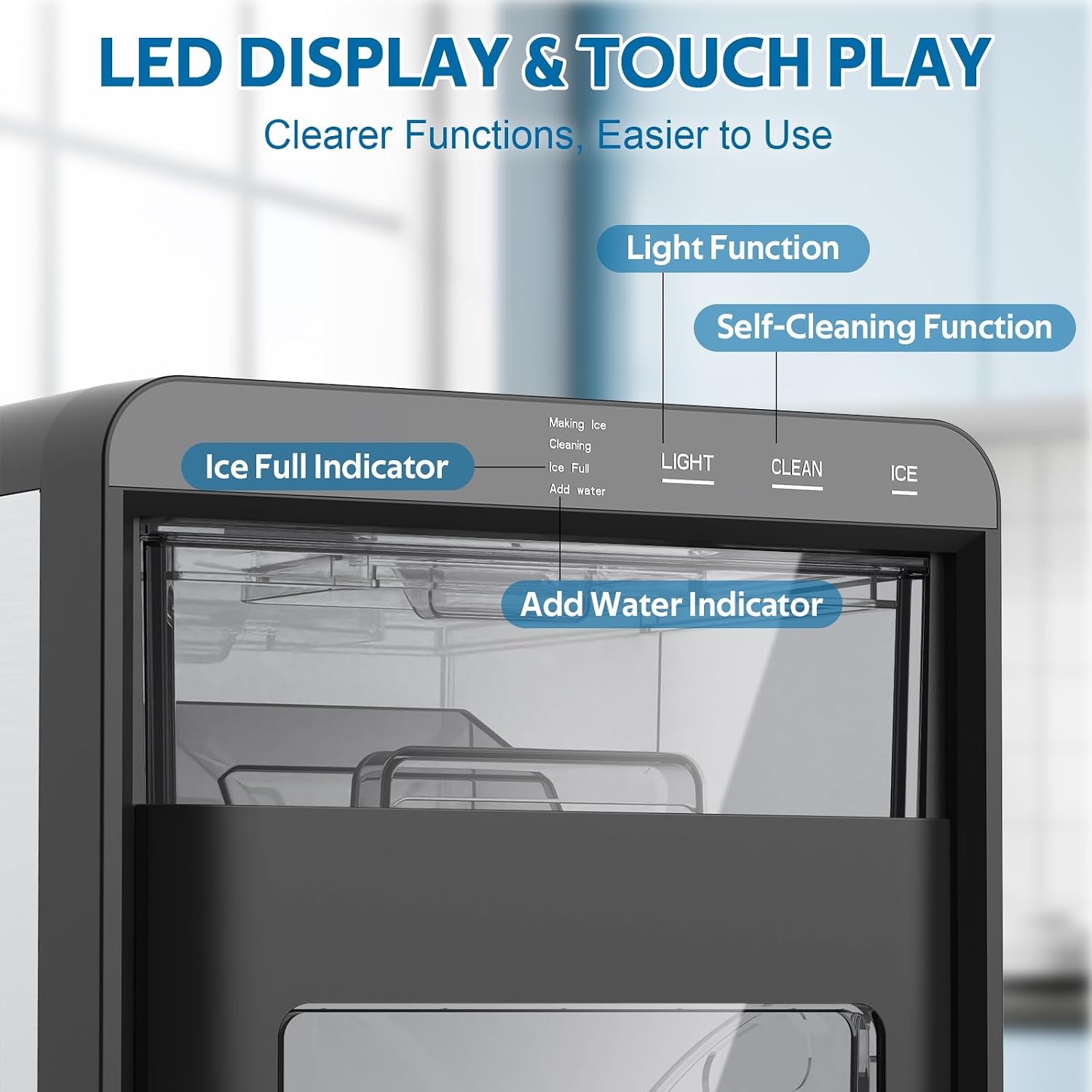

A close-up of the ice maker's LED display and touch panel, highlighting the "Ice Full Indicator," "Add Water Indicator," "Light Function," and "Self-Cleaning Function" buttons.

Detailed views of the ice maker's features: the visual light inside the ice compartment, the convenient pull-out water tank, the transparent window for monitoring ice, and the removable ice basket for easy access.

Setup

1. Unpack the Unit: Carefully remove the ice maker from its packaging. Remove all packing materials, tapes, and labels.
2. Clean Before First Use: Before using your ice maker for the first time, it is recommended to clean it thoroughly. Refer to the "Maintenance and Cleaning" section for detailed instructions.
3. Placement: Place the ice maker on a flat, stable surface away from direct sunlight and heat sources (like stoves or ovens). Ensure there is at least 5 inches of clearance around the unit for proper ventilation.
4. Power Connection: Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the specifications of the appliance (115 Volts).
5. Fill Water Tank: Pull out the water tank and fill it with potable water up to the MAX fill line. Do not overfill. Push the water tank back into place securely.

Operating Instructions

Making Ice

1. Ensure the water tank is filled with water.
2. Press the ICE button on the LED touch screen. The "Making Ice" indicator will illuminate.
3. The ice maker will begin the ice production cycle. The first batch of nugget ice typically takes 6-10 minutes.
4. When the ice basket is full, the "Ice Full" indicator will light up, and the machine will pause ice production. Remove ice from the basket to resume production.
5. If the water level is low, the "Add Water" indicator will light up. Refill the water tank to continue ice production.

An illustration highlighting the efficient ice making capabilities, including the 1.8L water tank capacity, 2.65 lbs ice basket, and a daily output of 44 lbs, with the first batch ready in just 6 minutes.

Using the Light Function

Press the LIGHT button on the control panel to turn the interior LED light on or off. This light illuminates the ice compartment, allowing you to easily see the ice level, even in dim lighting.

Benefits of Nugget Ice

Nugget ice, also known as pellet or chewable ice, offers several advantages:

• Soft and Chewable: Easier on teeth and enjoyable to chew.
• Absorbs Flavor: Its porous nature allows it to absorb the flavor of your drink, enhancing the experience.
• Quick Cooling: Provides rapid cooling for beverages.
• Slow Melting: Despite its soft texture, it melts slower than traditional ice cubes, keeping your drinks colder for longer without excessive dilution.

An image illustrating the benefits of nugget ice, comparing it to traditional ice cubes, emphasizing its slow melting, easy chewing, and quick cooling properties.

Nugget ice is ideal for various applications, from refreshing beverages like cola and smoothies to chilling seafood like oysters.

Maintenance and Cleaning

Self-Cleaning Function

The Advwin Nugget Ice Maker features a convenient self-cleaning function to maintain hygiene and ensure fresh ice production:

1. Ensure the ice basket is empty.
2. Fill the water tank with clean water. For enhanced cleaning, you may add a small amount of food-grade cleaning solution suitable for ice makers (follow cleaner instructions).
3. Press the CLEAN button on the LED touch screen. The "Cleaning" indicator will illuminate.
4. The machine will perform an automatic cleaning cycle, which typically takes about 15 minutes.
5. Once the cleaning cycle is complete, drain the water from the tank and rinse thoroughly.
6. It is recommended to run a few cycles with fresh water after cleaning to rinse any residual cleaning solution.

A visual representation of the automatic self-cleaning function, illustrating how water circulates within the machine for 15 minutes to ensure thorough cleaning.

General Cleaning

• Exterior: Wipe the exterior of the ice maker with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Ice Basket: The removable ice basket can be washed with mild dish soap and warm water. Rinse thoroughly and dry before placing back in the unit.
• Water Tank: Periodically clean the water tank with a soft brush and mild soap. Rinse thoroughly to remove any soap residue.
• Storage: If storing the ice maker for an extended period, ensure it is completely dry. Drain all water, clean the unit, and store it in a cool, dry place.

Troubleshooting

Before contacting customer support, please refer to the following table for common issues and their solutions:

Specifications

Warranty and Support

For warranty information or technical support, please contact Advwin customer service. Keep your purchase receipt as proof of purchase for any warranty claims.

Manufacturer: ADVWIN

Seller: Advwin us

For further assistance, please visit the official Advwin store on Amazon: Advwin Store
