1. Important Safety Instructions
Please read all instructions carefully before using your new LG refrigerator. This manual contains important safety information, installation guidelines, and operating procedures. Keep this manual for future reference.
- Ensure the refrigerator is properly grounded to prevent electrical shock.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Keep ventilation openings clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Only authorized service personnel should perform repairs.
2. Product Overview
The LG LRSWS2806S is a 27.6 cubic feet side-by-side smart refrigerator designed for efficient food storage and convenient access. Key features include an automatic ice maker, a flat panel door design with pocket handles, a pharmaceutical water filter, and a Multi-Air Flow System for consistent cooling.
Figure 2.1: Front view of the LG LRSWS2806S refrigerator, showcasing its stainless steel finish and integrated water dispenser.

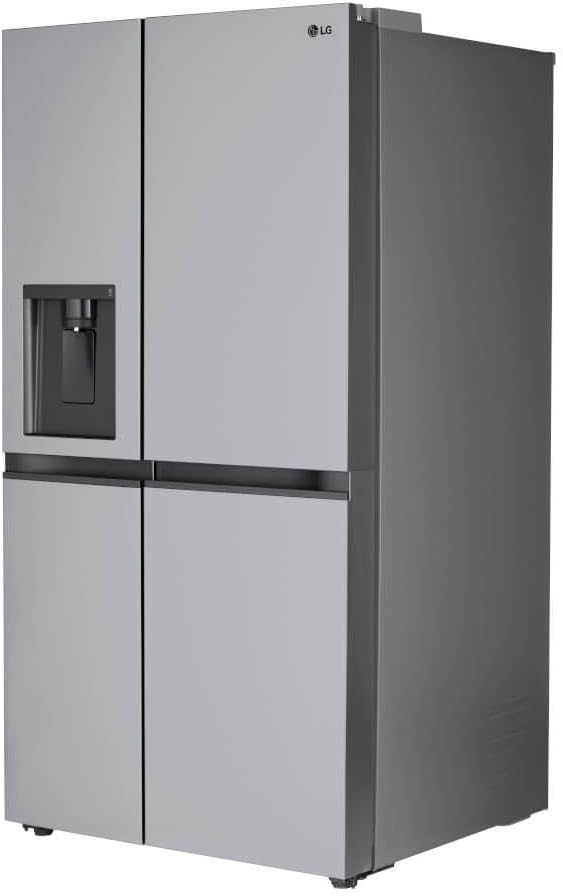

Figure 2.2: Angled front view of the LG LRSWS2806S refrigerator, highlighting its sleek design and pocket handles.

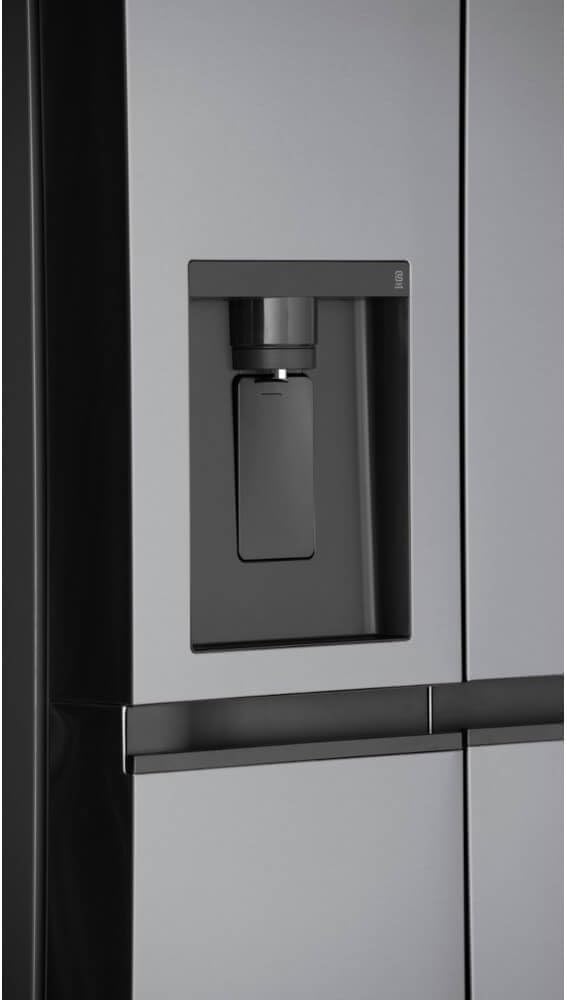

Figure 2.3: Close-up view of the integrated water and ice dispenser, designed for convenient access to filtered water and ice.
Figure 2.4: Interior view of the empty refrigerator, showing the spacious compartments, shelves, and drawers in both the fresh food and freezer sections.
Figure 2.5: Interior view of the refrigerator stocked with various food items, demonstrating its storage capacity and organization options.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials, including tape and protective films. Inspect the refrigerator for any shipping damage. Keep packaging materials away from children.
3.2 Location Requirements
Place the refrigerator on a level, sturdy floor capable of supporting its weight (approximately 257.9 pounds). Ensure adequate clearance around the unit for proper ventilation and door opening. This is a freestanding unit.
Figure 3.1: Dimensional diagram of the LG LRSWS2806S refrigerator. The unit measures approximately 70 1/2 inches in height, 35 7/8 inches in width, and 33 1/2 inches in depth. Ensure sufficient space for installation and door swing.
3.3 Electrical Connection
Connect the refrigerator to a dedicated, grounded 120V, 60Hz, AC-only electrical outlet. Do not use extension cords or adapter plugs.
3.4 Water Line Connection (for Ice Maker and Water Dispenser)
Connect the refrigerator to a cold water supply line using the provided kit or a manufacturer-approved kit. Ensure all connections are secure and leak-free. Flush the water system for several minutes before initial use to remove any impurities.
4. Operating Instructions
4.1 Initial Power-On
After connecting to power, allow the refrigerator to cool for at least 2-3 hours before loading food. The internal temperature will stabilize during this period.
4.2 Temperature Control
The refrigerator features adjustable temperature controls. Refer to the control panel on the door or inside the unit to set desired temperatures for the fresh food and freezer compartments. Recommended settings are typically 37°F (3°C) for the refrigerator and 0°F (-18°C) for the freezer.
4.3 Automatic Ice Maker
The automatic ice maker will begin producing ice approximately 12-24 hours after initial setup and water connection. Discard the first few batches of ice to ensure cleanliness.
4.4 Water Dispenser and Pharmaceutical Water Filter
The refrigerator is equipped with a water dispenser and a pharmaceutical-grade water filter. To dispense water, press a glass against the dispenser paddle. The filter reduces impurities, providing clean drinking water. Replace the filter periodically as indicated by the filter indicator light.
4.5 Multi-Air Flow System
The Multi-Air Flow System is designed to maintain optimal temperature and humidity levels throughout the refrigerator, ensuring even cooling and helping to keep food fresh longer.
5. Maintenance
5.1 Cleaning the Refrigerator
Regularly clean the interior and exterior of your refrigerator. Use a mild detergent and warm water. For stainless steel surfaces, use a specialized stainless steel cleaner and polish in the direction of the grain. Avoid abrasive cleaners or harsh chemicals.
5.2 Replacing the Water Filter
The water filter should be replaced approximately every six months, or when the filter indicator light illuminates, or when water flow decreases significantly. Refer to the specific instructions provided with your replacement filter for detailed steps.
5.3 Condenser Coil Cleaning
Periodically clean the condenser coils located at the back or bottom of the refrigerator. Dust and debris can accumulate, reducing efficiency. Unplug the refrigerator before cleaning the coils.
6. Troubleshooting
Before contacting service, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power cord unplugged; temperature setting too high; door left ajar; excessive food load. | Check power connection; adjust temperature; ensure door is closed; allow time for cooling after loading. |
| Ice maker not producing ice | Water supply turned off; ice maker switch off; clogged water filter. | Check water supply valve; ensure ice maker switch is ON; replace water filter. |
| Water dispenser not working | Water supply turned off; water filter clogged; air in water line. | Check water supply valve; replace water filter; dispense water for 2-3 minutes to clear air. |
| Unusual noises | Normal operating sounds (compressor, fan); refrigerator not level; items vibrating inside. | Refer to manual for normal sounds; level the refrigerator; rearrange items. |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | LG |
| Model Number | LRSWS2806S |
| Capacity | 27.6 Cubic Feet |
| Configuration | Full-Sized Side-by-Side |
| Color | Stainless Steel |
| Installation Type | Freestanding |
| Number of Doors | 2 |
| Form Factor | Side By Side |
| Cooling Method | Compressor |
| Adjustable Temperature Control | Yes |
| Item Weight | 257.9 Pounds |
| Included Components | User Manual |
| Date First Available | February 14, 2024 |
8. Warranty and Support
This product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, service, or to order replacement parts, please contact LG Customer Service.
You can find additional support resources and contact information on the official LG website: www.lg.com/us/support
