Introduction
Thank you for choosing the Electactic 1.7 Cu.ft Mini Fridge with Freezer. This compact refrigerator is designed for convenience and efficiency, ideal for various small spaces such as offices, dorm rooms, bedrooms, and apartments. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance.
Important Safety Information
WARNING: To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:
- Read all instructions before using the refrigerator.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Ensure proper ventilation around the appliance.
- Unplug the appliance before cleaning or performing maintenance.
- Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
Package Contents
Upon unpacking, please ensure all items are present and in good condition:
- Electactic 1.7 Cu.ft Mini Fridge with Freezer
- Removable Shelf
- Drip Tray (for defrosting)
- Ice Tray (if included)
- Instruction Manual (this document)
Setup and Installation
Placement
Place the mini fridge on a flat, stable surface away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
Image: The Electactic mini fridge positioned in a bedroom, demonstrating its compact size and quiet operation, suitable for personal spaces.
Leveling the Appliance
The mini fridge is equipped with adjustable leveling feet at the front. Turn the feet clockwise or counter-clockwise to raise or lower the unit, ensuring it is perfectly level for optimal performance and stability.
Reversible Door Installation
The door of your mini fridge is reversible, allowing it to open from either the left or right side to best suit your space. Refer to the detailed instructions in the separate installation guide for reversing the door hinges.

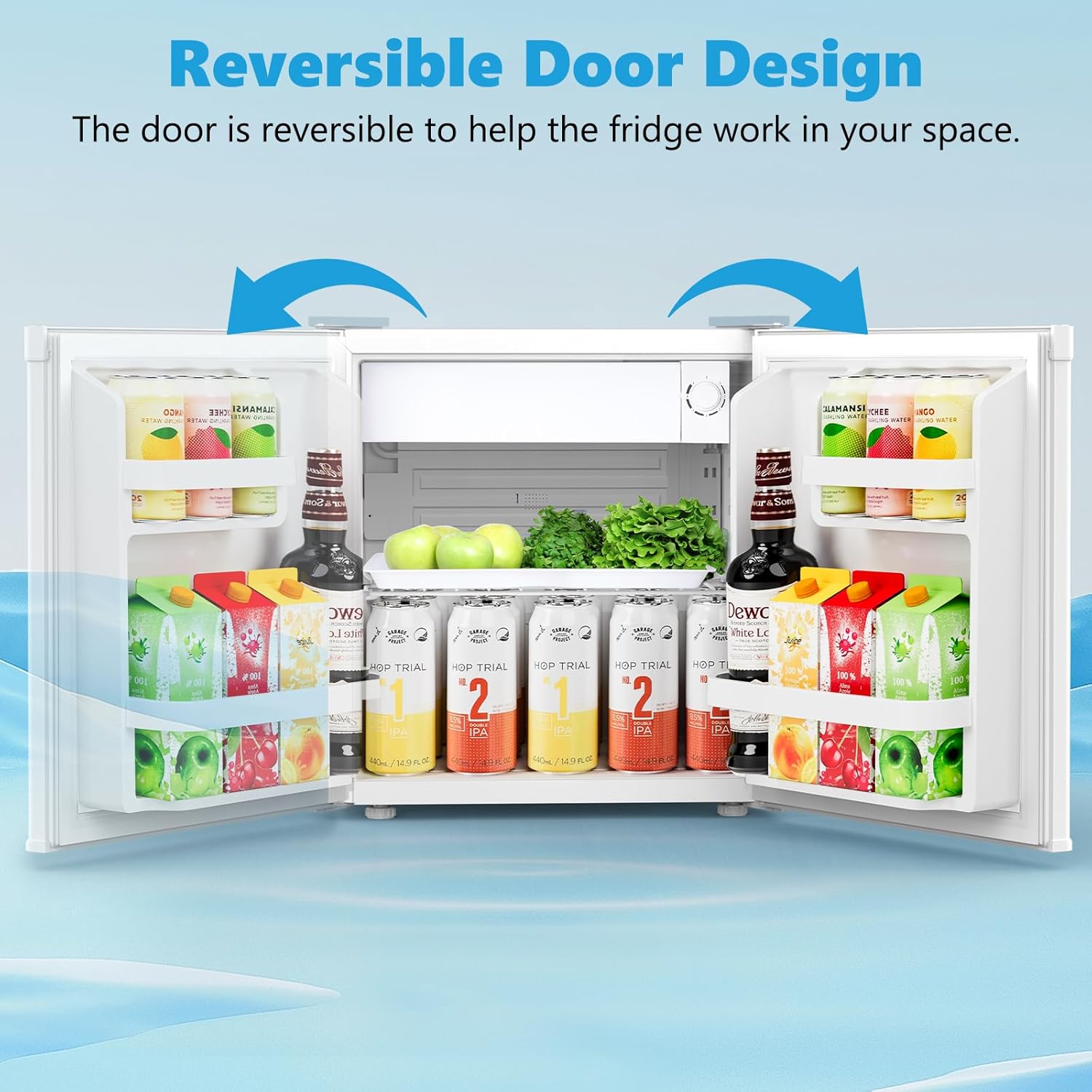

Image: The mini fridge with its door open, illustrating the interior capacity and the arrows indicating the reversible door feature for flexible placement.
Operating Instructions
Temperature Control
The mini fridge features a rotary thermostat button located inside the unit. It offers 7 variable temperature settings. The freezer compartment maintains a temperature range of 32°F to 50°F (0°C to 10°C). Adjust the dial to your desired cooling level. For general use, a setting around '4' is often sufficient.
Image: A visual guide to the internal temperature control knob, surrounded by illustrations of items like chilling drinks, veggies, eggs, fruits, snacks, and frozen meals, demonstrating the fridge's versatility.
Storage Capacity
This 1.7 Cu.ft mini fridge offers efficient storage for beverages, fruits, and small frozen items. The interior includes a removable shelf for flexible organization and a dedicated freezer compartment. The door also provides additional storage for bottles and cans.
Image: An open view of the mini fridge's interior, highlighting features such as the chiller box, adjustable temperature knob, and flexible storage solutions for various items including cans and taller bottles.
Quiet Operation
The Electactic mini fridge operates with ultra-quiet technology, producing less than 38dB of noise. This ensures undisturbed environments, making it suitable for bedrooms, offices, and other quiet spaces.
Maintenance
Cleaning
Regularly clean the interior and exterior of your mini fridge. Unplug the unit before cleaning. Use a soft cloth with a mild detergent and warm water. Avoid abrasive cleaners or harsh chemicals that could damage the surfaces. The removable shelf and drip tray can be washed separately.
Defrosting
This appliance features a manual defrost system. When frost accumulates to a thickness of about 1/4 inch (6mm) on the freezer walls, it is recommended to defrost the unit. To defrost, turn the thermostat to '0' (off) and unplug the appliance. Remove all food items and the drip tray. Allow the frost to melt naturally. Once defrosted, clean and dry the interior thoroughly before plugging it back in and restarting.
Troubleshooting
- Appliance does not operate: Check if the power cord is properly plugged into an electrical outlet. Verify if the circuit breaker has tripped or a fuse has blown. Ensure the temperature control is not set to '0' (off).
- Temperature inside is not cold enough: Adjust the temperature control to a colder setting. Check if the door is closed properly and not frequently opened. Ensure the appliance is not overloaded with food. Verify that the appliance is not placed near a heat source or in direct sunlight.
- Unusual noises: Ensure the appliance is level using the adjustable feet. Check if any objects are vibrating against the back or sides of the appliance. Normal operating sounds include a gentle hum from the compressor and occasional gurgling sounds from the refrigerant.
- Excessive frost buildup: This is normal for manual defrost units. Defrost the unit as per the maintenance instructions. Ensure the door seal is intact and the door is not left open for extended periods.
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 17.13 x 17.52 x 18.7 inches (43.5 x 44.5 x 47.5 cm) |
| Item Weight | 28.6 pounds (12.97 kg) |
| Capacity | 1.7 Cubic Feet (48.14 Liters) |
| Number Of Doors | 1 |
| Voltage | 115 Volts |
| Configuration | Compact Freezer-on-Top |
| Color | White |
| Special Feature | Compact, Low Noise |
| Installation Type | Freestanding |
| Defrost System | Manual |
Warranty and Support
For warranty information, product support, or service inquiries, please refer to the warranty card included with your purchase or visit the official Electactic website. Keep your proof of purchase for any warranty claims.
