1. Introduction
Thank you for choosing the Niceday Recumbent Exercise Bike. This manual provides essential information for the safe and effective use, assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before use and retain it for future reference.
The Niceday Recumbent Exercise Bike is designed for low-impact cardiovascular exercise, ideal for rehabilitation, daily fitness, and weight management. It features a comfortable, ergonomic design with adjustable resistance levels to suit various fitness needs.

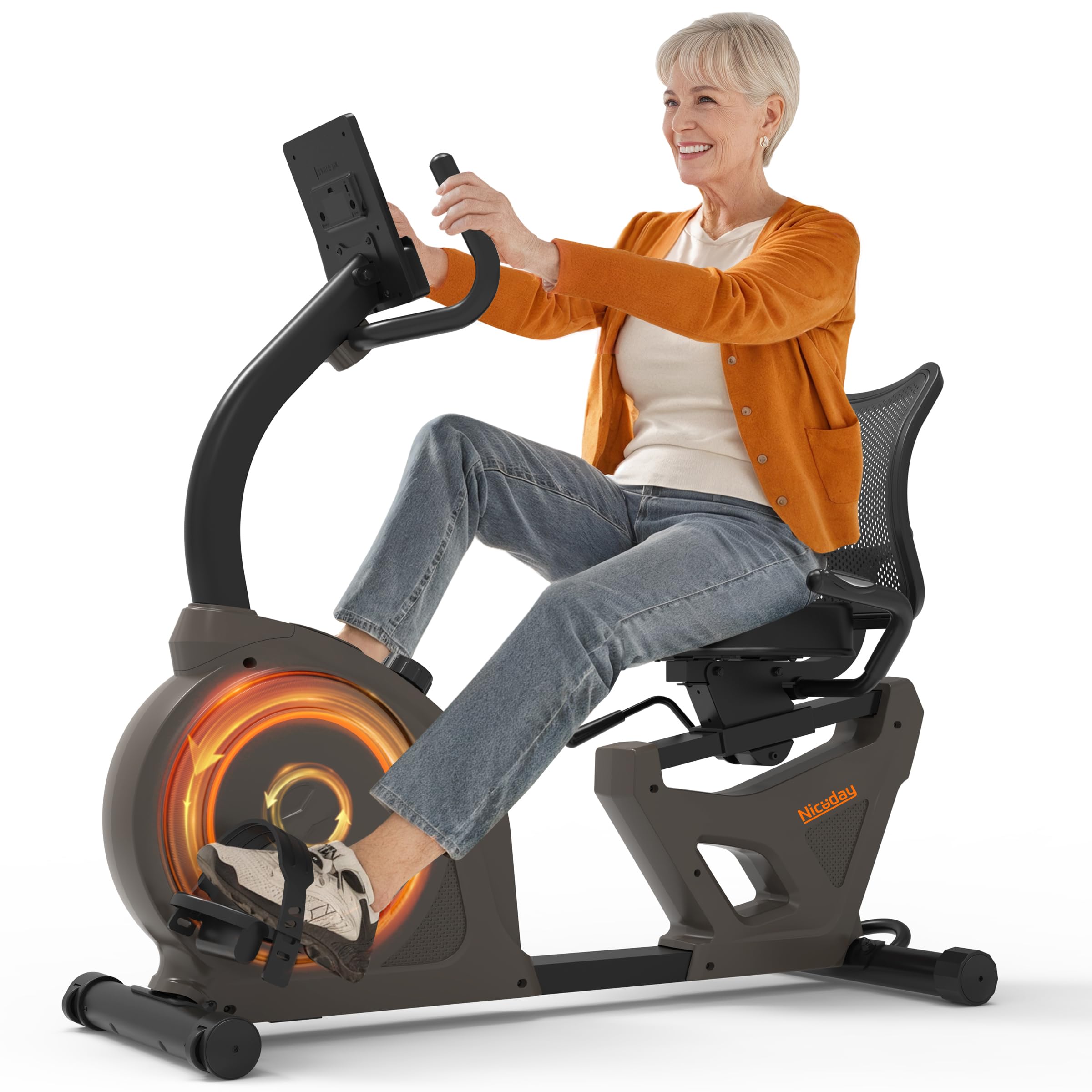

Image 1: Niceday Recumbent Exercise Bike, a full view of the product.
2. Safety Information
- Consult a physician before starting any exercise program.
- Ensure all parts are securely assembled before use.
- Place the bike on a flat, stable surface.
- Keep children and pets away from the equipment during operation.
- Wear appropriate exercise attire and footwear.
- Stop exercising immediately if you feel faint, dizzy, or experience pain.
- Do not exceed the maximum user weight capacity of 158.7 kg (350 lbs).
3. Setup and Assembly
Your Niceday Recumbent Exercise Bike arrives 85% pre-assembled. Follow the detailed instructions provided in the packaging for the remaining assembly steps. Necessary tools are included.
Image 2: Illustration showing the ease of assembly with detailed instructions, step-by-step video, and simple tools.
3.1 Initial Placement
Choose a suitable location for your exercise bike, ensuring enough space around it for safe operation and movement. The integrated transport wheels allow for easy relocation.
4. Operating Instructions
4.1 Seat Adjustment
The seat can be adjusted to 8 different positions to accommodate users between 150 cm and 190 cm. Use the single lever located under the seat to slide it forward or backward until you find a comfortable pedaling position. Ensure your knees have a slight bend at the bottom of the pedal stroke.
Image 3: Close-up of the comfortable, wide, and padded seat with a breathable mesh backrest, designed for ergonomic support.
4.2 Resistance Adjustment
The bike features 16 levels of progressive magnetic resistance. Turn the rotary knob located on the main unit to increase or decrease the resistance. Levels 1-6 are suitable for gentle rehabilitation, 7-12 for daily exercise, and 13-16 for calorie burning and intense workouts.
Image 4: Diagram illustrating the 16 progressive resistance levels and the rotary knob for adjustment.
4.3 Console and Display
The large LCD display shows your workout data, including time, distance, speed, calories burned, and pulse. The console also includes a tablet holder, allowing you to enjoy media while exercising. The display is powered by 1 AA battery (included).
Image 5: View of the LCD console displaying workout metrics and a tablet placed in the holder.
4.4 Pedals
The pedals are designed with anti-slip surfaces and adjustable straps to secure your feet during exercise, ensuring safety and efficiency.
5. Maintenance
- Regularly wipe down the bike with a damp cloth to remove dust and sweat.
- Check all bolts and connections periodically to ensure they are tight.
- Inspect pedals and straps for wear and tear. Replace if necessary.
- Store the bike in a dry, cool place away from direct sunlight and moisture.
6. Troubleshooting
- No display on console: Check if the AA battery is correctly installed or needs replacement.
- Resistance not changing: Ensure the resistance knob is fully engaged and turning smoothly. If issues persist, contact customer support.
- Unusual noises during operation: Check for loose parts or obstructions. Ensure the bike is on a level surface.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Niceday |
| Model Number | Upgraded |
| Resistance Type | Magnetic |
| Resistance Levels | 16 |
| Control Type | Knob |
| Display Type | LCD |
| Power Source | No electricity required (Battery for display) |
| Batteries | 1 AA (included) |
| Product Dimensions | 46 x 55 x 35.5 cm |
| Product Weight | 40.5 kg |
| Material | Metal |
| Color | Black |
| Max User Weight | 158.7 kg (350 lbs) |
| User Height Range | 150 - 190 cm |
8. Warranty and Support
Niceday products are manufactured to high-quality standards and come with a 1-year warranty. We also offer a 30-day free return policy. For technical support, questions, or concerns, please contact Niceday customer service. Our team is committed to responding within 24 hours.
Visit the official Niceday store for more information: Niceday Store
