Introduction
This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your Fanttik K2 Nano Mini Power Drill and E1 Ultra Mini Electric Screwdriver. Please read this manual thoroughly before using the products.
Image: The Fanttik K2 Nano Mini Power Drill and E1 Ultra Mini Electric Screwdriver, shown with their respective storage cases, highlighting the compact design and included accessories.
Fanttik K2 Nano Mini Power Drill
Product Overview
The Fanttik K2 Nano is a precision mini power drill designed for detailed work on various materials. It features a high-performance motor and dual-speed settings for versatile applications.
Image: An internal view of the K2 Nano's powerful motor, illustrating its capability to reach up to 1300 RPM for efficient drilling.
Key Features
- Exceptional Performance: Delivers a maximum torque of 0.6N·m and a top speed of 1300 RPM, suitable for materials like resin, PCB, and shells.
- Dual-Speed Switch:
- 250 RPM (High-Torque Mode): Ideal for tough materials such as resin, clay, and shells.
- 1300 RPM (High-Speed Mode): Suitable for soft woods, plastics, thin metals, and 3D-printed components.
- Extended Runtime: Equipped with an 800mAh high-capacity battery for prolonged use.
- Type-C Charging: Ensures broad compatibility and rapid recharging.
- 20 HSS Drill Bits: Includes a variety of high-speed steel drill bits (0.6-3.2 mm) for diverse tasks.
Image: The K2 Nano in use, demonstrating its dual-mode functionality with distinct RPM and torque settings for different materials.
Image: A close-up of the K2 Nano's storage case, displaying the 20 included HSS drill bits, ranging from 0.6mm to 3.2mm in size.

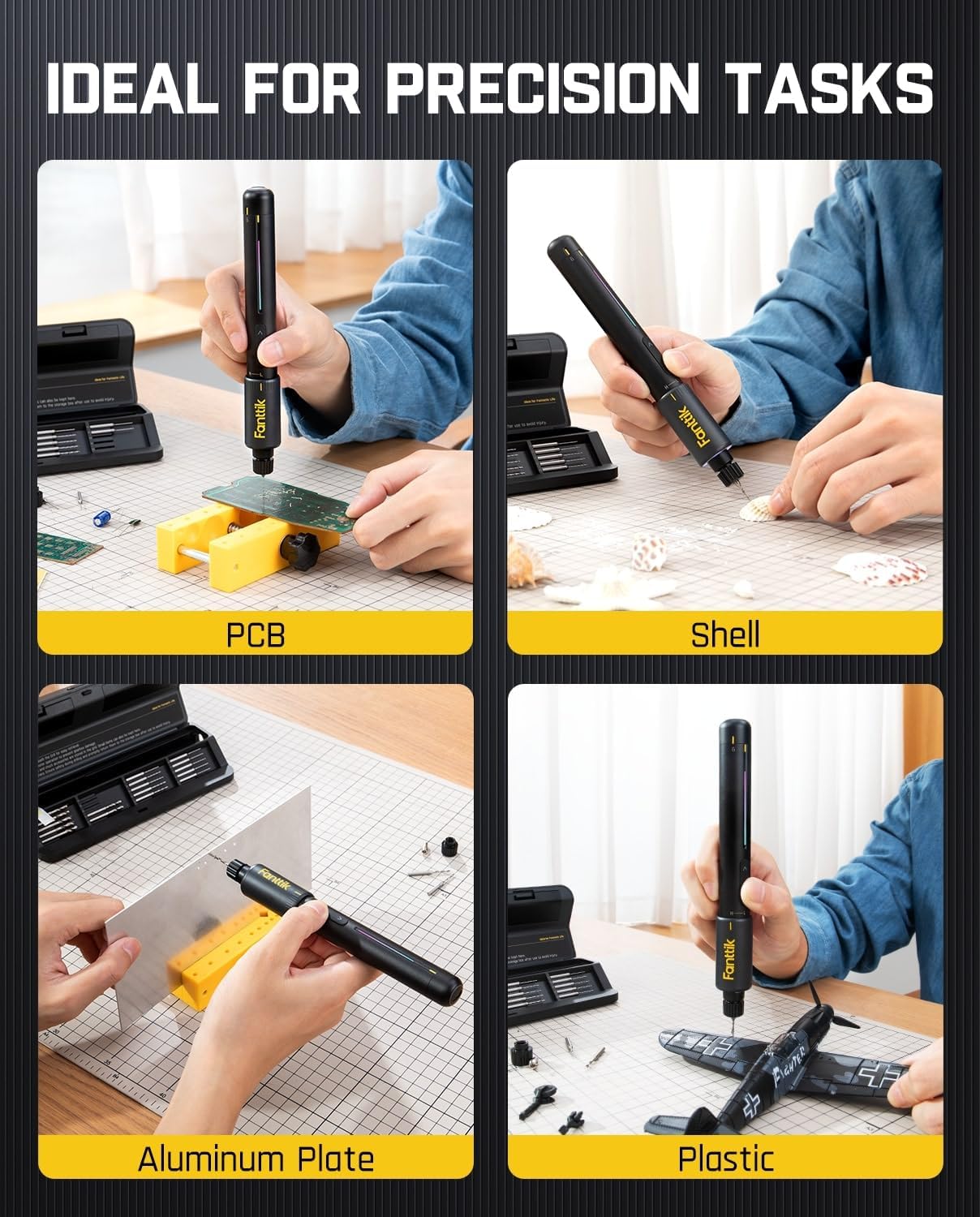

Image: The K2 Nano performing precision drilling on various materials including a PCB, a shell, an aluminum plate, and plastic, demonstrating its versatility.
Fanttik E1 Ultra Mini Electric Screwdriver
Product Overview
The Fanttik E1 Ultra is a mini electric screwdriver designed for precision repair tasks on electronic devices and small products. It offers specialized bits and precise torque control.
Image: The E1 Ultra in action, performing precision repairs on a computer motherboard, mobile phone, camera, and keyboard, highlighting its suitability for delicate electronics.
Key Features
- Specialized Precision: Comes with a set of 12 different types of precision repair bits, totaling 50 high-quality bits.
- Durable Bits: Bits are made from S2 tool steel with a hardness rating of 60 HRC, ensuring durability and a firm grip.
- Magnetic Bits: Designed to securely hold screws during repairs.
- Additional Tools: Includes a tweezer and a pry bar for delicate disassembly tasks.
- Precise Torque Control:
- Motor: Powerful 200 RPM hollow cup motor.
- Low Torque: 0.05 N·m.
- High Torque: 0.2 N·m.
- Manual Mode: Up to 3 N·m for loosening stubborn or rusty screws before engaging electric mode.
- Long-Lasting Battery: 350 mAh battery capacity.
Image: A detailed view of the E1 Ultra's features, including its screw in/out buttons, anti-slip coating, circular LED light, and the rotary torque knob with clearly marked precision torque settings.
Image: The comprehensive set of 50 S2 steel bits for the E1 Ultra, along with a pry bar and tweezer, organized in their storage slots.
Image: An illustration of the E1 Ultra's internal battery, highlighting its 350 mAh capacity and the 200 RPM motor for sustained operation.
Setup and Charging
Initial Charging
Before first use, fully charge both the K2 Nano Mini Power Drill and the E1 Ultra Mini Electric Screwdriver. Use the provided Type-C charging cable. The LED indicator on the devices will show charging status.
- K2 Nano: 800mAh battery.
- E1 Ultra: 350mAh battery.
Inserting/Changing Bits
- Select the appropriate drill bit (for K2 Nano) or screwdriver bit (for E1 Ultra) for your task.
- Gently insert the bit into the chuck of the tool until it is securely seated.
- Ensure the bit is firmly held before operation to prevent slippage.
Warning: The drill bits are sharp. Handle with care to avoid injury. Always return bits to their designated slots in the storage box after use.
Operating Instructions
K2 Nano Mini Power Drill Operation
- Power On/Off: Press and hold the power button to turn the drill on or off.
- Speed Selection: Use the speed switch (H/L) to select between:
- H (High-Speed): 1300 RPM for softer materials.
- L (Low-Speed/High-Torque): 250 RPM for tougher materials.
- Drilling: Position the drill bit on the desired spot and gently press the activation button. Apply steady, light pressure.
- LED Feedback: The integrated LED light provides illumination for better visibility during operation.
E1 Ultra Mini Electric Screwdriver Operation
- Power On/Off: The screwdriver typically activates upon pressing the screw in/out buttons.
- Torque Control: Adjust the rotary torque knob to select the desired torque setting:
- L (Low Torque): 0.05 N·m for delicate tasks.
- H (High Torque): 0.2 N·m for general tasks.
- Manual Mode: Up to 3 N·m for loosening stubborn or rusty screws before engaging electric mode.
- Screwing: Select the appropriate bit, align it with the screw head, and press the "screw in" or "screw out" button.
- Circular LED Light: Provides illumination around the work area.
Note: The speed of the E1 Ultra is independent of the torque setting.
Maintenance
- Cleaning: Wipe the tools with a soft, dry cloth after each use. Do not use abrasive cleaners or solvents.
- Bit Care: Keep drill and screwdriver bits clean and dry. Store them in their designated slots in the case to prevent damage and loss.
- Charging Port: Ensure the Type-C charging port is free from dust and debris.
- Storage: Store the tools and accessories in their original cases in a cool, dry place, away from direct sunlight and moisture.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not turn on. | Low battery. | Charge the device fully using the Type-C cable. |
| Bit slips or does not grip. | Bit not properly inserted; incorrect bit size; worn bit. | Ensure bit is fully seated. Use the correct size bit for the task. Replace worn bits. |
| K2 Nano drill lacks power on tough materials. | Incorrect speed mode selected. | Switch to the 250 RPM (Low-Speed/High-Torque) mode. |
| E1 Ultra screwdriver struggles with stubborn screws. | Electric torque insufficient. | Switch to manual mode to loosen the screw first, then use electric mode. |
Specifications
Fanttik K2 Nano Mini Power Drill
- Model: K2 Nano
- Max Torque: 0.6 N·m
- Speed Settings: 250 RPM (Low), 1300 RPM (High)
- Battery: 800mAh
- Charging Port: Type-C
- Drill Bits: 20 HSS bits (0.6-3.2 mm)
Fanttik E1 Ultra Mini Electric Screwdriver
- Model: E1 Ultra
- Motor Speed: 200 RPM
- Electric Torque: 0.05 N·m (Low), 0.2 N·m (High)
- Manual Torque: Up to 3 N·m
- Battery: 350mAh
- Screwdriver Bits: 50 S2 tool steel bits (12 types)
- Additional Tools: Tweezer, Pry Bar
Safety Information
- Always wear appropriate personal protective equipment, such as safety glasses, when operating power tools.
- Keep hands and loose clothing away from moving parts.
- Ensure the workpiece is securely clamped before drilling or screwing.
- Do not operate tools in wet or damp conditions.
- Keep out of reach of children.
- Do not attempt to disassemble or modify the tools.
- Use only original or approved replacement parts and accessories.
Warranty and Support
Fanttik products are designed and manufactured to the highest quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Fanttik website.
Website: www.fanttik.com
