Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your RATION Skid Plate, Model 548,082,001. Please read these instructions carefully before installation and retain for future reference.
The RATION Skid Plate is a crucial component designed to protect the auger housing of your snow thrower from damage during operation. Made from durable GF30 material, it ensures longevity and reliable performance.
Product Overview
The RATION Skid Plate (Model 548,082,001) is a replacement component designed for specific snow thrower models, including Homelite and Ryobi. Constructed from GF30 material, it offers reliable protection and durability for your snow thrower's auger housing.
Key Features
- Made of GF30 material for enhanced durability.
- Designed for specific Homelite and Ryobi snow thrower models.
- Ensures proper auger housing protection.
- Easy to install.
Package Contents
- 1 x RATION Skid Plate (Model 548,082,001)
Visual Reference
Image 1: The RATION Skid Plate, Model 548,082,001. This image shows the black, elongated skid plate with mounting points and ribbed sections, designed to protect the snow thrower's auger housing.

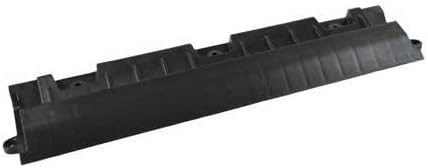

Image 2: An angled view of the RATION Skid Plate, highlighting its structural design and material texture.
Compatibility
This skid plate is compatible with snow thrower models that utilize part number 548,082,001. It is specifically designed for certain Homelite and Ryobi snow throwers. Always verify compatibility by checking your snow thrower's existing part number and comparing product dimensions before purchase and installation.
Refer to your snow thrower's original manual for specific part requirements.
Setup and Installation
Safety First: Before beginning any installation, ensure your snow thrower is turned off, unplugged (if electric), or has its spark plug wire disconnected (if gasoline-powered) to prevent accidental startup. Wear appropriate safety gear, including gloves and eye protection.
Tools Required
- Wrench or socket set (appropriate size for existing fasteners)
- Screwdriver (if applicable)
- Work gloves
- Safety glasses
Installation Steps
- Prepare the Snow Thrower: Position the snow thrower on a stable, flat surface. Ensure it is completely powered down and secured.
- Locate Existing Skid Plate: Identify the current skid plate(s) on the bottom edge of the auger housing. These are typically bolted or screwed into place.
- Remove Old Skid Plate: Using the appropriate tools, carefully unfasten and remove the bolts or screws holding the old skid plate. Keep the fasteners if they are in good condition for reuse, or have new ones ready if necessary.
- Clean Mounting Area: Clean any debris, rust, or dirt from the mounting area on the auger housing to ensure a flush fit for the new skid plate.
- Position New Skid Plate: Align the RATION Skid Plate (Model 548,082,001) with the mounting holes on the snow thrower's auger housing.
- Secure New Skid Plate: Insert the fasteners through the skid plate and into the auger housing. Hand-tighten all fasteners first, then progressively tighten them with a wrench or socket until snug. Do not overtighten, as this can damage the skid plate or housing.
- Verify Installation: Gently rock the skid plate to ensure it is securely attached and does not wobble. Check that there are no gaps or misalignments.
- Reconnect Power: Once installation is complete, reconnect the spark plug wire or plug in the snow thrower.
Operating Tips
While the skid plate itself does not have operational controls, its proper function is crucial for the snow thrower's performance and longevity. Ensure the skid plate is always in good condition before each use.
- Adjust Skid Plate Height: Some snow throwers allow for skid plate height adjustment. Adjust it according to the surface you are clearing (e.g., higher for gravel, lower for smooth pavement) to prevent damage to the auger and the surface.
- Regular Inspection: Before each use, visually inspect the skid plate for wear, cracks, or damage. A worn skid plate can cause the auger to scrape the ground, leading to damage.
Maintenance
Regular maintenance of your RATION Skid Plate will extend its lifespan and ensure optimal performance of your snow thrower.
- Cleaning: After each use, clean any snow, ice, or debris from the skid plate and the surrounding auger housing area. A stiff brush can be used for stubborn residue.
- Inspection for Wear: Periodically check the skid plate for signs of wear, especially on the bottom edge that contacts the ground. If the skid plate is significantly worn down, cracked, or broken, it should be replaced immediately to protect the auger housing.
- Fastener Check: Ensure all mounting fasteners remain tight. Vibrations during operation can sometimes loosen them.
- Storage: When storing the snow thrower for extended periods, ensure the skid plate is clean and dry to prevent any potential material degradation.
Troubleshooting
This section addresses common issues related to the skid plate.
| Problem | Possible Cause | Solution |
|---|---|---|
| Skid plate loose or wobbly | Fasteners are loose or damaged. | Tighten all mounting fasteners. Replace any damaged fasteners. |
| Skid plate worn down quickly | Operating on abrasive surfaces; incorrect height adjustment. | Adjust skid plate height appropriately for the surface. Consider replacing if excessively worn. |
| Auger housing scraping ground | Skid plate is too worn or incorrectly installed. | Inspect skid plate for wear; replace if necessary. Re-install skid plate ensuring proper alignment and tightness. Adjust height if possible. |
Specifications
- Brand: RATION
- Model Number: 548,082,001
- Material: GF30
- Part Number: #548082001
- Compatibility: Homelite, Ryobi (specific models requiring part #548082001)
Support and Warranty
For technical assistance, replacement parts, or warranty inquiries, please contact RATION customer support. Refer to your purchase documentation for specific warranty terms and contact information.
