HONEYWHALE T4D Electric Scooter User Manual

1. Introduction

Thank you for choosing the HONEYWHALE T4D Electric Scooter. This manual provides essential information for the safe operation, assembly, and maintenance of your scooter. Please read it thoroughly before your first ride and keep it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your scooter.

Safety Warnings

• Always wear a helmet and appropriate protective gear (e.g., knee pads, elbow pads) when riding.
• Do not ride in heavy rain, snow, or on icy surfaces.
• Ensure all components are securely fastened before each ride.
• Familiarize yourself with local laws and regulations regarding electric scooter use.
• Avoid riding under the influence of alcohol or drugs.
• The maximum load capacity is 120 kg. Do not exceed this limit.

2. Product Overview and Key Features

The HONEYWHALE T4D is a high-performance foldable electric scooter designed for adults, offering a powerful and comfortable riding experience. Key features include:

• Powerful Dual Motors: Equipped with two 1300W motors for a maximum speed of 65 KM/H and the ability to climb steep 15° inclines.
• Long-Range Battery: A 20AH battery provides an electric range of up to 65 KM on a single charge.
• Enhanced Safety Lighting: Features a high-brightness headlight, warning taillight, handlebar turn signals, and ambient LED pedal lights for 360-degree visibility.
• Comfortable Off-Road Suspension: Dual rocker arm shock absorption system combined with 11-inch vacuum off-road tires ensures a smooth and comfortable ride on various terrains.
• Smart Connectivity: High-definition LCD display shows real-time data. Bluetooth connectivity with a dedicated app allows for remote locking, mode switching, light adjustment, and cruise control. Includes a standard mobile phone holder.
• Convenient Folding Design: Made from a durable aluminum alloy frame, the scooter features a 3-second quick-folding mechanism. The seat and trunk are detachable and foldable for easy transport and storage.
• Dual Disc Brakes: Front and rear disc brakes provide responsive and reliable stopping power.

3. Setup and Initial Use

3.1 Unpacking and Assembly

Carefully remove all components from the packaging. The scooter comes partially assembled. You will need to:

1. Unfold the scooter frame and secure the locking mechanisms.
2. Attach the handlebars, ensuring they are aligned and tightened.
3. Install the seat and trunk if desired. These are detachable for flexibility.
4. Check all screws and bolts to ensure they are tight before the first ride. A tool kit is included for this purpose.

3.2 Initial Charging

Before your first ride, fully charge the scooter's battery. The charging time is approximately 11 hours.

• Locate the charging port on the scooter.
• Connect the charger to the scooter and then to a power outlet.
• The charger indicator light will typically show red during charging and turn green when fully charged.

Image: The scooter's battery compartment and charging port, highlighting the 20AH capacity and IPX4 waterproofing.

4. Operating Instructions

4.1 Power On/Off and Riding Modes

To power on the scooter, insert the key into the ignition and turn it. Then, press the power button on the handlebar. The LCD display will illuminate, showing battery level, speed, and mileage.

• Mode Selection: The scooter offers four adjustable speeds: Pedestrian mode, Energy-saving mode, Normal mode, and Sport mode. Press the mode button to cycle through these options.
• Acceleration: Use the ergonomic accelerator on the handlebar to control your speed.
• Braking: The scooter is equipped with front and rear disc brakes for effective stopping.

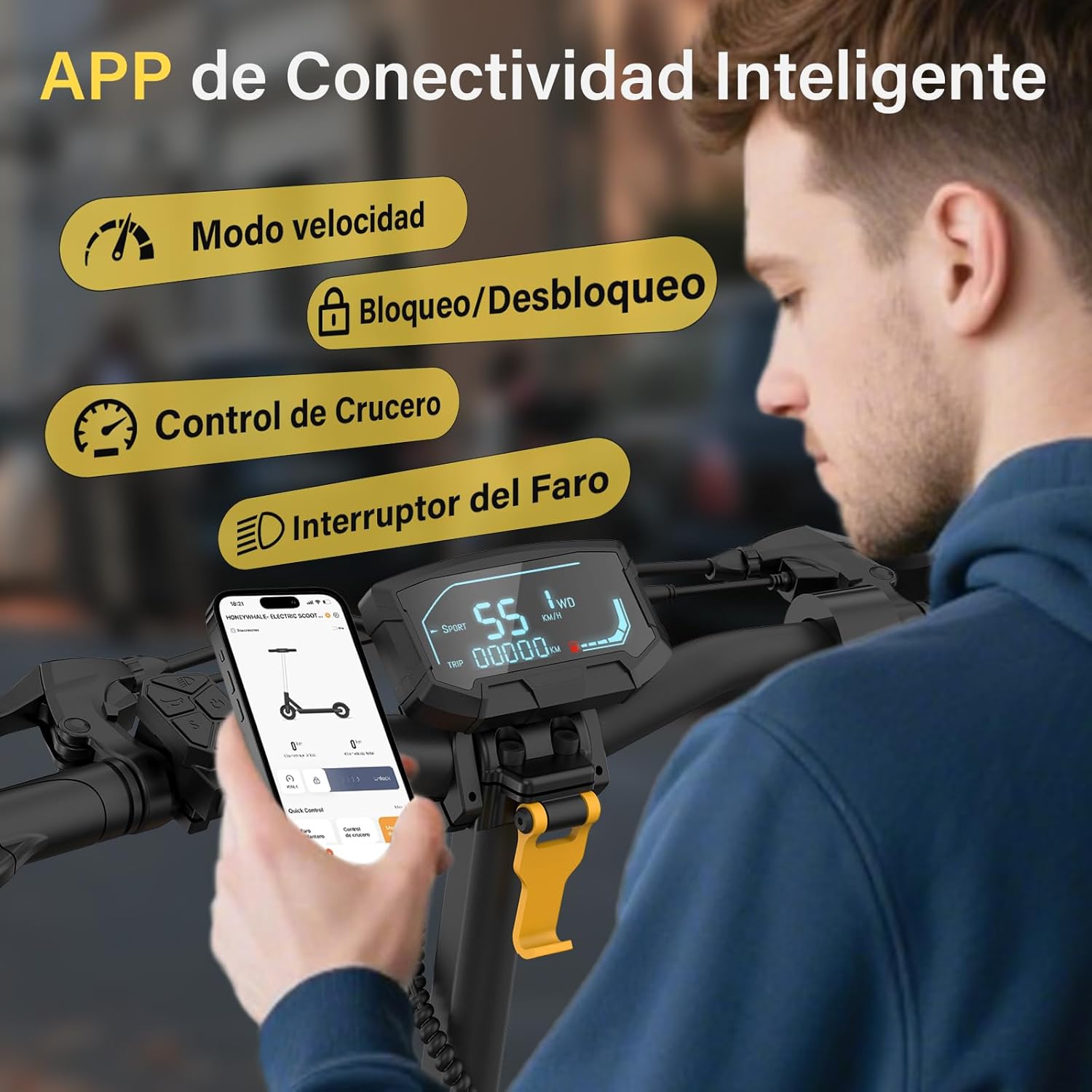

Image: The scooter's LCD display showing speed and battery, with a smartphone connected via the app for remote control.

4.2 Lighting System

The T4D features a comprehensive 360-degree lighting system for safety and visibility.

• Headlights & Taillights: Activate these for improved visibility in low-light conditions.
• Turn Signals: Use the handlebar controls to indicate turns.
• Ambient LED Pedal Lights: These lights enhance visibility and add a distinctive look.

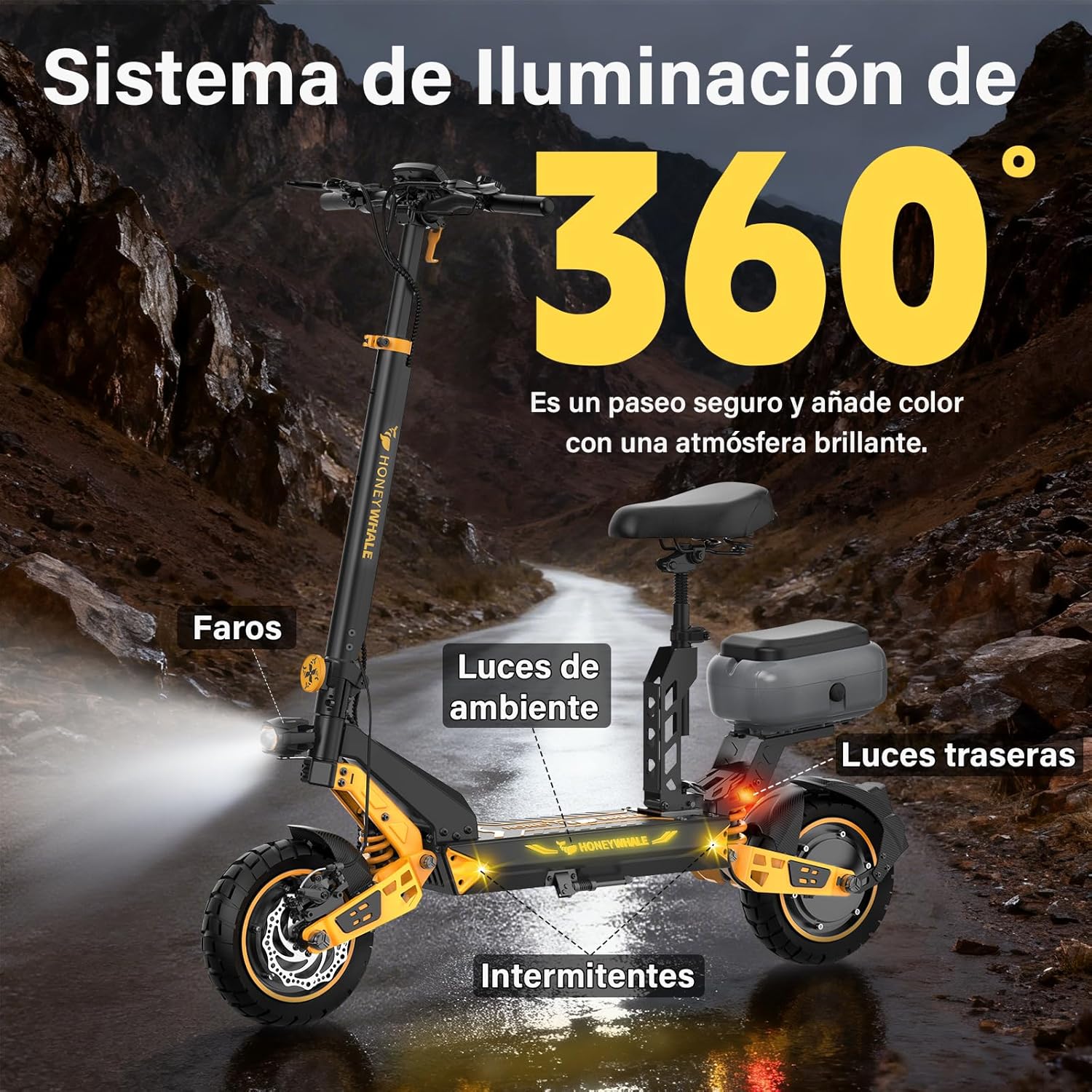

Image: The scooter's 360-degree lighting system, including headlights, ambient lights, and taillights, for enhanced safety.

4.3 Folding and Storage

The scooter can be folded in approximately 3 seconds for easy transport and storage.

1. Ensure the scooter is powered off.
2. Locate the folding mechanism on the stem.
3. Follow the instructions to release the lock and fold the stem down towards the deck.
4. The seat and trunk can also be detached or folded for a more compact size.

Image: The scooter in its folded state, demonstrating the quick-folding design and the detachable seat and trunk.

5. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your HONEYWHALE T4D scooter.

5.1 Battery Care

• Charge the battery fully after each use, especially if it will be stored for an extended period.
• Avoid completely draining the battery, as this can reduce its lifespan.
• Store the scooter in a cool, dry place, away from direct sunlight and extreme temperatures.

5.2 Tires and Brakes

• Tire Pressure: Regularly check the pressure of the 11-inch vacuum off-road tires. Maintain the recommended pressure for optimal performance and safety.
• Brake Inspection: Periodically inspect the front and rear disc brakes for wear and tear. Ensure the brake levers are responsive and the pads are not excessively worn. Adjust or replace as needed.

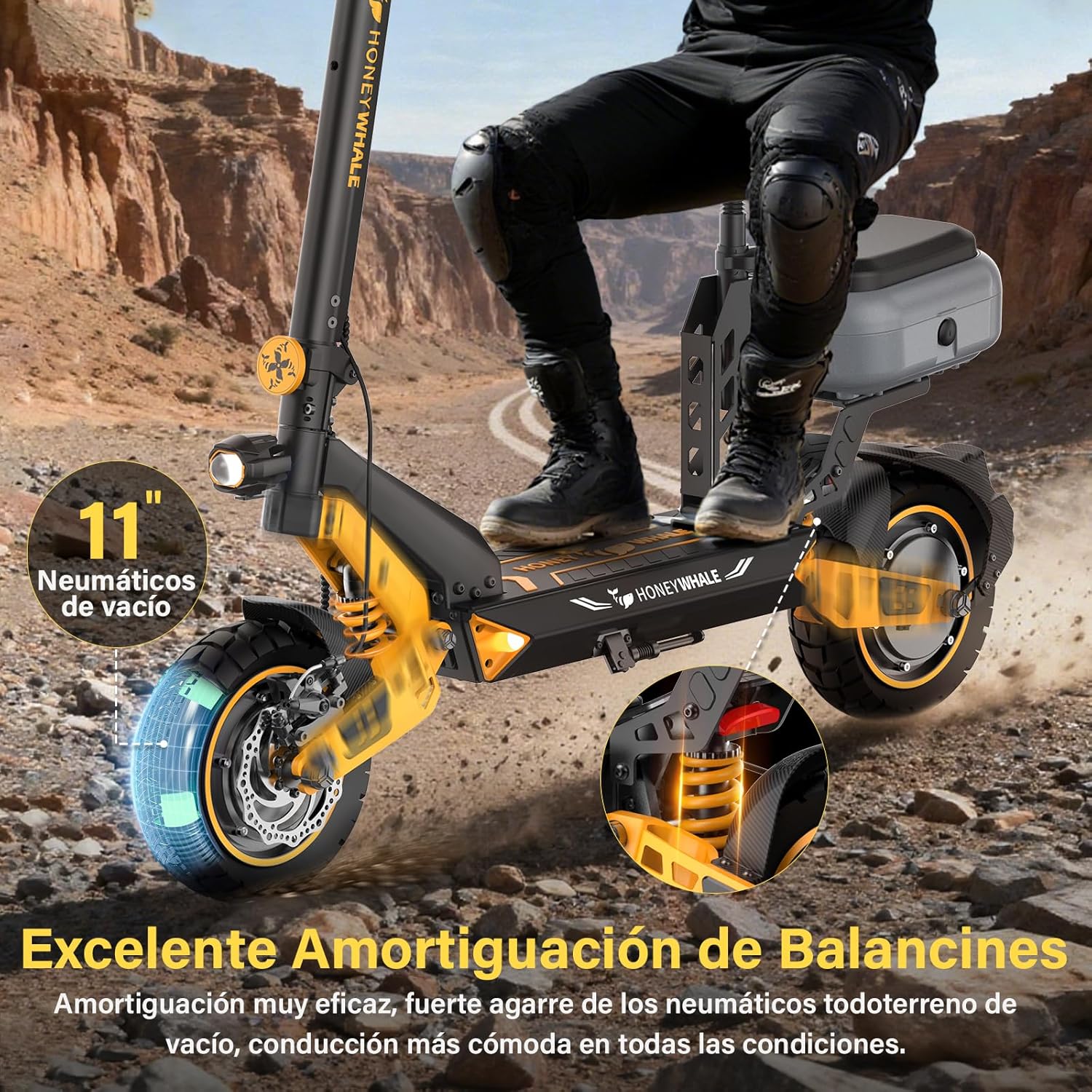

Image: Close-up of the scooter's 11-inch off-road vacuum tires and the dual rocker arm suspension system.

5.3 Cleaning and Storage

• Clean the scooter with a damp cloth. Avoid using high-pressure water jets, which can damage electronic components.
• Do not use corrosive cleaning agents.
• When storing, ensure the scooter is clean and dry. If storing for a long time, charge the battery to about 50-70% and recharge every 1-2 months.

6. Troubleshooting

This section addresses common issues you might encounter with your HONEYWHALE T4D scooter.

7. Specifications

Detailed technical specifications for the HONEYWHALE T4D Electric Scooter:

8. Warranty and Support

As an exclusive authorized distributor in Mexico, HONEYWHALE guarantees the supply of original accessories and spare parts for your scooter. For warranty claims, technical support, or to purchase spare parts, please contact your authorized HONEYWHALE dealer or visit the official HONEYWHALE store online.

Included Items: 1* Scooter Bag + 1* Mobile Phone Holder, 1* Installation Tool Kit, 1* Charger, 1* Manual, 1* T4D Electric Scooter.
