CCLIFE Timing Belt Tool Kit AT0994 Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and effective use of the CCLIFE Timing Belt Tool Kit, model AT0994. This specialized tool kit is designed for the precise locking of camshafts and accurate adjustment of valve timing during maintenance or repair procedures on compatible 1.4T Multiair engines.

Please read this manual thoroughly before attempting any work with the tools. Proper use ensures both the safety of the user and the integrity of the engine components.

2. Safety Instructions

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when working on vehicle engines.
• Ensure the vehicle is securely supported on jack stands and the battery is disconnected before beginning any work.
• Refer to the vehicle manufacturer's service manual for specific procedures, torque specifications, and additional safety warnings.
• Do not use damaged or modified tools. Inspect all tools for wear or damage before each use.
• Keep the work area clean and well-lit.
• This tool kit is intended for use by qualified personnel with experience in automotive engine repair.

3. Package Contents

The CCLIFE Timing Belt Tool Kit AT0994 includes the following components, typically supplied in a durable storage case:

• Camshaft Locking Plate
• Crankshaft Pulley Holding Tool
• Tensioner Pin
• Various bolts and fasteners for securing tools

Figure 1: Overview of the CCLIFE Timing Belt Tool Kit components.

Figure 2: The CCLIFE Timing Belt Tool Kit stored in its protective case.

4. Vehicle and Engine Compatibility

This tool kit is specifically designed for 1.4T Multiair engines found in various Alfa Romeo, Fiat, and Lancia models. Refer to the following list for compatible engine codes and vehicle models:

Compatible Engine Codes:

• 955A6.000
• 955A2.000
• 955A7.000
• 955A8.000
• 940A2.000
• 198A7.000

Compatible Vehicle Models:

• Alfa Romeo: Mito 1.4 (105 hp), Mito 1.4 (135 hp), Giulietta 1.4 (170 hp)
• Fiat: Punto Evo 1.4 (105 hp), Punto Evo 1.4 (135 hp), Punto, Bravo (2009-2013)
• Lancia: Delta (2010-201), Delta 1.4

This tool kit conforms to OEM numbers AT0994, 1860987000, 2000034400, and 2000004500, ensuring precise fitment and reliable performance.

5. Setup and Preparation

1. Ensure the engine is cool before beginning any work.
2. Position the vehicle on a level surface and engage the parking brake.
3. Disconnect the vehicle's battery to prevent accidental starting.
4. Remove any engine covers, accessories, or components that obstruct access to the timing belt and camshaft/crankshaft pulleys.
5. Clean the area around the timing components to prevent contamination.

6. Operating Instructions

This section outlines the general procedure for using the CCLIFE Timing Belt Tool Kit for camshaft locking and timing belt replacement. Always consult the specific vehicle service manual for detailed, model-specific instructions.

6.1. Camshaft Locking Procedure

1. Rotate the crankshaft until the engine is at Top Dead Center (TDC) on cylinder 1, ensuring the camshafts are in their correct timing position.
2. Locate the camshaft locking points on the engine.
3. Position the Camshaft Locking Plate (Figure 3) onto the camshafts, aligning it with the designated slots or holes. Secure the plate using the provided bolts. This tool fixes both camshaft pulleys, preventing rotation.
4. Verify that the camshafts are securely locked and cannot rotate.

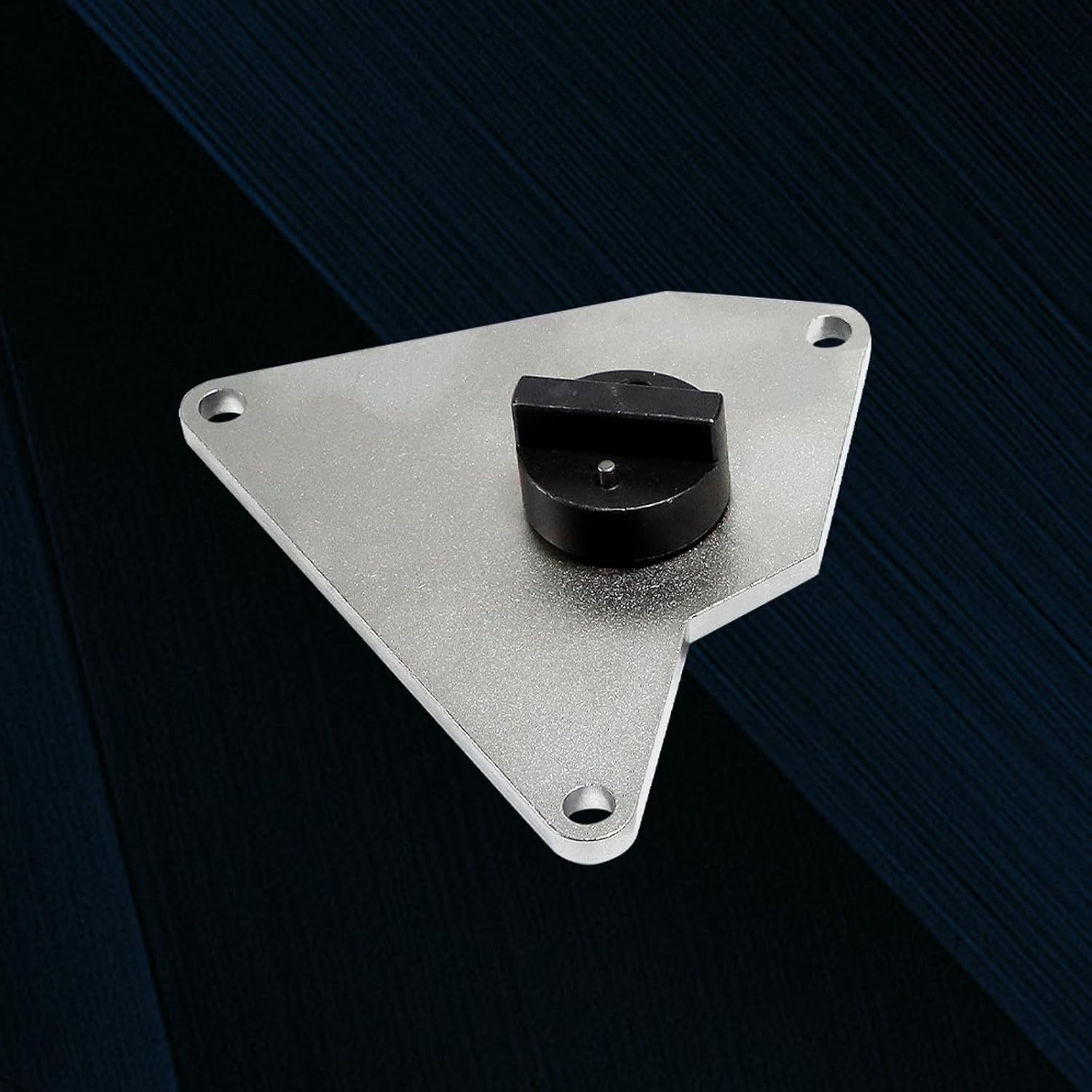

Figure 3: The Camshaft Locking Plate, used to secure camshafts in position.

6.2. Crankshaft Positioning and Holding

1. Once the camshafts are locked, use the Crankshaft Pulley Holding Tool (Figure 4) to prevent the crankshaft from rotating while loosening or tightening the crankshaft pulley bolt.
2. Insert the holding tool into the appropriate points on the crankshaft pulley and secure it against a fixed point on the engine block or chassis, as specified by the vehicle's service manual.

Figure 4: The Crankshaft Pulley Holding Tool, designed to prevent crankshaft rotation.

6.3. Timing Belt Replacement and Tensioning

1. With the camshafts and crankshaft securely locked, the old timing belt can be safely removed.
2. Install the new timing belt according to the vehicle manufacturer's instructions, ensuring correct routing and alignment with all pulleys.
3. Use the Tensioner Pin (Figure 5) to set the correct tension on the new timing belt. Follow the vehicle service manual for the specific tensioning procedure and required tension values.
4. Once the timing belt is tensioned, remove all special tools in reverse order of installation.
5. Manually rotate the engine through two full crankshaft revolutions to confirm correct timing and belt tension. Re-check timing marks if necessary.

Figure 5: The Tensioner Pin and various bolts included in the kit.

7. Maintenance

• After each use, clean all tools thoroughly to remove oil, grease, and debris.
• Apply a light coat of rust-preventative oil to metal surfaces before storage.
• Store the tools in their original protective case in a dry, clean environment to prevent damage and corrosion.
• Regularly inspect tools for signs of wear, bending, or cracking. Replace any damaged components immediately.

8. Troubleshooting

8.1. Tool Does Not Fit Correctly

• Verify Compatibility: Double-check that your vehicle's engine code and model are listed in the compatibility section (Section 4).
• Engine Position: Ensure the engine is correctly positioned at TDC for cylinder 1, as specified by the vehicle manufacturer. Incorrect engine position will prevent the tools from seating properly.
• OEM Specifications: While this kit is designed to meet OEM specifications, slight variations can occur. If a tool, such as a camshaft pin, does not align perfectly, cross-reference its dimensions with the vehicle's specific OEM tool specifications. In some rare cases, minor adjustments or alternative methods might be required, always prioritizing the vehicle manufacturer's guidelines.
• Obstructions: Check for any debris or foreign objects preventing the tool from seating fully.

9. Specifications

10. Warranty Information

CCLIFE products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the product packaging or contact CCLIFE customer support. Typically, products are covered against manufacturing defects for a limited period from the date of purchase.

11. Customer Support

If you have any questions regarding the installation, operation, or maintenance of your CCLIFE Timing Belt Tool Kit, please contact CCLIFE customer support. When contacting support, please have your product model number (AT0994) and purchase information available.
