FEELNEEDY FN-W18 Pet Water Fountain Filter and Sponge Replacement Manual

1. Introduction

This manual provides essential instructions for the proper replacement of filters and pump sponges for your FEELNEEDY FN-W18 Battery Operated Stainless Steel Pet Water Fountain. Regular replacement of these components is crucial to ensure your pet always has access to clean, fresh drinking water and to maintain the optimal performance of the fountain.

The multi-layer filtration system, including high-density cotton, ion exchange resin, coconut shell activated carbon, and non-woven fabric, works to keep water cycling and filtered, removing impurities. Adhering to the recommended replacement schedule will contribute to your pet's health and the longevity of your fountain.

2. Product Overview: FEELNEEDY FN-W18 Replacement Filters & Sponges

This package contains replacement parts designed specifically for the FEELNEEDY FN-W18 Pet Water Fountain. Each pack includes:

• 6 Replacement Filters: These filters feature multiple layers to purify water, removing hair, debris, odors, and chlorine.
• 6 Replacement Pump Filter Sponges: These sponges protect the pump from hair and debris, ensuring its smooth operation and extending its lifespan.

Image: Contents of the replacement kit, showing 6 filters and 6 pump sponges.

Compatibility: These replacement filters and pump sponges are compatible with the FEELNEEDY FN-W18 Battery Operated Stainless Steel 8L Pet Water Fountain.

3. Preparation for Replacement

Before replacing any components, ensure the fountain is safely prepared:

1. Unplug the Fountain: Disconnect the power adapter from the wall outlet.
2. Disassemble the Top Tray: Carefully remove the top stainless steel tray from the main water reservoir.
3. Drain Water: Empty any remaining water from the top tray and the main reservoir.

4. Filter Replacement Instructions

Follow these steps to replace the main filter:

1. Soak the New Filter: Soak the activated carbon filter in water for 5 minutes to remove any carbon powder from the surface.
2. Rinse the Filter: Thoroughly rinse the filter under running water.
3. Install the Filter: Place the rinsed filter into the designated filter tray within the fountain's top assembly.

Image: Visual guide for soaking, rinsing, and installing the filter.

Video Guide: How to Assemble Filter

5. Pump Sponge Replacement Instructions

To replace the pump sponge and clean the pump assembly:

1. Remove and Clean Sponge: Locate the pump within the fountain. Remove the existing sponge and clean it thoroughly or replace it with a new one.
2. Remove Pump Cover: Gently remove the cover of the pump.
3. Remove Impeller Cap: Take off the cap covering the impeller.
4. Take Out Impeller: Use tools (such as tweezers, often included with the fountain) to carefully remove the impeller.
5. Thorough Cleaning: Thoroughly clean all parts of the pump, including the impeller and the inside of the water pump, using a small brush.
6. Reassemble and Install: Reassemble the pump components and install the water pump back into the fountain.

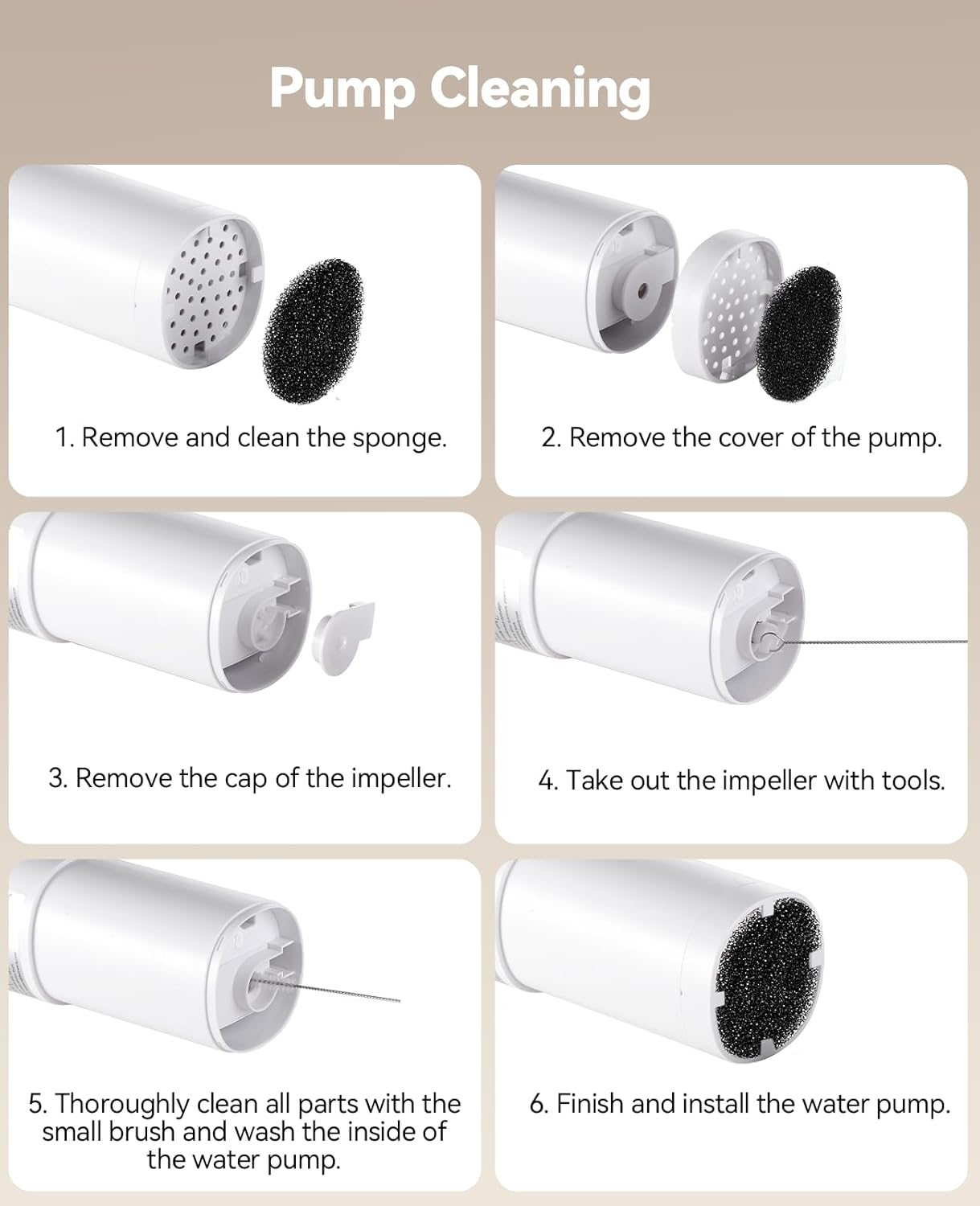

Image: Detailed steps for disassembling, cleaning, and reassembling the pump and replacing the sponge.

6. Recommended Replacement Schedule

To ensure optimal water quality and fountain performance:

• Filters: It is recommended to replace the filter every 2-4 weeks.
• Pump Sponges: Clean the pump sponge regularly (e.g., weekly) and replace it as needed, especially if it appears heavily soiled or damaged.

Note: The actual replacement frequency may vary depending on the number of pets using the fountain, water hardness, and environmental factors.

7. General Cleaning Tips for the Fountain

Beyond replacing filters and sponges, regular cleaning of the entire fountain is essential:

• Disassemble and Rinse: Completely disassemble the fountain and rinse all components under running water.
• Clean Stainless Steel Parts: Wash the stainless steel bowl and tray with mild soap and water. Rinse thoroughly to remove all soap residue.
• Clean Pump: Follow the pump cleaning steps outlined in Section 5 to ensure no debris obstructs water flow.
• Dry Components: Ensure all parts are completely dry before reassembling the fountain.

Image: Visual representation of cleaning various parts of the pet water fountain.

8. Specifications

Key specifications for the compatible FEELNEEDY FN-W18 Pet Water Fountain and its replacement parts:

• Compatible Fountain Model: FN-W18
• Filter Dimensions: 9.4 x 6.4 x 0.4 cm (approximately 3.7 x 2.52 x 0.16 inches)
• Fountain Capacity: 8 Liters
• Filter System: Multi-layer (high-density cotton, ion exchange resin, coconut shell activated carbon, non-woven fabric)

Image: Dimensions of the replacement filter.

9. Support & Further Information

For any questions, concerns, or additional support regarding your FEELNEEDY FN-W18 Pet Water Fountain or its replacement parts, please refer to the original product manual or contact FEELNEEDY customer service directly. Contact information can typically be found on the product packaging or the manufacturer's official website.
