MSmask 14 Inch Corner Bed Frame User Manual

Model: Full Size Metal Platform Bed Frame with Bookcase Storage, Charging Station, and LED Light

1. Introduction

This manual provides essential instructions for the assembly, operation, and maintenance of your MSmask 14 Inch Corner Bed Frame. This full-size metal platform bed frame features a bookcase headboard, six storage drawers, a built-in charging station, and integrated LED lighting. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

2. Safety Information

Please observe the following safety precautions:

  • Exercise caution around sharp edges during assembly.
  • Ensure all components are properly assembled and tightened to prevent instability.
  • Do not exceed the maximum weight capacity of the bed frame.
  • Keep small parts away from children during assembly to avoid choking hazards.
  • Unplug the charging station and LED lights from the power source before cleaning or maintenance.

3. Package Contents

Verify that all parts are present before beginning assembly. Refer to the included assembly instructions for a detailed list of components and hardware.

  • Metal bed frame components
  • Bookcase headboard sections
  • Six fabric storage drawers
  • LED light strips and control unit
  • Built-in charging station (USB, Type-C, AC outlets)
  • Assembly hardware (screws, bolts, tools)
  • Assembly instructions manual

4. Assembly Instructions

Assembly is required for this bed frame. It is recommended to have two people for assembly. Follow the step-by-step instructions provided in the separate assembly manual included with your product. Ensure all parts are correctly oriented and securely fastened.

Key Assembly Points:

  • The bed frame can be installed in two configurations, allowing the headboard to be assembled on either the left or right side to suit your desired corner placement.
  • The metal slats feature U-shaped grooves for easy assembly and secure fit.
  • Four mattress-slide stoppers are included to keep the mattress in place.
Diagram showing two bed frames, one with the headboard on the left and one on the right, illustrating optional assembly configurations.
Figure 4.1: Assembly options for headboard placement (left or right corner).

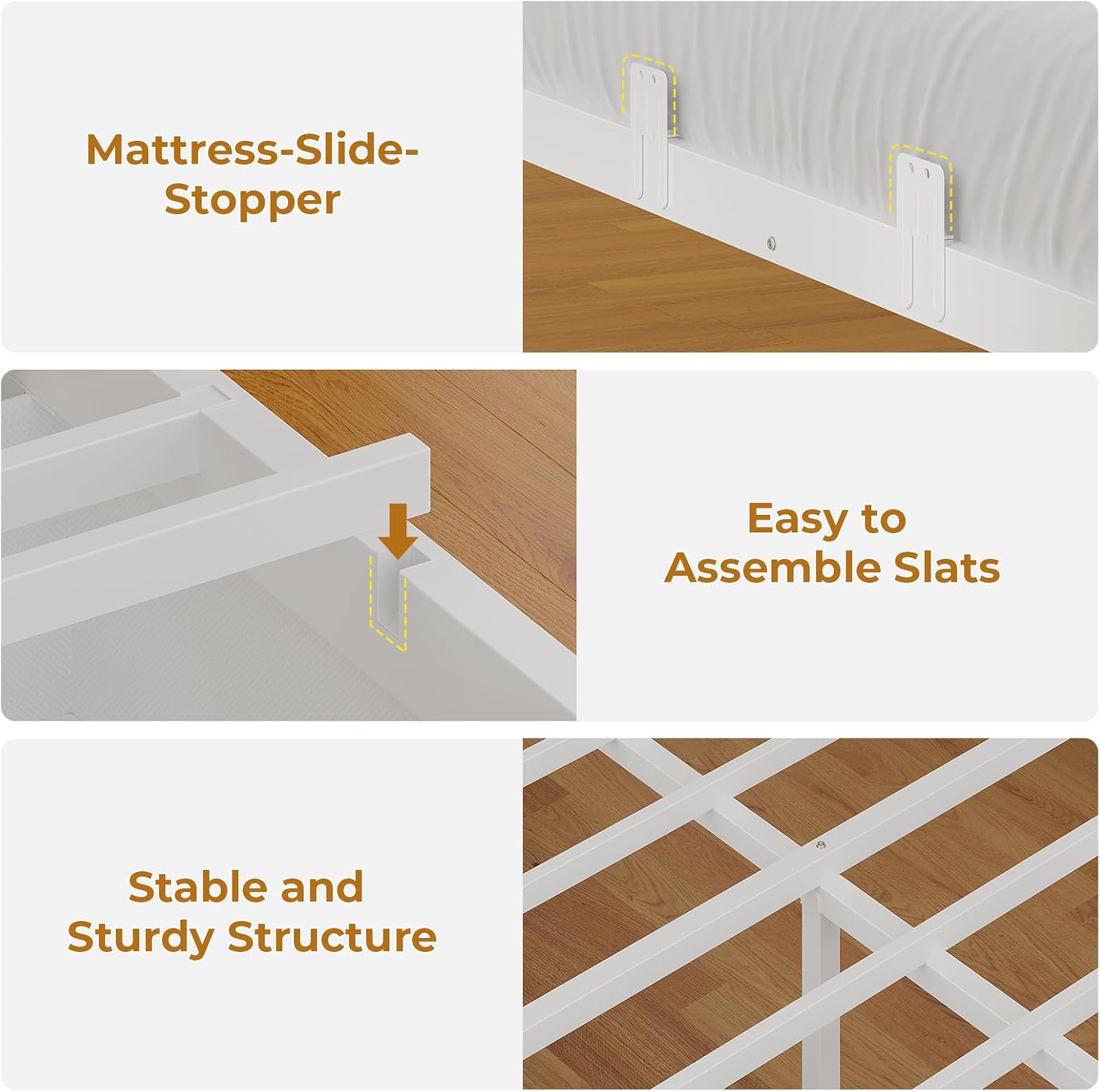

Close-up images detailing mattress-slide stoppers, easy-to-assemble slats with U-shaped grooves, and the stable metal structure of the bed frame.
Figure 4.2: Details of mattress stoppers, slat assembly, and frame structure.

5. Operating Instructions

5.1 LED Lights

The integrated LED lights on the headboard and side rails can be controlled via a remote control or a dedicated mobile application. Refer to the LED light kit's specific instructions for pairing and usage.

  • Over 60,000 RGB colors are available for customization.
  • Features include dynamic modes, music synchronization mode, and timing functions.
  • Brightness can be adjusted to serve as a night light or reading light.
A corner bed frame with LED lights illuminating the bookcase, showing various color options and remote/app control icons.
Figure 5.1: LED lights in operation, highlighting color and control features.

5.2 Charging Station

The headboard includes a built-in charging station for convenient access to power.

  • 1 Type-C port (5V/3A)
  • 1 USB port (5V/2A)
  • 2 Standard AC outlets (125V/12A)

Connect your electronic devices such as mobile phones, tablets, and headphones for charging.

Close-up of the built-in charging station on the headboard, showing a tablet and phone charging via USB and AC outlets.
Figure 5.2: Detail of the integrated charging station with various ports.

5.3 Storage Drawers

The bed frame includes six fabric storage drawers and offers 12.4 inches of under-bed clearance for additional storage.

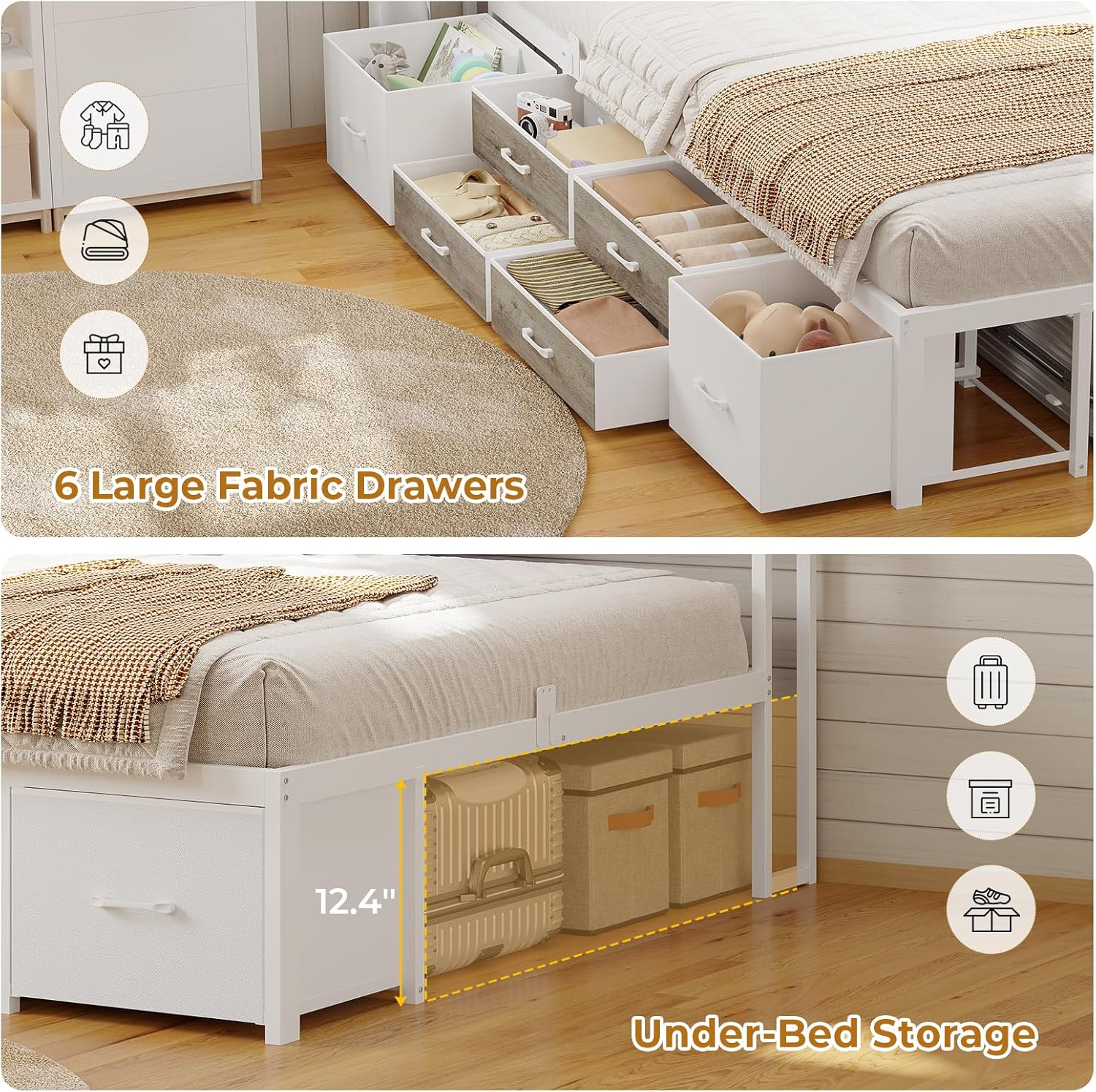

An overhead view of the bed frame showing six fabric drawers pulled out, filled with various items like clothes and toys, and additional storage space under the bed.
Figure 5.3: Overview of the six fabric storage drawers and under-bed storage.

6. Maintenance

  • Cleaning: Wipe the bed frame surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners. For fabric drawers, spot clean as needed.
  • Inspection: Periodically check all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain stability.
  • Electrical Components: Ensure the charging station and LED light connections are secure. Do not attempt to repair electrical components yourself; contact qualified personnel if issues arise.

7. Troubleshooting

If you encounter issues with your MSmask bed frame, consider the following:

  • Instability/Wobbling: Check all assembly connections. Ensure all bolts and screws are fully tightened. Verify that the bed frame is on a level surface.
  • LED Lights Not Working: Ensure the power adapter is securely plugged into a working outlet and the control unit. Check the remote control battery or app connection. Refer to the LED light kit's specific troubleshooting guide.
  • Charging Station Not Functioning: Confirm the power cord for the charging station is properly connected to a live electrical outlet. Test with different devices and cables.
  • Missing or Damaged Parts: If any parts were missing or damaged upon delivery, refer to the 'Customer Support' section for assistance.

8. Specifications

BrandMSmask
Model NameFull Size Metal Platform Bed Frame with Bookcase Storage
SizeFull
Product Dimensions81.7"L x 60.8"W x 34.8"H
Item Weight92.2 pounds
ColorWhite & Oak Grey
Special FeaturesBookcase, 6 Drawers, Charging Station, LED Light
Compatible Mattress Thickness6-10 inches (recommended)
Assembly RequiredYes

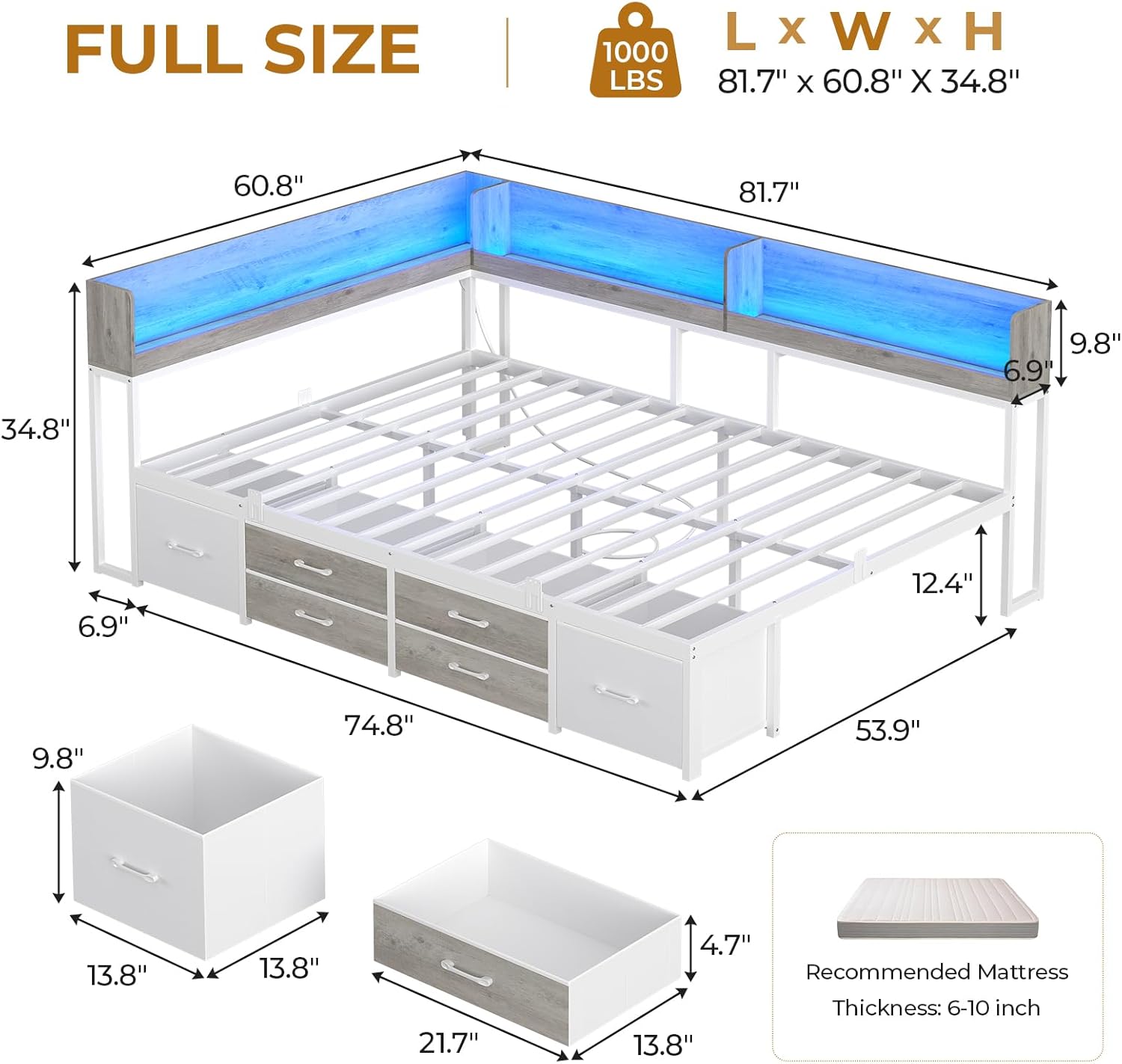

Detailed diagram showing the dimensions of the MSmask Full Size Corner Bed Frame, including length, width, height, and drawer sizes.
Figure 8.1: Product dimensions and recommended mattress thickness.

9. Customer Support

For any questions, concerns, or assistance with missing/damaged parts, please contact MSmask customer service. Our professional customer service team aims to respond within 24 hours.

Please refer to your purchase documentation for specific contact details or visit the official MSmask store page on Amazon.
