Hoover HW49AMBC7/1-S

Hoover H-WASH 500 9 Kg Front-Load Washing Machine Instruction Manual

Model: HW49AMBC7/1-S | Brand: Hoover

1. Introduction

This manual provides comprehensive instructions for the Hoover H-WASH 500 front-load washing machine, model HW49AMBC7/1-S. Designed for efficiency and convenience, this 9 kg capacity appliance features an Inverter BPM motor, Wi-Fi and Bluetooth connectivity for remote control via the hOn App, and a maximum spin speed of 1400 RPM. Its dimensions are 54 cm (Depth) x 85 cm (Height) x 60 cm (Width). Please read this manual carefully before using the appliance to ensure safe and efficient operation.

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.

Ensure the appliance is properly grounded.
Do not allow children to play on or in the appliance.
Unplug the appliance before cleaning or performing any maintenance.
Do not operate the appliance if it is damaged or malfunctioning.
Keep flammable materials away from the appliance.
Refer to a qualified technician for repairs.

3. Product Overview

The Hoover H-WASH 500 is a modern front-load washing machine equipped with advanced features for optimal laundry care.

Hoover H-WASH 500 Front View — **Figure 3.1:** Front view of the Hoover H-WASH 500 washing machine. This image displays the appliance's overall design, including the main control panel and the large front-loading door.

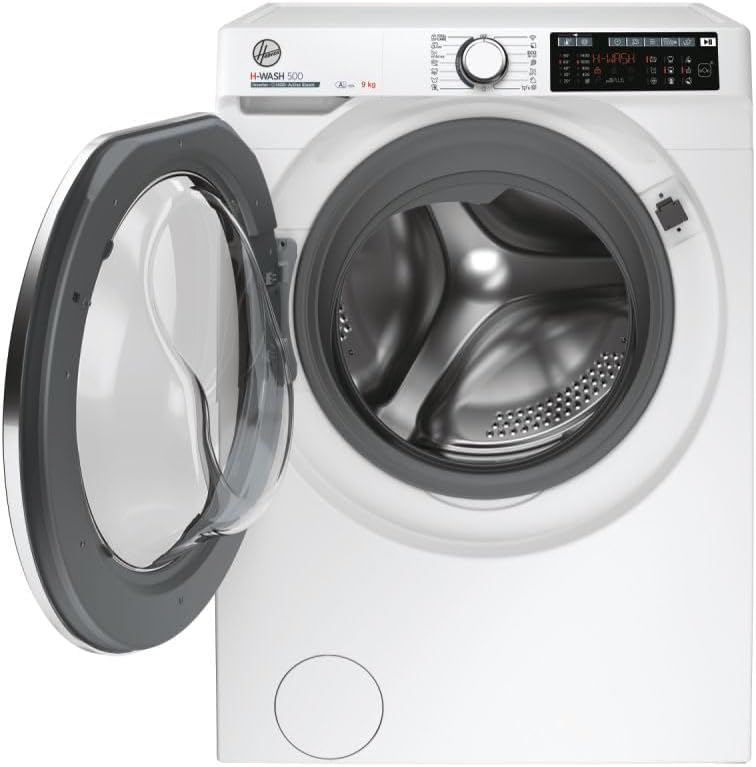

Hoover H-WASH 500 with Door Open — **Figure 3.2:** Front view with the loading door open, revealing the drum interior. This illustrates the accessibility for loading and unloading laundry.

Hoover H-WASH 500 Side View — **Figure 3.3:** Side view of the washing machine, showing its depth and overall profile. This helps in planning installation space.

Hoover H-WASH 500 Back View — **Figure 3.4:** Rear view of the washing machine, indicating connections for water inlet and drainage, and the power cable.

Hoover H-WASH 500 Control Panel — **Figure 3.5:** Close-up of the control panel, featuring the program selector dial, digital display, and various function buttons for cycle customization.

Hoover H-WASH 500 Drum Interior — **Figure 3.6:** Interior view of the washing machine drum, highlighting its design for effective and gentle washing of clothes.

Hoover H-WASH 500 Energy Efficiency Graphic — **Figure 3.7:** Graphic illustrating the energy efficiency of the washing machine, highlighting reduced energy and water consumption.

Key Features:

9 kg Capacity: Suitable for medium to large households.
Inverter BPM Motor: Ensures quiet operation, durability, and energy efficiency.
Wi-Fi + BLE Connectivity: Enables remote control and access to additional features via the hOn App.
1400 RPM Spin Speed: Efficient water extraction for faster drying.
16 Washing Programs: A variety of cycles for different fabric types and soil levels.
Steam Treatment: Helps to relax fabric fibers, making ironing easier and refreshing clothes.
Energy Class A-15%: Indicates high energy efficiency, consuming less electricity and water.

4. Installation

Proper installation is crucial for the performance and longevity of your washing machine. Ensure the appliance is installed on a stable, level surface.

4.1 Unpacking

Remove all packaging materials, including the polystyrene base and any protective films.
Remove the transit bolts located at the rear of the machine. Keep these bolts for future transport.

4.2 Positioning

Place the washing machine on a firm, flat floor.
Adjust the feet to ensure the appliance is perfectly level.
Ensure there is adequate space around the machine for ventilation and access.

4.3 Water and Electrical Connections

Connect the water inlet hose to a cold water tap with a 3/4" thread.
Position the drain hose into a standpipe or secure it to a sink. Ensure the hose is not kinked.
Plug the power cord into a grounded electrical outlet. Do not use extension cords or adapters.

5. Operating Instructions

Operating your Hoover H-WASH 500 is intuitive, with both manual controls and smart app functionality.

5.1 Basic Operation

Load Laundry: Open the door and place laundry into the drum. Do not overload.
Add Detergent: Pour detergent and fabric softener into the appropriate compartments of the dispenser drawer.
Select Program: Turn the program selector dial to choose one of the 16 available washing programs.
Adjust Settings: Use the buttons on the control panel to modify temperature, spin speed, or add extra functions like steam treatment.
Start Cycle: Press the Start/Pause button to begin the wash cycle.

5.2 hOn App Connectivity

The hOn App allows you to control your washing machine remotely and access additional features.

hOn App Interface — **Figure 5.1:** Screenshot of the hOn App interface, demonstrating remote control and program selection capabilities.

Download the hOn App from your smartphone's app store.
Follow the in-app instructions to pair your washing machine via Wi-Fi or Bluetooth.
Access features such as:
- Remote Start/Stop: Control your wash cycle from anywhere.
- Program Selection: Choose from an extended range of programs.
- Auto Care: Automatically adjusts load, time, and water based on laundry type.
- Power Care: Pre-mixes water and detergent for enhanced cleaning.
- Active Balance: Reduces vibrations and wash times.
- Maintenance Tips: Receive alerts and guidance for appliance care.

5.3 Steam Treatment

Steam Treatment Feature — **Figure 5.2:** Visual representation of the steam treatment process inside the drum, showing steam gently relaxing fabric fibers.

The steam treatment function can be selected with certain programs to help reduce wrinkles and refresh clothes. This feature is particularly useful for delicate items or for reducing ironing time.

6. Maintenance

Regular maintenance ensures the optimal performance and extends the lifespan of your washing machine.

6.1 Cleaning the Detergent Drawer

Pull out the detergent drawer completely.
Rinse it under running water to remove any detergent residue.
Clean the housing of the drawer with a brush.

6.2 Cleaning the Filter

Locate the filter at the bottom front of the machine.
Place a shallow container underneath to catch any water.
Unscrew the filter slowly to drain water, then remove and clean it.

6.3 Cleaning the Drum

Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) periodically.
Leave the door slightly ajar after each wash to allow the drum to air dry and prevent odors.

7. Troubleshooting

Before contacting customer service, refer to the following table for common issues and their solutions.

Problem	Possible Cause	Solution
Machine does not start	Power cord unplugged, door not closed properly, program not selected.	Check power connection, ensure door is latched, select a program and press start.
Water not filling	Water tap closed, inlet hose kinked, water pressure too low.	Open water tap, straighten hose, check household water pressure.
Machine is noisy/vibrating	Transit bolts not removed, machine not level, uneven load.	Remove transit bolts, adjust leveling feet, redistribute laundry in the drum.
Water not draining	Drain hose kinked, filter clogged, drain pump fault.	Straighten drain hose, clean the filter, contact service if pump fault persists.

8. Specifications

Detailed technical specifications for the Hoover H-WASH 500 (Model: HW49AMBC7/1-S).

Hoover H-WASH 500 Energy Label — **Figure 8.1:** The official EU Energy Label for the Hoover H-WASH 500, indicating its energy efficiency class and consumption data.

Hoover H-WASH 500 Product Information Sheet — **Figure 8.2:** Detailed product information sheet, providing comprehensive technical data and compliance details.

Parameter	Value
Brand	Hoover
Model Identifier	HW49AMBC7/1-S
Manufacturer Model Number	31019976
Type	Front-Load, Free-standing
Rated Capacity	9.0 kg
Energy Efficiency Class	A (A-15% more efficient than minimum standard)
Maximum Spin Speed	1400 RPM
Airborne Acoustical Noise Emissions (Spinning)	76 dB (Class B)
Water Consumption per Cycle (Eco 40-60)	46 Liters
Energy Consumption per Cycle (Eco 40-60)	0.420 kWh
Program Duration (Eco 40-60, Rated Capacity)	3:48 hours
Dimensions (Depth x Width x Height)	54 x 60 x 85 cm
Weight	65 kg
Connectivity	Wi-Fi + BLE (Bluetooth Low Energy)
Color	White

9. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase. In case of technical issues or for further assistance, please contact Hoover customer support. Keep your purchase receipt and model number (HW49AMBC7/1-S) readily available when contacting support.
