Hisense H23MOMS5HG 23L Microwave Oven with Grill and LED Touch Display User Manual

1. Introduction

Thank you for choosing the Hisense H23MOMS5HG Microwave Oven. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before use and keep it for future reference.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy.

• Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
• The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
• Do not heat liquids or other foods in sealed containers since they are liable to explode.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

3. Product Overview and Features

The Hisense H23MOMS5HG is a versatile 23-liter microwave oven designed for efficient and convenient cooking. It combines microwave and grill functions, offering a range of cooking possibilities.

Key Features:

• High Power: 800W microwave power and 1000W grill power for fast and effective cooking.
• Quick Defrost: Modulates microwave power to uniformly defrost frozen foods.
• Automatic Programs: 8 pre-set programs for common dishes, simplifying cooking.
• Ceramic Interior Coating: Durable, scratch-resistant, easy-to-clean, non-sticky, and antibacterial interior.
• Premium Glass Door: Tempered glass door, approximately 4 times more resistant than ordinary glass, heat-resistant, scratch-resistant, and adds a premium aesthetic.
• Smart Cook: Quick start function for convenient cooking.
• 10 Power Levels: Adjustable power settings for precise cooking control.

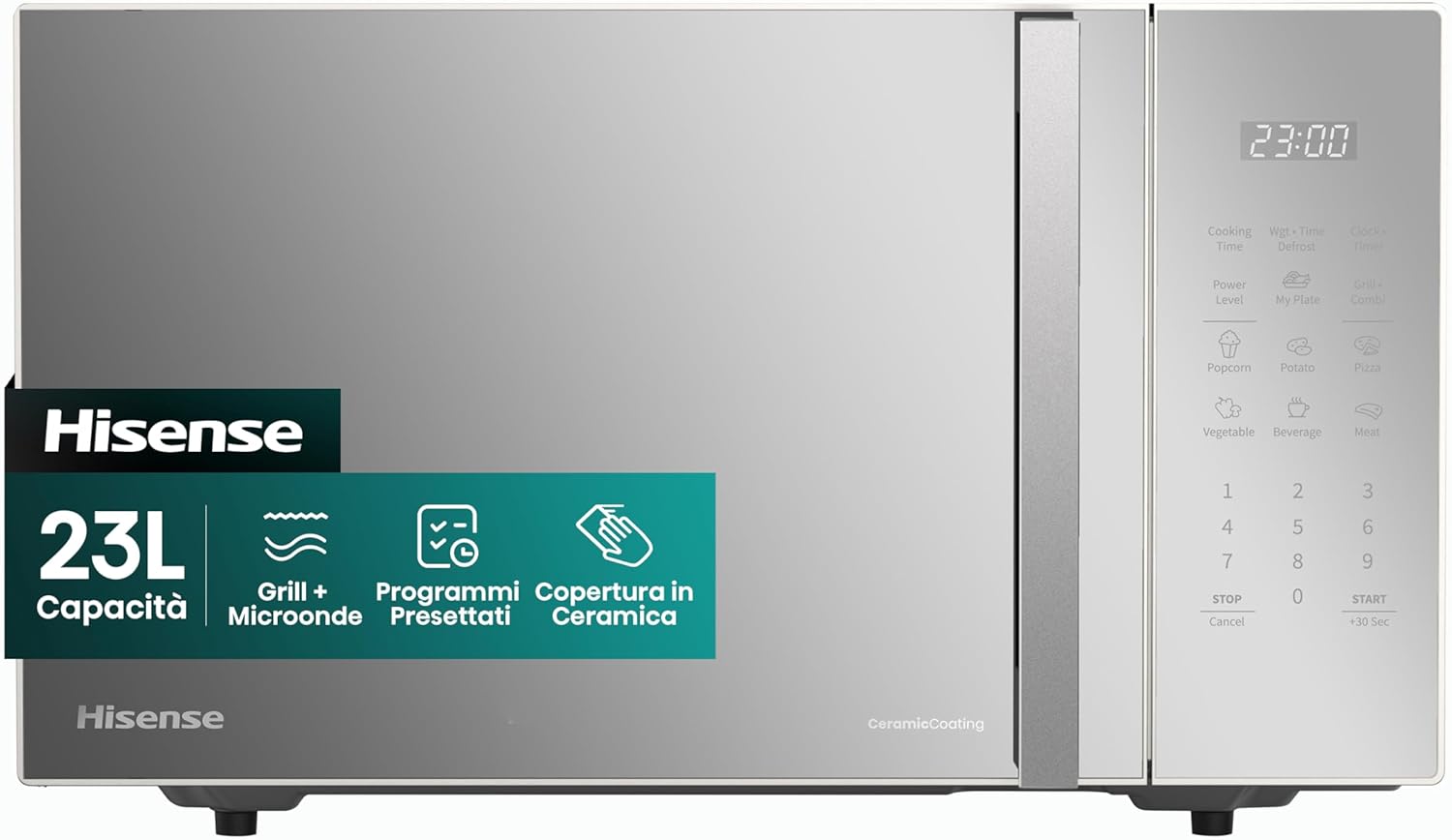

Figure 3.1: Front view of the Hisense H23MOMS5HG Microwave Oven.

Figure 3.2: Visual representation of key features including 23L capacity, Grill + Microwave, Preset Programs, Smart Cook, Premium Glass, and Ceramic Coating.

4. Setup and Installation

4.1 Unpacking

Carefully remove the microwave oven and all materials from the carton. Check the oven for any damage, such as dents or a broken door. Do not install if the oven is damaged. Retain the carton and packing materials for future use or dispose of them properly.

4.2 Placement

• Place the oven on a flat, stable surface that can support its weight and the heaviest food likely to be cooked in the oven.
• Ensure adequate ventilation. Leave a minimum of 20 cm (7.9 inches) of space above the oven, 10 cm (3.9 inches) at the rear, and 5 cm (2 inches) on each side for proper airflow. Do not block any ventilation openings.
• Keep the oven away from heat and steam sources, such as gas or electric ranges, sinks, or other heat-generating appliances.
• Do not place the oven in a cabinet unless specifically designed for built-in installation. This model is designed for freestanding use.

4.3 Power Connection

Plug the oven into a properly installed and grounded wall outlet. Ensure the voltage and frequency match the specifications on the rating label of the appliance.

Figure 4.1: Product dimensions (410mm depth, 485mm width, 293mm height) for proper placement.

5. Operating Instructions

5.1 Control Panel Overview

The Hisense H23MOMS5HG features an intuitive LED touch display and control panel. Familiarize yourself with the buttons and their functions:

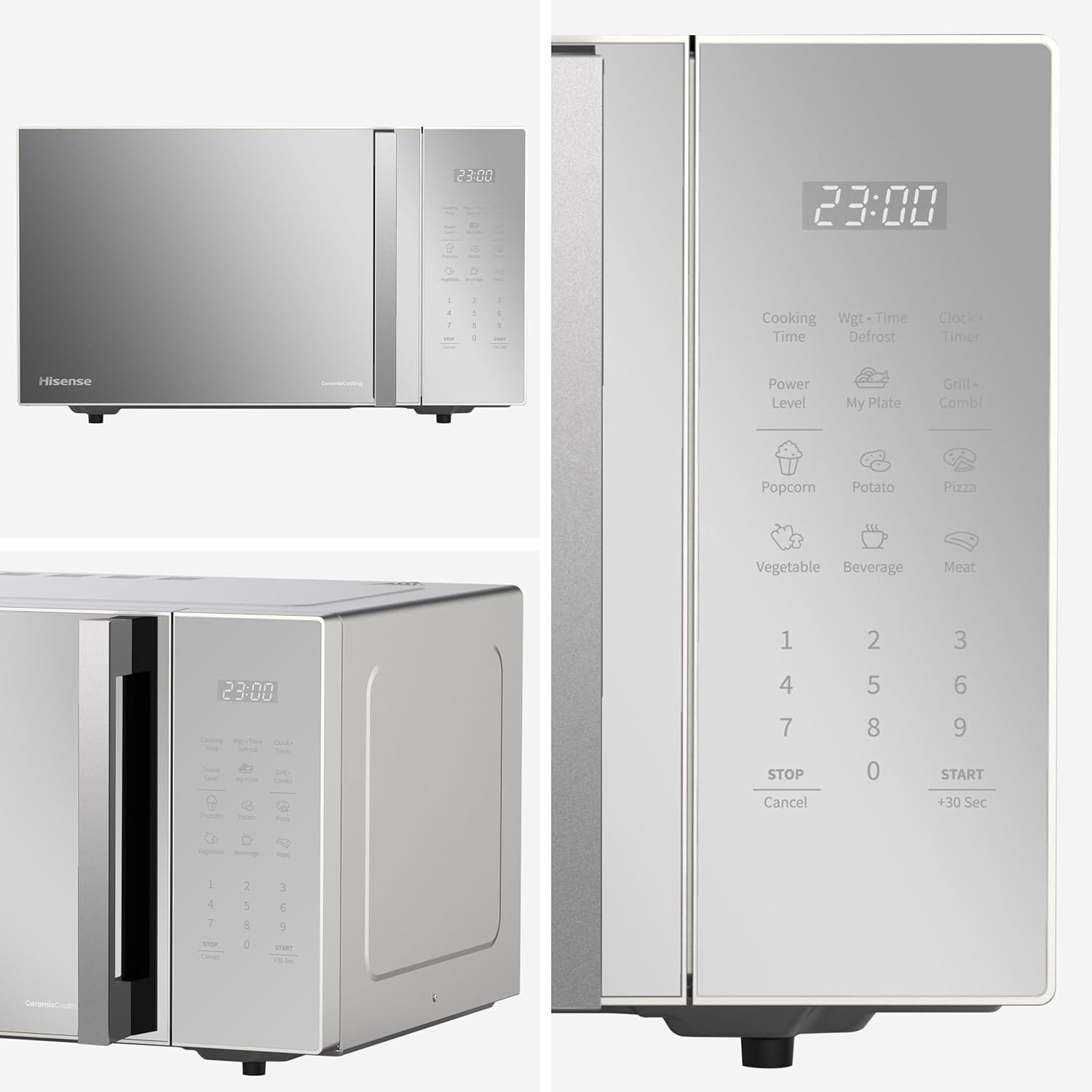

Figure 5.1: Detailed view of the LED touch control panel, showing various function buttons and numerical keypad.

• Cooking Time: Adjust cooking duration.
• Power Level: Select microwave power intensity.
• Wgt/Time Defrost: Choose defrost by weight or time.
• Clock/Timer: Set the clock or use as a kitchen timer.
• Grill/Combi: Select grill or combination cooking modes.
• My Plate: Access personalized cooking settings (if available).
• Preset Programs: Dedicated buttons for Popcorn, Potato, Pizza, Vegetable, Beverage, Meat.
• Number Pad (1-9, 0): Input cooking time or weight.
• STOP/Cancel: Stop cooking or clear settings.
• START/+30 Sec: Start cooking or add 30 seconds to cooking time.

5.2 Basic Microwave Cooking

1. Place food in a microwave-safe container on the turntable.
2. Close the door securely.
3. Press the 'Cooking Time' button, then use the number pad to enter the desired cooking time.
4. Press the 'Power Level' button repeatedly to select the desired power level (e.g., P100 for 100% power).
5. Press 'START/+30 Sec' to begin cooking.

5.3 Using Preset Programs

The oven has 8 pre-set programs for common food items. Simply select the food type and the microwave will automatically set the optimal cooking time and power.

1. Place the food in the oven.
2. Press the corresponding preset button (e.g., 'Popcorn', 'Potato', 'Pizza', 'Vegetable', 'Beverage', 'Meat').
3. For some programs, you may need to select the weight or quantity using the number pad.
4. Press 'START/+30 Sec' to begin.

Figure 5.2: Display showing various preset cooking programs like Popcorn, Potato, Pizza, Vegetable, Beverage, and Meat.

5.4 Grill and Combination Cooking

The grill function is ideal for browning and crisping food, while combination cooking uses both microwave and grill for faster, more even results.

1. Place food on the grill rack (if provided) or a microwave-safe, oven-safe dish.
2. Press the 'Grill/Combi' button repeatedly to cycle through Grill (G-1), Combi 1 (C-1), Combi 2 (C-2) modes. Refer to your full manual for specific combination settings.
3. Enter the desired cooking time using the number pad.
4. Press 'START/+30 Sec' to begin.

Figure 5.3: Example of combined grill and microwave cooking (pizza) and grill-only cooking (chicken) for crispy results.

5.5 Defrost Function

The Quick Defrost function allows for uniform thawing of frozen foods.

1. Place frozen food in a microwave-safe container.
2. Press the 'Wgt/Time Defrost' button.
3. Select defrost by weight or time using the number pad.
4. Press 'START/+30 Sec' to begin.

5.6 Power Levels

The microwave offers 10 power levels to suit various cooking needs, from softening ice cream to cooking vegetables.

Figure 5.4: Chart illustrating 10 power levels and their recommended uses, from 0-80W for softening ice cream to 640-800W for cooking vegetables.

5.7 Smart Cook / Quick Start

For quick heating, use the 'START/+30 Sec' button. Each press adds 30 seconds of cooking time at 100% power.

Figure 5.5: Close-up of the 'START/+30 Sec' button, indicating the quick start function.

6. Maintenance and Cleaning

Regular cleaning helps maintain the performance and longevity of your microwave oven.

6.1 Cleaning the Interior (Ceramic Coating)

The ceramic-coated interior is designed for easy cleaning and resistance to scratches and bacteria.

• After each use, wipe the interior with a damp cloth and mild detergent.
• For stubborn stains, place a bowl of water with lemon slices inside and microwave on high for 2-3 minutes. The steam will loosen food particles, making them easier to wipe away.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals that could damage the ceramic coating.

Figure 6.1: Interior view of the microwave oven, highlighting the ceramic coating and glass turntable.

6.2 Cleaning the Turntable and Roller Ring

• The glass turntable and roller ring can be removed for cleaning.
• Wash them in warm, soapy water or in the dishwasher.
• Ensure they are completely dry before placing them back in the oven.

6.3 Cleaning the Exterior

• Wipe the exterior surfaces with a soft, damp cloth.
• Clean the control panel gently with a soft, dry cloth. Avoid excessive moisture.

7. Troubleshooting

If you encounter issues with your microwave oven, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

8. Technical Specifications

9. What's in the Box

Upon unpacking, ensure all the following components are present:

• Hisense H23MOMS5HG Microwave Oven
• Instruction Manual (this document)
• Glass Turntable
• Roller Ring
• Grill Rack (if applicable for grill models)

10. Warranty and Support

For warranty information and return policies, please refer to the terms provided at the point of purchase. Generally, if you wish to return a product within 30 days of receipt because you have changed your mind, consult the retailer's help page. If you have received a defective or damaged product, consult the retailer's help page on returns and refunds.

For specific support or service inquiries, please contact Hisense customer service or your local authorized service center. Contact details can typically be found on the Hisense official website or in the product packaging.
