1. Introduction
Thank you for choosing the SONGMICS HOME King Bed Frame. This platform bed frame combines a mid-century modern aesthetic with practical features, including a sturdy solid wood construction, integrated LED lighting, and a convenient charging station in the headboard. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and optimal use of your new bed frame.

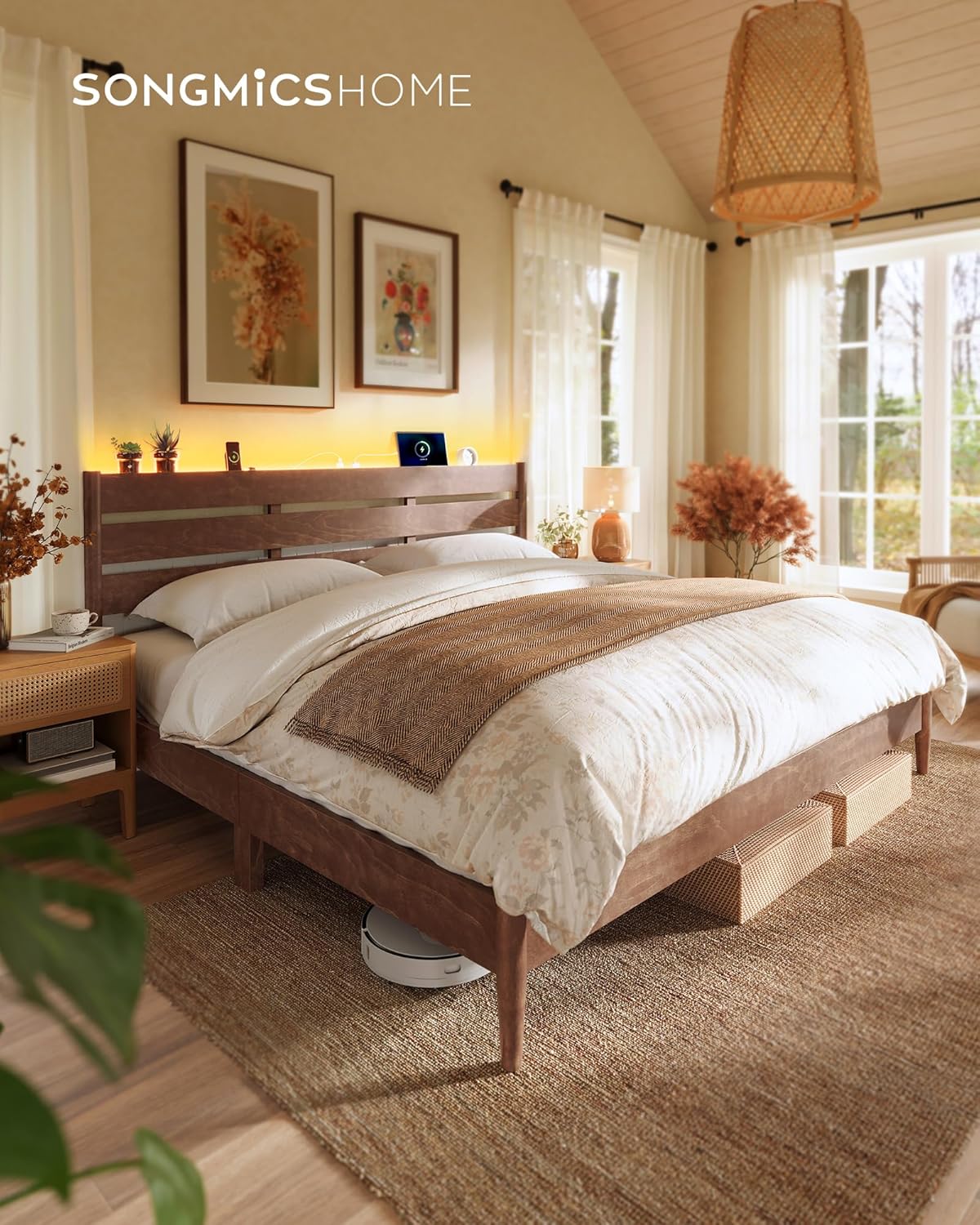

The SONGMICS HOME King Bed Frame, featuring a headboard with integrated LED lighting and a charging station, designed in a mid-century modern style.
2. Safety Information
- Weight Limit: This bed frame is designed to support a maximum static weight of 1100 pounds (500 kg). Do not exceed this weight limit to prevent damage or injury.
- Assembly: Assembly requires two adults. Keep children and pets away from the assembly area.
- Placement: Always place the bed frame on a flat, level, and stable surface.
- Fasteners: Ensure all bolts, screws, and connectors are securely tightened before use and periodically check them for tightness.
- Electrical Safety: The integrated charging station and LED lights are designed for indoor use only. Do not expose to moisture. Ensure the power cord is not pinched or damaged.
- Ventilation: If a new product odor is present, ensure adequate ventilation by opening windows for at least 24 hours after assembly.
3. Setup and Assembly
The SONGMICS HOME King Bed Frame is designed for straightforward assembly. Please follow the detailed instructions provided in the included assembly kit. It is recommended to have two people for assembly to ensure ease and safety.
3.1 Before You Begin
- Unpack all components and lay them out on a clean, soft surface (e.g., a carpet or blanket) to prevent scratches.
- Verify that all parts and hardware listed in the assembly instructions are present.
- Familiarize yourself with the assembly steps by reviewing the instruction manual.
- While an assembly kit is included, having an additional screwdriver and L-tool may expedite the process.
3.2 Assembly Steps Overview
Refer to the step-by-step diagrams and instructions in your assembly kit for precise guidance. Generally, assembly involves:
- Attaching the side rails to the headboard and footboard.
- Installing the central support beam and support legs.
- Placing and securing the wooden slats onto the frame.
- Connecting the power supply for the LED lights and charging station.
A visual guide demonstrating the general steps for assembling the bed frame, showing how components fit together.
Illustration highlighting the robust solid wood legs and the 12 wooden slats that provide mattress support, along with 14 total wooden legs for stability.
4. Operating Instructions
4.1 LED Lights
The headboard features integrated LED lights to enhance your bedroom ambiance. The lights can be controlled via the included remote control or a switch on the headboard.
- Colors: Choose from 25 preset colors.
- Brightness: Adjust between 6 brightness levels.
- Modes: Select from 3 flashing modes.
- Speed: Adjust the flashing rate with 10 different speeds.
The adjustable LED lighting system on the headboard, controlled by a remote, offering 25 colors, 3 flashing modes, 10 flashing speeds, and 6 brightness levels.
4.2 Charging Station
The headboard includes a built-in power strip for convenient charging of your electronic devices.
- Outlets: 2 standard AC outlets (125V/12A).
- USB Ports: 1 USB-A port (5V/2A) and 1 USB-C port (5V/2A).
- Ensure the bed frame is properly connected to a wall outlet for the charging station to function.
The integrated charging station on the headboard, featuring two AC outlets, one USB-A port, and one USB-C port for convenient device charging.
5. Maintenance
Proper care will extend the life and appearance of your bed frame.
- Cleaning: Wipe the wood surfaces with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, which can damage the finish.
- Fasteners: Periodically check all bolts, screws, and connections to ensure they remain tight. Re-tighten as necessary to maintain stability.
- Slat Care: Ensure the wooden slats are properly seated and evenly distributed to provide optimal mattress support and prevent noise. The EVA pads between slats are designed to minimize squeaking.
- Environmental Conditions: Avoid placing the bed frame in direct sunlight or near heat sources, as this can cause wood to dry out, crack, or fade. Maintain a stable room temperature and humidity.
6. Troubleshooting
- Bed Frame is Noisy/Squeaks:
- Check all assembly bolts and screws and tighten them securely.
- Ensure all wooden slats are correctly positioned and the EVA pads are intact.
- Bed Frame Feels Unstable:
- Verify that all legs are firmly on the ground and the bed frame is on a level surface.
- Re-tighten all connection points. For hardwood floors, consider using non-skid pads under the legs.
- Mattress Slides on the Frame:
- The bed frame features an inset design to prevent mattress sliding. Ensure your mattress is correctly placed within this inset.
The bed frame features an inset design, ensuring the mattress remains securely in place and prevents sliding.
- LED Lights Not Working:
- Check if the power cord for the lights is securely plugged into a working wall outlet.
- Ensure the connection between the LED strip and the power adapter is secure.
- Replace the remote control battery if necessary.
- Charging Station Not Functioning:
- Verify that the bed frame's main power cord is plugged into a functional wall outlet.
- Test the outlets and USB ports with different devices to isolate the issue.
7. Specifications
| Model Number | URMB414K02 |
| Size | King |
| Product Dimensions (L x W x H) | 85.4" x 79.1" x 40" (216.9 cm x 200.9 cm x 101.5 cm) |
| Weight Limit | 1100 Pounds (500 kg) |
| Item Weight | 97 Pounds |
| Color | Coffee Brown |
| Material | Pine Wood, MDF (Medium Density Fiberboard), Plywood |
| Headboard Material | Wood |
| Ground to Item Distance | 6.7 Inches (17 cm) |
| Special Features | Easy Assembly, No Box Spring Needed, Squeak Resistant, Sturdy and Noise-Free, Wood frame, LED Lights, Charging Station |
| Included Components | 1 x King Bed Frame, 1 x Assembly Kit, 1 x Instructions |
Detailed dimensions of the King bed frame, including length, width, and height, along with the maximum static weight capacity of 1100 lbs (500 kg).
8. Warranty and Support
SONGMICS HOME is committed to providing quality products and customer satisfaction.
- Returns: This product is eligible for 30-day easy returns. Please refer to your purchase platform's return policy for specific details.
- Customer Support: For any questions, concerns, or assistance with your product, please contact SONGMICS HOME customer support. Contact information can typically be found on the retailer's website or within your purchase documentation.
