HumsiENK 48V 100Ah LiFePO4 Lithium Battery Instruction Manual (Model 51.2V100AH)

1. Product Overview

The HumsiENK 48V 100Ah LiFePO4 Lithium Battery is a high-capacity energy storage solution designed for off-grid solar systems, backup power, and home energy storage. Featuring advanced BYD cells and a robust 100A Battery Management System (BMS), this 3U server rack battery offers reliable performance and extensive safety features.

Image: The HumsiENK 48V 100Ah LiFePO4 Lithium Battery, showcasing its compact 3U server rack design.

2. What's in the Box

Upon unboxing your HumsiENK battery, please verify that all components listed below are present:

• User manual x1
• 48V 100Ah Battery x1
• 4 AWG Cables
• Communication network cables

Image: A visual representation of the items included in the HumsiENK battery package, such as the battery unit, cables, and user manual.

3. Key Features

• BYD Cells & Reliability: Equipped with premium BYD LiFePO4 cells, this battery offers superior performance and longevity. A fire-retardant full-metal casing and a high-performance 100A BMS with 200A (2s) peak current provide dual safety guarantees: Power Hard Cutoff & Restart, and an air switch for automatic overload cut-off.
• 3A Active Balancing: A maximum balancing current of 3A, combined with multi-channel fast balancing, high efficiency, and low power consumption, maximizes battery life and ensures consistent cell performance.
• Powerful Capacity & Output: With an impressive capacity of 5120Wh and output power of 5120W, it supports high-power appliances for extended periods. It supports automatic addressing with a maximum of 16 parallel connections (81.92kWh) and automatic host-slave identification.
• Smart Usage: A mobile app allows for quick connection and remote monitoring of single or multiple battery statuses (voltage, current, capacity). It supports CAN/RS232/RS485 communication protocols for seamless compatibility with all-in-one inverter chargers, and features a built-in indicator for convenient local status checks.
• Space-Saving 3U Rack Design & Massive Scalability: The compact, lightweight 3U server rack design (17.32" x 19.69" x 5.24", weight: 96.45 lbs) offers easy installation and facilitates the use of multiple batteries. It supports massive scalability through vertical stacking, automatic addressing for a maximum of 16 parallel connections, and automatic host-slave identification.

Visualizing Active Balancing

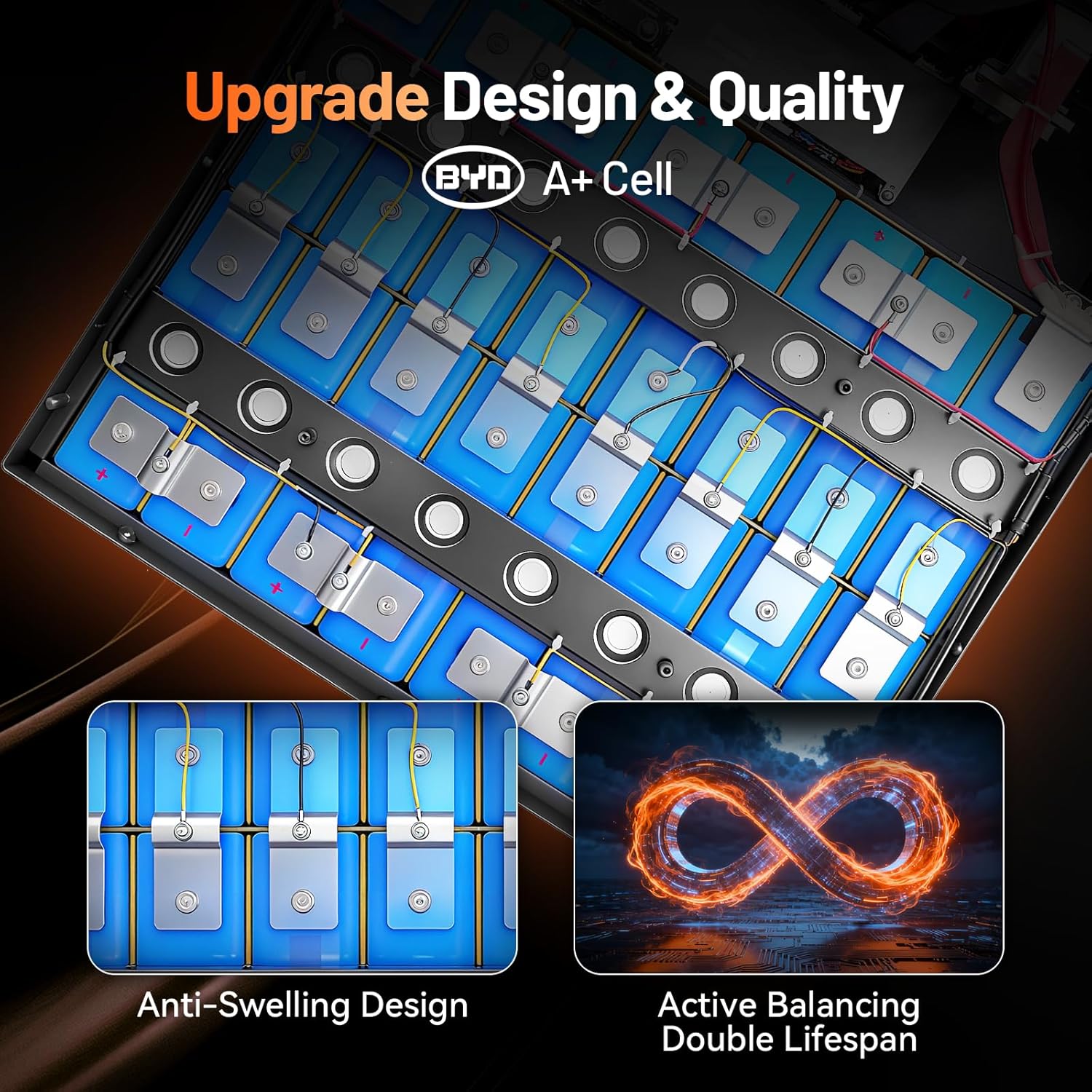

Image: A visual diagram explaining the 3A active balancing process, highlighting higher efficiency, longer lifespan, and smaller thermal impact.

Smart Bluetooth Monitoring

Image: A smartphone screen showing the HumsiENK Bluetooth app, monitoring battery voltage, current, capacity, and temperature in real-time.

Product Video: HumsiENK 48V Server Rack Battery with Active Balancing

Video: A detailed introduction to the HumsiENK 48V Server Rack Battery, highlighting its active balancing features and overall design.

4. Setup and Installation

The HumsiENK battery is designed for easy installation in a 3U server rack. It supports parallel connections for increased capacity.

Physical Dimensions and Components

Image: The HumsiENK battery with its dimensions clearly marked: 17.32 inches (width) x 19.69 inches (depth) x 5.24 inches (height). The weight is 96.45 lbs.

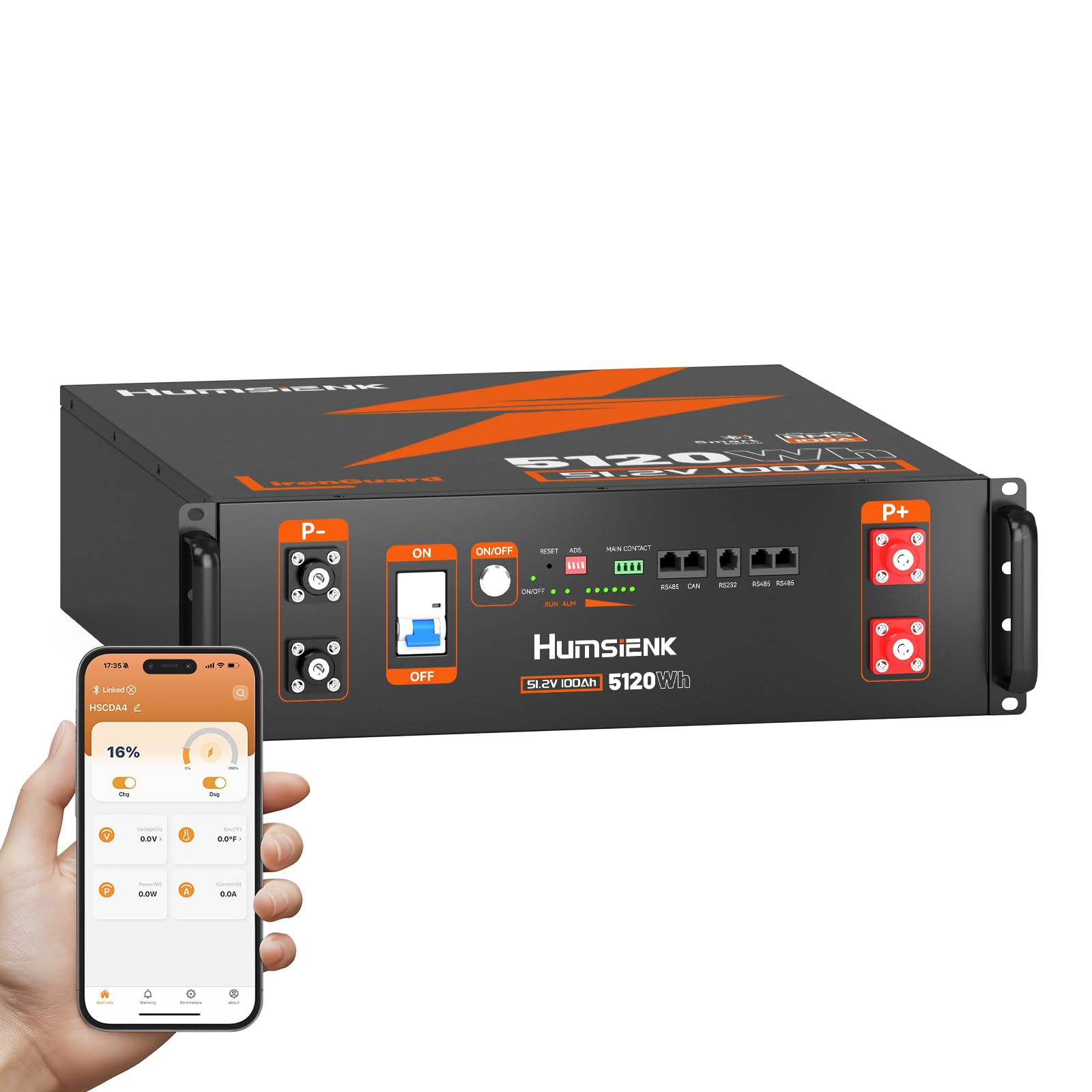

Image: A close-up view of the battery's front panel, showing handles, negative electrode, air switches, power switch, DIP switches, LED indicators, communication terminals (CAN/RS485/RS232), positive electrode, and mounting holes.

Parallel Connection Example

Video: A demonstration of how to connect multiple 48V 100Ah server rack batteries in parallel with a 5KW inverter, showcasing the wiring and setup process.

5. Operating Instructions

The battery features a user-friendly interface for monitoring and control.

Bluetooth App Monitoring

Utilize the dedicated mobile application to monitor your battery's status in real-time. The app provides essential data such as voltage, current, and remaining capacity, allowing for efficient management of your energy system.

Image: A smartphone screen showing the HumsiENK Bluetooth app, monitoring battery voltage, current, capacity, and temperature in real-time.

Communication Protocols

The battery supports various communication protocols for integration with different inverter systems:

• CAN: For seamless integration with compatible inverter chargers.
• RS232: For PC communication and detailed data access.
• RS485: For multi-battery communication in parallel setups.

Refer to your inverter's manual and the battery's DIP switch settings for proper configuration of communication protocols.

6. Safety and Protection

The HumsiENK battery incorporates multiple layers of protection to ensure safe and reliable operation.

Advanced BMS Protection

The integrated 100A BMS actively monitors and protects the battery against:

• Overcharging
• Overdischarging
• Overload
• Short circuits
• High temperature
• Low temperature

Image: An internal view of the HumsiENK battery, highlighting the BYD cells and the robust Battery Management System (BMS) for comprehensive protection.

Product Video: Battery Safety Features

Video: A short video demonstrating the safety features of the battery, including its response to overload conditions and integrated circuit breaker.

7. Maintenance

To ensure the longevity and optimal performance of your HumsiENK LiFePO4 battery, follow these general maintenance guidelines:

• Temperature Management: Operate and store the battery within the recommended temperature ranges (Charge: 0°C to 55°C; Discharge: -20°C to 60°C; Storage: -10°C to 35°C). Avoid extreme temperatures.
• Regular Monitoring: Periodically check the battery status via the Bluetooth app to ensure all parameters are within normal operating limits.
• Clean Connections: Ensure all cable connections are clean, tight, and free from corrosion to prevent resistance and overheating.
• Avoid Deep Discharge: While the BMS protects against over-discharge, prolonged operation at very low State of Charge (SOC) can impact overall lifespan.

8. Troubleshooting

The integrated BMS provides comprehensive protection. If the battery is not functioning as expected, check the following:

• LED Indicators: Observe the LED indicators on the front panel for any fault or alarm signals. Refer to the user manual for specific LED patterns and their meanings.
• BMS App: Use the mobile app to check detailed battery status, including individual cell voltages and temperatures, to identify any specific issues.
• Circuit Breaker: Ensure the built-in air switch (circuit breaker) is in the 'ON' position. If it has tripped due to an overload, switch it off and then back on after resolving the cause of the overload.
• Connections: Verify all power and communication cables are securely connected.

For persistent issues, refer to the detailed troubleshooting section in the full user manual or contact customer support.

9. Specifications

10. Warranty and Support

The HumsiENK 48V 100Ah LiFePO4 Lithium Battery is backed by a 10-year limited warranty, ensuring long-term peace of mind.

For any questions, technical assistance, or warranty claims, please contact our dedicated 24/7 customer support. Refer to the user manual for contact details and further warranty information.
