AUTO-VOX Solar Backup Camera Kit User Manual

Introduction

The AUTO-VOX Solar Backup Camera Kit is designed to enhance visibility and simplify maneuvering for large vehicles such as RVs, trailers, and trucks. This comprehensive system features a 5-inch monitor and two wireless Solar 3A Plus cameras, providing a dual-view display for simultaneous front and rear monitoring. Its innovative USB power design and flexible mounting options ensure ease of installation and operation without occupying essential vehicle ports.

Package Contents

Before beginning installation, please verify that all components are present in your package:

One (1) 5-inch Monitor
Two (2) Solar 3A Plus Wireless Cameras
One (1) Suction Cup Bracket
One (1) USB Boost Cable
One (1) Monitor Mount
One (1) Video Cable
One (1) Car Charger
One (1) User Manual (this document)

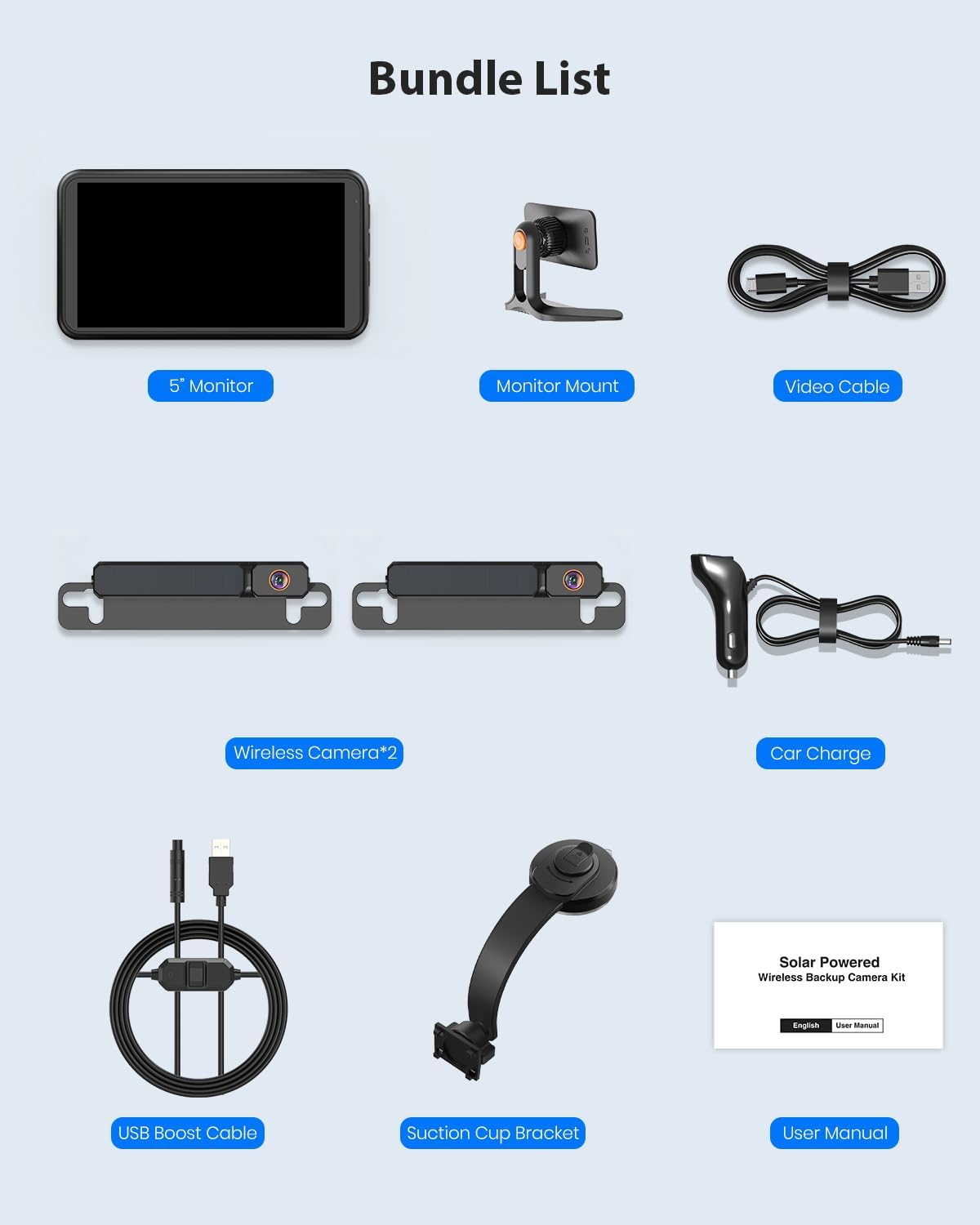

Diagram showing all components included in the AUTO-VOX Solar Backup Camera Kit: 5-inch monitor, two wireless cameras, suction cup bracket, USB boost cable, monitor mount, video cable, car charger, and user manual.

Figure 1: Complete Bundle List of the AUTO-VOX Solar Backup Camera Kit.

Setup and Installation

Follow these steps to set up your AUTO-VOX Solar Backup Camera Kit:

1. Camera Placement

The kit includes two wireless cameras. For optimal visibility, it is recommended to mount one camera at the front of your vehicle (e.g., near the license plate) to assist with parking and avoiding obstacles, and the second camera at the rear for reversing and trailer monitoring. The cameras are solar-powered and designed for outdoor use.

Diagram illustrating the placement of two Solar 3A Plus cameras on a vehicle, showing support for various vehicle types including sedans, SUVs, pickup trucks, trucks, minivans, and trailers.

Figure 2: Recommended camera placement for front and rear vehicle monitoring.

Each camera features a 5000mAh high-capacity battery complemented by a solar panel, providing extended power life up to 150 days on a full charge, reducing the need for frequent manual recharging.

Close-up of the Solar 3A Plus camera showing its integrated solar panel and 5000mAh battery, highlighting its 150-day power life.

Figure 3: Solar 3A Plus camera with integrated solar panel and long-life battery.

2. Monitor Mounting

The 5-inch monitor comes with a flexible suction cup bracket, allowing for versatile mounting options. The low-profile arm design ensures the screen sits below your line of sight, preventing obstruction of your view while driving. It can be securely attached to your dashboard or even a side window for specific viewing angles during parking maneuvers.

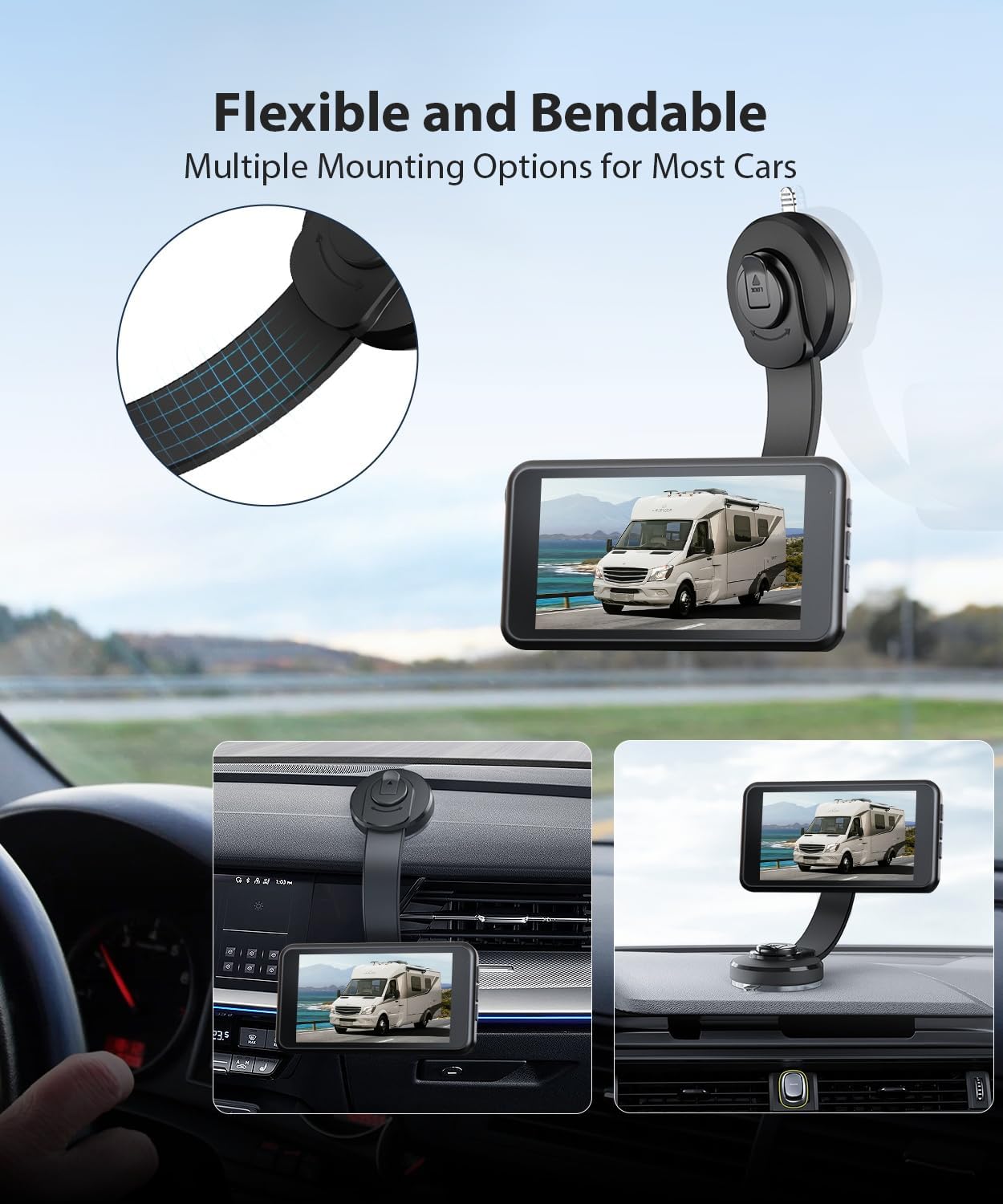

Images demonstrating the flexible and bendable suction cup mount for the monitor, showing it mounted on a dashboard and a side window, providing multiple mounting options.

Figure 4: Flexible mounting options for the 5-inch monitor.

3. Power Connection

The monitor is powered via a standard USB port using the provided USB boost cable. This design allows you to keep your vehicle's 12V cigarette lighter socket free for other devices such as phone chargers or GPS units.

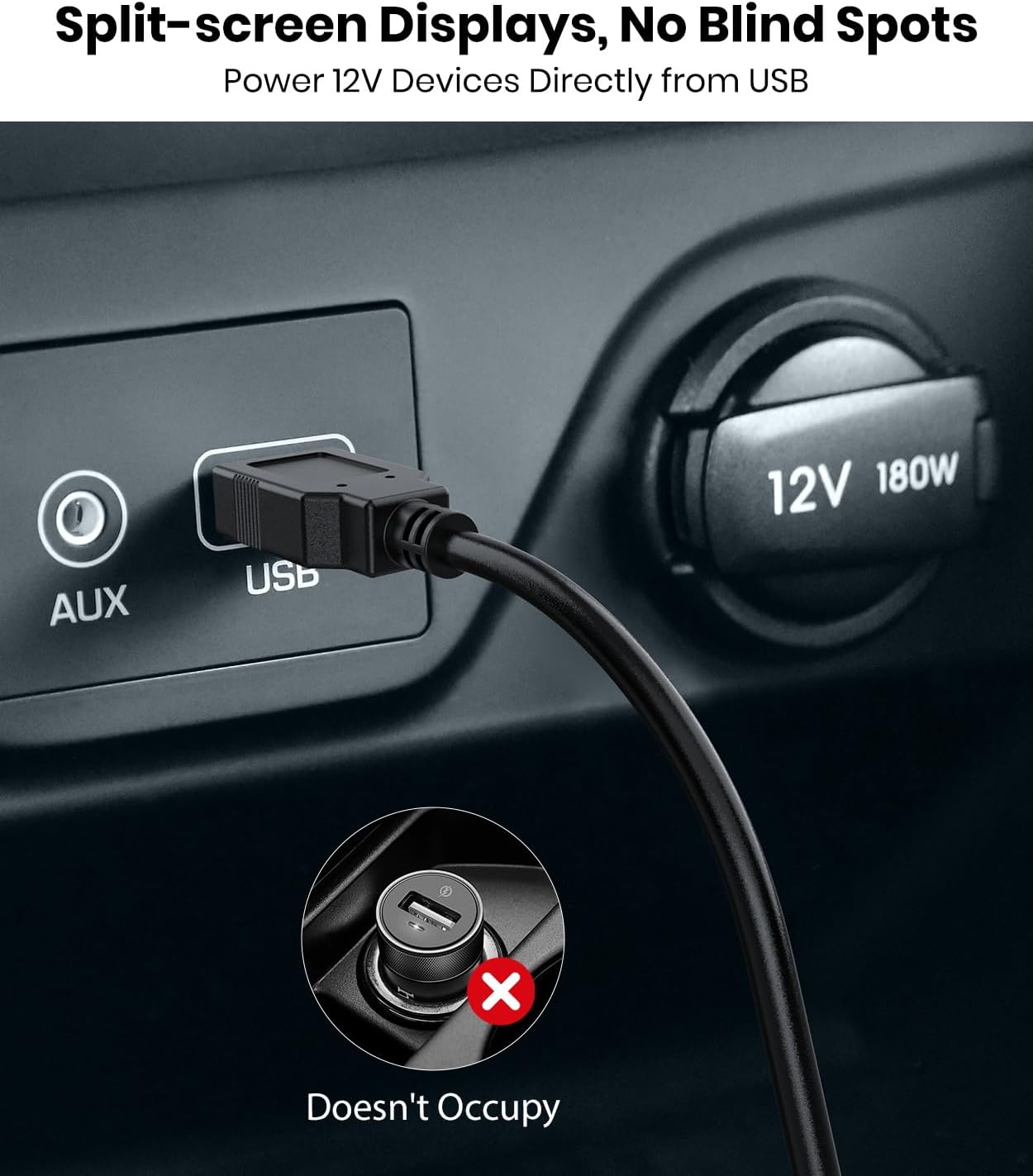

Close-up image showing the USB power cable connected to a vehicle's USB port, with a red 'X' over a 12V cigarette lighter socket, indicating it is not needed for power.

Figure 5: USB power connection for the monitor, freeing up the 12V socket.

Operating Instructions

1. Powering On and Pairing

Once the monitor is connected to a USB power source, it will automatically power on. The cameras are designed to pair wirelessly with the monitor upon activation. Ensure cameras are charged and within range for automatic connection.

2. Dual-View Display

The 5-inch monitor features a split-screen display, allowing you to view feeds from both cameras simultaneously. This eliminates the need to switch between views, providing comprehensive awareness of your surroundings.

The 5-inch monitor displaying a split-screen view from two cameras: one showing a child on a bicycle in a driveway (front view), and the other showing a parking lot (rear view), with parking guidelines.

Figure 6: Split-screen display showing simultaneous front and rear camera views.

The cameras provide HD 1080P true-to-life images, ensuring clear and natural visuals both during the day and at night, thanks to their high-resolution sensors.

Comparison images showing the camera's view during day and night, both displaying clear HD 1080P images with parking guidelines.

Figure 7: Day and night image quality of the Solar 3A Plus cameras.

3. Practical Applications

Utilize the dual-camera system for various scenarios:

Reversing: The rear camera provides a clear view behind your vehicle, aiding in safe backing up.
Parking: The front camera can help navigate tight spaces and avoid curb damage.
Trailer Hitching: Precisely align your vehicle with a trailer hitch using the rear camera.
Monitoring Cargo/Horses: Keep an eye on your cargo or livestock in a trailer while driving.

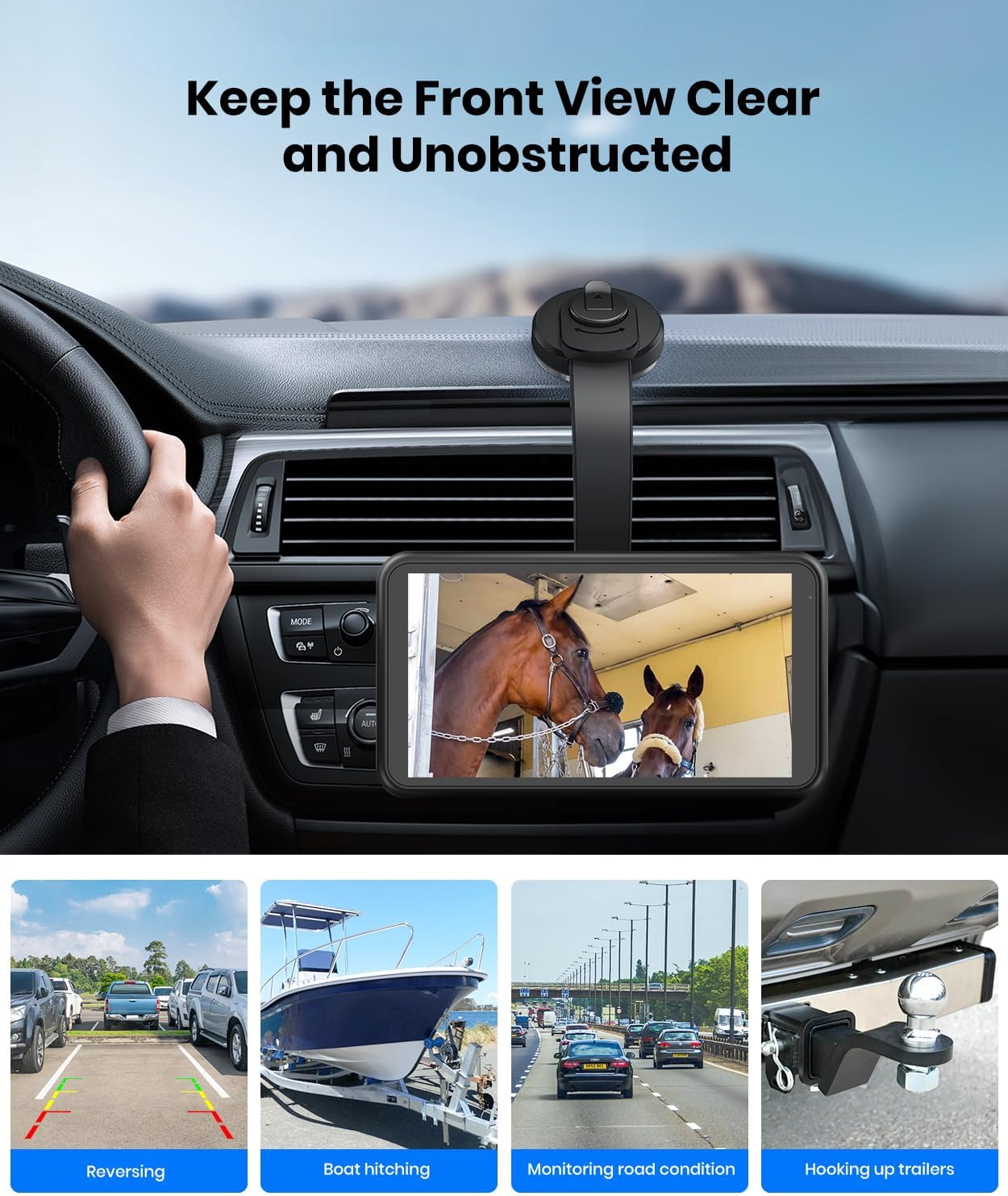

Collage of images showing various use cases for the camera system: reversing into a parking spot, hitching a boat trailer, monitoring road conditions from the front, and hooking up a trailer.

Figure 8: Versatile applications of the AUTO-VOX camera system.

Maintenance

To ensure the longevity and optimal performance of your AUTO-VOX Solar Backup Camera Kit, consider the following maintenance tips:

Camera Cleaning: Regularly wipe the camera lenses with a soft, damp cloth to remove dirt, dust, or water spots that may obstruct the view. Ensure the solar panels on the cameras are also clean to maximize charging efficiency.
Monitor Cleaning: Clean the monitor screen with a microfiber cloth. Avoid abrasive cleaners.
Connection Check: Periodically check all cable connections (especially the USB power cable) to ensure they are secure.
Battery Health: While solar-powered, if the cameras are stored for extended periods without sunlight, a manual charge via USB may be necessary to maintain battery health.

Troubleshooting

If you encounter issues with your AUTO-VOX Solar Backup Camera Kit, refer to the following common troubleshooting steps:

No Image on Monitor:
- Ensure the monitor is properly connected to a powered USB port.
- Check if the cameras are powered on and charged.
- Verify that the cameras are within wireless range of the monitor.
- Attempt to re-pair the cameras with the monitor if connection is lost (refer to specific pairing instructions in the full user manual, if available).
Poor Image Quality:
- Clean the camera lenses.
- Ensure there are no obstructions between the camera and the monitor that could interfere with the wireless signal.
- Check for strong light sources directly facing the camera, which can cause glare.
Monitor Not Powering On:
- Confirm the USB power source is active and providing sufficient power.
- Try a different USB port or power adapter.
- Inspect the USB boost cable for any damage.

If these steps do not resolve the issue, please contact AUTO-VOX customer support for further assistance.

Specifications

Feature	Detail
Monitor Size	5 inches
Camera Type	Wireless Solar 3A Plus
Number of Cameras	2
Display Features	Split-screen, HD 1080P, Day/Night Vision
Camera Battery	5000mAh (up to 150 days battery life with solar charging)
Monitor Power Source	USB (via USB Boost Cable)
Mounting Type	Suction Cup Bracket (Flexible)
Wireless Connectivity	Yes

Warranty and Support

AUTO-VOX products are designed for reliability and performance. For information regarding product warranty, please refer to the warranty card included in your package or visit the official AUTO-VOX website.

For technical support, troubleshooting assistance, or any inquiries about your Solar Backup Camera Kit, please contact AUTO-VOX customer service. Contact details can typically be found on the official AUTO-VOX website or within the product packaging.
