Heycool HY-4F5 Cordless Hand Massager with Heat and Compression

Introduction

Thank you for choosing the Heycool HY-4F5 Cordless Hand Massager. This device is designed to provide a soothing and effective hand massage experience, combining heat and compression to help alleviate discomfort and promote relaxation. Please read this manual thoroughly before use to ensure safe and optimal operation.

Safety Information

To reduce the risk of electric shock, burns, fire, or injury, please observe the following precautions:

• Do not use this device if you have any pre-existing medical conditions affecting your hands or wrists, or if you are pregnant. Consult a physician before use.
• Keep the device away from water and moisture. Do not use in wet environments.
• Do not disassemble, repair, or modify the device yourself. Contact customer support for assistance.
• Keep out of reach of children.
• Do not use for more than 15 minutes at a time. Allow a break between sessions.
• If you experience any pain or discomfort during use, discontinue immediately.
• Use only the provided charging cable.

Package Contents

Upon opening your Heycool Hand Massager package, you should find the following items:

• Heycool HY-4F5 Hand Massager Unit
• USB Type-C Charging Cable
• User Manual
• Thank You Card with Warranty Information

Image: The Heycool Hand Massager shown within its retail box, indicating typical package contents.

Product Overview

The Heycool HY-4F5 Hand Massager offers a comprehensive massage experience with customizable settings. It features:

• Compression Massage: 3 distinct modes and 5 intensity levels to target different areas of the hand and provide varying pressure.
• Soothing Heat: 2 adjustable heat levels (100–115 °F) for enhanced comfort and relaxation.
• Auto Timer: Built-in timer with 5, 10, or 15-minute options to prevent overuse.
• Cordless & Portable: Powered by a 2500mAh rechargeable battery with Type-C charging, offering up to 90 minutes of wireless operation.
• Touch Screen Controls: Intuitive touch panel for easy operation.

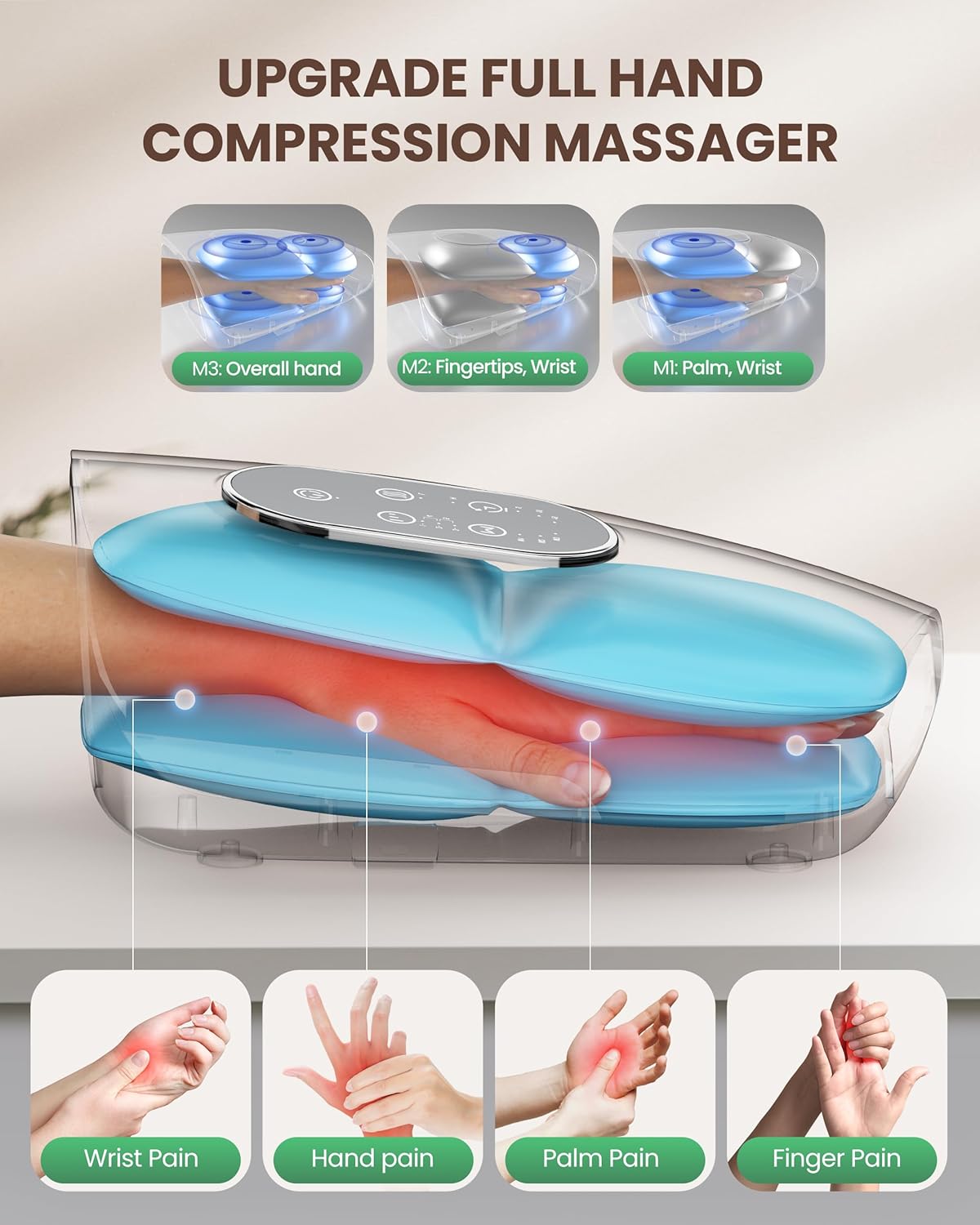

Image: Visual representation of the three distinct compression massage modes (M1: Palm, Wrist; M2: Fingertips, Wrist; M3: Overall hand).

Image: A user relaxing with the hand massager, illustrating the two available heat levels for personalized comfort.

Image: A user demonstrating the hand massager at a desk, highlighting the five intensity levels for varied massage pressure.

Image: The compact design of the Heycool Hand Massager, emphasizing its portability for use in various locations like home, office, or car.

Setup

1. Charge the Device: Before first use, fully charge the hand massager. Connect the provided USB Type-C cable to the charging port on the device and plug the other end into a compatible USB power adapter (not included). The charging indicator light will show the charging status.
2. Prepare for Use: Ensure your hands are clean and dry before inserting them into the massager.

Image: The Heycool Hand Massager connected to a power source via its Type-C charging cable, illustrating the charging process.

Operating Instructions

The control panel features intuitive touch buttons for easy adjustment of settings.

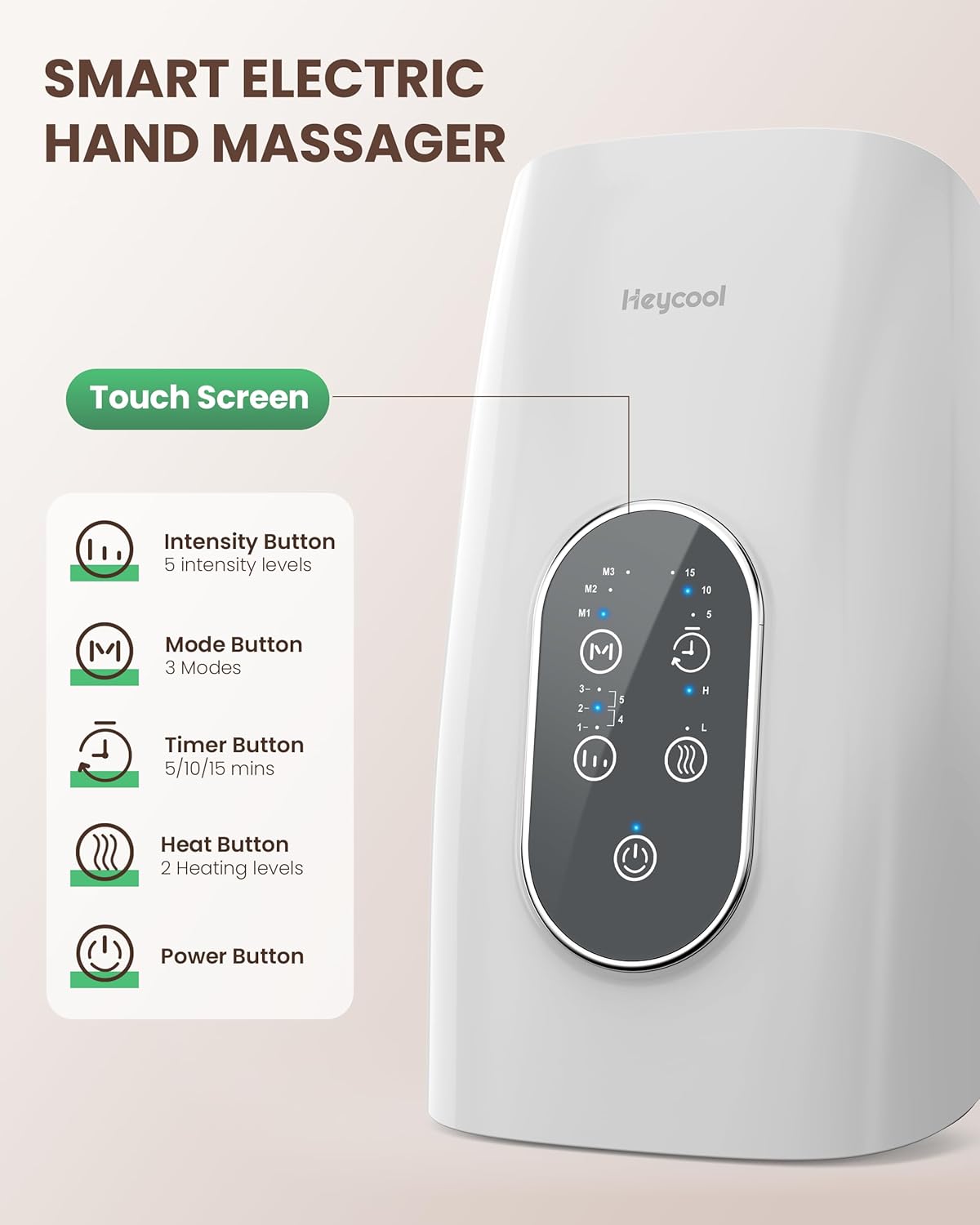

Image: A detailed view of the Heycool Hand Massager's touch screen control panel, showing buttons for various functions.

1. Power On/Off: Press and hold the Power button (U) for a few seconds to turn the device on or off.
2. Select Massage Mode: Press the Mode button (M) to cycle through the 3 available compression modes (M1, M2, M3). The corresponding indicator light will illuminate.
3. Adjust Intensity: Press the Intensity button (|||) to select one of the 5 compression intensity levels. The indicator lights (1-5) will show the current level.
4. Set Heat Level: Press the Heat button (~) to choose between Low (L) and High (H) heat settings, or to turn the heat off.
5. Set Timer: Press the Timer button (↻) to set the massage duration to 5, 10, or 15 minutes. The device will automatically shut off after the selected time.
6. Begin Massage: Insert your hand into the massager, ensuring your palm rests comfortably on the internal acupoint pad. Adjust settings as desired.

Maintenance

• Cleaning: Wipe the exterior of the massager with a soft, damp cloth. Do not use abrasive cleaners or immerse the device in water.
• Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, charge the device regularly, even if not in frequent use.

Troubleshooting

Specifications

• Model: HY-4F5
• Product Dimensions: 5.91 x 8.27 x 12.8 inches
• Weight: 3.33 Pounds
• Battery Capacity: 2500mAh
• Charging Type: USB Type-C
• Heat Levels: 2 (100–115 °F)
• Compression Modes: 3
• Intensity Levels: 5
• Timer Settings: 5, 10, 15 minutes
• Material: Plastic

Warranty and Support

Your Heycool Hand Massager comes with a manufacturer's warranty. Please refer to the 'Thank You' card included in your package for detailed warranty information and registration instructions. For any product inquiries, technical support, or warranty claims, please contact Heycool customer service through the contact information provided on the warranty card or the official Heycool website.
