Primevolve 1800W Ceramic Electric Fan Heater SH07 User Manual

1. Introduction

Thank you for choosing the Primevolve SH07 1800W Ceramic Electric Fan Heater. This compact and efficient heater is designed to provide rapid and consistent warmth for your indoor spaces. Featuring advanced PTC ceramic heating technology, multiple operating modes, and comprehensive safety features, the SH07 ensures a comfortable and secure environment. Please read this manual thoroughly before use to ensure proper operation and maintenance.

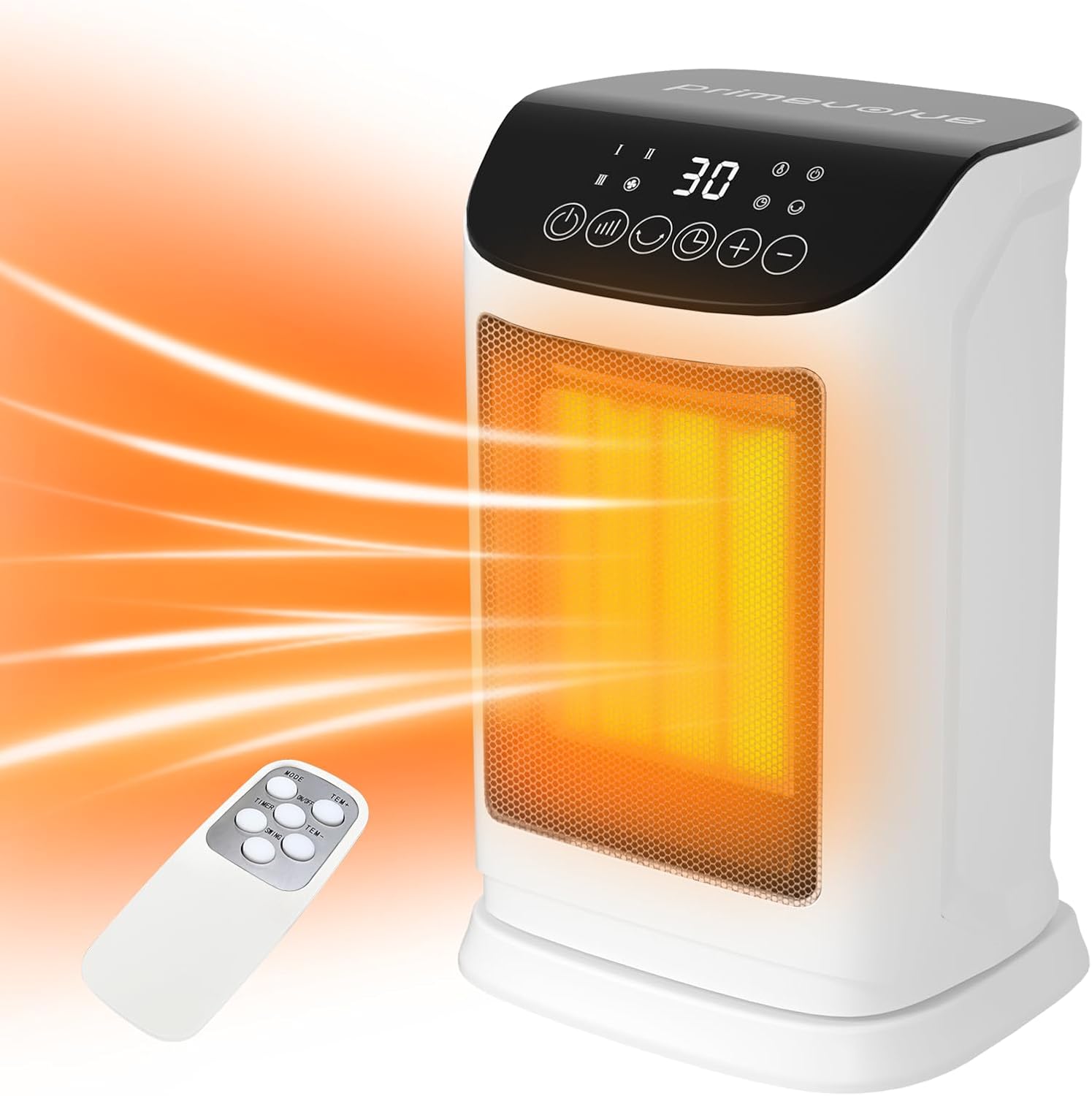

Figure 1: Primevolve SH07 Ceramic Electric Fan Heater

2. Important Safety Instructions

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using this heater.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 1 meter (3 feet) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
• Do not use outdoors.
• This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect heater, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• This heater features Tip-Over Protection and Overheat Protection. If the heater tips over or overheats, it will automatically shut off.
• Constructed with V-0 flame-retardant materials for enhanced safety.

Figure 2: Safety features including V-0 flame retardant materials, improved safety plug, CE certification, 15° tip-over protection, and 65° overheat protection.

3. Product Overview

3.1 Components

• Main Unit: Compact ceramic heater with PTC technology.
• Control Panel: Top-mounted LED display and touch controls.
• Air Outlet Grille: Front-facing for heat distribution.
• Air Inlet Grille: Rear-facing for air intake.
• Carrying Handle: Integrated for easy portability.
• Power Cord: 1.5m length.
• Remote Control: For convenient operation.

Figure 3: Integrated carrying handle for portability (left) and product dimensions (right).

3.2 Control Panel and Display

The heater features an intuitive LED display and touch controls on its top surface, allowing for easy adjustment of settings. A remote control is also included for convenience.

Figure 4: Remote control for convenient operation.

4. Setup

1. Unpack: Carefully remove the heater from its packaging. Retain packaging for future storage or transport.
2. Placement: Place the heater on a firm, level surface. Ensure there is at least 1 meter (3 feet) of clear space around the heater from any combustible materials (furniture, curtains, etc.). Do not place it directly under a power outlet.
3. Power Connection: Ensure the heater is switched off before plugging it into a standard 230V AC electrical outlet. The power cord is 1.5 meters long.

5. Operating Instructions

5.1 Power On/Off

Press the Power button on the control panel or remote control to turn the heater ON or OFF.

5.2 Mode Selection

The heater offers 4 speed settings/modes:

• High (1800W): For rapid heating of larger spaces.
• Medium (1100W): For moderate heating.
• Low (650W): For gentle heating or maintaining warmth.
• ECO Mode: Automatically adjusts power consumption to maintain the set temperature, optimizing energy efficiency and reducing costs.
• Fan Mode (8W): Operates as a fan without heat, suitable for air circulation.

Press the Mode button to cycle through the available heating and fan modes.

Figure 5: Available heating modes and power levels (High up to 1800W, Medium 1100W, Low 650W, ECO, Fan).

5.3 Temperature Adjustment

The heater allows precise temperature control from 10°C to 40°C. Use the '+' and '-' buttons on the control panel or remote to set your desired temperature. The LED display will show the current and target temperatures.

Figure 6: Setting the desired temperature for optimal comfort.

5.4 Oscillation Function

Activate the 70° oscillation function to ensure uniform heat distribution across a wider area. Press the Oscillation button on the control panel or remote control to turn this feature ON or OFF.

Figure 7: 70-degree oscillation for wide-range heat distribution, covering up to 200 square feet.

5.5 Timer Function

The integrated timer allows you to set the heater to automatically shut off after a specified period, from 0 to 12 hours. This is ideal for use in bedrooms or for ensuring the heater turns off after you leave a room. Press the Timer button to adjust the duration.

Figure 8: Timer function for better sleep, combined with quiet operation (40dB).

6. Maintenance

6.1 Cleaning

• Always unplug the heater and allow it to cool completely before cleaning.
• Use a soft, damp cloth to wipe the exterior surfaces of the heater. Do not use abrasive cleaners or solvents.
• The heater features a removable filter. Regularly clean the filter to ensure optimal performance and clean air. Refer to the diagram for filter removal and cleaning instructions (if available, otherwise general advice).
• Do not immerse the heater in water or allow water to drip into the interior.

6.2 Storage

When not in use, store the heater in a cool, dry location. It is recommended to store it in its original packaging to protect it from dust and damage.

7. Troubleshooting

8. Specifications

9. Warranty and Support

Primevolve products are manufactured to high-quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided with your purchase or visit the official Primevolve website. Please have your model number (SH07) and purchase date available when contacting support.
