1. Introduction
Thank you for choosing the Datewink Mini Moving Head Light. This manual provides important information on the installation, operation, and maintenance of your product. Please read this manual carefully before use and operate according to the regulations to ensure personal safety and proper function.

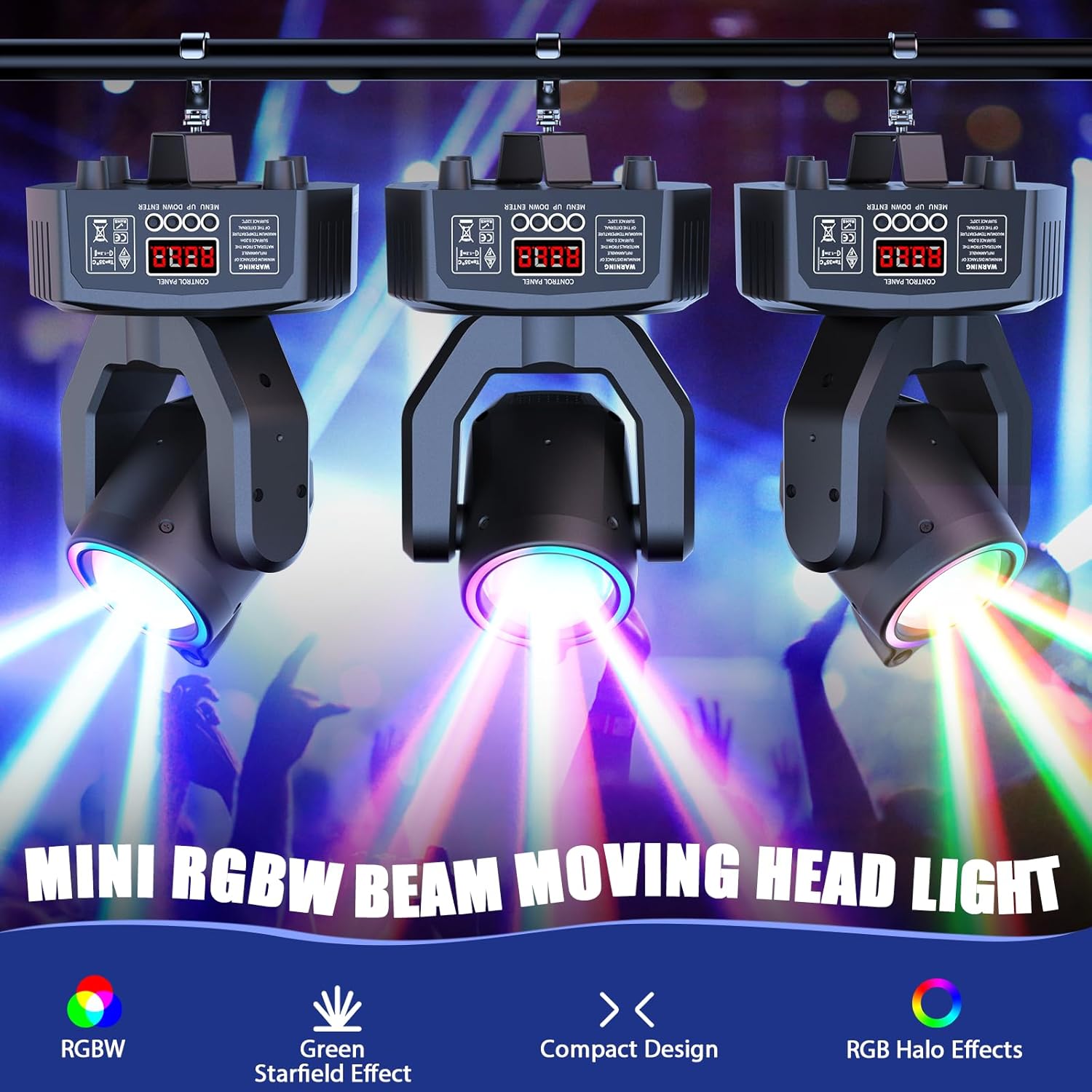

This lighting fixture is designed for small-scale venues, offering a compact and lightweight solution. It features 3 x 10W R/G/B/W LEDs, 12 x 0.2W LEDs, and a green light, delivering vibrant beams, starry sky effects, and dazzling colored halos. Multiple control options are available, including auto-run, sound activation, master-slave, DMX512, and remote control.
2. Safety Information
- This product is for adults only. Keep it out of reach of children.
- Please check that the voltage meets the rated power and pay attention to the total circuit load before installation.
- Please use this product indoors. Avoid humid, hot, or dusty environments. If there is water or other liquid on the product, cut off the power and contact the supplier.
- Do not look directly at the light source to avoid eye injuries.
- Turn off the power before use and during maintenance.
- The light does not include spare parts for repair. Do not attempt to repair the product yourself.
- If the product is damaged, discontinue use and contact the supplier.
- Do not stare at the luminous body for a long time to avoid eye injuries.
3. Package Contents
The following items are included in your package:
- Moving Head Light (2 units)
- Power Cord (2 units)
- Remote Control (2 units)
- Light Hook Bracket (2 units)
- Screws (4 units)
- Instruction Manual (1 unit)
Image: Contents of the package, including two moving head lights, power cords, remote controls, light hook brackets, and screws.
4. Product Overview
The Datewink Mini Moving Head Light is a versatile lighting fixture designed for dynamic visual effects. It integrates multiple light sources and features for various applications.
4.1. Key Components
- Light Source: Equipped with 3 x 10W R/G/B/W LEDs, 12 x 0.2W RGB LEDs, and a green beam light for diverse lighting effects.
- Control Panel: Features a 4-digit digital display and 4-key buttons for easy navigation and setting adjustments.
- Connectivity: Includes DMX IN, DMX OUT, and Power Connection ports.
- Movement: Offers an X-Axis rotation of 450° and a Y-Axis tilt of 180° for broad coverage.
Image: The Datewink Mini Moving Head Light highlighting its five customizable control modes: DMX (13CH), Master/Slave, Sound-activated, Remote Control, and Auto.
Image: Close-up of the control panel with its 4-digit display and navigation buttons.
Image: Rear view of the light showing DMX IN, DMX OUT, and Power Connection ports.
Image: Diagram illustrating the X-Axis (450°) and Y-Axis (180°) movement capabilities, along with product dimensions.
5. Setup
The Mini Moving Head Light can be installed in various ways to suit your venue's needs. Ensure the installation surface is stable and can support the weight of the fixture.
5.1. Mounting Options
- Floor Mount: Place the light on a stable, flat surface.
- Pole Mount: Use the included light hook bracket and screws to securely attach the fixture to a lighting truss or pole. Ensure all connections are tight.
Image: The compact size of the moving head light, shown next to an iPhone for scale, indicating its suitability for various mounting positions.
6. Operating Instructions
The Datewink Mini Moving Head Light offers multiple control modes to create diverse lighting effects. Familiarize yourself with each mode to optimize your experience.
6.1. Control Modes
- Auto-Run Mode: The light cycles through pre-programmed effects automatically.
- Sound-Activated Mode: The light reacts to music or sound, changing patterns and colors in sync with the beat.
- Master-Slave Mode: Connect multiple units via DMX cables. One unit acts as the master, controlling all other slave units to synchronize effects.
- DMX512 Mode: For professional control, connect to a DMX controller to customize channels and effects. This unit supports 13 DMX channels.
- Remote Control: Use the included remote to easily switch modes, colors, and effects.
6.2. Remote Control Functions
The remote control allows for convenient operation of the light. Below are the primary functions:
- ON/OFF: Power on/off the light.
- DMX: Activates DMX mode.
- AUTO: Activates auto-run mode.
- Speed +/-: Adjusts the speed of effects.
- Voice: Activates sound-activated mode.
- Mic +/-: Adjusts sound sensitivity.
- Number Buttons (0-9): Selects specific pre-programmed effects or colors.
Image: Detailed layout of the remote control, showing each button and its corresponding function.
6.3. Visual Effects
The light produces a range of effects including:
- Monochromatic Beams: Individual red, green, blue, or white beams.
- RGBW Color Mixing: Blended colors from the RGBW LEDs.
- Green Starfield Effect: Dynamic green laser patterns resembling a starry sky.
- RGB Halo Ring: Auto-chasing colored halos around the main lens.
Image: Examples of monochromatic and color mixing light modes projected by the fixture.
Image: A collage demonstrating the diverse range of effects, including individual beams, combined colors, green starfield, and RGB halo rings.
6.4. Video Demonstration
Video: A demonstration of the Datewink Mini Moving Head Light's various effects and remote control functionality.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Datewink Mini Moving Head Light.
7.1. Cleaning
- Clean the lens and housing regularly with a soft, lint-free cloth.
- Do not use abrasive cleaners or solvents.
7.2. General Care
- Periodically check all screws and connections to ensure they are secure.
- Store the light in a dry, dust-free environment when not in use.
Image: The light fixture demonstrating its durable ABS material and superior heat dissipation design, contributing to its 10,000-hour lifespan.
8. Troubleshooting
If you encounter issues with your Datewink Mini Moving Head Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply or loose connection. | Check power cord connection and power source. Ensure the power switch is ON. |
| Remote control not working. | Remote battery low or obstructed signal. | Replace remote battery. Ensure no obstacles between the remote and the light. |
| Light not responding in DMX mode. | Incorrect DMX address or faulty DMX cable. | Verify DMX address settings. Check DMX cable connections and replace if necessary. |
| Movement is erratic or limited. | Obstruction or internal issue. | Ensure no physical obstructions. If the problem persists, contact support. |
If the issue persists after attempting these solutions, please contact Datewink customer support for further assistance.
9. Specifications
Below are the technical specifications for the Datewink Mini Moving Head Light:
| Feature | Detail |
|---|---|
| Model Number | ZQ02375 |
| Light Source Type | Light Emitting Diode (LED) |
| Number of Light Sources | 15 (3x10W R/G/B/W LEDs, 12x0.2W LEDs, Green Light) |
| Color | RGBW |
| Power Source | Corded Electric |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Shade Material | Acrylic |
| Mounting Type | Floor Mount, Pole Mount |
| X-Axis Rotation | 450° |
| Y-Axis Tilt | 180° |
| Optimal Projection Distance | 3-5 meters |
| Dimming Curve | 0-100% Linear Dimming |
| Strobe | 1-20Hz |
| Control Modes | Auto-run, Sound Activation, Master-Slave, DMX512, Remote Control |
| DMX Channels | 13CH |
| Item Dimensions (L x W x H) | 5.63"L x 5.43"W x 8.11"H |
| Manufacturer | Shenzhen Zhuoqiong Technology Co., Ltd. |
10. Warranty & Support
The Datewink Mini Moving Head Light comes with a manufacturer's warranty.
10.1. Manufacturer Warranty
This product is covered by a 180-day manufacturer's warranty. Please retain your proof of purchase for warranty claims.
10.2. Customer Support
For any questions, technical support, or warranty claims, please contact Datewink customer service through the retailer where the product was purchased.
