Yeego 17-Bottle Dual Zone Wine Fridge Cooler

Introduction

Thank you for choosing the Yeego 17-Bottle Dual Zone Wine Fridge Cooler. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new wine refrigerator. Please read these instructions thoroughly before use and retain them for future reference.

Important Safety Information

To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:

• Read all instructions before using the appliance.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Ensure the appliance is properly grounded. Connect only to properly grounded outlets.
• Unplug the appliance before cleaning or performing any maintenance.
• Do not allow children to operate, play with, or crawl inside the appliance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not damage the refrigerant circuit.
• This appliance is intended for household use only.

Product Overview

The Yeego 17-Bottle Dual Zone Wine Fridge Cooler is designed to store your wine collection at optimal temperatures. Key features include:

• Dual Zone Temperature Control: Allows separate temperature settings for red and white wines (40-65°F).
• Compressor Cooling: Provides efficient and consistent cooling with low vibration.
• Double-Layer Tempered Glass Door: Protects wine from UV rays and maintains insulation.
• FSC-Certified Wooden Shelves: 5 removable shelves designed to minimize vibration.
• Versatile Installation: Suitable for freestanding, built-in, or under-counter placement.
• Automatic Defrost: Simplifies maintenance.
• Power-Outage Memory: Restores previous settings after power interruption.
• Blue LED Interior Light: Illuminates the cabinet for easy bottle selection.
• Activated Carbon Filter: Maintains fresh air inside the cabinet.

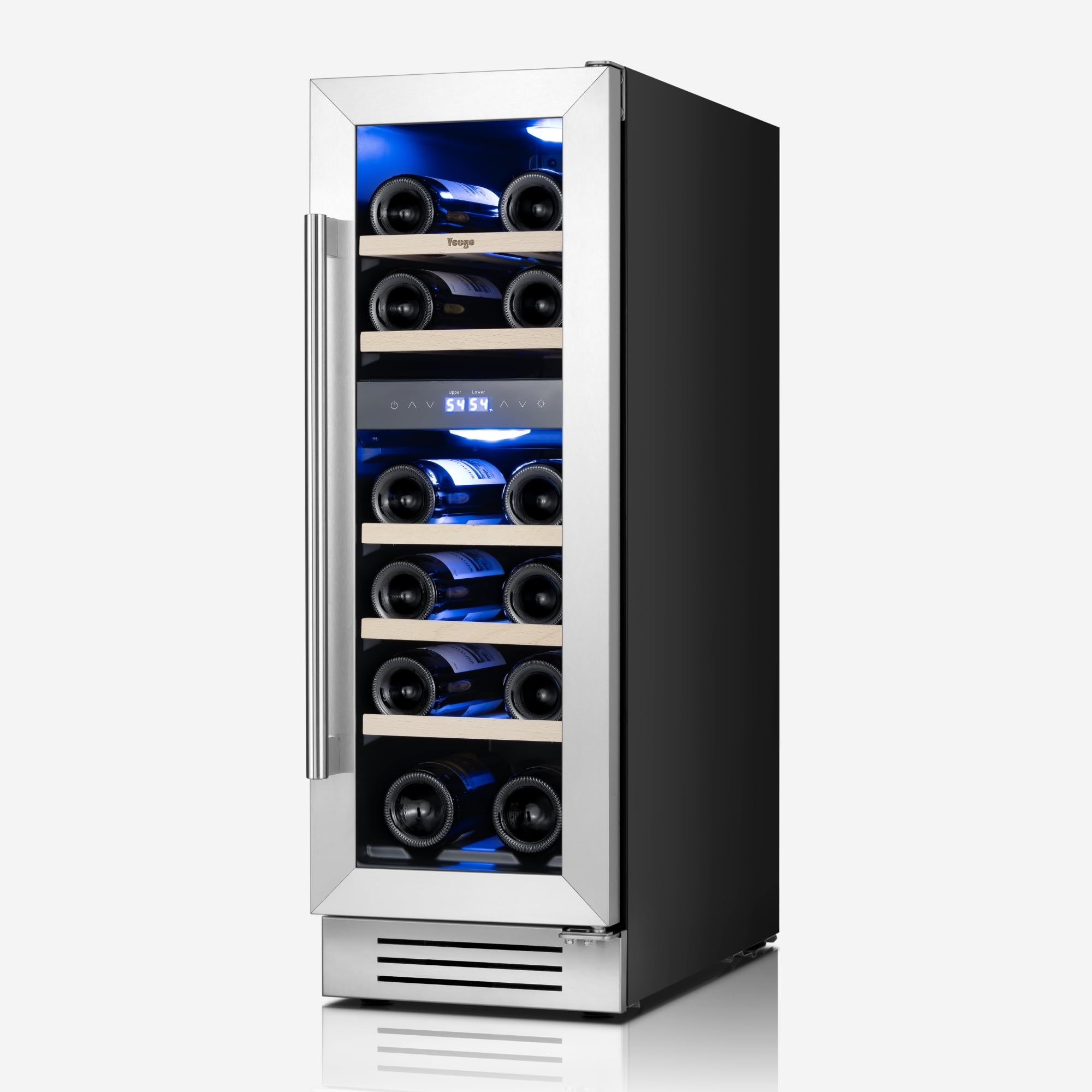

Figure 1: Yeego 17-Bottle Dual Zone Wine Fridge Cooler (Front View)

Setup and Installation

Unpacking

Carefully remove all packaging materials. Ensure all components are present and undamaged. Keep packaging materials for future transport if needed.

Placement

This wine fridge can be installed as a freestanding unit, built-in, or under-counter. Ensure adequate ventilation space around the unit, especially for built-in installations where front ventilation is crucial.

• Place the appliance on a flat, stable surface.
• Avoid direct sunlight or heat sources.
• Allow at least 2-4 inches of space at the back and sides for proper air circulation if freestanding.
• For built-in or under-counter installations, ensure the front grille is unobstructed for heat dissipation.

Figure 2: Installation Options (Freestanding, Built-in, Under-Counter)

Figure 3: Front Ventilation for Built-in Installation

Leveling

The appliance must be level for proper operation. Adjust the leveling feet at the bottom of the unit as needed. Use a spirit level to verify.

Figure 4: Adjustable Leveling Feet

Initial Power-On

After placement, allow the wine fridge to stand upright for 24-36 hours before plugging it into a grounded electrical outlet. This allows the compressor lubricants to settle, ensuring optimal performance and longevity.

Operating Instructions

Control Panel

The wine fridge features an upgraded touch control panel for precise temperature management.

Figure 5: Control Panel Layout

• Power Button: Turns the unit on or off.
• Light Button: Controls the interior blue LED light.
• Temperature Adjustment Buttons (Up/Down): Adjusts the temperature for the upper and lower zones.
• Temperature Display: Shows the current temperature for each zone.

Setting Temperatures (Dual Zone)

This unit has two independent temperature zones. The upper zone is typically for white wines, and the lower zone for red wines. The temperature range is 40-65°F (4-18°C).

1. Press the temperature adjustment buttons (Up/Down) for the desired zone.
2. The display will flash, indicating it's in setting mode.
3. Adjust to your preferred temperature. The temperature will set automatically after a few seconds of inactivity.

Important: To ensure stable cooling, the lower zone temperature must be set equal to or warmer than the upper zone. Maintain a minimum 4°C (7°F) gap between the two zones.

The unit features a Power-Outage Memory Function, which automatically restores your last set temperature settings after a power interruption.

Loading Wine Bottles

The wine fridge includes 5 removable FSC-certified wooden shelves. These shelves are designed to minimize vibration and accommodate various bottle sizes.

• Pull out shelves gently to load or unload bottles.
• Ensure bottles are placed securely to prevent rolling.
• The unit can hold up to 17 standard 750ml Bordeaux bottles.

Figure 6: Removable Wooden Shelves and Bottle Capacity

Interior Lighting

The wine fridge is equipped with a blue LED interior light. Use the light button on the control panel to turn it on or off. This light enhances visibility and adds an elegant ambiance.

Figure 7: Blue LED Interior Light

Maintenance and Care

Cleaning the Interior

Always unplug the appliance before cleaning. Use a soft cloth dampened with a mild detergent solution to clean the interior surfaces. Avoid abrasive cleaners or solvents. Dry thoroughly before plugging back in.

Cleaning the Exterior

Clean the exterior with a soft cloth and mild detergent. The stainless steel door frame is fingerprint-resistant and easy to maintain. Do not use harsh chemicals or abrasive materials.

Automatic Defrost

This wine fridge features an automatic defrost system, eliminating the need for manual defrosting. During the defrost cycle, frost on the evaporator will melt and drain into a drip tray, where it evaporates.

Figure 8: Compressor Cooling and Automatic Defrost System

Activated Carbon Filter Replacement

The unit is equipped with an activated carbon filter to effectively remove odors and maintain fresh, pure air inside the cabinet. Replace the filter periodically (e.g., every 6-12 months) to ensure optimal performance. Refer to the filter compartment for specific replacement instructions.

Figure 9: Activated Carbon Filter

Troubleshooting Guide

Before contacting customer support, please refer to the following table for common issues and solutions:

Specifications

Customer Support

For any questions regarding setup, operation, maintenance, or troubleshooting that are not covered in this manual, please contact Yeego customer support. Our support team is available 24/7 to assist you.

Please have your model number (B0FG83X5C8) and purchase information ready when contacting support.
