OUXI V8 Electric Bike User Manual

1. Product Overview

The OUXI V8 Electric Bike is designed for adults, featuring a powerful 1000W peak motor and a removable 48V 15AH battery, offering speeds up to 31 MPH and a range of up to 37 miles. Its robust design with 20-inch fat tires makes it suitable for various terrains, including city roads, sandy paths, snowy conditions, and mountain trails. The bike is equipped with a 7-speed gear system, front fork suspension, and dual disc brakes for a safe and comfortable riding experience.

Key Features:

• Powerful Motor: 1000W high-speed brushless motor for strong power and climbing capabilities, reaching up to 31 MPH.
• Removable Battery: 48V 15AH battery providing 28-37+ miles range, with 7-8 hours full charge time.
• Multiple Riding Modes: Pure electric mode, pedal-assist mode, and pedal mode for versatile use.
• LCD Display: Large M5 LCD display shows speed, battery level, odometer, and more for convenient monitoring.
• Enhanced Safety: UL2849 certified, dual disc brakes, and front/rear lights for improved visibility and braking ability.
• All-Terrain Tires: 20" x 4.0" fat tires designed to adapt to various terrains including city, sandy, snowy, and mountain roads.

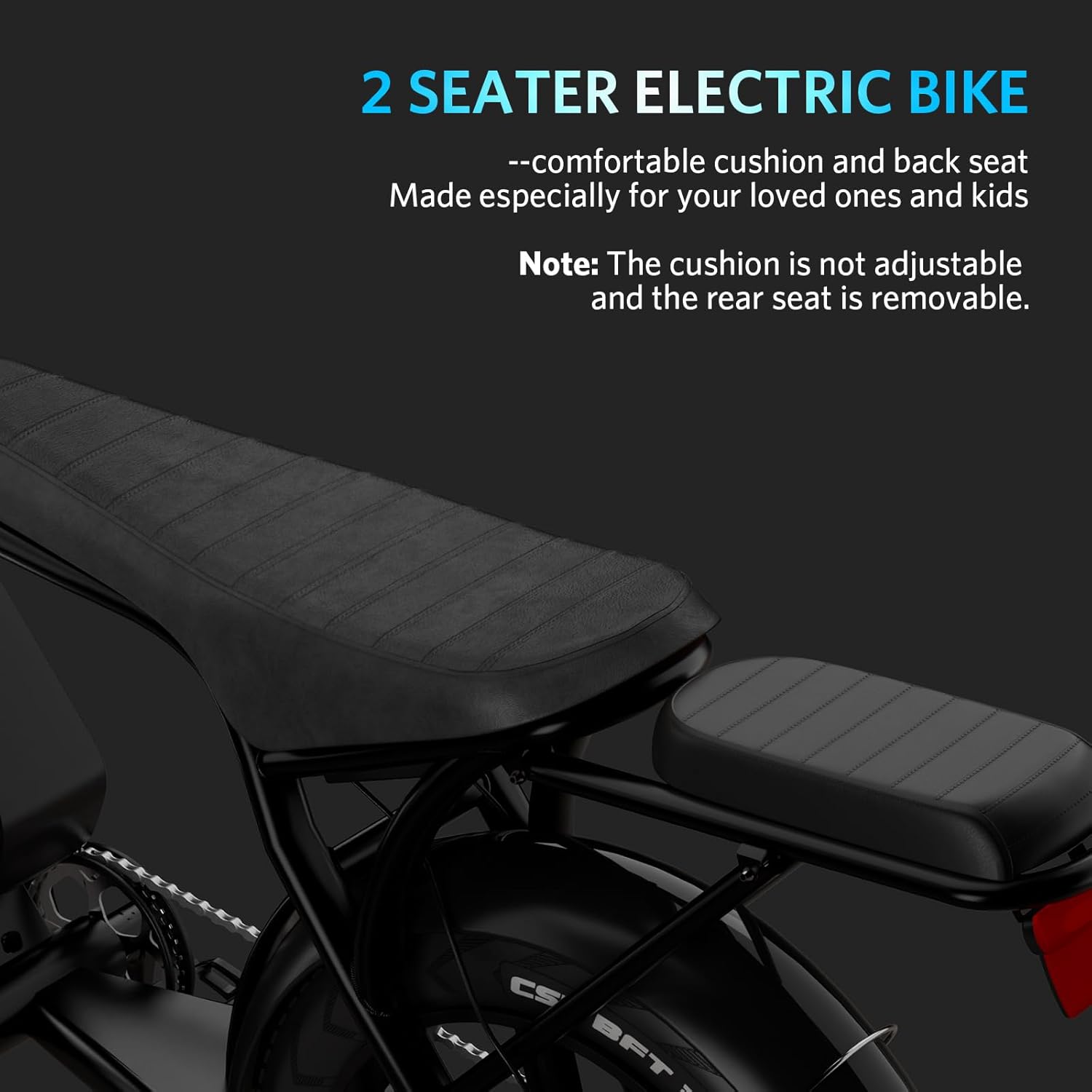

• Comfortable Seating: Features a comfortable cushion and a removable back seat, suitable for two riders.

2. Safety Information

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding the OUXI V8 Electric Bike. Familiarize yourself with local traffic laws and regulations regarding electric bicycles.

• Pre-Ride Check: Before each ride, inspect the brakes, tires, battery level, and all bolted connections to ensure they are secure and functioning correctly.
• Braking System: The bike is equipped with dual disc brakes for reliable stopping power. Test the brakes before riding, especially in wet conditions.
• Visibility: Utilize the integrated front headlight and rear taillights, especially when riding in low-light conditions or at night, to ensure you are visible to others.
• UL2849 Certification: This electric bike has passed the strict UL2849 certification, indicating compliance with electrical system safety standards for e-bikes.
• Riding Conditions: Adjust your riding style and speed to suit the terrain and weather conditions. Be cautious on slippery surfaces.

3. Setup and Assembly

This section guides you through the initial setup and assembly of your OUXI V8 Electric Bike. It is recommended to watch the assembly video for a visual guide.

3.1 Unboxing and Initial Inspection

Carefully unpack the electric bike from its box. Remove all packaging materials and cable ties securing the components. Identify all included accessories and parts as listed in the packing list.

3.2 Handlebar Mounting

Attach the handlebars to the bike's stem. Ensure all wires are properly routed and not pinched. Tighten the screws securely using the provided tools.

3.3 Front Wheel Mounting

Install the front wheel into the fork. Align the disc brake rotor with the caliper. Secure the wheel using the quick-release mechanism or axle nuts, ensuring it is centered and tight.

3.4 Pedal Mounting

Attach the pedals to the crank arms. Note that pedals are typically marked 'L' for left and 'R' for right. The left pedal has a reverse thread, so turn it counter-clockwise to tighten. The right pedal tightens clockwise. Use a wrench to secure them firmly.

3.5 Front Fender Mounting

Install the front fender over the front wheel. Secure it to the fork using the provided screws and brackets. Ensure it is properly aligned and does not rub against the tire.

3.6 Rear Seat and Rear Pedal Mounting

If your model includes a rear seat and rear pedals, attach them to the designated mounting points on the frame. Ensure all connections are secure for passenger safety.

3.7 Tire Inflation

Inflate both front and rear tires to the recommended pressure indicated on the tire sidewall. Proper tire pressure is crucial for ride comfort, efficiency, and safety.

4. Operating Instructions

Understanding the operating modes and controls of your OUXI V8 Electric Bike will enhance your riding experience.

4.1 Powering On and Off

To power on the bike, ensure the battery is securely installed and locked. Press and hold the power button on the battery or the LCD display until the screen illuminates. To power off, press and hold the same button until the display turns off.

4.2 Riding Modes

The OUXI V8 offers three distinct riding modes:

• Pure Electric Mode: Engage the twist-grip throttle to accelerate without pedaling. This mode is ideal for effortless cruising.
• Pedal-Assist Mode: The motor provides assistance as you pedal. You can adjust the level of assistance via the LCD display controls. This mode balances exercise with electric power.
• Pedal Mode: Ride the bike like a traditional bicycle without any motor assistance. This mode is useful for exercise or when the battery is depleted.

4.3 LCD Display Functions

The M5 LCD display provides essential riding information. Use the control buttons on the handlebars to navigate through different screens and settings.

• Speed Display: Shows current riding speed.
• Battery Level: Indicates the remaining battery charge.
• Odometer: Tracks total distance traveled.
• Trip Distance: Shows distance for the current ride.
• Assistance Level: Adjust the pedal-assist level (usually 0-5).
• Headlight Control: Turn the headlight on/off.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your OUXI V8 Electric Bike.

5.1 Brake Adjustment

Properly adjusted brakes are critical for safety. Periodically check the brake pads for wear and ensure the brake levers provide firm and responsive stopping power. If the brakes feel loose or are not engaging effectively, they may need adjustment.

5.2 Battery Care

• Charging: Always use the original charger provided with your bike. Charge the battery in a dry, well-ventilated area. Avoid overcharging.
• Storage: If storing the bike for an extended period, ensure the battery is charged to about 50-70% and recharge it every 1-2 months to maintain battery health. Store in a cool, dry place.
• Cleaning: Wipe the battery and its contacts with a dry cloth. Do not use water or harsh chemicals.

5.3 General Maintenance Tips

• Tires: Regularly check tire pressure and inflate to the recommended PSI. Inspect tires for wear, punctures, or damage.
• Chain: Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
• Bolts and Fasteners: Periodically check all bolts, nuts, and fasteners for tightness. Loose components can affect safety and performance.
• Cleaning: Clean your bike regularly with a damp cloth and mild soap. Avoid high-pressure washing, especially near electrical components.

6. Troubleshooting

This section provides solutions to common issues you might encounter with your OUXI V8 Electric Bike.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact OUXI customer support for assistance.

7. Specifications

8. Warranty and Support

8.1 Warranty Information

The OUXI V8 Electric Bike comes with a 1 Year Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use. Please refer to the warranty card included with your product for full terms and conditions.

• Warranty Type: Limited
• Warranty Description: 1 Year Manufacturer

8.2 Customer Support

For any questions, technical assistance, or warranty claims, please contact OUXI customer support. You can find contact information on the official OUXI website or through your purchase platform.

• Returns: 30-day easy returns are available.
• Seller: Meijiaduo
• Visit the OUXI Store on Amazon for more information and support resources.
