Greencut RLM610XE Lawn Tractor Instruction Manual

1. Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your Greencut RLM610XE lawn tractor. Please read it thoroughly before first use and keep it for future reference. Understanding the instructions will ensure optimal performance and extend the lifespan of your equipment.

2. Safety Information

Operating a lawn tractor requires careful attention to safety. Failure to follow these guidelines may result in serious injury or property damage.

• Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and sturdy footwear.
• Ensure the operating area is clear of bystanders, especially children and pets, before starting the machine.
• Never operate the tractor under the influence of alcohol, drugs, or medication that may impair judgment.
• Familiarize yourself with all controls, including the emergency stop and parking brake, before operation.
• Turn off the engine, remove the key, and allow all moving parts to stop before performing any maintenance, adjustments, or clearing blockages.
• Be aware that the engine and exhaust system can become extremely hot during and after operation. Avoid contact.
• Do not refuel while the engine is running or hot. Always refuel in a well-ventilated area.
• Inspect the cutting area for debris, rocks, or other objects that could be thrown by the blades.

3. Components Overview

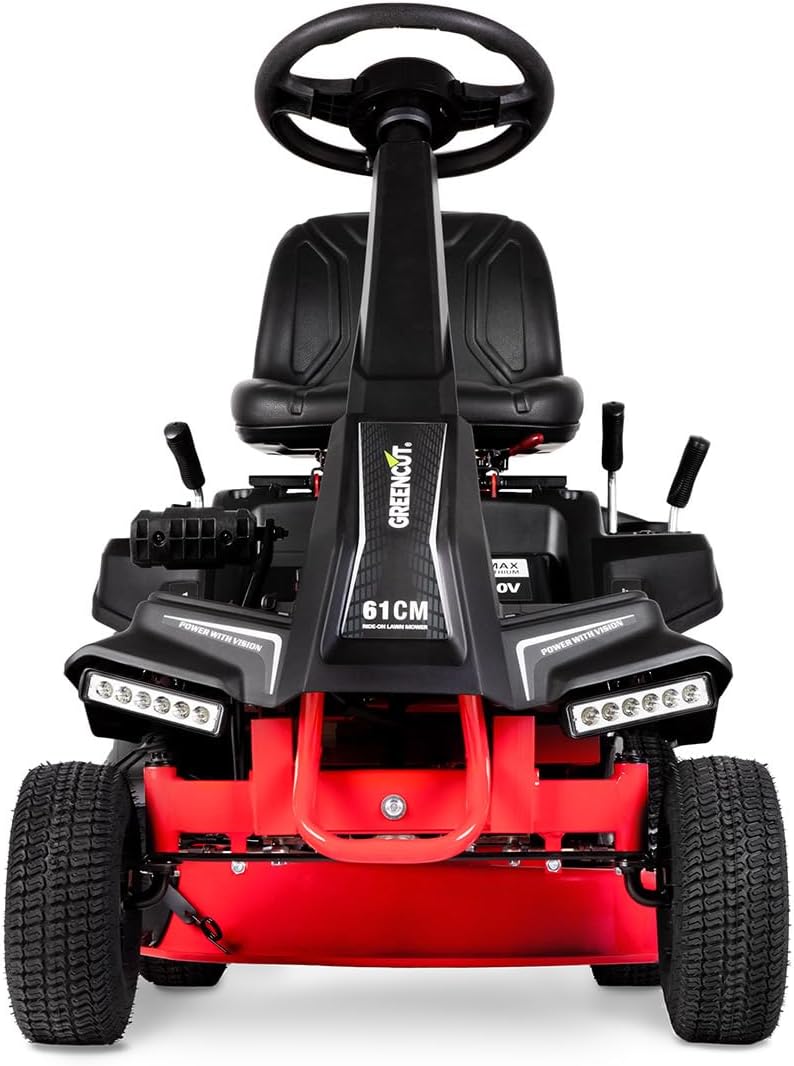

The Greencut RLM610XE lawn tractor is designed for efficient lawn maintenance. Below are key components and their functions.

4. Setup

The Greencut RLM610XE requires minimal assembly. Follow these steps for initial setup:

1. Unpacking: Carefully remove the tractor and all components from the packaging. Inspect for any shipping damage.
2. Battery Connection: Connect the battery for the electric start system. Ensure terminals are clean and secure.
3. Fluid Checks:
   • Engine Oil: Check the engine oil level using the dipstick. Add recommended oil if necessary.
   • Fuel: Fill the fuel tank with fresh, unleaded gasoline. Do not overfill.
4. Tire Pressure: Verify tire pressure. Recommended pressures are 1.5 bar (22 psi) for front wheels and 1.8 bar (26 psi) for rear wheels.
5. Seat Adjustment: Adjust the operator's seat for comfortable and safe operation.

5. Operating Instructions

Follow these steps for safe and effective operation of your lawn tractor.

5.1. Starting the Engine

1. Ensure the parking brake is engaged.
2. Place the throttle lever in the 'Choke' position (if cold) or 'Fast' position.
3. Turn the ignition key to the 'Start' position. Release the key once the engine starts.
4. Allow the engine to warm up for a few minutes before engaging the cutting blades.

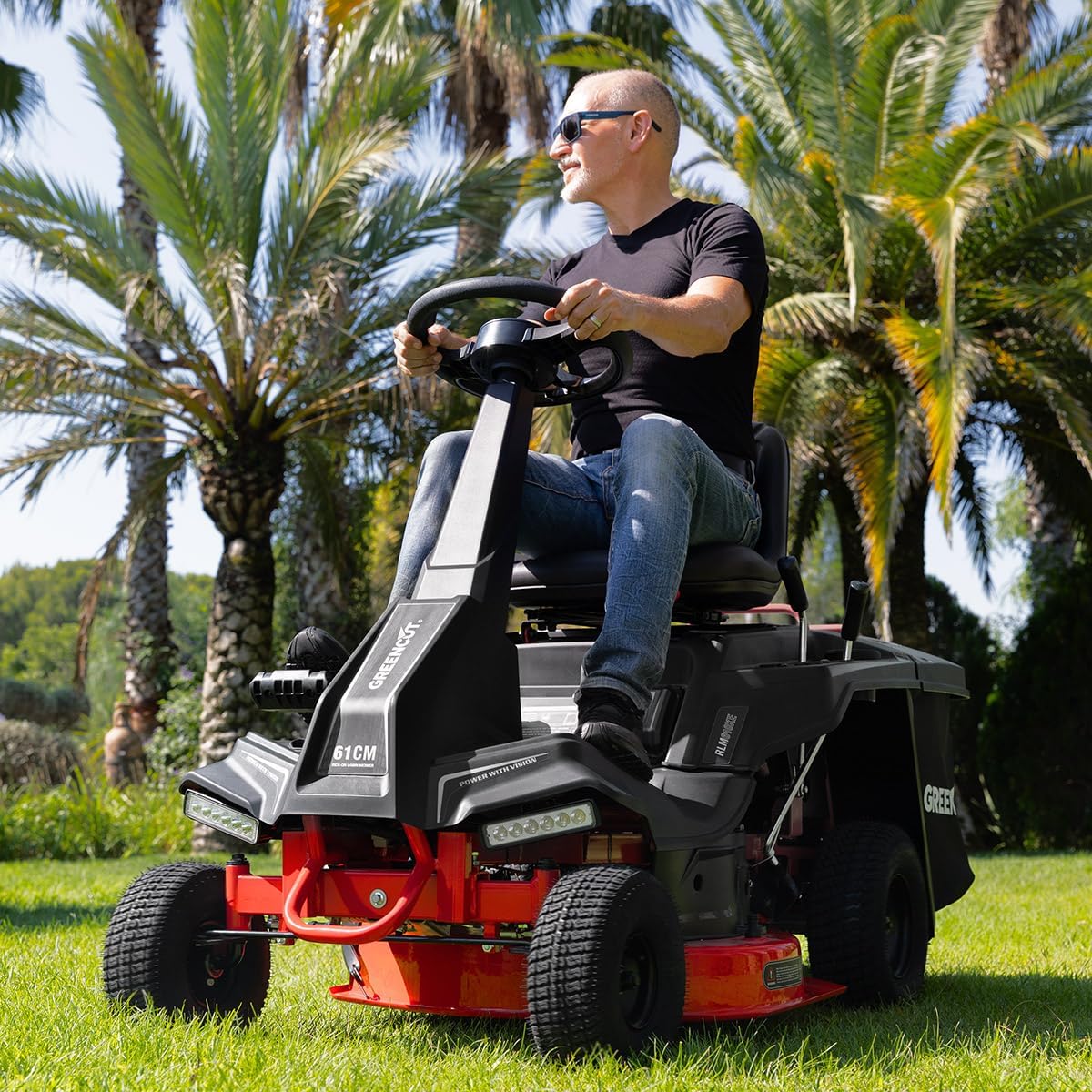

5.2. Driving and Mowing

The tractor features rear-wheel drive and a transmission with four forward speeds and one reverse speed.

• Forward Speeds: 1.5 km/h, 2.0 km/h, 4.0 km/h, 6.0 km/h. Select the appropriate speed for terrain and grass conditions.
• Reverse Speed: Up to 2.4 km/h. Exercise caution when operating in reverse.

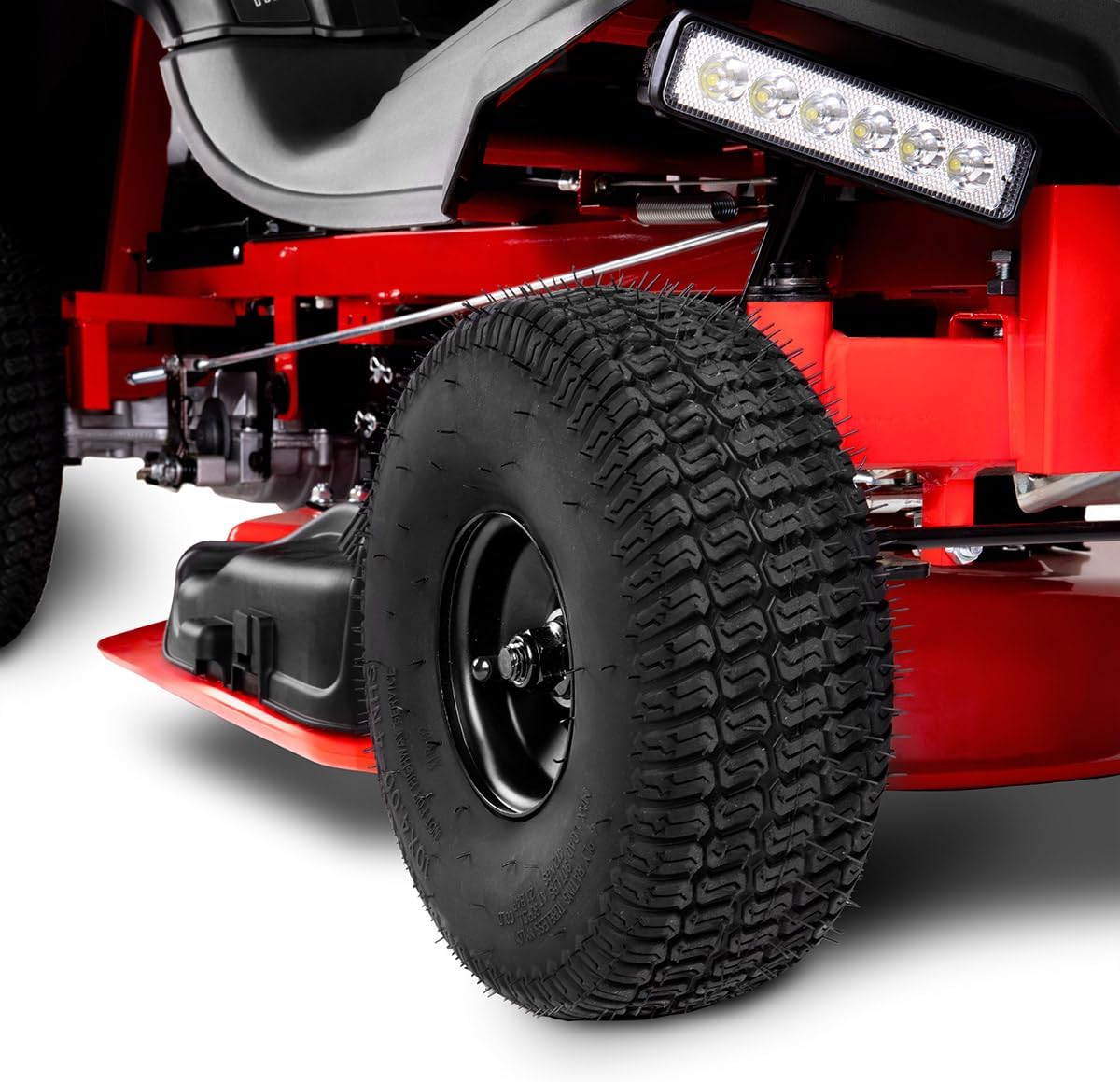

5.3. Adjusting Cutting Height

The rotary cutting system has a width of 610 mm (24 inches). The cutting height is adjustable in 5 positions, ranging from 35 mm to 75 mm. Adjust the height using the lever located near the operator's seat to suit your lawn type and desired finish.

5.4. Discharge Modes

The tractor offers three versatile discharge modes:

• Rear Collection: Grass clippings are collected in the 150L rear bag.
• Side Discharge: Clippings are expelled from the side of the cutting deck.
• Mulching: Clippings are finely cut and returned to the lawn as natural fertilizer.

5.5. Stopping the Engine

1. Disengage the cutting blades.
2. Move the throttle lever to the 'Stop' position.
3. Engage the parking brake.
4. Remove the ignition key.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Greencut RLM610XE lawn tractor.

6.1. Cleaning

• Clean the cutting deck after each use to prevent grass buildup.
• Wipe down the exterior surfaces with a damp cloth. Avoid using high-pressure washers directly on electrical components.

6.2. Engine Maintenance

• Oil Change: Refer to the engine manual for recommended oil change intervals.
• Air Filter: Inspect and clean or replace the air filter regularly, especially in dusty conditions.
• Spark Plug: Check and clean or replace the spark plug as needed.

6.3. Cutting Deck and Blades

• Inspect blades for sharpness and damage before each use. Dull or damaged blades can lead to an uneven cut and strain the engine.
• Replace worn or bent blades immediately.

6.4. Tire Maintenance

• Regularly check tire pressure to ensure proper traction and stability.
• Inspect tires for wear or damage.

7. Troubleshooting

This section addresses common issues you might encounter with your lawn tractor.

If you encounter problems not listed here or if solutions do not resolve the issue, please contact Greencut customer support.

8. Specifications

Technical specifications for the Greencut RLM610XE Lawn Tractor:

9. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, spare parts, or any operational queries, please contact Greencut customer service through their official channels. Always provide your model number (RLM610XE) when seeking support.
