1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Herture 40 Gallon Reptile Terrarium Tank with Storage Cabinet, Model PX03RTB. Please read this manual thoroughly before setup to ensure proper use and the safety of your pet.
Figure 1: Herture 40 Gallon Reptile Terrarium Tank with Storage Cabinet.
2. Safety Information
- Read all instructions: Familiarize yourself with the assembly and operation procedures before starting.
- Adult assembly required: This product contains small parts and requires careful assembly. Keep children and pets away during assembly.
- Handle glass with care: The terrarium features acrylic glass panels. Handle them carefully to prevent breakage or injury.
- Placement: Place the terrarium on a flat, stable, and level surface capable of supporting its full weight when filled with substrate, decorations, and your pet.
- Electrical safety: Ensure all electrical connections for heating, lighting, and humidifiers are properly installed and secured. Do not overload the built-in power outlet.
- Not for aquatic use: This tank is designed for reptiles and is not suitable for holding water as an aquarium.
- Ventilation: Ensure the mesh top is always properly secured to provide adequate ventilation and prevent escapes.
- Temperature control: Monitor the internal temperature and humidity regularly to ensure a safe and appropriate environment for your specific reptile species.
3. Package Contents
Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Terrarium Base (1)
- Terrarium Top Frame with Mesh Lid (1)
- Side Acrylic Glass Panels (2)
- Front Sliding Acrylic Doors (2)
- H-Bar for Sliding Doors (1)
- Metal Poles for Frame (4)
- Power Outlet Strip (1)
- Storage Cabinet Components (various panels, doors, shelves)
- Assembly Hardware (screws, rubber caps, door knobs, lock with key)
- Instruction Manual (1)

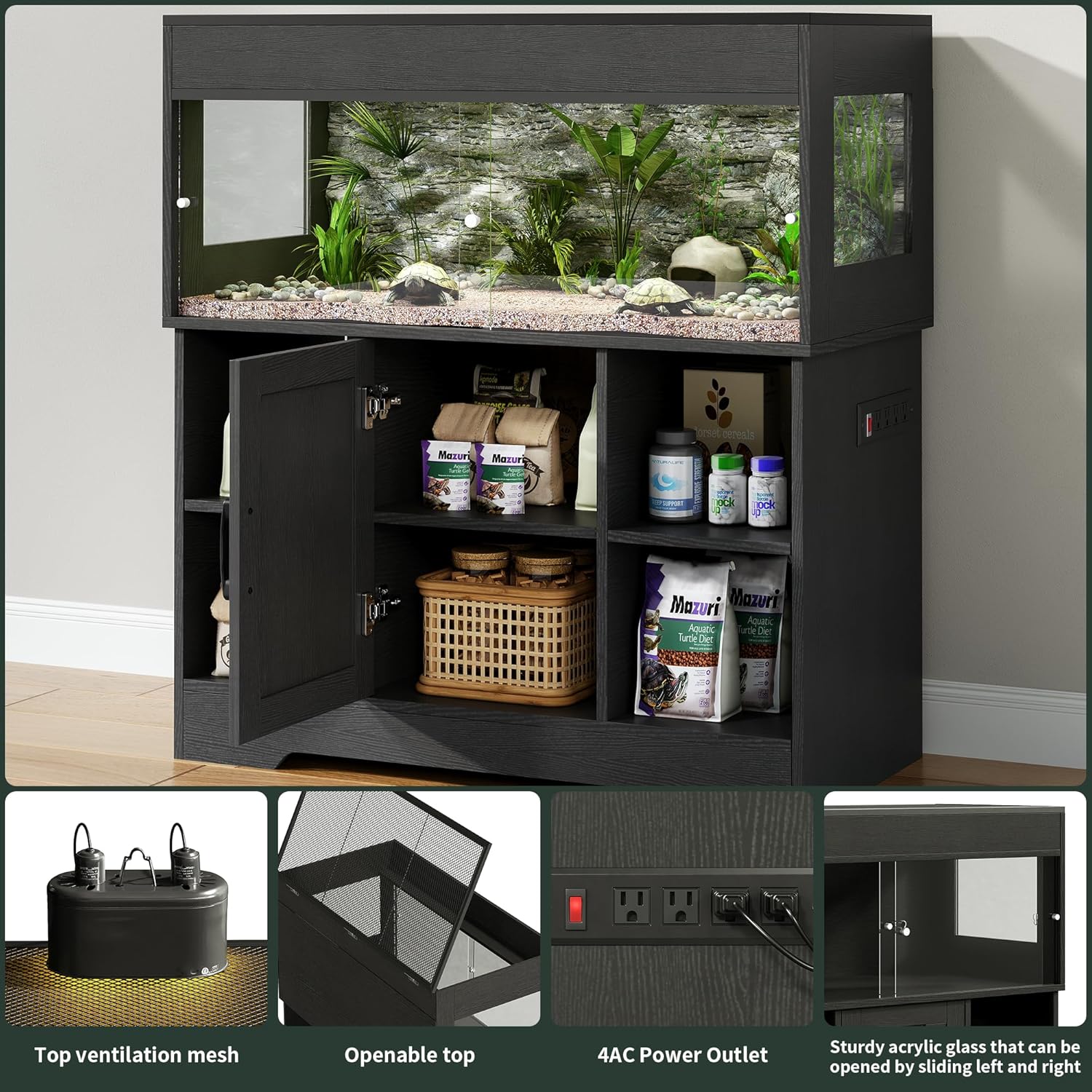

Figure 2: Key components including mesh top, power outlet, and sliding doors.
4. Assembly Instructions
Follow these steps carefully to assemble your Herture Reptile Terrarium. It is recommended to have two people for certain steps.
4.1. Unpacking and Preparation
- Carefully open the packaging and remove all components.
- Place all parts on a clean, soft surface to prevent scratches.
- Identify all parts using the package contents list.
Video 1: This video demonstrates unpacking and initial setup steps for a similar reptile tank (REPTI ZOO brand). The general assembly principles apply.
4.2. Terrarium Frame Assembly
- Place the terrarium base on a flat, stable surface.
- Insert the four metal poles into the designated holes on the base. Ensure they are securely seated.
- Slide the side acrylic glass panels into the grooves on the metal poles.
- Insert the H-bar into the central groove for the front sliding doors.
- Carefully slide the two front acrylic doors into their respective tracks.
- Install the door knobs onto the sliding doors. Ensure the glass is clean before installation.
- Place the top frame with the mesh lid onto the assembled glass panels and metal poles. Secure it with the provided metal screws and rubber caps.
Video 2: This video demonstrates frame and glass panel installation for a similar tempered glass reptile tank (PROLEE brand). The general assembly principles apply.
4.3. Storage Cabinet Assembly
Assemble the storage cabinet according to the diagrams provided in the separate cabinet assembly guide (if applicable, or follow general furniture assembly principles). Ensure all panels are correctly oriented and secured with the provided hardware. The terrarium unit will sit securely on top of the assembled cabinet.
Figure 3: Detail of the storage cabinet, showing compartments and door.
5. Product Features
- Integrated Storage Base: Features dual side compartments and a central door cabinet for organized storage of reptile care essentials.
- Panoramic Visibility: Front-facing acrylic sliding doors provide a clear view of your pet and simplify feeding and cleaning.
- Optimal Ventilation: A fully openable upper mesh lid ensures excellent airflow and prevents escapes.
- Built-in Power Center: Includes a 4-AC socket power strip to support various heating, lighting, and humidity devices.
- Durable Construction: Crafted from high-quality MDF wood for stability and longevity.
- Cable Pass-Through: Designed with convenient openings for routing power cords, temperature probes, and misting system tubing.
Figure 4: Close-up of the integrated 4-AC socket power strip.
6. Operation
6.1. Accessing the Terrarium
- Front Doors: The acrylic doors slide horizontally for easy access. Use the provided lock and key to secure the doors when not in use.
- Mesh Top: The entire mesh top can be opened for full access to the terrarium interior, facilitating cleaning and decor arrangement.
6.2. Using the Power Outlet
The built-in 4-AC socket power strip allows for convenient connection of essential reptile equipment. Plug in heating lamps, UVB lighting, humidifiers, and thermostats directly into the strip. Ensure the total wattage does not exceed the strip's maximum capacity.
6.3. Cable Management
Utilize the designated cable pass-through holes on the mesh top to neatly route power cords, temperature probes, and misting system tubing into the terrarium, maintaining a tidy and safe environment.
7. Maintenance
- Regular Cleaning: Clean the terrarium regularly to maintain a hygienic environment for your pet. Remove waste and soiled substrate as needed.
- Glass Cleaning: Use a reptile-safe glass cleaner or a damp cloth to clean the acrylic panels. Avoid abrasive cleaners that may scratch the surface.
- Mesh Top: Periodically check the mesh top for any damage or blockages to ensure proper ventilation.
- Substrate Replacement: Replace the substrate according to the needs of your specific reptile species and the type of substrate used.
- Power Outlet: Inspect the power strip and connected devices regularly for any signs of wear or damage.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors not sliding smoothly | Debris in tracks, misaligned doors. | Clean tracks thoroughly. Re-align doors if necessary. |
| Poor ventilation | Mesh top obstructed or damaged. | Ensure mesh is clear of debris. Replace damaged mesh if needed. |
| Power outlet not working | Power strip not plugged in, circuit breaker tripped, faulty device. | Check main power connection. Reset circuit breaker. Test devices in another outlet. |
| Pet attempting to escape | Doors or mesh top not securely locked. | Always ensure all access points are securely locked when not directly interacting with your pet. |
9. Specifications
| Brand | Herture |
| Model Number | PX03RTB |
| Tank Volume | 40 Gallons |
| Dimensions (L x W x H) | 35.82" x 18.11" x 39.76" |
| Material | Wood (MDF), Acrylic Glass, Metal |
| Color | Black |
| Included Components | Stand, Reptile Tank |
| Special Feature | Transparent, Built-in Power Outlet, Storage Cabinet |
Figure 5: Detailed dimensions of the Herture 40 Gallon Reptile Terrarium.
10. Warranty & Support
For warranty information or customer support, please refer to the contact details provided with your purchase documentation or visit the official Herture website. If you encounter any issues with missing or damaged parts, please contact the seller directly for assistance.
