1. Introduction
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your GMKtec K11 Mini PC. Please read this guide thoroughly before using the device to ensure optimal performance and longevity.

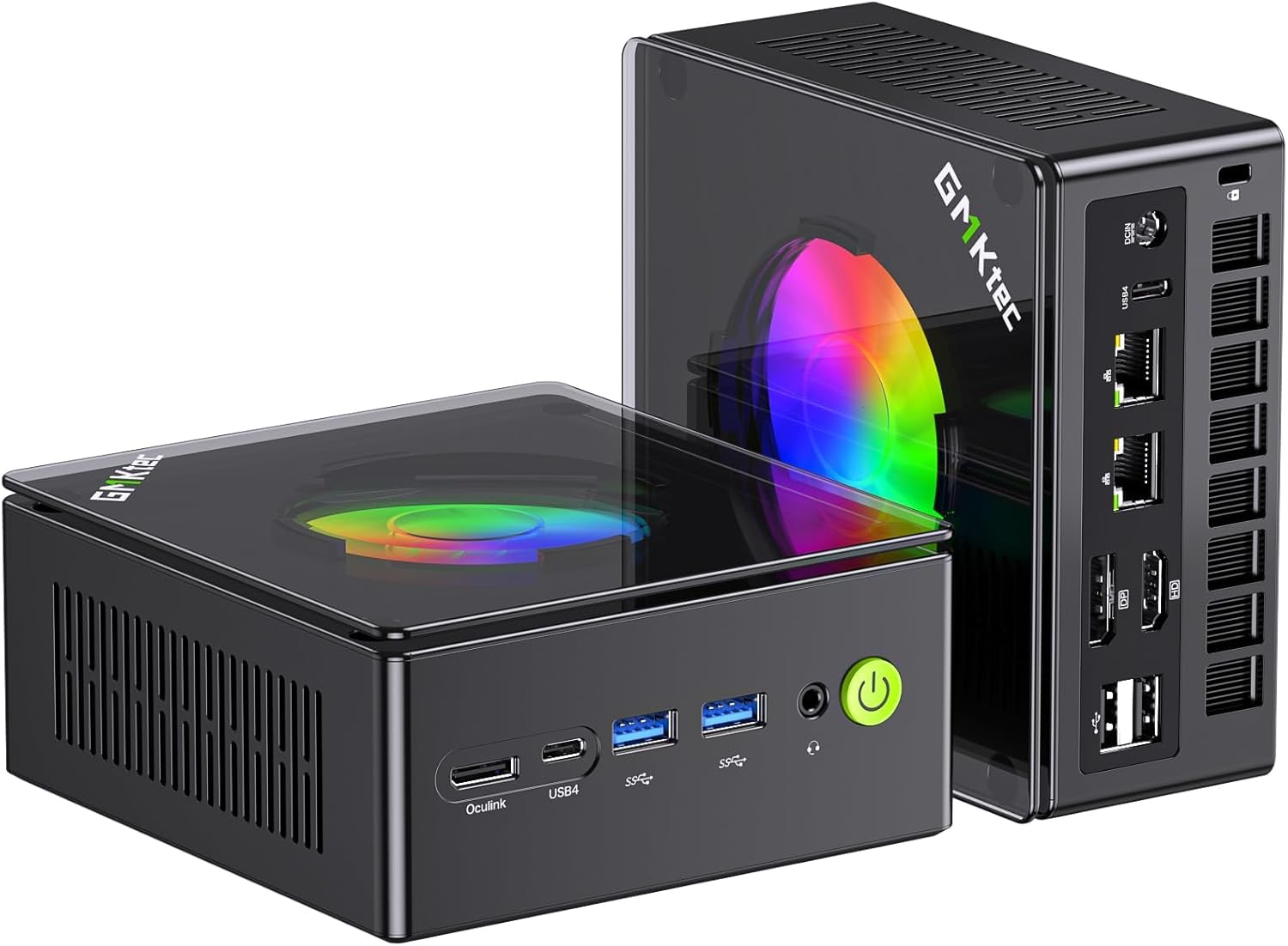

Figure 1: GMKtec K11 Mini PC, a compact desktop computer.
2. Product Overview
The GMKtec K11 is a high-performance mini PC designed for demanding tasks, including gaming and content creation. It features advanced processing power, ample memory and storage, and versatile connectivity options.
2.1 Key Features
- Processor: AMD Ryzen 9 8945HS (8 Cores, 16 Threads, up to 5.4 GHz)
- Graphics: Integrated AMD Radeon 780M (RDNA 4 architecture)
- Memory: 32GB DDR5 RAM (5600 MT/s, dual channel, expandable to 64GB)
- Storage: 512GB M.2 2280 PCIe 4.0 SSD (supports two Gen4 x4 SSDs, expandable up to 8TB)
- Display Support: Quad 4K display output via HDMI 2.1, DisplayPort 2.1, and two USB4 ports
- Network: Dual Intel i226V 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth 5.2
- Cooling: Upgraded Hyper Ice Chamber 2.0 with dual fans
- Power Modes: Silent (35W), Balanced (54W), Performance (65W)
- Special Port: Oculink connector for external GPU expansion
2.2 Processor Details
The K11 is equipped with an AMD Ryzen 9 8945HS processor, offering robust performance for multitasking and demanding applications. The integrated AMD Radeon 780M graphics provide strong visual capabilities.
Figure 2: Diagram illustrating the AMD Ryzen 9 8945HS processor with its core, thread, cache, and clock speed specifications, alongside performance benchmarks.
2.3 Ports and Connectors
The GMKtec K11 Mini PC provides a comprehensive set of ports for various peripherals and displays.
Figure 3: Front panel of the K11 Mini PC, showing the power button, USB 3.2 (Gen2) ports, USB4 port, and Oculink port.
Figure 4: Rear panel of the K11 Mini PC, displaying USB 2.0 ports, HDMI 2.1, DisplayPort 2.1, dual 2.5G LAN ports, USB4 port, and DC power input.
3. Setup Instructions
Follow these steps to set up your GMKtec K11 Mini PC:
- Unpack Contents: Carefully remove the Mini PC and all accessories from the packaging. Verify that all components listed in the 'What's in the Box' section are present.
- Connect Display: Connect your monitor(s) to the Mini PC using an HDMI, DisplayPort, or USB4 cable. The K11 supports up to four 4K displays simultaneously.
- Connect Peripherals: Plug in your keyboard, mouse, and any other USB devices into the available USB ports.
- Connect Network: For a wired connection, connect an Ethernet cable from your router or modem to one of the 2.5G LAN ports. For wireless, ensure your Wi-Fi network is available.
- Connect Power: Connect the power adapter to the DC IN port on the Mini PC, then plug the power cable into an electrical outlet.
- Power On: Press the power button located on the front panel of the Mini PC.

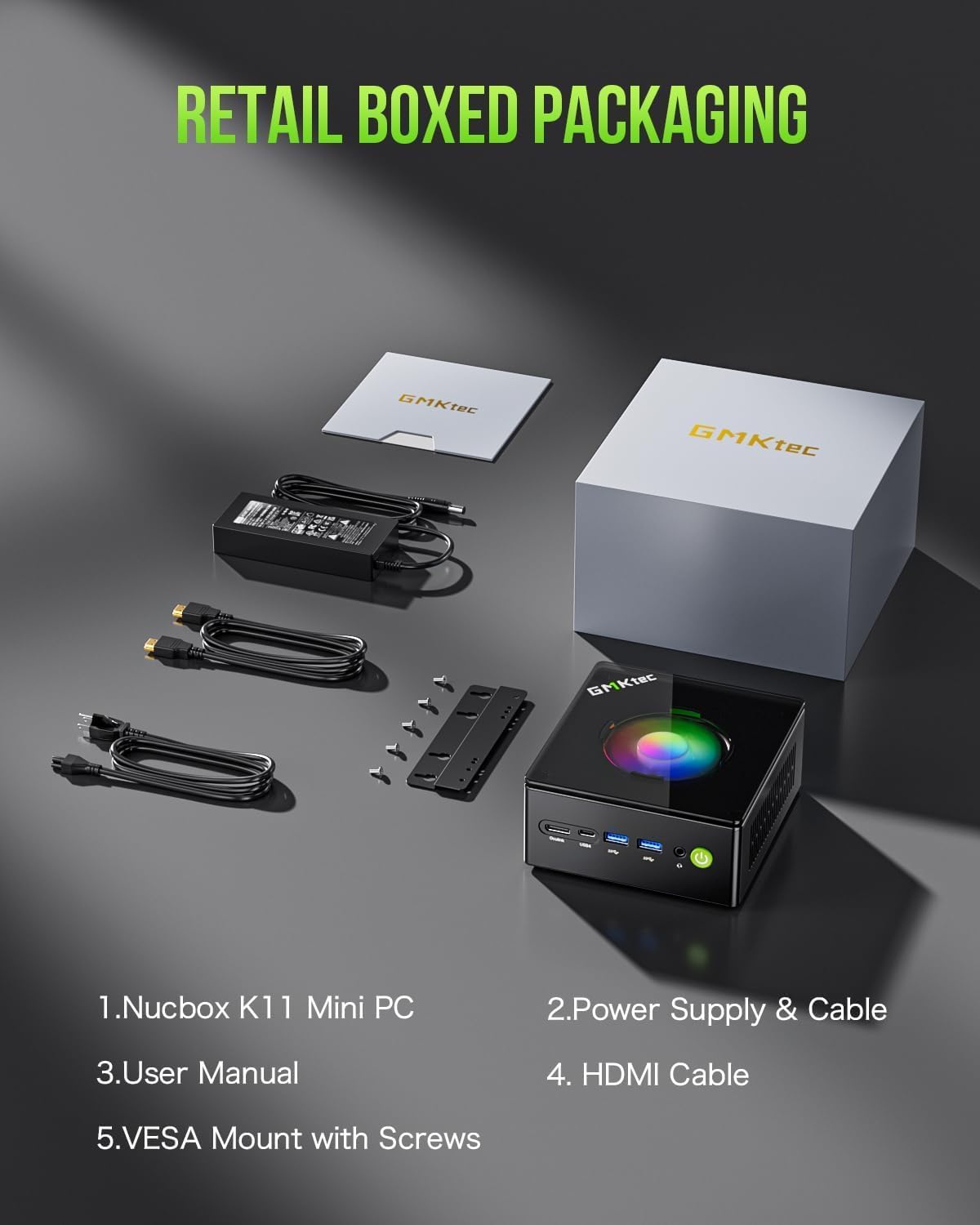

Figure 5: Contents of the GMKtec K11 Mini PC retail box, including the Mini PC, power supply, HDMI cable, and VESA mount with screws.
4. Operating Instructions
4.1 Initial Boot and Operating System
Upon first power-on, the Mini PC will boot into the pre-installed Windows operating system. Follow the on-screen instructions to complete the initial setup, including language selection, network configuration, and user account creation.
4.2 Power Management
The K11 Mini PC offers three power modes to optimize performance and energy consumption:
- Silent Mode (35W TDP): For quiet operation and basic tasks.
- Balanced Mode (54W TDP): Standard performance for everyday use.
- Performance Mode (65-70W TDP): Maximum performance for demanding applications and gaming.
These modes can typically be adjusted within the BIOS/UEFI settings or through the operating system's power options. VRAM allocation can also be adjusted up to 16GB.
Figure 6: Illustration of the K11's power consumption modes (Silent, Balanced, Performance) and their corresponding CPU temperatures and noise levels, along with a diagram of the cooling system.
4.3 Oculink Port Usage
The Oculink port provides enhanced connectivity for external graphics cards, offering higher bandwidth and lower latency compared to Thunderbolt. This allows for significant graphics performance upgrades.
Attention: The Oculink interface does not support hot-swapping. Please plug and unplug this interface only when the PC is powered off.
Figure 7: The Oculink port on the K11 Mini PC connected to an external graphics card, demonstrating its use for enhanced graphical performance.
5. Maintenance
5.1 Cleaning
To maintain optimal performance, regularly clean the exterior of the Mini PC with a soft, dry cloth. Use compressed air to clear dust from the ventilation grilles and ports. Ensure the device is powered off and unplugged before cleaning.
5.2 RAM and SSD Upgrades
The GMKtec K11 features an easily disassembled design for convenient RAM and SSD upgrades. It supports dual-channel DDR5 SO-DIMM memory, expandable up to 64GB (32GB per slot), and two M.2 2280 PCIe 4.0 SSD slots, expandable up to 8TB (4TB per slot).
Figure 8: Internal view of the K11 Mini PC showing the accessible slots for DDR5 RAM and M.2 2280 SSDs, highlighting the ease of installation and upgrade.
6. Troubleshooting
If you encounter issues with your GMKtec K11 Mini PC, refer to the following common problems and solutions:
- No Power:
- Ensure the power adapter is securely connected to both the Mini PC and a working electrical outlet.
- Check the power cable for any damage.
- No Display:
- Verify that the display cable (HDMI, DisplayPort, or USB4) is firmly connected to both the Mini PC and the monitor.
- Ensure the monitor is powered on and set to the correct input source.
- Try a different display cable or monitor if possible.
- No Internet Connection:
- For wired connections, check the Ethernet cable and router status.
- For Wi-Fi, ensure Wi-Fi is enabled in Windows settings and you are connected to the correct network.
- Restart your router/modem and the Mini PC.
- Slow Performance:
- Check the power mode settings (refer to section 4.2) and ensure it's set to Balanced or Performance for demanding tasks.
- Close unnecessary applications running in the background.
- Ensure the cooling system is not obstructed and is functioning correctly.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | GMKtec |
| Model Name | K11 (NucBox K11) |
| Processor | AMD Ryzen 9 8945HS (8 Cores, 16 Threads, up to 5.4 GHz) |
| Graphics Coprocessor | Integrated AMD Radeon 780M |
| RAM | 32GB DDR5 (5600 MT/s), expandable to 64GB |
| Storage | 512GB M.2 2280 PCIe 4.0 SSD, expandable up to 8TB |
| Operating System | Windows |
| Video Output Interface | HDMI 2.1, DisplayPort 2.1, USB4 (x2) |
| Max Display Resolution | 3840x2160 (4K) |
| Connectivity | Dual 2.5G LAN (Intel i226V), Wi-Fi 6 (802.11ax), Bluetooth 5.2 |
| USB Ports | 4 (USB 3.2 Gen2 x2, USB 2.0 x2, USB4 x2) |
| Special Ports | Oculink (PCIe 4.0 x4) |
| Cooling Method | Air (Hyper Ice Chamber 2.0) |
| Power Modes | Silent (35W), Balanced (54W), Performance (65-70W) |
8. Warranty and Support
GMKtec offers a limited one-year warranty for each Mini PC from the date of purchase, covering design and manufacturing defects. For any inquiries or support needs, please refer to the following options:
- Amazon Support: Contact us through your Amazon account by navigating to 'Your Orders' and selecting 'Ask Product Question'.
- After-Sales Support: For direct assistance, send an email to the After-Sales Team at eu-cs@gmktec.com. Customer support is available 24/7.
Figure 9: Image showing a computer setup, representing the user experience and the availability of support.
9. Product Video Overview
Watch this official product video for a visual guide to the GMKtec K11 Mini PC's features and capabilities.
Video 1: An animated overview of the GMKtec K11 Mini PC, showcasing its AMD Ryzen 9 8945HS processor, AMD Radeon 780M graphics, cooling system, memory and storage upgrade options, front and rear ports, Oculink external GPU support, dual 2.5G LAN, Wi-Fi 6, Bluetooth 5.2, 4K quad display capabilities, and gaming entertainment potential.
