1. Introduction and Overview
The ELECCTV BW4 is an advanced wireless security camera designed for both indoor and outdoor use. It features dual-band 2.4GHz and 5GHz WiFi connectivity, delivering stable and fast network performance. With 2K QHD resolution, color night vision, AI motion detection, and two-way audio, this camera provides comprehensive surveillance and communication capabilities. Its IP65 waterproof rating ensures durability in various weather conditions, and the built-in rechargeable battery offers wire-free installation flexibility.
Image: ELECCTV BW4 camera highlighting 2.4GHz and 5GHz dual-band WiFi 6 capabilities.
Video: Overview of the WiFi Security Cameras Wireless Outdoor features.
2. What's in the Box
Your ELECCTV BW4 package includes the following items:
- ELECCTV BW4 Wireless Security Camera(s)
- Mounting bracket(s)
- Mounting screws and anchors
- USB charging cable
- Quick Start Guide
3. Setup
Follow these steps to set up your ELECCTV BW4 camera:
- Charge the Camera: Fully charge the camera using the provided USB cable before initial use. The built-in 5200mAh battery provides extended operation.
- Download the App: Download the 'O-KAM Pro' app from the App Store (iOS) or Google Play Store (Android).
- Account Registration: Open the app and register for a new account or log in if you already have one.
- Add Device: In the app, tap 'Add Device' or the '+' icon and follow the on-screen instructions to connect your camera. The camera supports both 2.4GHz and 5GHz WiFi networks for flexible connectivity.
- Mount the Camera: Choose a suitable location for installation, ensuring optimal viewing angle and WiFi signal strength. The camera is wire-free and IP65 waterproof, allowing for versatile placement indoors or outdoors. Use the provided mounting bracket, screws, and anchors to secure the camera.
Image: A person installing a wire-free, battery-powered ELECCTV BW4 camera on an outdoor wall.
Video: Installation tutorial for the W1 security camera.
Video: Guide to 2.4/5 Ghz WiFi Cameras for Home Security setup.
4. Operating Instructions
4.1 Live View and Two-Way Audio
Access the live feed of your camera through the O-KAM Pro app. Utilize the two-way audio feature to communicate with individuals near the camera, such as delivery personnel or family members.
Image: A woman using the O-KAM Pro app to speak through the camera to a child, demonstrating two-way talk.
4.2 AI Motion Detection and Alerts
The camera's AI motion detection can identify human and animal movement, sending instant alerts to your smartphone. Customize detection zones and sensitivity settings within the app to minimize false alarms. The camera can also activate spotlights and a 120dB siren upon detecting intruders.
Image: ELECCTV BW4 camera detecting a person who has fallen, with an audible alarm, spotlight, and message notification shown on a smartphone screen.
Video: Demonstration of full color night vision and intruder deterrence.
4.3 Color Night Vision
Benefit from full-color night vision, providing clear and detailed images even in complete darkness, surpassing traditional black and white night vision.
Image: ELECCTV BW4 camera capturing a deer at night with full color night vision, displayed on a smartphone screen.
4.4 Bird Recognition Feature
The camera supports an optional bird recognition feature, which can identify different bird species when the related cloud/AI service is activated (subscription required).
Video: Demonstration of the bird identification feature for W1 camera.
4.5 Alexa Integration
Integrate your ELECCTV BW4 camera with Amazon Alexa for convenient voice control and monitoring. Use commands like "Alexa, show me the courtyard" to view your camera feed on compatible Alexa devices.
Image: An Amazon Echo Show displaying the live feed from an ELECCTV BW4 camera, demonstrating Alexa integration.
Video: Highlighting family safety and security features.
5. Maintenance
5.1 Battery Management
The camera's 5200mAh rechargeable battery can last 1-3 months on a full charge, depending on usage and power-saving settings in the app. Recharge the camera when the battery level is low using the provided USB cable.
5.2 Weather Resistance
The ELECCTV BW4 camera is IP65 certified, making it resistant to dust and water splashes. This ensures reliable operation in various outdoor weather conditions, including rain and snow.

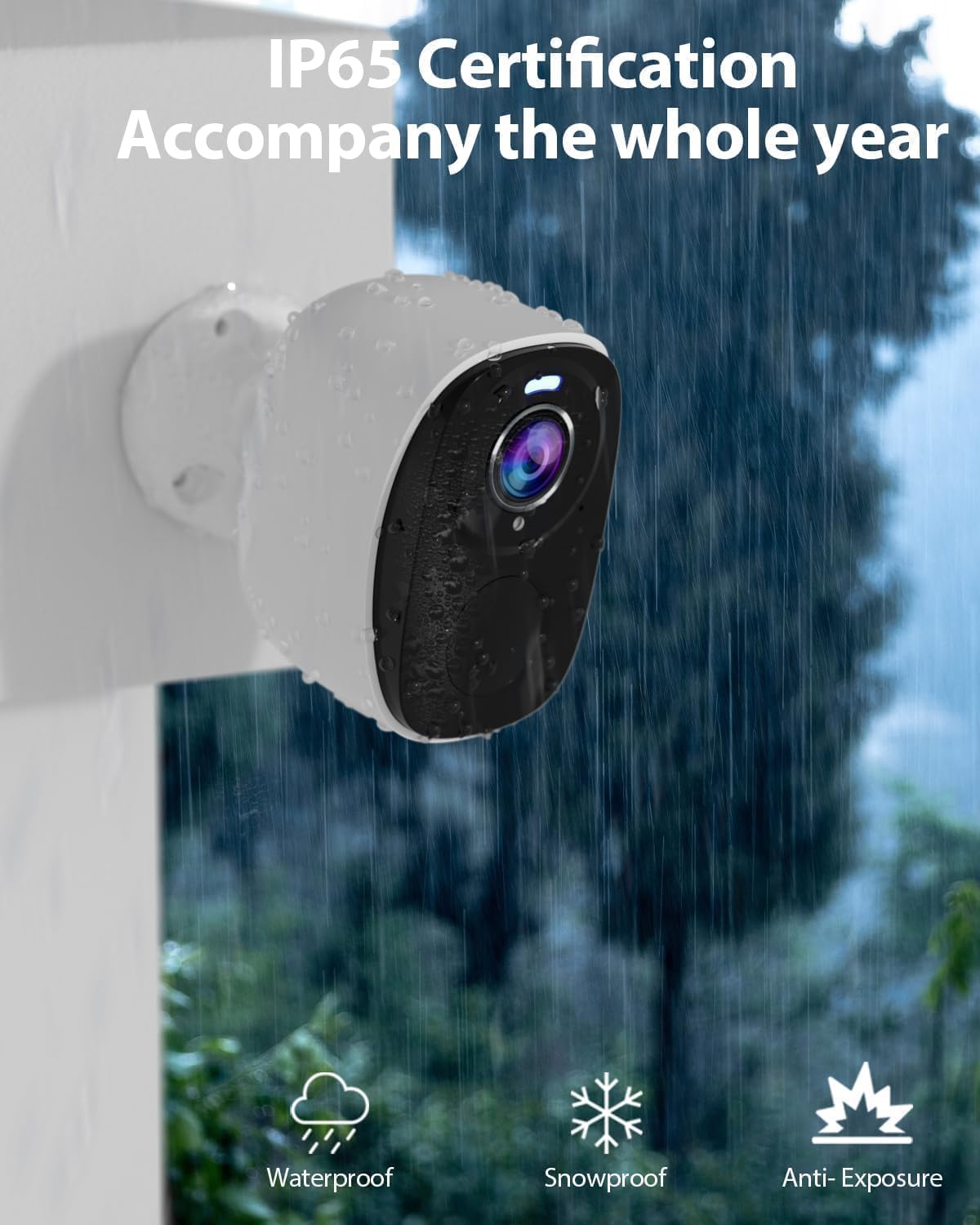

Image: ELECCTV BW4 camera mounted outdoors in the rain, illustrating its IP65 waterproof certification.
5.3 Storage Options
The camera supports local storage via a Micro SD card (up to 256GB, not included) and optional cloud storage (subscription required). Regularly check your storage to ensure continuous recording. Manage and review recordings through the O-KAM Pro app.
Image: ELECCTV BW4 camera with icons for safe cloud storage and Micro SD card storage.
6. Troubleshooting
- Camera Not Connecting to WiFi: Ensure your WiFi router is within range and broadcasting a strong signal. Verify that you have selected the correct 2.4GHz or 5GHz network during setup. Restart both the camera and your router.
- Frequent False Alarms: Adjust the AI motion detection sensitivity settings in the O-KAM Pro app. Define specific detection zones to monitor only critical areas and reduce triggers from irrelevant movements.
- Poor Video Quality: Check your internet connection speed. Ensure the camera lens is clean and free from obstructions. For optimal 2K QHD resolution, a stable and fast network connection is recommended.
- Battery Drains Quickly: Reduce the frequency of motion detection events and live view access. Ensure the camera is placed in an area with adequate light if using color night vision frequently, as this consumes more power. Consider pairing with a compatible solar panel for continuous charging.
- SD Card Not Detected: Ensure the Micro SD card is correctly inserted. Format the SD card through the app if it's a new card or if issues persist. Check if the card is damaged or incompatible.
- Delayed Notifications: Check your phone's notification settings for the O-KAM Pro app to ensure they are enabled. Verify your internet connection for any latency issues.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | ELECCTV |
| Model Name | BW4 |
| Connectivity Technology | Wireless (2.4/5Ghz Wi-Fi) |
| Video Capture Resolution | 2K QHD (2304*1297) |
| Special Features | 2-Way Audio, Color Night Vision, Local Recording, Built-In Light, Motion Sensor, Portable |
| Indoor/Outdoor Usage | Indoor/Outdoor |
| Water Resistance Level | IP65 Waterproof |
| Power Source | Battery Powered (5200mAh) |
| Battery Life | 1-3 months (typical), up to 180 days standby |
| Viewing Angle | 130 Degrees |
| Night Vision Range | 33 Feet |
| Compatible Devices | Alexa & O-KAM Pro APP |
| Storage Options | Micro SD Card (up to 256GB), Cloud Storage (optional subscription) |
8. Warranty and Support
8.1 Manufacturer Warranty
The ELECCTV BW4 camera is equipped with a 5200mAh battery, designed to provide approximately 36,000 seconds of motion-triggered video recording. This translates to responding to about 60 daily triggers, recording 10-second videos each time. It can maintain standby for up to 180 days under ideal conditions. For extended operation, it can be paired with a 3W solar panel, charging at approximately 140mAh per hour. Actual performance may vary based on real-world usage scenarios.
8.2 Customer Support
For technical assistance, troubleshooting, or warranty claims, please refer to the contact information provided in your Quick Start Guide or visit the official ELECCTV support website. Ensure you have your product model and purchase details ready when contacting support.
