Soaids B0FFZGZGKG

Soaids Raised Toilet Seat Risers Instruction Manual

Model: B0FFZGZGKG

Introduction and Product Overview

The Soaids Raised Toilet Seat Riser is designed to provide enhanced comfort, stability, and safety for seniors, individuals with limited mobility, or those recovering from surgery. This product features 3-level height adjustment and flip-up armrests to assist with sitting and standing, promoting independence in daily living.

Key features include:

  • 3-Level Height Adjustable: Customize the seat height for optimal comfort and ease of use. The front and rear can be adjusted independently, allowing for a slight forward tilt to aid in standing.
  • Flip-Up Armrests: Provides stable support for side transfers and assistance when sitting or standing. Armrests lock securely during use and can be flipped up or removed when not needed.
  • Secure Fit: An adjustable rear locking mechanism ensures the riser stays firmly in place on both standard and elongated toilet bowls (15.5"–19" depth).
  • Easy Installation & Cleaning: Tool-free installation and smooth, waterproof surfaces make setup and maintenance simple.
  • Sturdy & Durable: Constructed from robust materials to support users up to 300 lbs, ensuring long-term reliability.

Safety Information

Please read all safety instructions before installation and use.

  • Always ensure all parts are securely installed before each use.
  • Do not exceed the maximum weight limit of 300 lbs (136 kg).
  • Do not stand or step on the toilet seat riser.
  • If assistance is needed, ensure a caregiver is nearby during use.
  • Warning: Never set the front support bar higher than the rear. This could increase the risk of falling. For easier standing, set the front support bar slightly lower for a forward tilt.

What's in the Box

Carefully unpack all components and ensure you have the following items:

  • Main Seat Riser Unit
  • Rear Locking Mechanism
  • Armrests (Left and Right)
  • Front Support Bars (2 pieces)
  • Rear Support Bars (2 pieces)
  • Bolts (2 pieces)
  • Plastic Nuts (2 pieces)
  • Locking Caps (2 pieces)
Components of the Soaids Raised Toilet Seat Riser laid out on a floor.
Image: All components included in the package for the Soaids Raised Toilet Seat Riser.

Setup and Installation

Follow these steps for tool-free installation:

  1. Install Front & Rear Support Bars:

    Flip the main seat riser unit upside down. Insert the two front support bars into the designated front slots. Ensure the wide end of the rear support bars is facing up, then attach the rear locking mechanism to the rear bars and insert both rear bars into the side slots of the riser unit.

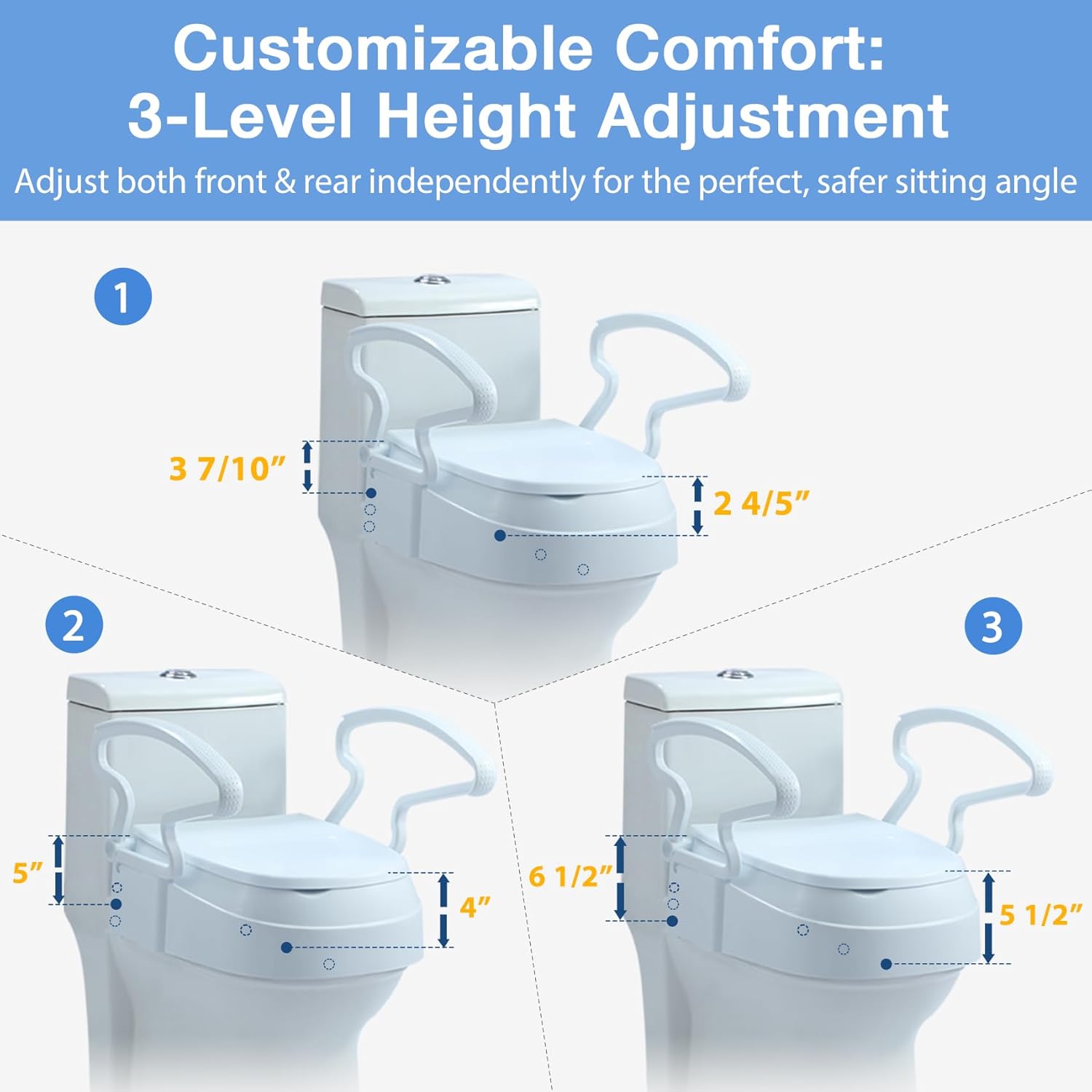

    Diagram showing three different height adjustments for the toilet seat riser.
    Image: Illustration of the 3-level height adjustment options for the toilet seat riser.
  2. Attach the Armrests:

    Align the round hole under each armrest with the corresponding post on the riser. Ensure the guidelines on both sides are aligned, then push down firmly until the armrests are securely in place. To remove, flip them up, align the guide marks, and pull straight off.

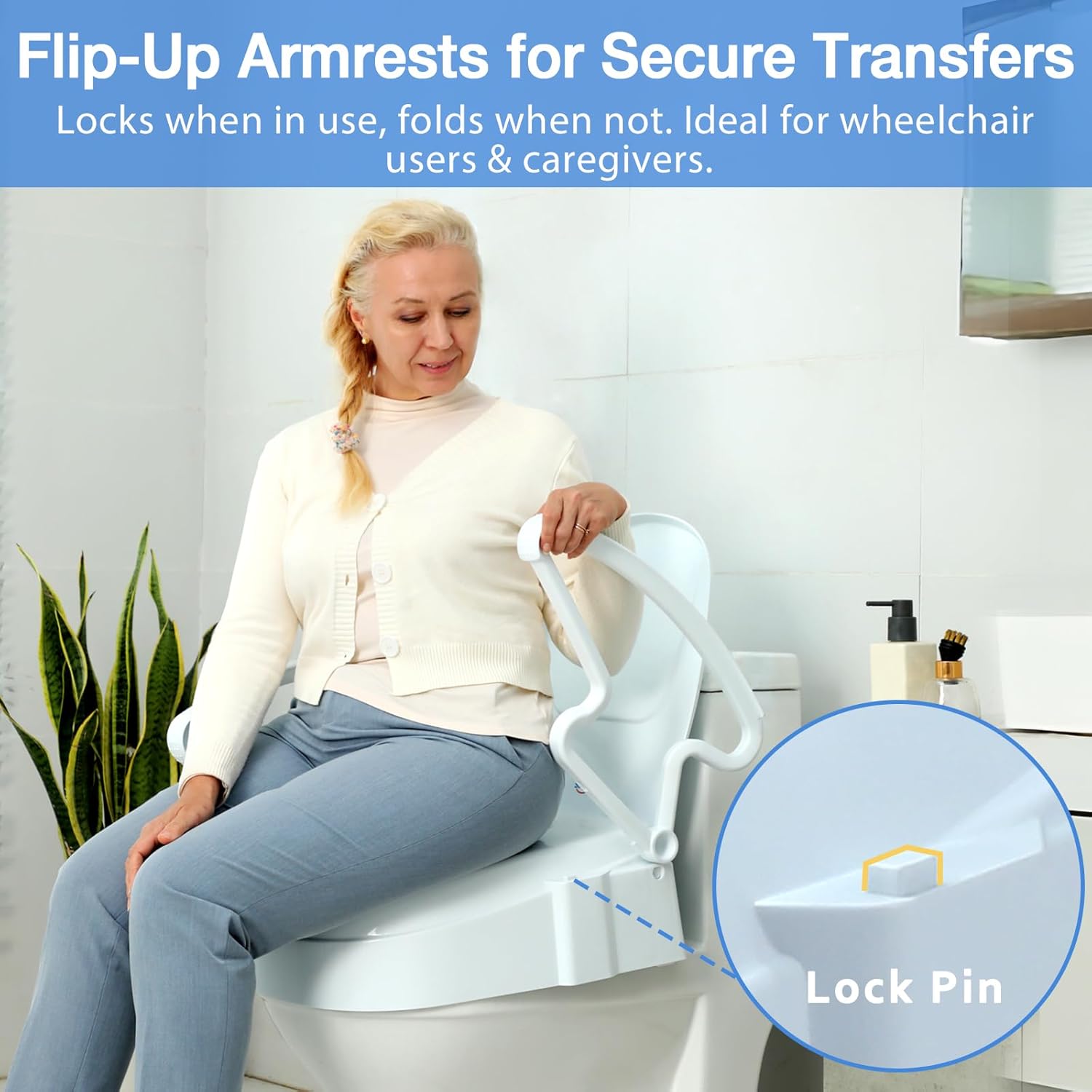

    A person demonstrating the flip-up armrests on the toilet seat riser.
    Image: The flip-up armrests provide secure support and can be easily moved out of the way.
  3. Mount on the Toilet:

    Center the assembled seat riser on your toilet bowl. For standard toilets (15.5"–17" depth), ensure the narrow end of the locking mechanism faces forward. For elongated toilets (17"–19" depth), the wide end faces forward. Insert the bolts through the toilet's mounting holes and secure them underneath with the plastic nuts and locking caps. Tighten until the seat is stable and does not move.

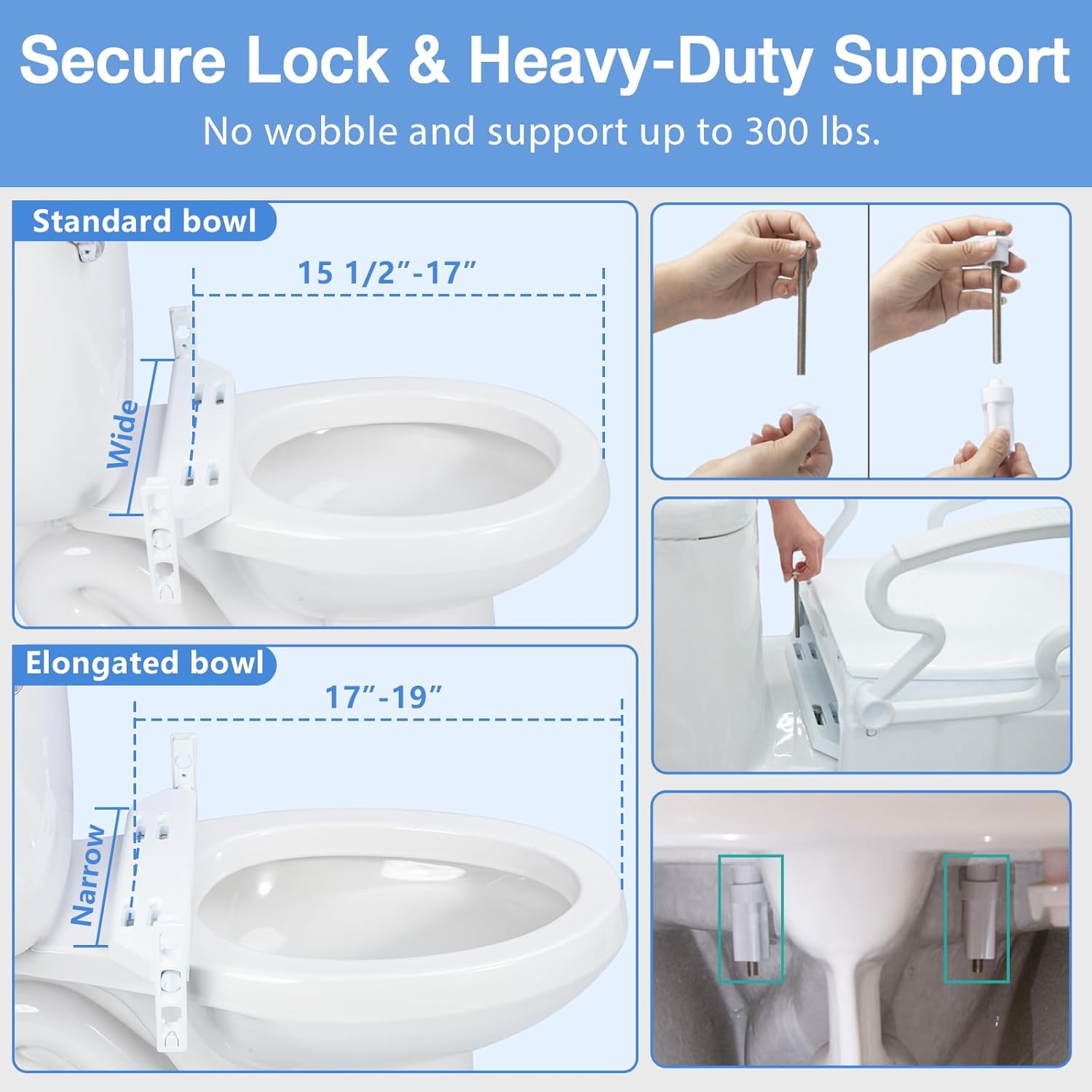

    Diagram showing how the secure locking mechanism fits both standard and elongated toilets.
    Image: The secure locking mechanism ensures a stable fit on various toilet bowl shapes and sizes.
    Diagram illustrating how to measure a toilet for compatibility with the raised seat.
    Image: Guide for measuring your toilet to ensure compatibility with the Soaids Raised Toilet Seat Riser.

Video Installation Guide

Video: This official video demonstrates the step-by-step installation process and usage of the Soaids Raised Toilet Seat for seniors.

Operating Instructions

Height Adjustment

The seat riser offers 3 levels of height adjustment for both the front and rear. To adjust the height:

  1. Remove the seat riser from the toilet.
  2. Flip the unit upside down.
  3. Press the buckles on the support bars and reposition them into the desired slots to achieve the preferred height.
  4. Re-install the seat riser onto the toilet, ensuring all bolts are tightened securely.

For easier standing, it is recommended to set the front support bars slightly lower than the rear, creating a forward tilt.

Using the Armrests

The armrests provide additional support. They can be:

  • Used for Support: Grip the armrests firmly when sitting down or standing up to maintain balance and reduce strain.
  • Flipped Up: For side transfers (e.g., from a wheelchair) or when not needed, the armrests can be flipped upwards.
  • Removed: If armrests are not desired, they can be completely removed by aligning the guide marks and pulling them straight off the posts.
A senior woman using the raised toilet seat with handles for support.
Image: A user demonstrating the use of the raised toilet seat with armrests for support.

Maintenance and Cleaning

Regular cleaning will ensure hygiene and prolong the life of your Soaids Raised Toilet Seat Riser.

  • The smooth, waterproof surfaces are designed for easy cleaning.
  • Wipe down the seat riser with a mild soap and water solution or a standard bathroom cleaner.
  • Avoid abrasive cleaners or harsh chemicals that could damage the plastic.
  • Ensure the unit is dry before re-use.
  • Periodically check all connections and bolts to ensure they remain tight and secure.
A hand cleaning the smooth, waterproof surface of the toilet seat riser.
Image: The smooth, waterproof surface of the riser allows for effortless cleaning.

Troubleshooting

If you encounter any issues with your Soaids Raised Toilet Seat Riser, please refer to the following common solutions:

  • Seat Wobbles: Ensure all bolts are fully tightened and the rear locking mechanism is correctly engaged. Recheck the installation steps to confirm proper assembly of the support bars.
  • Difficulty Adjusting Height: Make sure the seat riser is removed from the toilet before attempting to adjust the support bars. Ensure the buckles are fully pressed when repositioning the bars.
  • Armrests Not Secure: Verify that the armrests are pushed down firmly onto the posts and that the guidelines are aligned.

If the problem persists, please contact customer support.

Specifications

Model NumberB0FFZGZGKG
ColorWhite
Product Dimensions19"D x 20.8"W x 15.7"H
MaterialPP plastic
Item Weight12.87 pounds
Maximum Weight Capacity300 lbs
Toilet CompatibilityStandard and elongated toilet bowls with 15.5"–19" depth

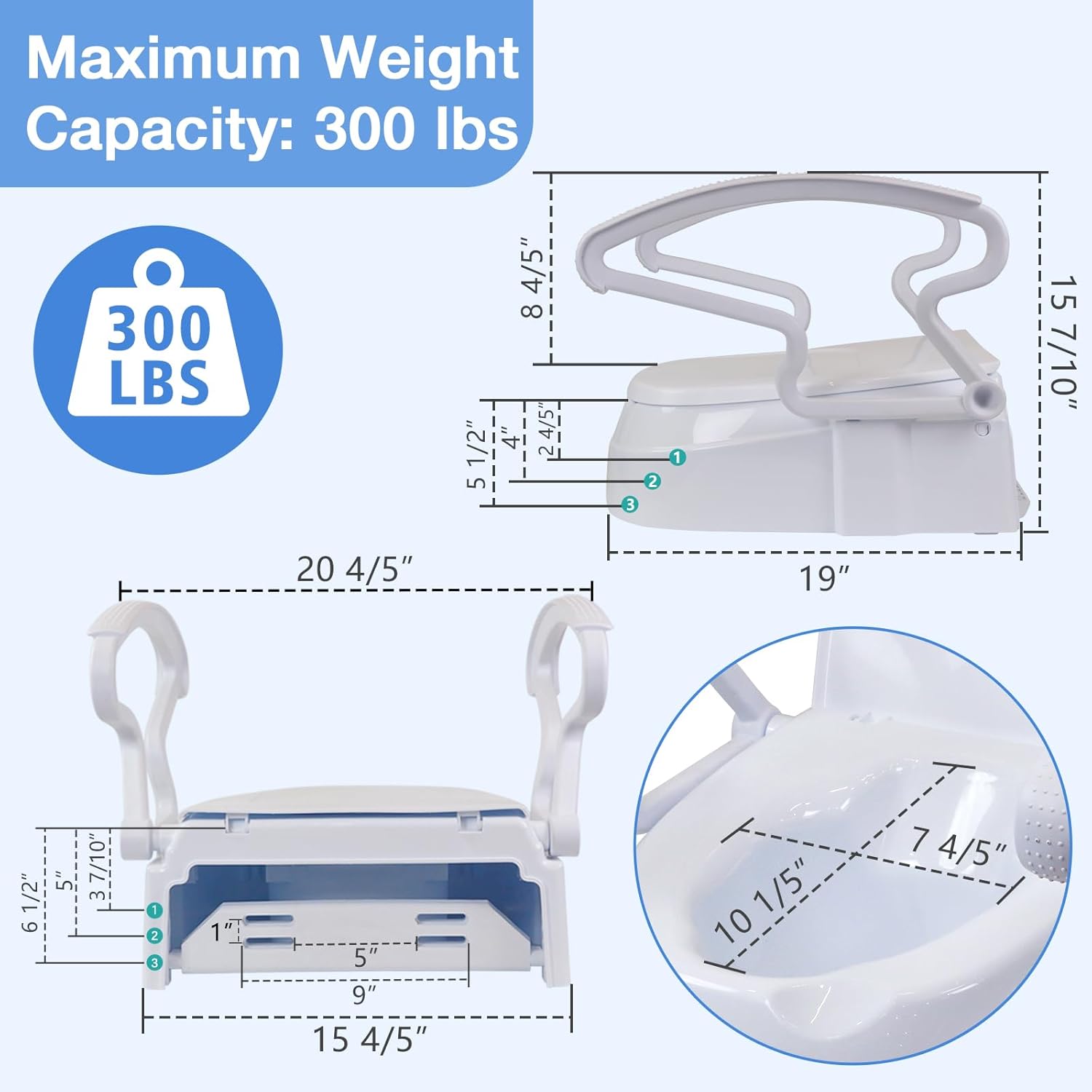

Detailed dimensions and maximum weight capacity of the Soaids Raised Toilet Seat Riser.
Image: Detailed product dimensions and weight capacity information.

Warranty Information

Soaids products are manufactured to high-quality standards. Specific warranty details, including coverage period and terms, are typically provided with your product at the time of purchase or can be obtained directly from the manufacturer's official website or customer service department. Please retain your proof of purchase for any warranty claims.

Customer Support

For further assistance, questions, or concerns regarding your Soaids Raised Toilet Seat Riser, please contact Soaids customer support through their official website or the retailer where the product was purchased.

Please have your model number (B0FFZGZGKG) and purchase information ready when contacting support.
