DUOYI DY221 Car Battery Tester User Manual

1. Introduction and Overview

The DUOYI DY221 is a professional 12V/24V digital automotive battery tester designed to accurately diagnose the health of lead-acid batteries, as well as the cranking and charging systems of various vehicles. Utilizing Kelvin 4-wire technology, it provides precise readings for Cold Cranking Amps (CCA) ranging from 100 to 2000. This tool is essential for identifying potential battery issues before they lead to vehicle breakdowns, offering a user-friendly interface for both DIY enthusiasts and professional mechanics.

2. Safety Information

Always prioritize safety when working with automotive batteries. This device incorporates advanced safety features, but proper handling is crucial.

• Polar Reversal Protection: The DY221 is designed to prevent damage from incorrect polarity connections. If connected incorrectly, an alarm will sound, and a message will display.
• Over-Voltage Protection: Protects the device from excessive voltage inputs.
• Loose Lead Detection: Ensures accurate readings by detecting poor connections.
• General Safety Precautions:
  • Wear appropriate eye protection and gloves.
  • Ensure adequate ventilation when working with batteries.
  • Avoid creating sparks or open flames near batteries.
  • Refer to your vehicle's manual for specific battery safety guidelines.

The device meets IEC/EN61010-1 standards for safety and accuracy.

3. Product Features

• Professional 12V/24V Battery Diagnostics: Tests cranking/charging systems and CCA value (100-2000) for lead-acid batteries with Kelvin 4-wire technology.
• Advanced Safety & Accuracy: Features polar reversal/over-voltage protection and loose lead detection, ensuring precise readings per IEC/EN61010-1 standards.
• User-Friendly Operation: Large backlit LCD and touch-tone keys simplify testing. Stores last results for Battery/Cranking/Charging tests.
• Comprehensive Vehicle Analysis: Tests cranking voltage (>9.6V good), charging status (13.4-14.6V normal), and ripple voltage (<1200mV).
• Wide Compatibility: Supports various battery types (Regular Flooded, AGM Spiral, AGM Flat Plate, GEL, EFB) and standards (GB/SAE/JIS/DIN). Suitable for motorcycles, passenger cars, vans, trucks, RVs, boats, and heavy-duty equipment.

4. Package Contents

Verify that all items are present in your package:

• DUOYI DY221 Battery System Tester
• User Manual
• Integrated Battery Clamps (Red for Positive, Black for Negative)

5. Setup

Follow these steps to prepare your DUOYI DY221 for testing:

1. Connect the Clamps: Attach the red clamp to the positive (+) terminal of the battery and the black clamp to the negative (-) terminal. The tester will power on automatically.
2. Initial Settings: Use the navigation buttons (Up/Down arrows) to select your preferred language, battery type (e.g., Regular Flooded, AGM, GEL), and the Cold Cranking Amps (CCA) rating of your battery. Press 'ENTER' to confirm each selection.

6. Operating Instructions

The DUOYI DY221 offers three main testing functions: Battery Test, Cranking Test, and Charging Test.

6.1. Battery Test

This test assesses the overall health and charge level of your battery.

1. Ensure the clamps are correctly connected to the battery terminals.
2. From the main menu, select 'Battery Test' and press 'ENTER'.

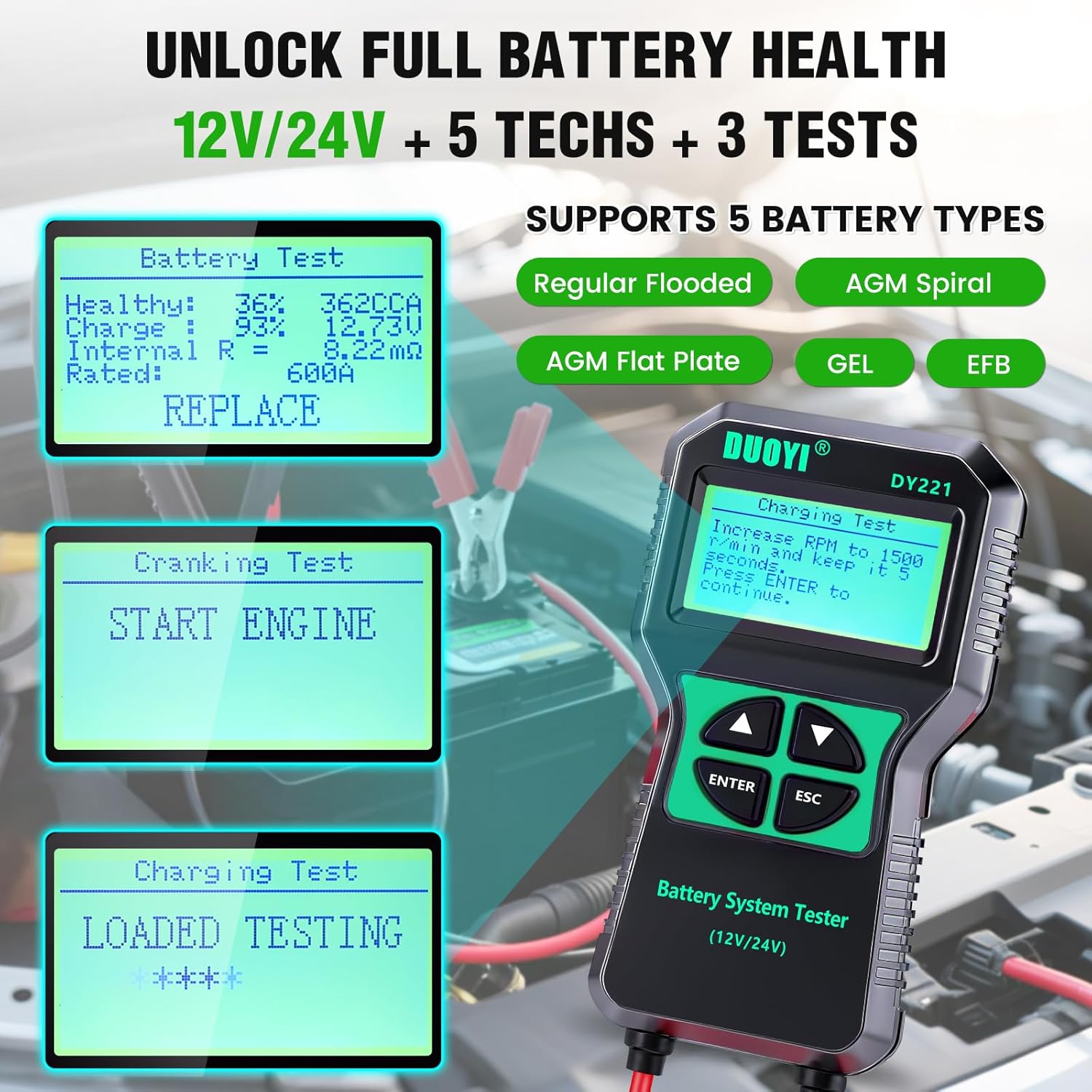

3. The tester will display results including Battery Health (%), Charge (%), Voltage (V), Internal Resistance (mΩ), and Rated CCA. A 'REPLACE' recommendation will appear if the battery is failing.

6.2. Cranking Test

This test evaluates the battery's ability to provide sufficient current to start the engine.

1. Ensure the clamps are correctly connected.
2. From the main menu, select 'Cranking Test' and press 'ENTER'.
3. The display will prompt you to 'START ENGINE'. Start the vehicle's engine.
4. The tester will measure the cranking voltage. A cranking voltage above 9.6V typically indicates a good cranking system.

6.3. Charging Test

This test checks the alternator's performance and the vehicle's charging system.

1. Ensure the clamps are correctly connected.
2. From the main menu, select 'Charging Test' and press 'ENTER'.
3. Start the vehicle's engine and increase the RPM to approximately 1500 for 5 seconds as prompted.
4. The tester will display the charging status, including voltage (normal range 13.4-14.6V) and ripple voltage (should be <1200mV).

7. Supported Battery Types

The DUOYI DY221 is compatible with a wide range of 12V and 24V lead-acid battery types:

• Regular Flooded
• AGM Spiral
• AGM Flat Plate
• GEL
• EFB

8. Specifications

9. Troubleshooting

If you encounter issues with your DUOYI DY221, refer to the following common problems and solutions:

• No Power: Ensure the battery clamps are securely connected to the correct terminals of a 12V or 24V battery. The device draws power directly from the battery.
• Incorrect Readings:
  • Verify that the battery type and CCA rating entered into the tester match your battery's specifications.
  • Check for clean and tight connections between the clamps and battery terminals. Corrosion or loose connections can affect accuracy.
  • Ensure the battery is not severely discharged (below 9V), as this may prevent accurate testing.
• Polarity Alarm: If the polarity alarm sounds, immediately disconnect the clamps and re-attach them correctly (red to positive, black to negative). The device's protection feature prevents damage.
• Tester Freezes/Unresponsive: Disconnect the tester from the battery, wait a few seconds, and then reconnect. If the issue persists, contact customer support.

10. Maintenance

Proper maintenance will ensure the longevity and accuracy of your DUOYI DY221 Battery Tester:

• Cleaning: Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Keep the display screen clean for clear readability.
• Storage: Store the tester in a cool, dry place away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case when not in use.
• Cable Inspection: Regularly inspect the battery clamps and cables for any signs of damage, fraying, or corrosion. Replace if necessary to maintain safety and performance.

11. Warranty and Support

For warranty information, technical assistance, or any questions regarding your DUOYI DY221 Car Battery Tester, please refer to the warranty card included with your product or contact DUOYI customer support through their official channels. Please have your product model number (DY221) and purchase details ready when contacting support.
