OOTD T10 Electric Scooter User Manual

1. Introduction

The OOTD T10 is an advanced electric scooter designed for adults, offering a powerful and versatile solution for urban commuting and off-road adventures. This model combines cutting-edge technology with robust construction to redefine your riding experience. It features a 500W motor (900W peak), a 48V 13.5Ah lithium-ion battery, 11-inch semi-all-terrain tires, and dual suspension for a smooth and comfortable ride.

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your OOTD T10 Electric Scooter. Please read it thoroughly before first use.

Figure 1.1: The OOTD T10 Electric Scooter, showcasing its sleek design and robust build.

2. Safety Information

Your safety is paramount. Always adhere to the following guidelines to prevent injury or damage to the scooter.

• Wear Protective Gear: Always wear a helmet, knee pads, elbow pads, and appropriate footwear when riding.
• Check Before Ride: Before each use, inspect the brakes, tires (for pressure and wear), and ensure all bolts and fasteners are tight.
• Observe Local Regulations: Be aware of and comply with all local laws and regulations regarding electric scooter use, including speed limits and where you can ride.
• Avoid Hazardous Conditions: Do not ride in heavy rain, on icy surfaces, or through deep puddles. The scooter has an IP54 water resistance rating, but it is not fully waterproof.
• Maintain Control: Always keep both hands on the handlebars. Avoid sudden turns or maneuvers at high speeds.
• Weight Limit: Do not exceed the maximum load capacity of 150 kg (330 lbs).
• Age Restriction: This scooter is designed for adults. Ensure riders are of appropriate age and maturity.
• Visibility: Utilize the scooter's LED headlights and taillights, especially when riding at dusk or night. Consider wearing reflective clothing.

3. Package Contents

Upon opening the package, verify that all the following items are included:

• 1 x OOTD T10 Electric Scooter
• 1 x 48V 13.5Ah Lithium-ion Battery
• 1 x Battery Charger
• 1 x User Manual (this document)
• 1 x Installation Tool Kit
• 1 x Key for Mounting Rod (if applicable)

If any items are missing or damaged, please contact customer support immediately.

4. Setup and Assembly

The OOTD T10 Electric Scooter comes 95% pre-assembled. Follow these steps to complete the assembly and prepare for your first ride:

1. Unpack the Scooter: Carefully remove the scooter and all components from the packaging.
2. Unfold the Stem: Lift the handlebar stem until it locks into the upright position. Ensure the folding mechanism is securely latched.
3. Attach Handlebars: If the handlebars are detached, slide them onto the stem and secure them with the provided bolts and tools. Ensure all cables are properly routed and not pinched.
4. Check Connections: Verify that all electrical connections are secure.
5. Initial Charge: Before first use, fully charge the battery. Connect the charger to the scooter's charging port and then to a power outlet. The charging indicator on the charger will change color (e.g., red to green) when fully charged. This typically takes 4-5 hours.
6. Tire Pressure: Check the tire pressure. The 11-inch semi-all-terrain tires should be inflated to the recommended PSI (refer to the tire sidewall or specifications section).

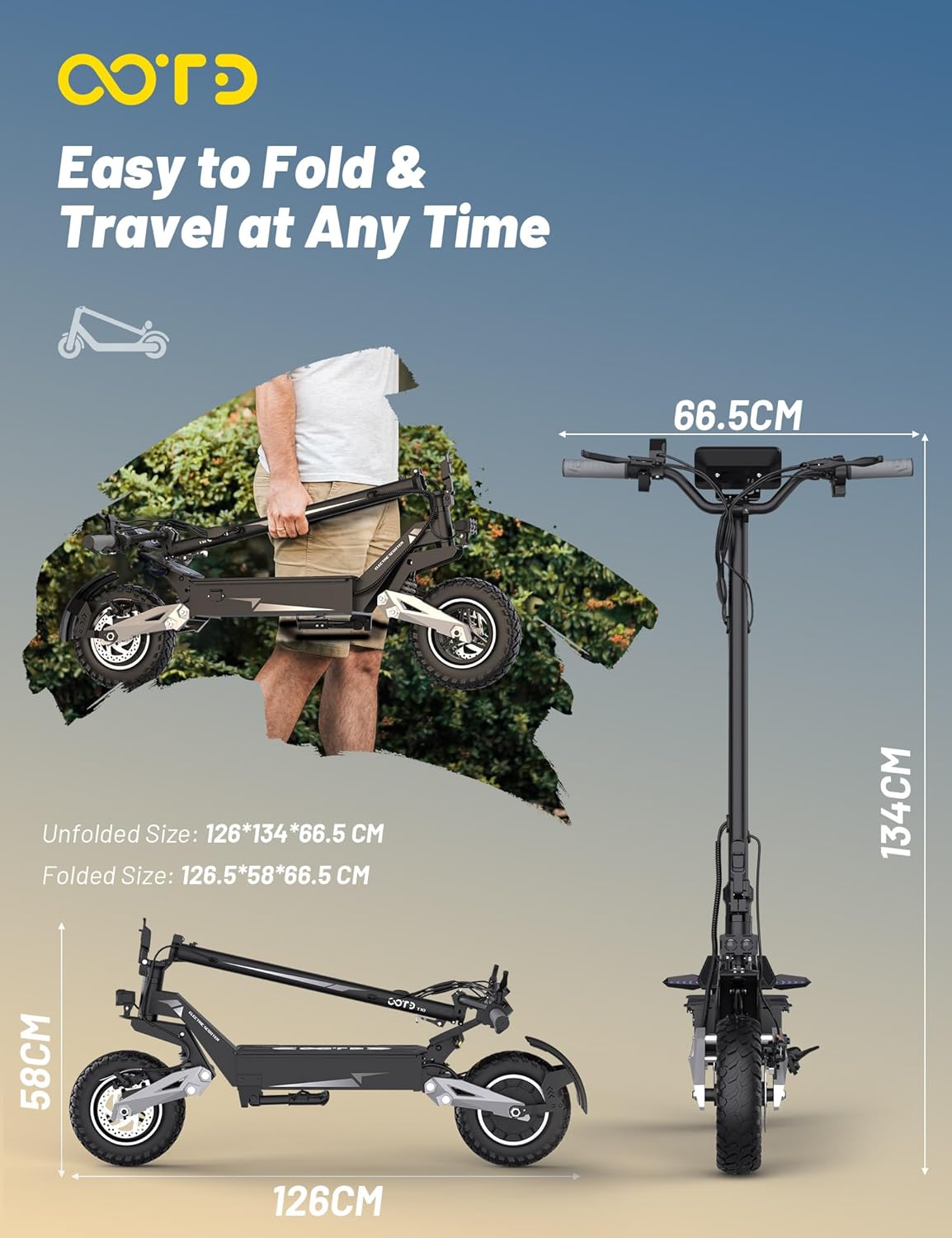

Figure 4.1: The scooter's folding mechanism, illustrating its compact size for transport and storage.

5. Operating Instructions

Familiarize yourself with the controls and functions of your OOTD T10 Electric Scooter.

5.1 Power On/Off

• To turn on the scooter, press and hold the power button on the LCD display for a few seconds.
• To turn off the scooter, press and hold the power button again until the display shuts off.

5.2 Riding Modes

The OOTD T10 features 3 speed modes to adapt to your riding preferences and conditions:

• Eco Mode: For maximum range and gentle acceleration. Ideal for beginners or crowded areas.
• Low Mode: A balanced mode offering good speed and range.
• High Mode: For maximum speed and power (up to 25 km/h, with a potential maximum of 55 km/h in specific conditions). Use with caution.

To switch between modes, short press the mode button on the display.

5.3 Acceleration and Braking

• Acceleration: Gently press the throttle lever to accelerate. Start with a kick-off to gain initial momentum.
• Braking: The scooter is equipped with front and rear disc brakes. Squeeze the brake levers on the handlebars to slow down or stop. Apply both brakes simultaneously for optimal stopping power.

5.4 LCD Display

The large LED display provides real-time information:

• Speed Display: Shows current riding speed.
• Power Display: Indicates remaining battery level.
• Gear Display: Shows the current riding mode (Eco, Low, High).
• Total Mileage Display: Tracks the total distance traveled.

Figure 5.1: The intuitive large LED display for monitoring ride data.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your OOTD T10 Electric Scooter.

• Cleaning: Clean the scooter regularly with a damp cloth. Do not use high-pressure water jets or corrosive cleaners. Ensure the charging port is dry before charging.
• Tire Care: Regularly check tire pressure and tread wear. Replace tires if they are significantly worn or damaged.
• Brake System: Periodically inspect the brake pads and discs for wear. Adjust brake tension if necessary. If braking performance degrades, have the system serviced by a qualified technician.
• Battery Care:
  • Charge the battery fully before first use and after each ride.
  • Do not allow the battery to fully discharge for extended periods.
  • Store the scooter in a cool, dry place when not in use, and charge the battery at least once every month if stored for long periods.
  • Only use the original charger provided with the scooter.
• Fasteners: Check all screws, bolts, and quick-release mechanisms regularly to ensure they are tight and secure.
• Suspension: Inspect the front and rear shock absorbers for any signs of damage or leaks.

Figure 6.1: The high-capacity lithium-ion battery, providing long range and fast charging.

7. Troubleshooting

This section addresses common issues you might encounter with your OOTD T10 Electric Scooter.

For issues not listed here or if solutions do not resolve the problem, please contact OOTD customer support.

8. Specifications

Detailed technical specifications for the OOTD T10 Electric Scooter:

Figure 8.1: Key performance metrics of the OOTD T10 scooter.

Figure 8.2: Illustration of the powerful 500W motor and its climbing ability.

Figure 8.3: Detail of the 11-inch semi-all-terrain tires designed for stability and grip.

9. Warranty and Support

OOTD is committed to providing high-quality products and excellent customer service.

9.1 Warranty Information

Your OOTD T10 Electric Scooter has undergone rigorous testing to ensure its quality. OOTD offers a 12-month warranty on various parts. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and material faults under normal use.

9.2 Customer Support

If you have any questions regarding the use, components, assembly, or require assistance with your scooter, please do not hesitate to contact us via email. Our dedicated after-sales service team is ready to assist you.

Contact Email: [Insert Manufacturer's Support Email Here, if available, otherwise leave as placeholder or omit]

We strive to ensure a worry-free experience from start to finish.
